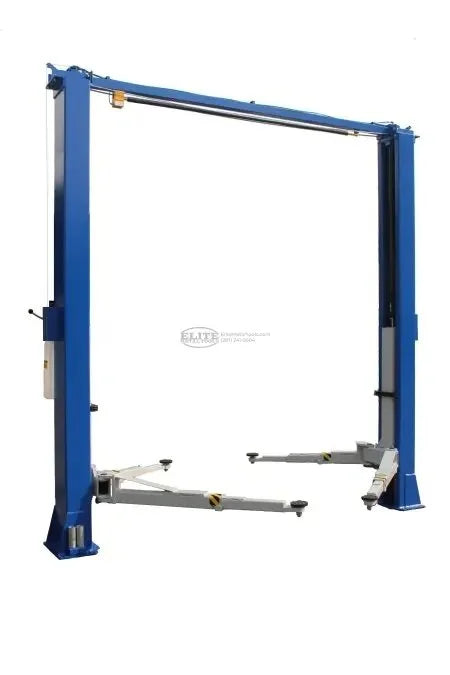

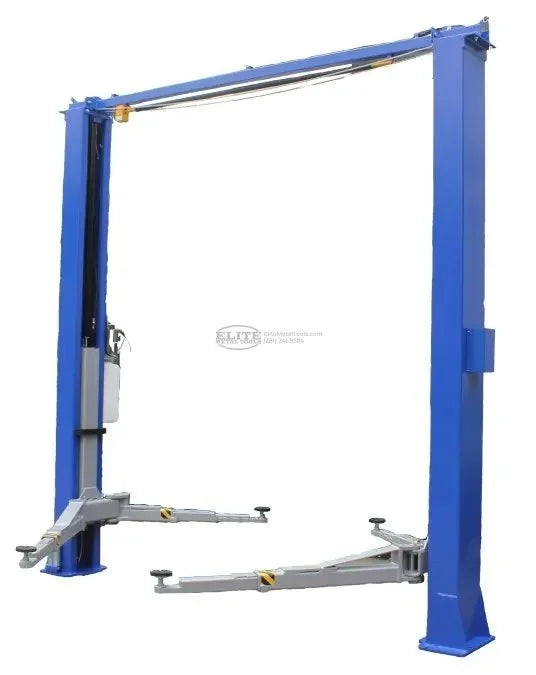

Tuxedo 11,000 lbs Two Post Clear Floor Direct Drives Bi-Symmetric Lift TP11KC-DX
PRODUCT DETAILS

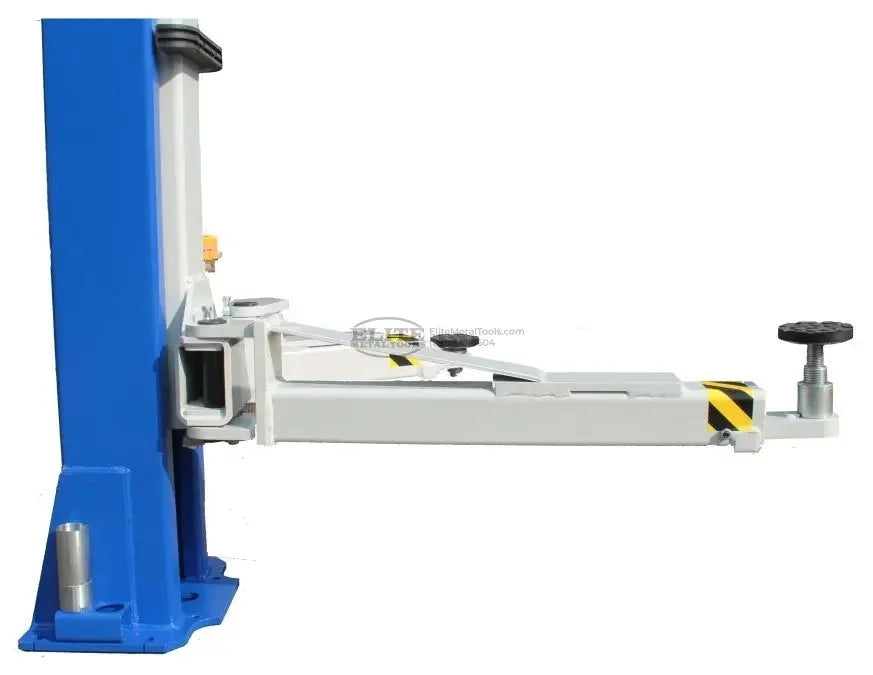

11,000 lbs Capacity Bi-Symmetric arm design Rubber Door Guards 3 Stage Front Arms Single Piece Column Direct Drive pull Cylinders Single Point Lock Release Heavy Duty Arm Restraint System Spin Up Low Profile Lift Pads Stackable Adapters Included External hose guards Specifications Lift Model: TP11KC-DX Capacity: 11,000 lbs. Height Overall: 144″ Width Overall w/ Power Unit: 145-1/2″ Max Lift Height: 71″ Width Between Columns: 116″ Min. Pad Height: 4″ Drive Thru Clearance: 104″ Lifting Speed: 50S Asymmetric / Symmetric: Asymmetric/Symmetric Clear Floor / Floor Plate: Clear Floor Short Arm Reach – min/max: 23″ – 45″ Long Arm Reach – min/max: 41″ – 57″ Narrow Bay Setting: NA Max Load Per Arm: 2,750 lbs. Ship Weight: 1,705 lbs Power: 220V – 20 AMP – 1 PH
