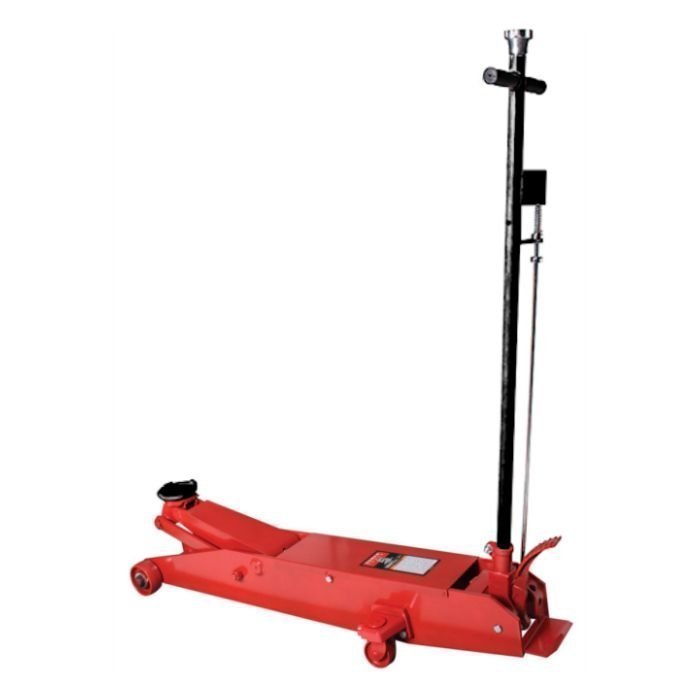

Sunex Heavy-Duty 5 Ton Floor Jack
PRODUCT DETAILS
The Sunex Tools Heavy-Duty 5 Ton Floor Jack is a heavy duty service jack designed for continuous, dependable performance in fleet truck shops, farm equipment dealers, bus company garages and commercial vehicle service bays. The wiper seals protect the hydraulic system from dirt and grime while the flash-chromed ram and pump piston inhibit rust. Full swivel ball bearing caster wheels with zerk grease fitting. Front wheels include roller bearings. Rear kick plate helps turn jack when in tight places.
Features
- 5 Ton 10,000 lbs. Capacity
- Heavy Gauge Steel Frame
- Uniweld Construction Hydraulic Power Unit
- Wiper Seals Protect Hydraulic System
- Flash-Chromed Rust Protected Ram and Piston Pump
- Roller Bearing Front Wheels and Ball Bearing Mounted Rear Caster Wheels
- Foot Pump Pedal for Quick Lifting
- Locking Lever Handle with 3 Positions
- Release Knob Independent of Locking Lever
- Safety Bypass and Overload Protection
- Convenient Rear Kick Plate for Tight Quarters
Specifications
- Capacity: 5 Tons 10,000 lbs.
- Min Low Height: 5″
- Max Lift Height: 22″
- Travel: 17″
- Number of Pistons: 1
- Number of Pumps Under Load: 6 Pumps to Load
- Saddle Diameter: 5.75″
- Front Caster Dimension: 2.5″
- Release Type: Handle
- Handle Length: 45.75″
- Jack Frame Material: Steel
- Saddle Pad Material: Steel
- Front Caster Material: Steel
- Rear Caster Material: Steel
- Overall Width: 17″
- Overall Length: 55.5″
- Overall Height At Pump: 9.5″
- Dimensions: 61.8″ x 16.14″ x 9.25″
- Shipping Weight: 231.48 lbs.
- Net Weight: 209.44 lbs.
- Warranty: 3 Year
