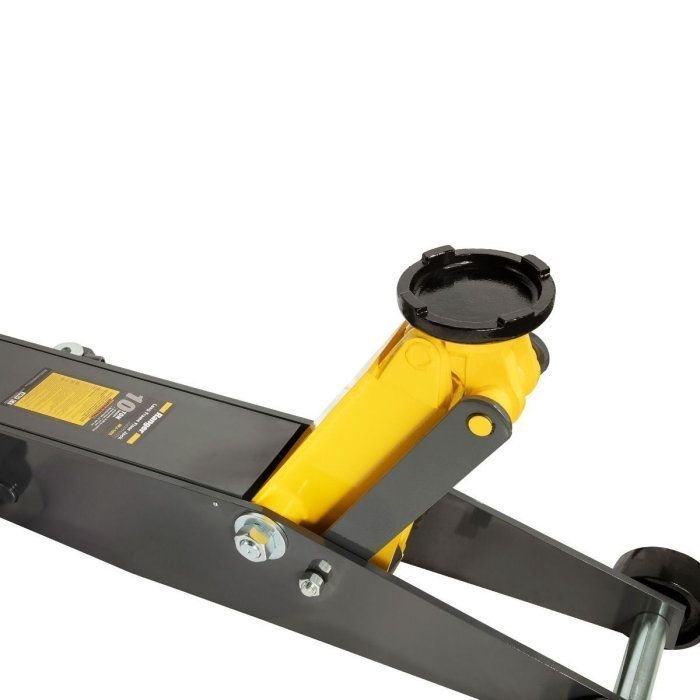

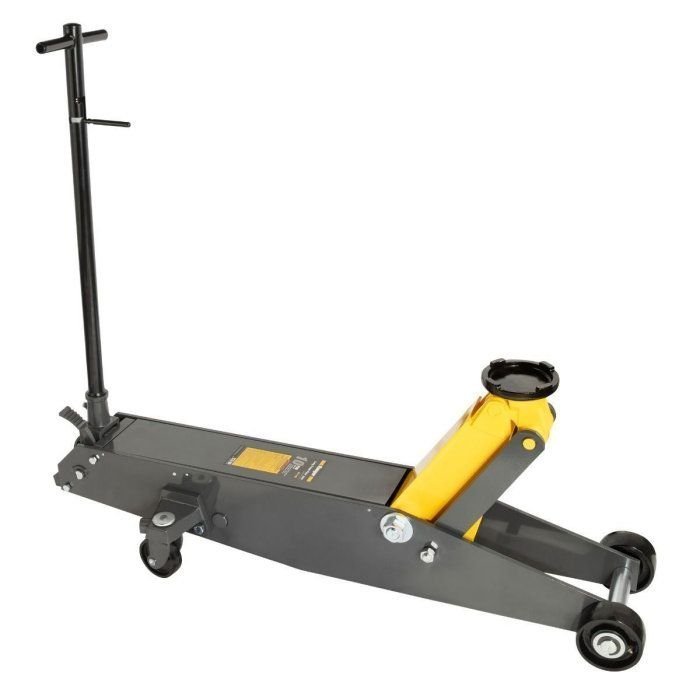

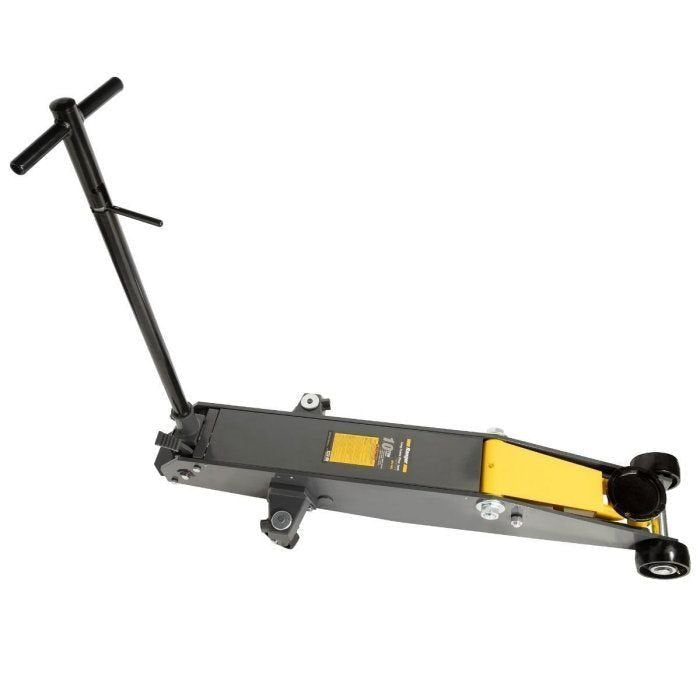

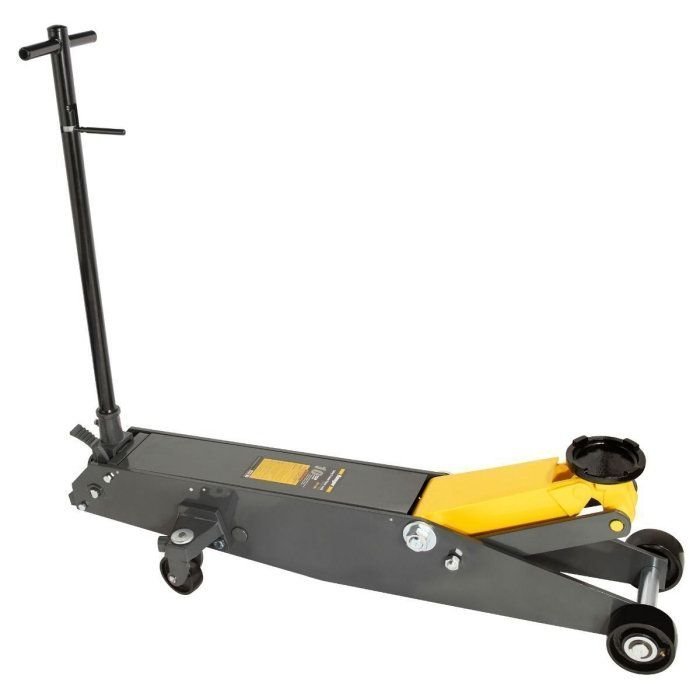

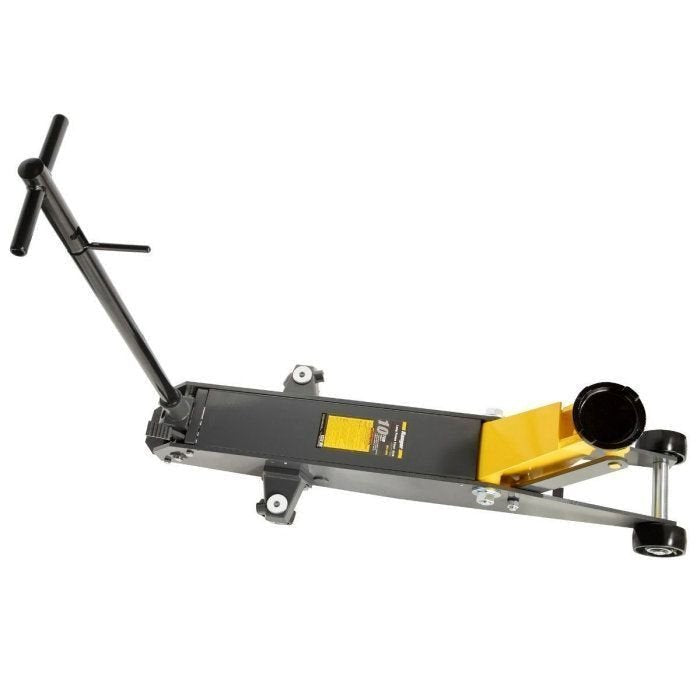

Ranger 10-Ton Long-Frame Garage Floor Jack
PRODUCT DETAILS
The Ranger 10-Ton Long-Frame Garage Floor Jack is designed especially for extreme heavy-duty lifting applications up to 20,000 lbs. It safely lifts massive vehicles 23″ in the air, offering incredible space to work without strain or concern for personal safety, as well as the safety of your vehicle. It is perfect for servicing truck fleets, buses, farm equipment, heavy construction equipment and other vehicles that require access to very low areas.
Features
- 20,000 lbs. Lifting Capacity
- Hydraulic Cylinder Ram Is Alloy-Plated For Longevity
- Ball Bearing Swivel Casters For Easy Mobility
- Designed For Use On Heavy Trucks, Buses, and Other Heavy Vehicles
- Hydraulic System Features Safety Overload Valve To Prevent Overloading
- Pump Handle Can Be Locked In Three Different Towing Positions
- Features Quick Lift Foot Pedal Control TO Raise Saddle Swiftly
- Heavy Gauge Steel Construction For Maximum Durability
- Double-Sealed Hydraulics Prevents Contamination For Longer Service Life
Specifications
- Lifting Capacity: 20,000 lbs. (9,072 kg)
- Lowered Pad Height: 7″ (176 mm)
- Raised Height: 23″ (584 mm)
- Front Overall Width: 13″ (330 mm)
- Rear Overall Width: 18″ (457 mm)
- Chassis Length: 61″ (1,549 mm)
- Shipping Weight: 479 lbs. (217 kg)
- Shipping Dimensions: 64″ x 20″ x 12″ (1,626 x 508 x 305 mm)
- Warranty: (3) Year Limited
