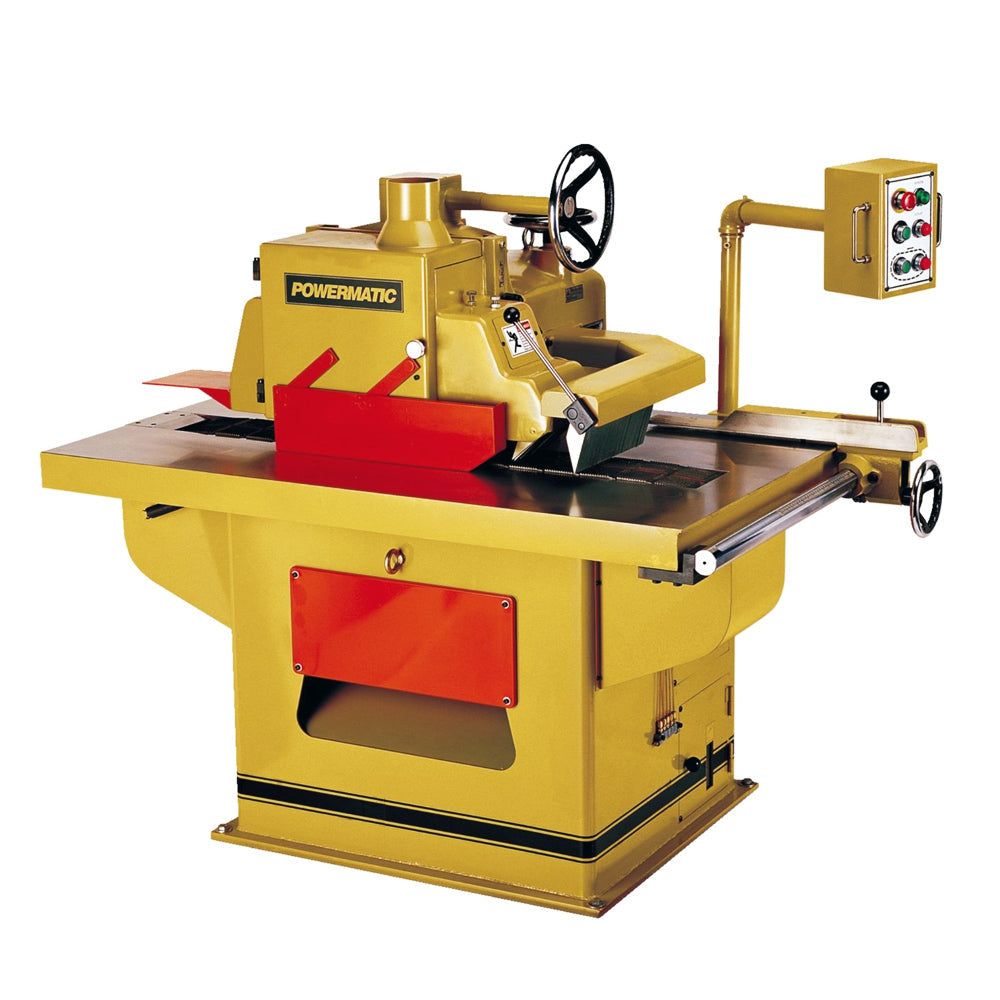

Powermatic SLR12 15-Hp 230/460V Heavy Duty Cast Iron Straight Line Rip Saw
PRODUCT DETAILS
Features
- Full cast iron construction for rock-solid operation
- 15HP Main Motor, 2HP Feed Motor for large production capacity
- Auto-oiler with shut off ensures long conveyor chain life

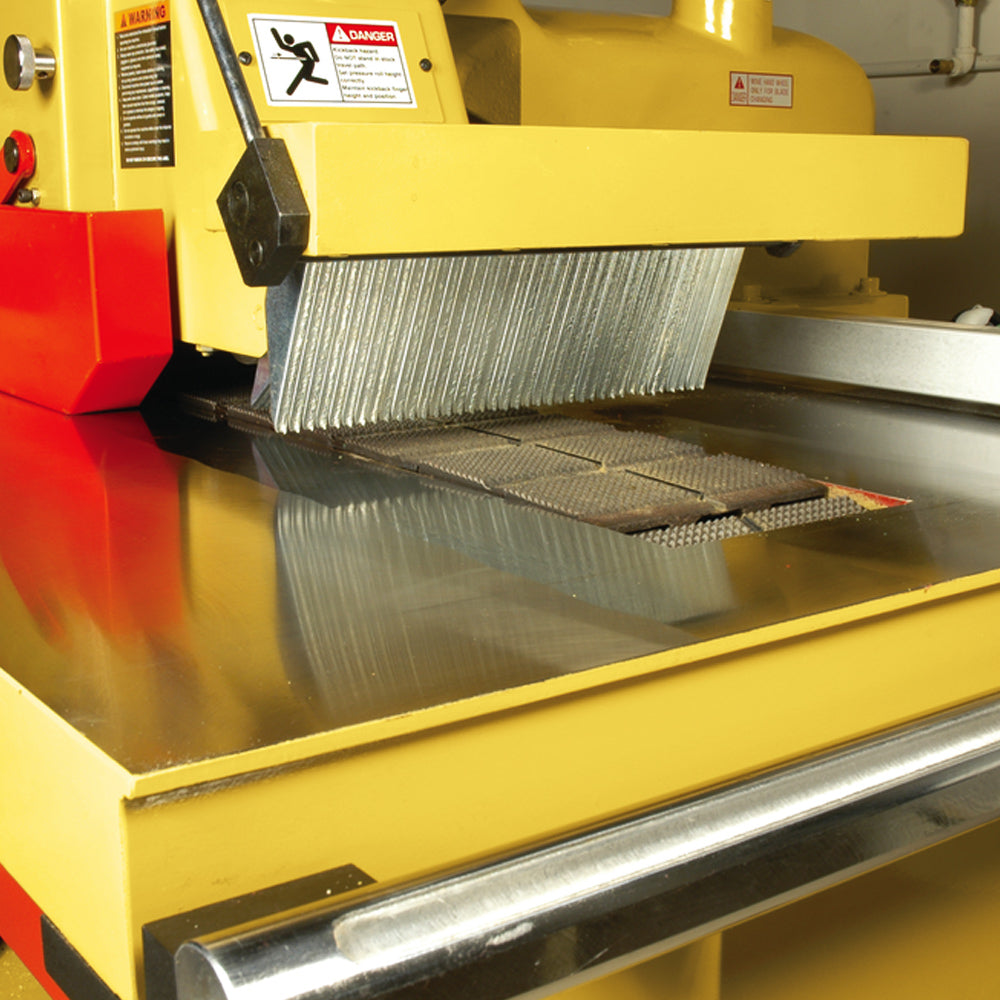

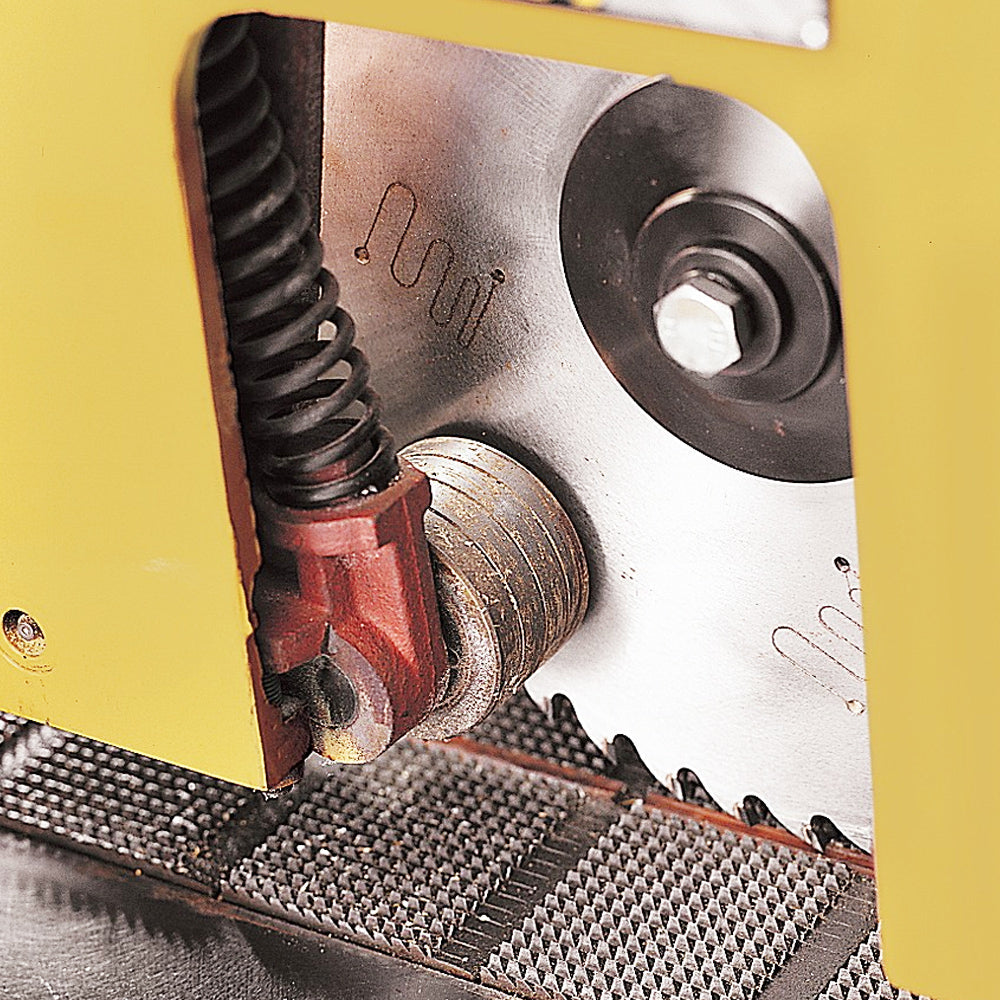

- Seven pressure rollers with dual anti-kickback devices help prevent stock discharge
- Variable feed speeds to accommodate different type stock
- Large 18" rip and 3-7/8" depth of cut capacities for virtually any job

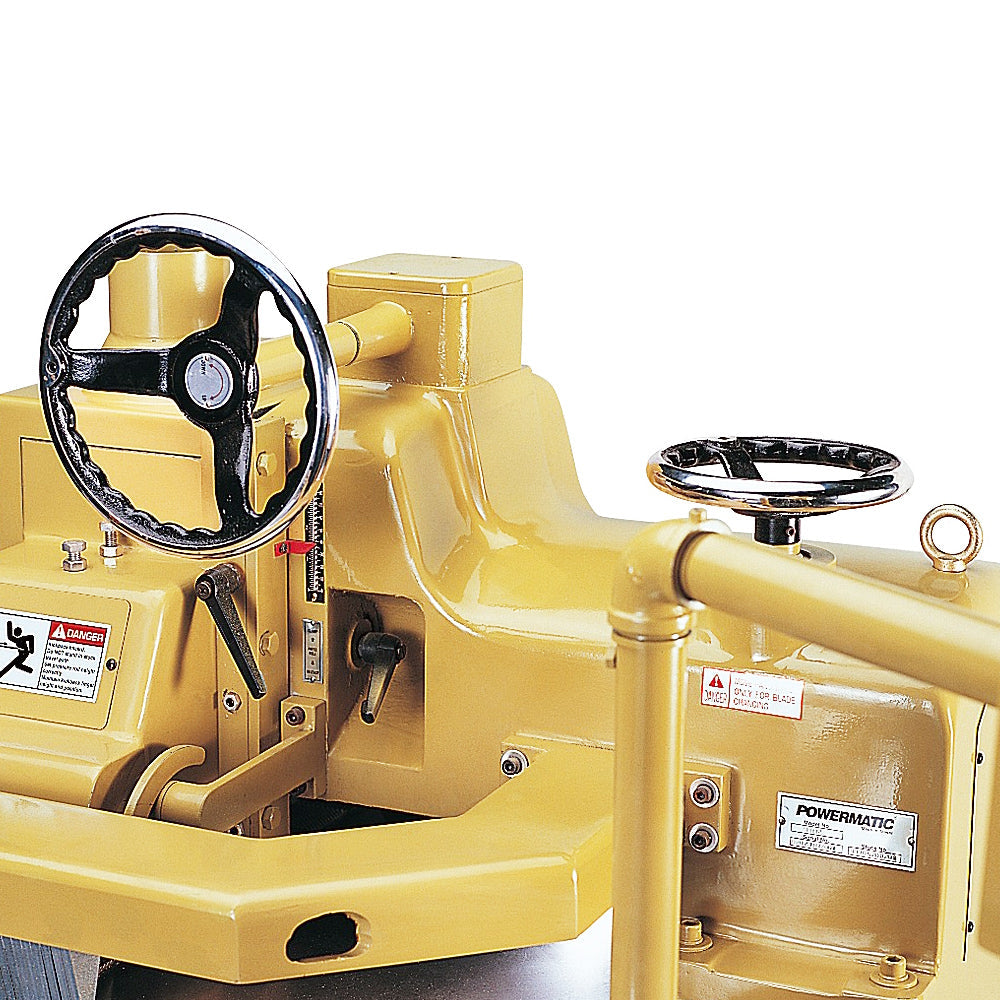

- Adjustable position control box for operator convenience
What's in The Box
- Powermatic SLR 12 Stralight Line Rip Saw, 15HP 3PH 230/460V
- Owner's Manual
Warranty
- Powermatic warrants every product it sells against manufacturers' defects. If one of our tools needs service or repair, please contact us for further warranty information.
- 90 Days - Parts; Consumable items
- 1 Year - Motors, Machine Accessories
- 2 Year - Woodworking Machinery used for industrial or commercial purposes
- 5 Year - Woodworking Machinery
Specifications
| Model | 1791285 |
| UPC | 662755464249 |
| Blade Diameter (In.) | 12 |
| Blade Speed (RPM) | 4,500 |
| Arbor Diameter (In.) | 1 |
| Feed Rate (FPM) | 30 - 125 |
| Maximum Depth of Cut (In.) | 3-7/8 |
| Maximum Ripping Width (In.) | 18 |
| Anti-Kickback Devices | 2 |
| Number of Pressure Rollers | 7 |
| Table Size (L x W) (In.) | 35 X 55 |
| Table Height from Floor (In.) | 32 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 3-7/8 |
| Motor Power (HP) | 15 |
| Motor Phase | 3 |
| Motor Voltage (V.) | 230, 460 |
| Prewired Voltage (V.) | 230 |
| Feed Motor Power (HP) | 2 |
| Feed Motor Phase | 3 |
| Feed Motor Voltage (V.) | 230 |
