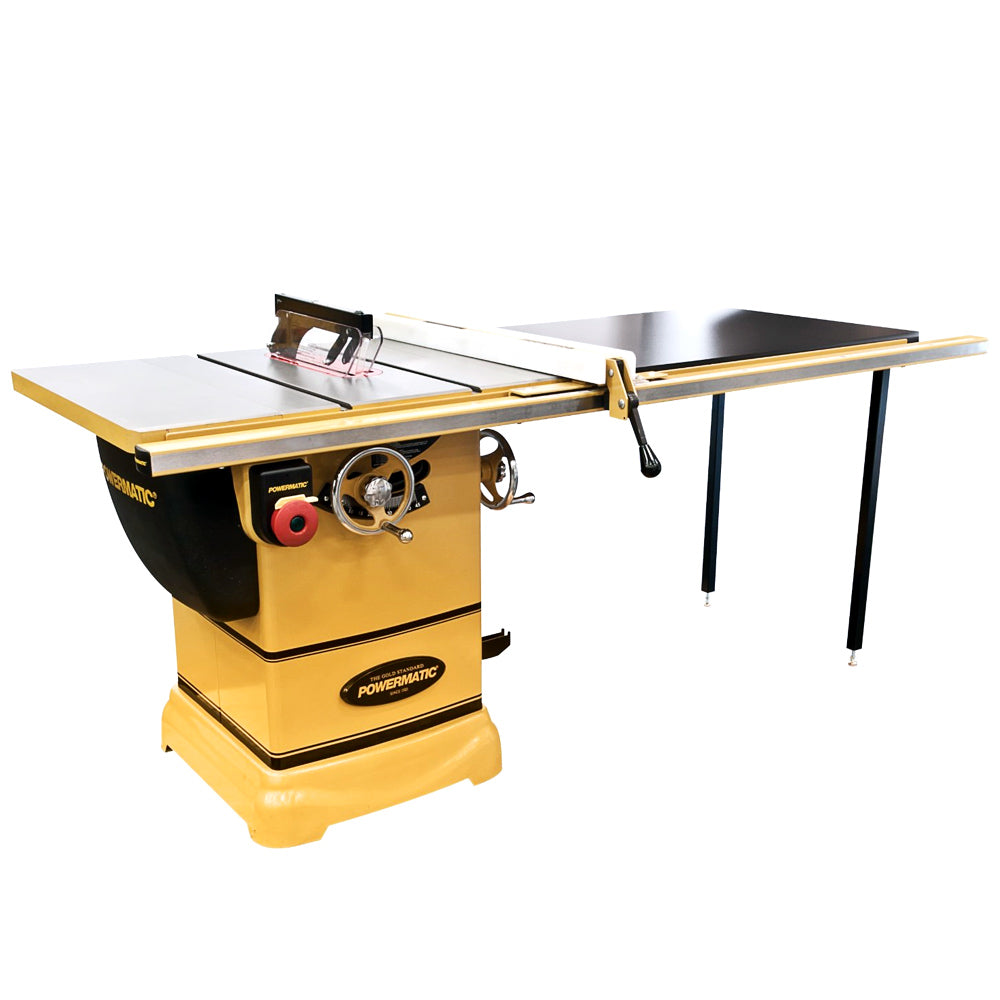

Powermatic PM1000 Tablesaw 52" RIP Accu-Fence 1-3/4HP 1PH 115V - 1791001K
PRODUCT DETAILS
Features
- Cabinet saw that only requires 115V power
- A blade surround and collection hose provide an unobstructed path, maximizing dust collection
- Conveniently located hands free power switch
- Tool-less guard assembly with independent side leaves is easy to use, maximizing safety
- The sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts
- Exclusive AccuFence provides rigidity and precision
- The poly-V belt drive system reduces vibration and maximizes efficiency
- Ergonomically designed 7" handwheels provide momentum - making blade height and bevel adjustments easy
- Arbor lock allows for one handed blade changes with minimal tools
- Cast iron work surface features a beveled edge
- Bevel scale is conveniently located with large, easy to read numbers
- Hinged motor cover provides quick access to the interior of the cabinet
What's in The Box
- Powermatic PM1000 Table Saw, 1-3/4HP 1PH 115V 52" RIP w/ Accu Fence System
- Owner's Manual
Warranty
- Powermatic warrants every product it sells against manufacturers' defects. If one of our tools needs service or repair, please contact us for further warranty information.
- 90 Days - Parts; Consumable items
- 1 Year - Motors, Machine Accessories
- 2 Year - Woodworking Machinery used for industrial or commercial purposes
- 5 Year - Woodworking Machinery
- 30 Day Satisfaction Guaranteed
Specifications
| Model | 1791001K |
| UPC | 731325263831 |
| Style (Type) | Cabinet |
| Blade Diameter (In.) | 10 |
| Arbor Diameter (In.) | 5/8 |
| Arbor Speed (RPM) | 4200 |
| Maximum Depth of Cut (In.) | 3-1/8 |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Maximum Rip Left of Blade (In.) | 12 |
| Maximum Rip Right of Blade (In.) | 52 |
| Maximum Diameter of Dado (In.) | 8 |
| Maximum Width of Dado (In.) | 13/16 |
| Table Type | Cast Iron |
| Table Height from Floor (In.) | 34-1/4 |
| Table Size (In.) | 20 x 27 |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power (HP) | 1-3/4 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 115/230 |
| Prewired Voltage (V.) | 115 |
| Motor Current (Amps) | 15/7.5 |
| Recommended Circuit Size (Amps.) | 20 |
