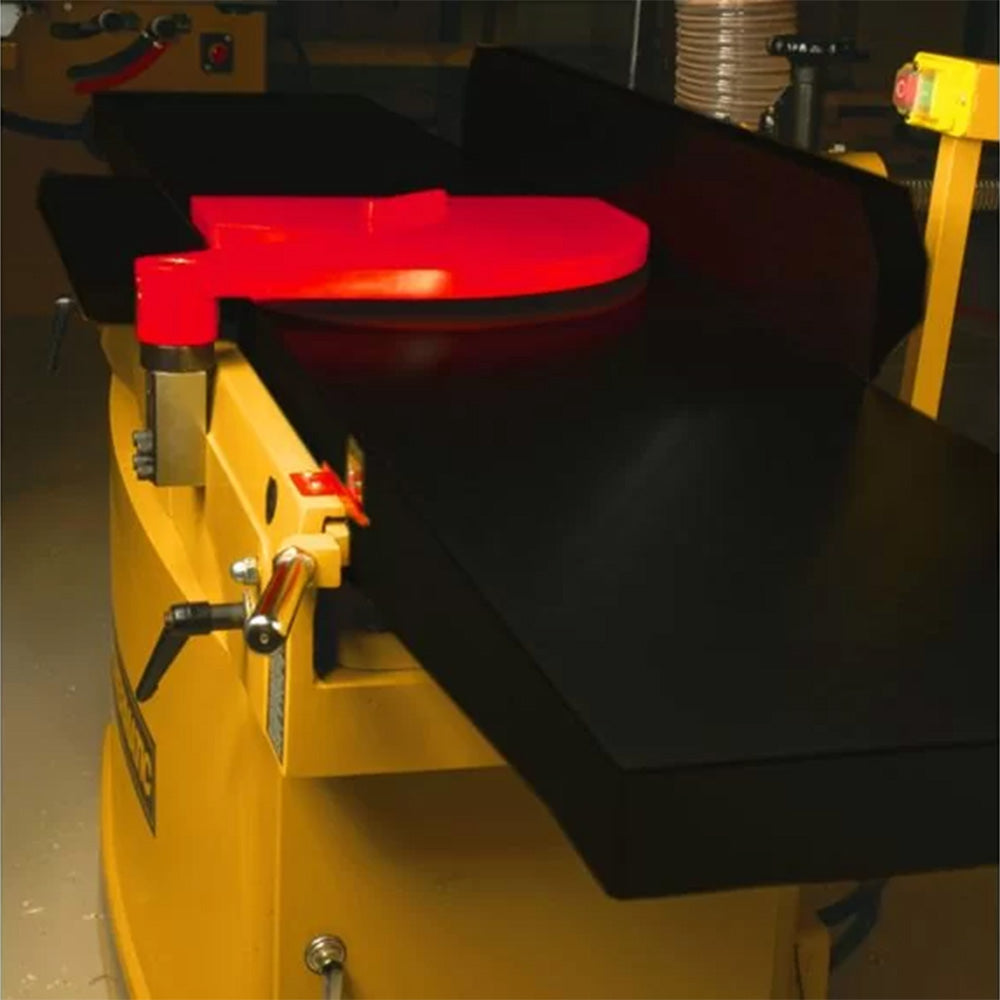

Powermatic PJ1696T 230V 7.5 HP 3 PH 230V Jointer w/ Armorglide
PRODUCT DETAILS
Features
- ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
- Cast iron fence bevel controls include positive stops at 45 degrees and 90 degrees
- Full size rabbeting table supports large workpieces for rabbets up to 3/4-inch deep
- Helical cutterhead features 58 two-sided knife inserts that reduce noise, eliminate adjustments, and speed knife changes
- Large 16" x 96" precision ground cast iron table surface for maximum support and fine finish
- Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
- Rack and pinion adjustable cast iron fence assembly allows for smooth fence positioning without play
What's in The Box
- PJ1696T, 16-Inch Parallelogram Jointer with ArmorGlide, Helical Cutterhead, 3Ph 230
- Owner's Manual
Warranty
- 2 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | PJ1696T |
| Brand | Powermatic |
| Power | Corded |
| Motor Power (HP) | 7-1/2 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Cuts Per Minute | 20,800 |
| Cutterhead Diameter (In.) | 4 |
| Cutterhead Speed (RPM) | 5200.0000 |
| Cutting Capacity (W x D) (In.) | 16 x 3/4 |
| Dust Collection Minimum CFM Required (CFM) | 800 |
| Dust Port Outside Diameter (In.) | 6 |
| Infeed Table Length (In.) | 47-1/2 |
| Number of Knives | 58 |
| Prop 65 | Cancer and Reproductive Harm |
| Table Height from Floor (In.) | 37-1/2 |
| Type of Cutterhead | HELICAL |
