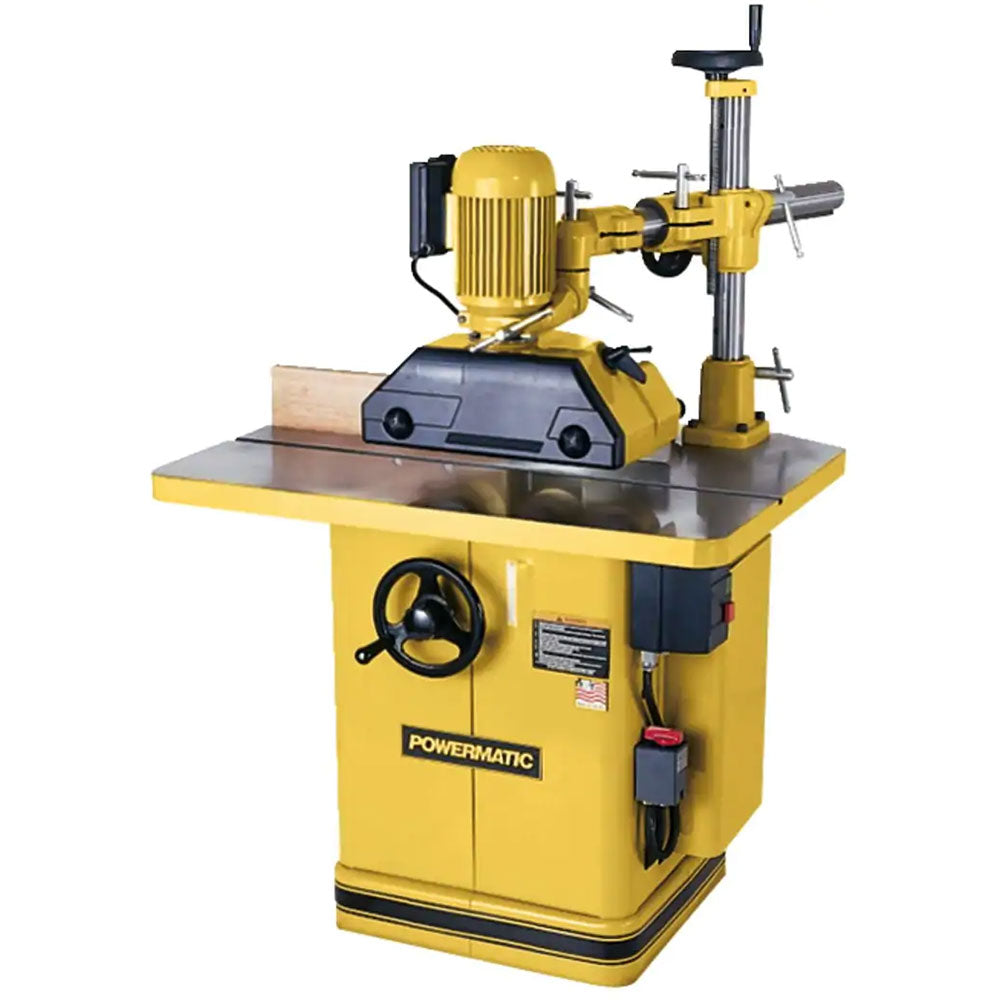

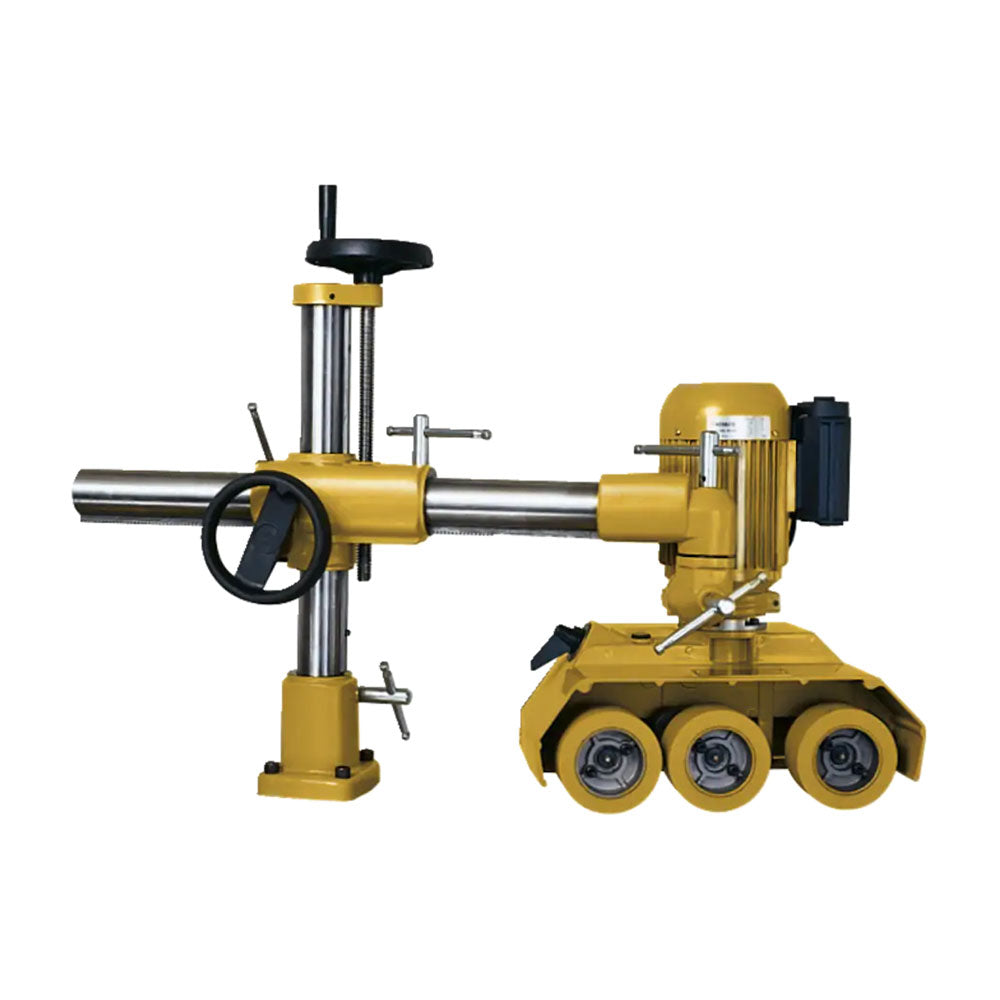

Powermatic PF-31 115V 1 HP 1 Phase Variable Speed Heavy Duty Power Feeder
PRODUCT DETAILS
Features
- Continuous duty motors transfer power from the gearbox to the feed roller
- Solid cast iron construction of body pieces and base
- Moveable universal joints and locking mechanisms lock the feeder in horizontal, vertical, or angle feed positions
- Universal joints provide stability for vibration-free feeding
- Roller chain and sprocket design provide positive feeding for all types of materials
- Smart roller system allows for the tire to be replaced with out replacing the assembly
- The support column is fully adjustable for horizontal, vertical, or angled feeder position
- Rollers can be changed out easily and quickly
What's in The Box
- PF-31 Feeder
- Owner's Manual
Warranty
- 2 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | 1790807K |
| Brand | Powermatic |
| Volts | 115V |
| Motor Phase | 1 |
| Horsepower | 1 |
| Number of Rollers | 3 |
| Distance Between Rollers - Center to Center | 5.07 - 5.90 in |
| Number of Speeds | 4 Speeds |
| Range of Speeds | 13, 26, 33, 66 |
| Max Height of Rollers Parallel to Tabletop | 8-1/2 in |
| Rotation | Forward/Reverse |
| Swing | 360 Degrees |
| Movement - Horizontal | 18-1/16 in |
| Movement - Vertical | 9-3/4 in |
| Column Diameter | 2-1/4 in |
| Weight | 134 lbs |
