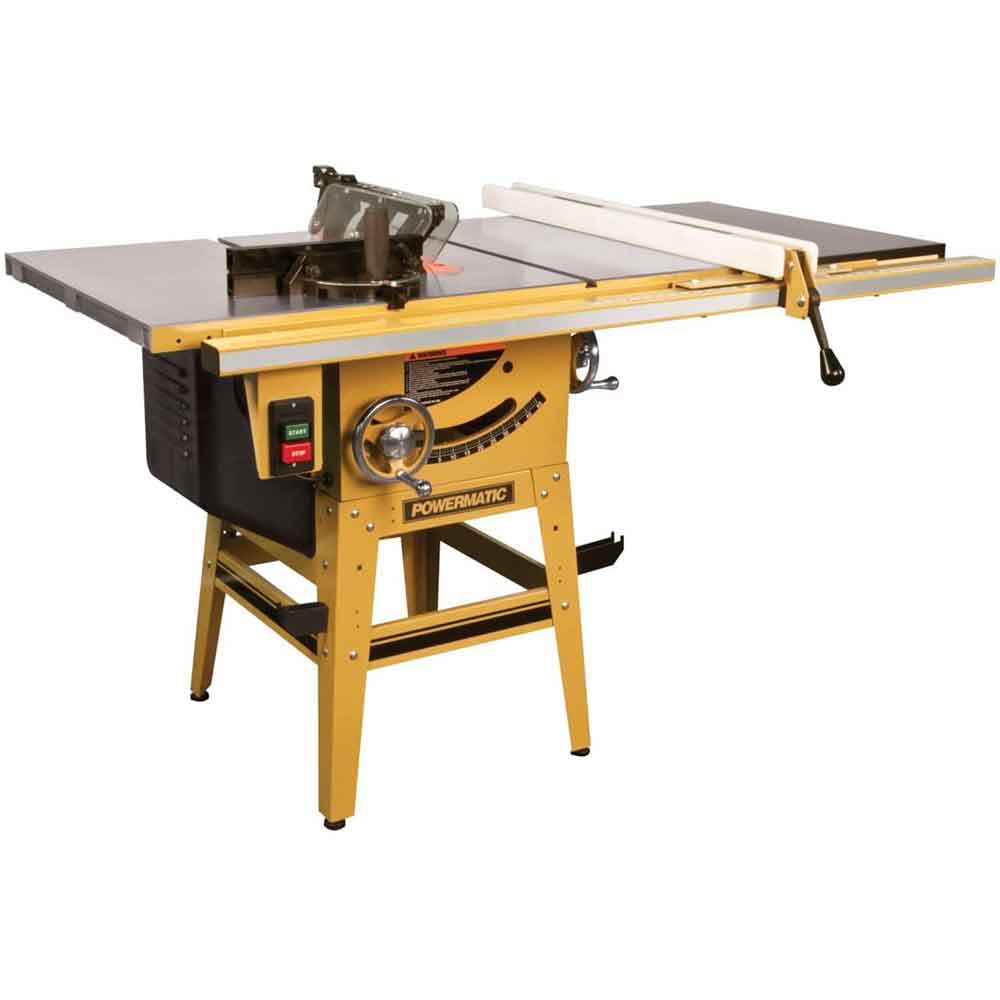

Powermatic 64B 1-3/4-Hp 115/230V 30" Fence w/ Quick Release Riveting Knife
PRODUCT DETAILS
Features
- Blade guard and riving knife have quick release for tool-less mounting and removal
- Accu-Fence locks to rail without play for increased safety and precision
- Riving knife maintains close blade proximity to reduce chance of kickback
- Cast iron trunnion ensures smooth blade positioning
- Micro-adjust miter gauge with extension plate offers wider crosscut support
- Precision ground cast iron work surface features a beveled edge for smoother operation
- Built-in dust port increases dust collection efficiency
- Chrome trimmed handwheels are ergonomically designed
What's in The Box
- Powermatic 64B 1-3/4-Hp 115/230V 30" Fence
- Quick Release Riveting Knife
- Owner's Manual
Warranty
- Powermatic warrants every product it sells against manufacturers' defects. If one of our tools needs service or repair, please contact us for further warranty information.
- 90 Days - Parts; Consumable items
- 1 Year - Motors, Machine Accessories.
- 5 Year - Woodworking Machinery
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | 1791229K |
| Brand | Powermatic |
| Style | Contractor |
| Blade Diameter (In.) | 10 |
| Arbor Diameter (In.) | 5/8 |
| Arbor Speed (RPM) | 3,800 |
| Maximum Depth of Cut at 90 Degrees (In.) | 3-1/8 |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Maximum Diameter of Dado (In.) | 8 |
| Maximum Width of Dado (In.) | 13/16 |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | 11-1/2 |
| Maximum Rip Right of Blade (In.) | 30 |
| Maximum Rip Left of Blade (In.) | 12 |
| Table Type | cast iron |
| Table Height from Floor (In.) | 36 |
| Table Size (In.) | 20-1/8 x 27 |
| Table Size with Extensions (In.) | 44-1/4 x 27 |
| Table Size with Full Extensions (In.) | 71-1/4 x 27 |
| Table T-Slot (In.) | 3/4 x 3/8 |
| Dust Collection Minimum CFM Required | 350 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power (HP) | 1-3/4 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 115/230 |
| Prewired Voltage (V.) | 115 |
| Motor Current (Amps) | 15/7.5 |
| Recommended Circuit Size (Amps.) | 20 |
