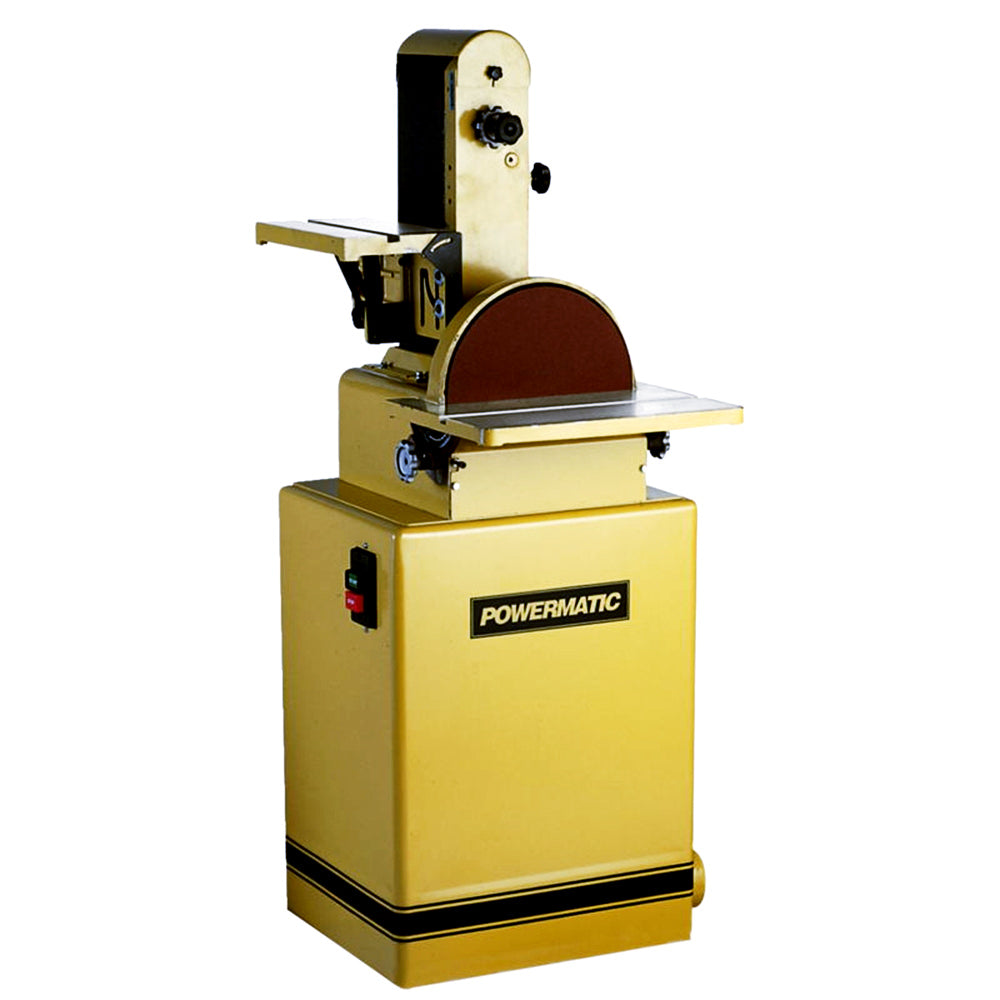

Powermatic 31A 6"x48" Belt/12" Disc Sander 1.5HP 1PH 115/230V - 1791291K
PRODUCT DETAILS
Features
- Multi-position belt head locks at any angle from 0° to 90°; includes indexing pin for 0, 45°, and 90° stops
- Belt and disc tables are precision ground cast iron with miter slots
- Belt table tilts down to 45°, and can be set for beveled and mitered angle sanding

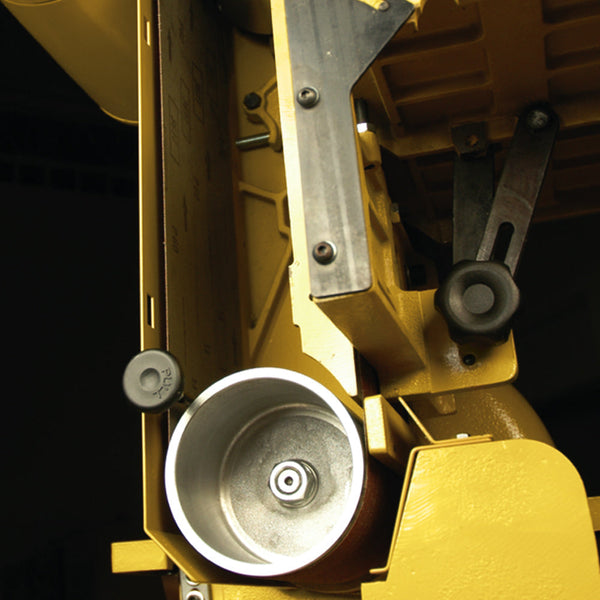

- Full cast iron platen with solid crowned aluminum drums for smooth sanding belt movement and support
- 12" disc is balanced for flat, even coverage
What's in The Box
- Powermatic 31A Belt/Disc Sander, 6"x48", 12", 1.5HP 1PH 115/230V Manual Switch
- Owner's Manual
Warranty
- Powermatic warrants every product it sells against manufacturers' defects. If one of our tools needs service or repair, please contact us for further warranty information.
- 90 Days - Parts; Consumable items
- 1 Year - Motors, Machine Accessories
- 2 Year - Woodworking Machinery used for industrial or commercial purposes
- 5 Year - Woodworking Machinery
- 30 Day Satisfaction Guaranteed
Specifications
| Model | 1791291K |
| UPC | 662755485480 |
| Style (Type) | Combination Belt/Disc |
| Disc Diameter (In.) | 12 |
| Disc Speed (RPM) | 2,375 |
| Disc Table Tilt (Deg.) | 15 Up, 45 Down |
| Disc Table Size (L x W) (In.) | 17-1/4 x 9 |
| Sanding Belt Size (L x W) (In.) | 48 x 6 |
| Belt Speed (RPM) | 2,410 |
| Belt Table Tilt (Deg.) | 45 Down |
| Belt Table Size (L x W) (In.) | 13-1/4 x 7-1/2 |
| Sanding Arm Locking Positions | 0, 45, 90 |
| Dust Collection Minimum CFM Required (CFM) | 400 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power (HP) | 1-1/2 |
| Motor Phase | 115, 230 |
| Motor Voltage (V.) | 115, 230 |
| Prewired Voltage (V.) | 115 |
| Wiring Remarks | Push Button Switch |
| Motor Current (Amps) | 14, 7 |
