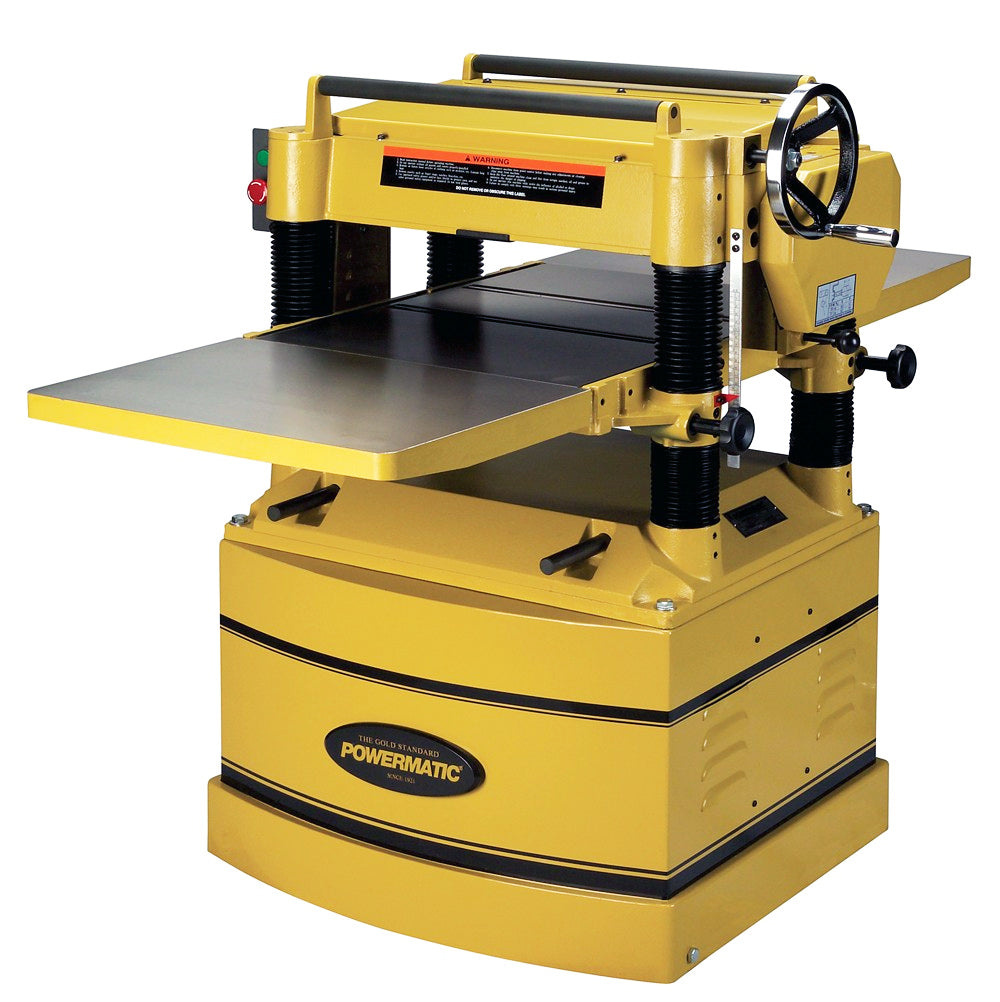

Powermatic 209 5-Hp 230/460V 20" Heavy Duty Planer w/ 5" Dust Port
PRODUCT DETAILS
Features
- Knife setting gauge
- 5HP motor and 20" planing capacity for heavy duty work
- Fully enclosed base cabinet with integrated casters for shop mobility
- Cast iron table with extensions creates a big 55-1/2" x 20" working area
- Four feed speeds - 24 and 31 FPM, 16 and 20 FPM with gear change - provide versatility

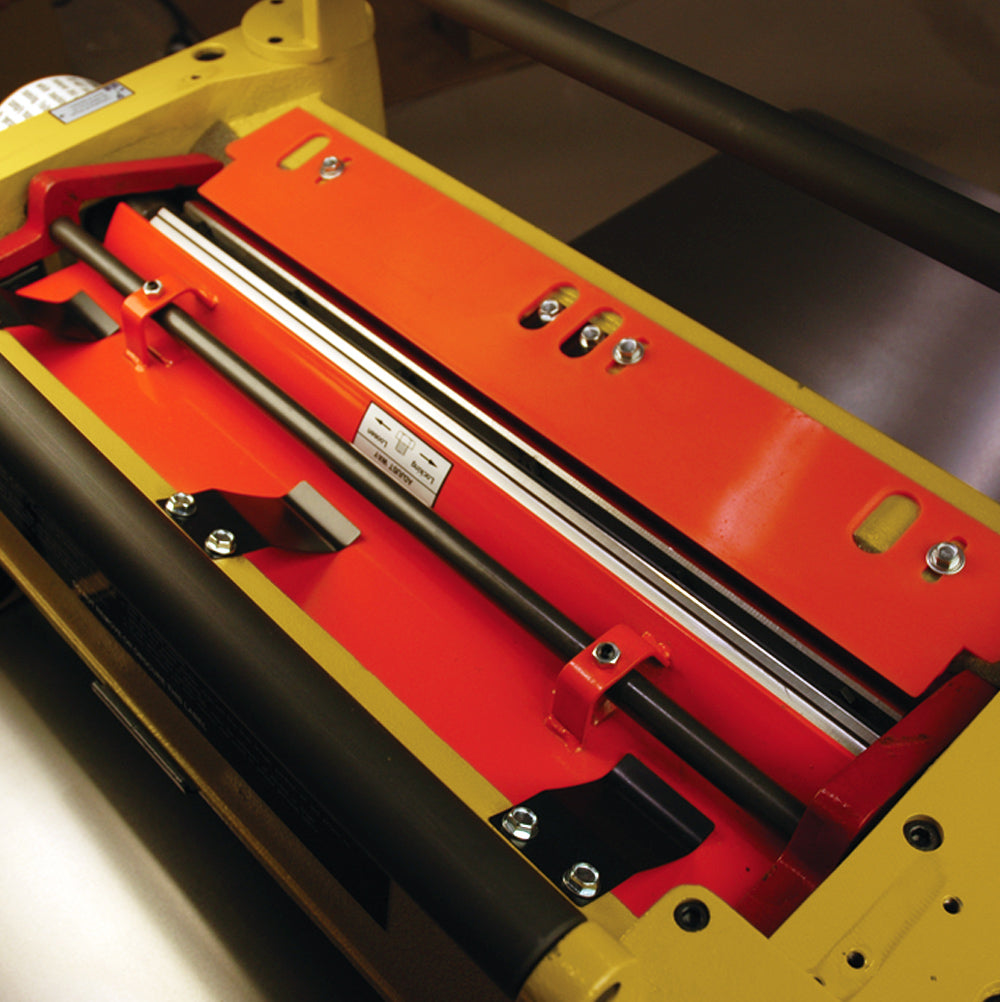

- Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
- 460V operation requires an additional 460V magnetic switch: 209-5016E
- Single-sided knives
- Cast iron extension tables
What's in The Box
- Powermatic 209, 20" Planer, 5HP 3PH 230/460V
- Owner's Manual
Warranty
- Powermatic warrants every product it sells against manufacturers' defects. If one of our tools needs service or repair, please contact us for further warranty information.
- 90 Days - Parts; Consumable items
- 1 Year - Motors, Machine Accessories
- 2 Year - Woodworking Machinery used for industrial or commercial purposes
- 5 Year - Woodworking Machinery
Specifications
| Model | 1791297 |
| UPC | 662755501234 |
| Style (Type) | Planer |
| Cutterhead Speed (RPM) | 5,000 |
| Cutterhead Diameter (In.) | 3-3/16 |
| Cuts Per Minute | 20,000 |
| Number of Knives | 4 |
| Maximum Depth of Cut (In.) | 3/32 |
| Maximum Planing Width (In.) | 20 |
| Maximum Planing Thickness (In.) | 8 |
| Minimum Planing Length (In.) | 6-3/4 |
| Feed Rate (FPM) | 24, 31; 16, 20 with Gear Change |
| Number of Speeds | 4 |
| Range of Speeds | 24, 31, 16, 20 |
| Bed Rollers Adjustable from Front | N.A. |

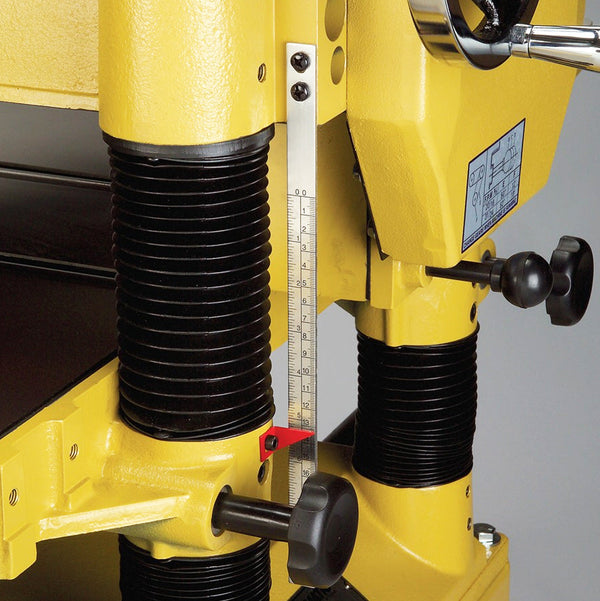

| Table Support | 4 Column |
| Digital Readout | Inch / Metric |
| Dust Collection Minimum CFM Required (CFM) | 900 |
| Dust Port Outside Diameter (In.) | 5 |
| Motor Power (HP) | 5 |
| Motor Phase | 3 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
