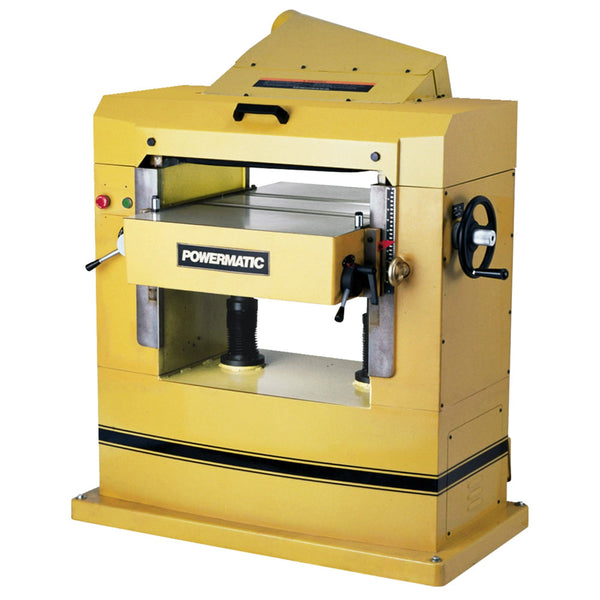

Powermatic 201HH 7-1/2-Hp 230V 22" Heavy Duty Cast Iron Planer w/ Helical Head
PRODUCT DETAILS
Features
- Helical cutterhead with knife inserts provides smoother, quieter cutting and finer finish than conventional systems
- Cast iron 1300 lb. construction for solid performance without vibration
- 2 feed speeds - 20/30 fpm - accommodates rough and fine finish work
- Segmented infeed roller with sectional chipbreaker allows multiple board planing
- Roller bearing-mounted feed rollers for long life
- Adjustable bed rollers allow smooth feeding of rough or finished workpieces
- Oversized cast iron table travels on 2 large lead screws for heavy duty support
- Dust collection port
- Adjustable foot pads
What's in The Box
- Powermatic 201HH, 22" Planner, 7.5HP 3PH 230V, Helical Head
- Tool kit
- Owner's Manual
Warranty
- Powermatic warrants every product it sells against manufacturers' defects. If one of our tools needs service or repair, please contact us for further warranty information.
- 90 Days - Parts; Consumable items
- 1 Year - Motors, Machine Accessories.
- 5 Year - Woodworking Machinery
- 30 Day Satisfaction Guaranteed
Specifications
| Model | 1791268 |
| UPC | 662755955860 |
| Style (Type) | Planer |
| Cutterhead Speed (RPM) | 4,800 |
| Cutterhead Diameter (In.) | 3-1/4 |
| Number of Knives | 150 Four-Sided Inserts |
| Maximum Depth of Cut (In.) | 3/16 |
| Maximum Planing Width (In.) | 22 |
| Maximum Planing Thickness (In.) | 9-1/4 |
| Minimum Planing Length (In.) | 10 |
| Feed Rate (FPM) | 20, 30 |
| Number of Speeds | 2 |
| Infeed Roller Diameter (In.) | 3 |
| Segmented Infeed Roller Diameter (In.) | 3 |
| Outfeed Roller Diameter (In.) | 3 |
| Bed Rollers Adjustable from Front | 2 |
| Maximum Height of Rollers Parallel to Tabletop (In.) | 0.05 |
| Table Size (L x W) (In.) | 32-1/4 x 24 |
| Table Support | 2 Column |
| Column Diameter (In.) | 2-1/2 |
| Dust Collection Minimum CFM Required (CFM) | 900 |
| Dust Port Outside Diameter (In.) | 5 |
| Motor Power (HP) | 7-1/2 |
| Motor Phase | 3 |
| Motor Voltage (V.) | 230 |
