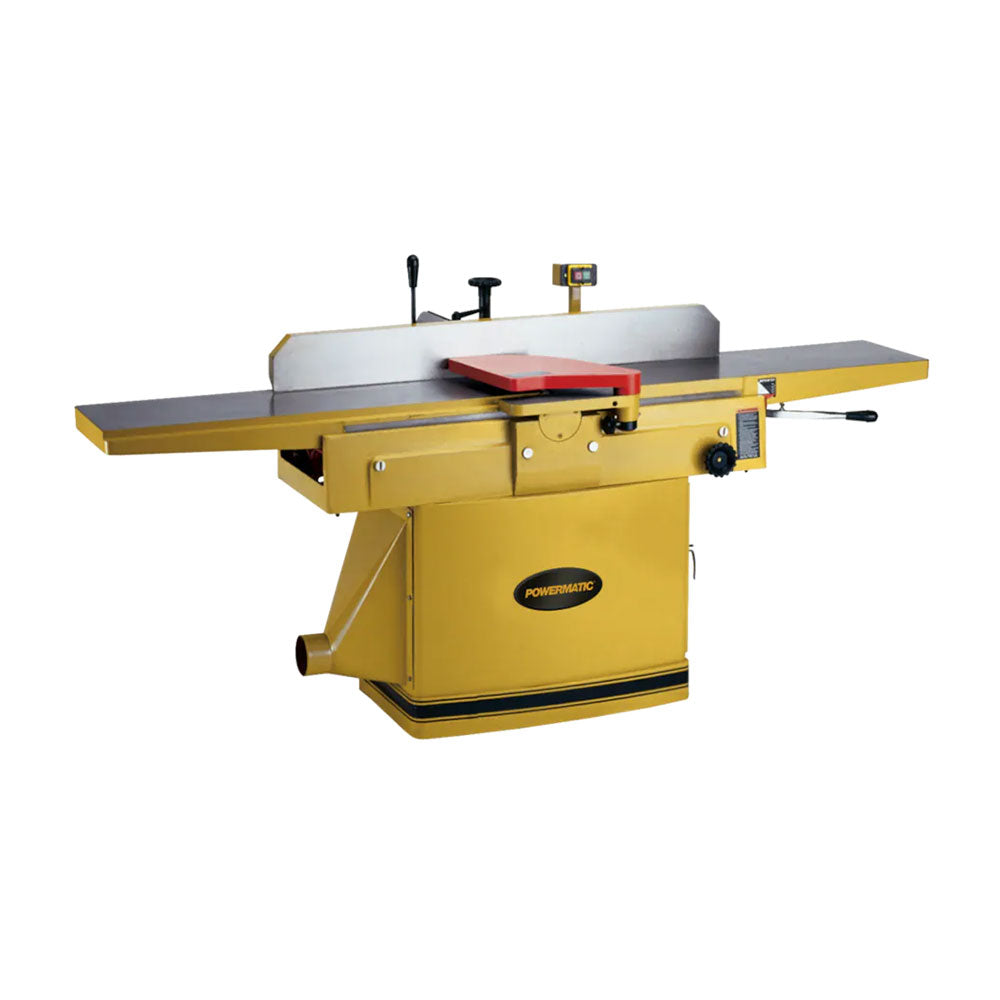

Powermatic 1791308 1285 230V/460V 3 HP 3 Phase 12" Jointer Helical Head
PRODUCT DETAILS
Features

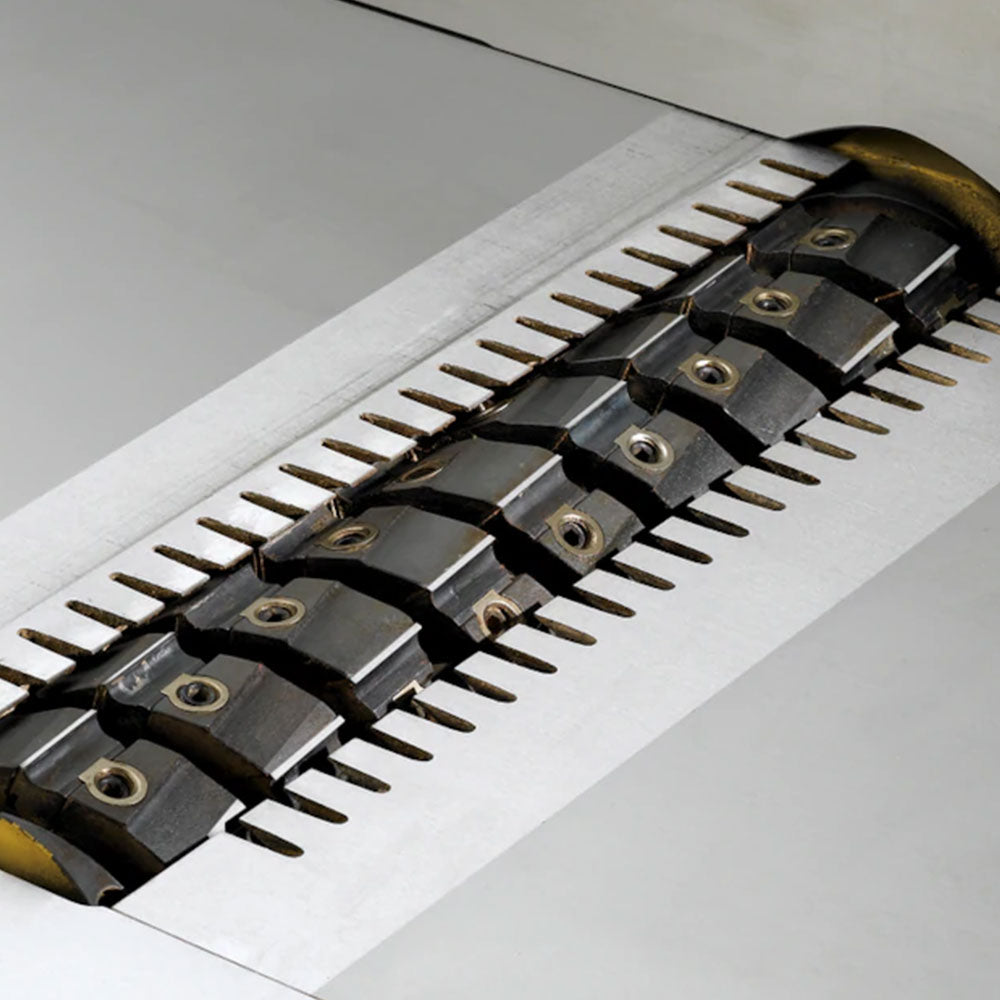

- Helical cutter head with 42 two-sided carbide inserts for fast knife changes with no adjustments and a quiet clean cut

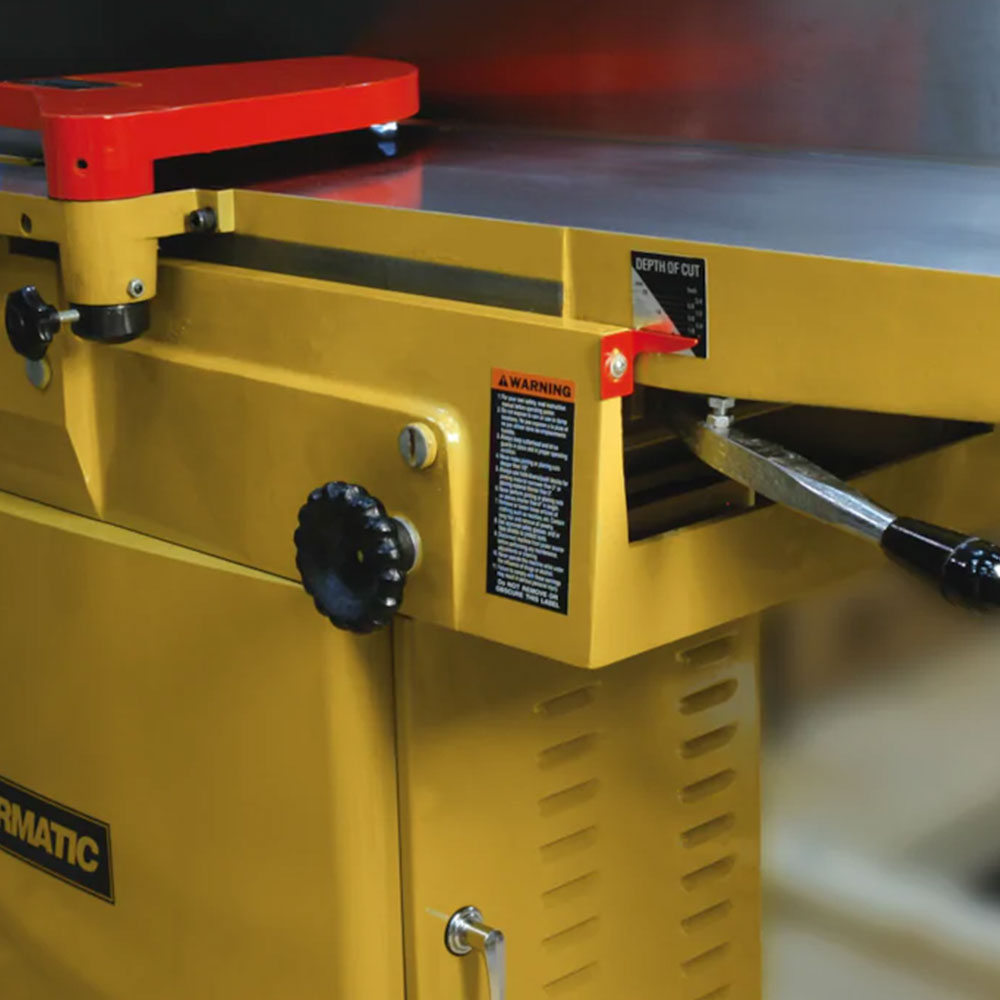

- Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
- Large 12" x 84" precision ground cast iron table surface for heavy-duty work
- Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
- Table "lips" on both sides of cutterhead aid in noise reduction
- Full-size rabbeting ledge supports large workpieces for rabbets up to 3/4" deep
What's in The Box
- 1285 Jointer
- Owner's Manual
Warranty
- 2 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | 1791308 |
| Brand | Powermatic |
| Volts | 230/460 |
| Motor Phase | 3 |
| Horsepower | 3 |
| Type of Cutterhead | Helical |
| Number of Knives | 42 Four Sided Carbide Helical Inserts, 2 Rabbet |
| Helical Knife Size (L x W x T) | 1.18 x .472 x .079 in |
| Cutterhead Speed (RPM) | 5000 |
| Cutting Capacity (W x D) | 11-3/4 x 3/4 in |
| Table Size (L x W) | 84 x 12 |
| Table Height from Floor | 31-5/8 in |
| Rabbeting Capacity | 3/4 |
| Fence Size (L x H) | 47-1/4 x 5-1/4 in |
| Fence Tilt | 45 forward, 45 backward |
| Fence Positive Stops | 45, 90 , -45 |
| Dust Collection Minimum CFM Required | 800 |
| Dust Port Outside Diameter | 4 |
| Dimensions(L x W x H) | 84 x 38 x 44 in |
| Weight | 880 lbs |
