LR-10000 Low-Rise Car Lift 4535.9kg
PRODUCT DETAILS

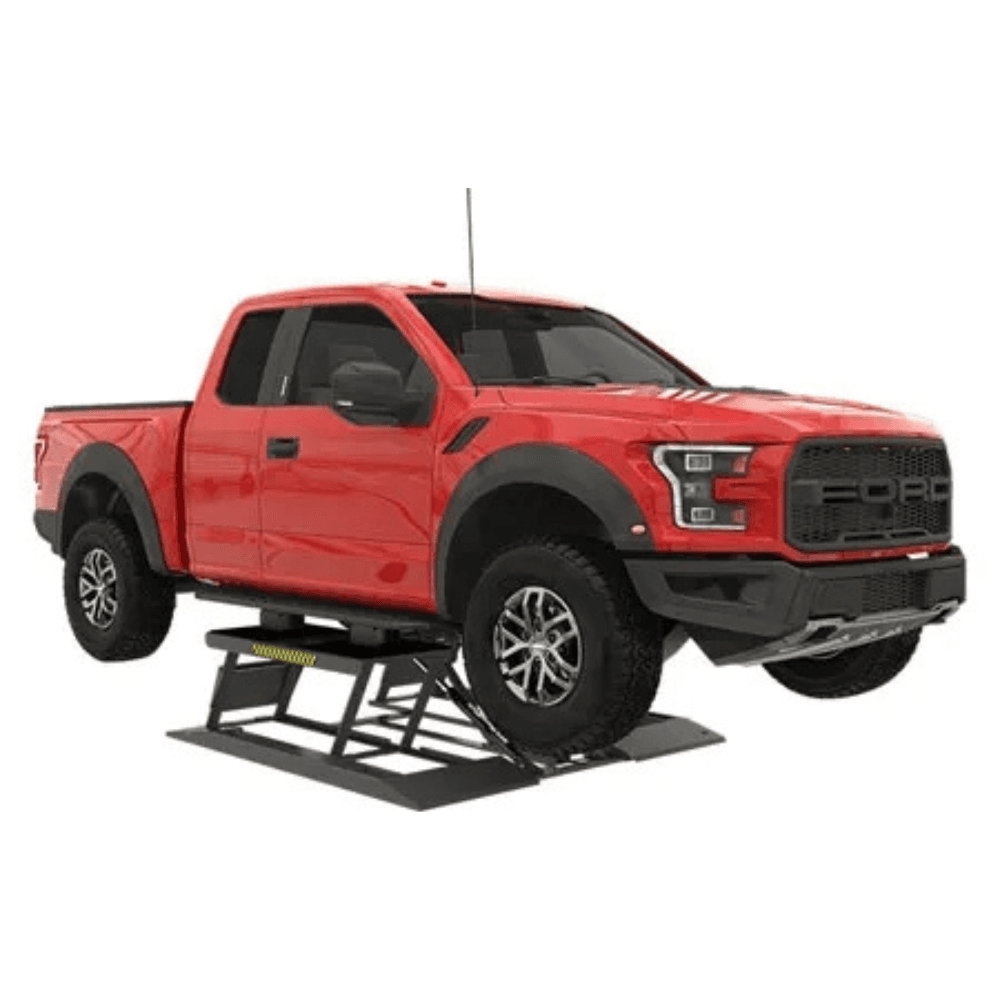

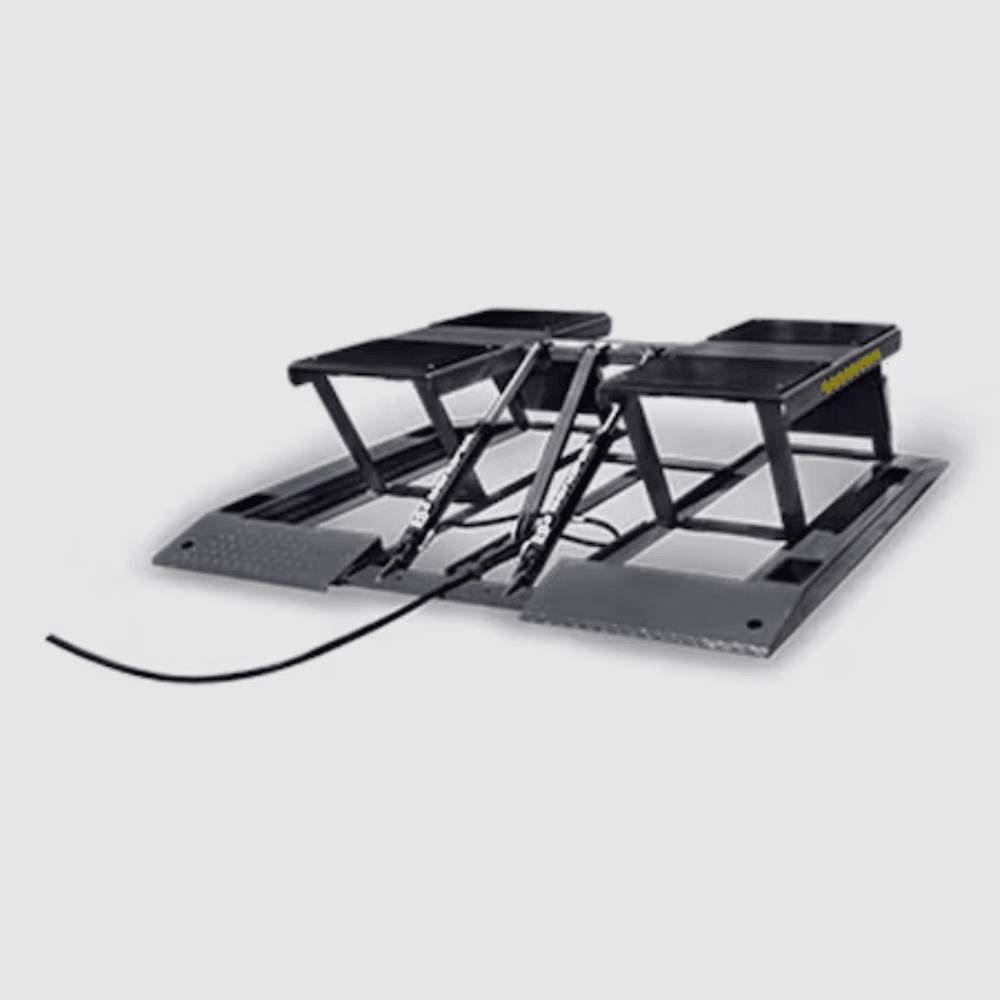

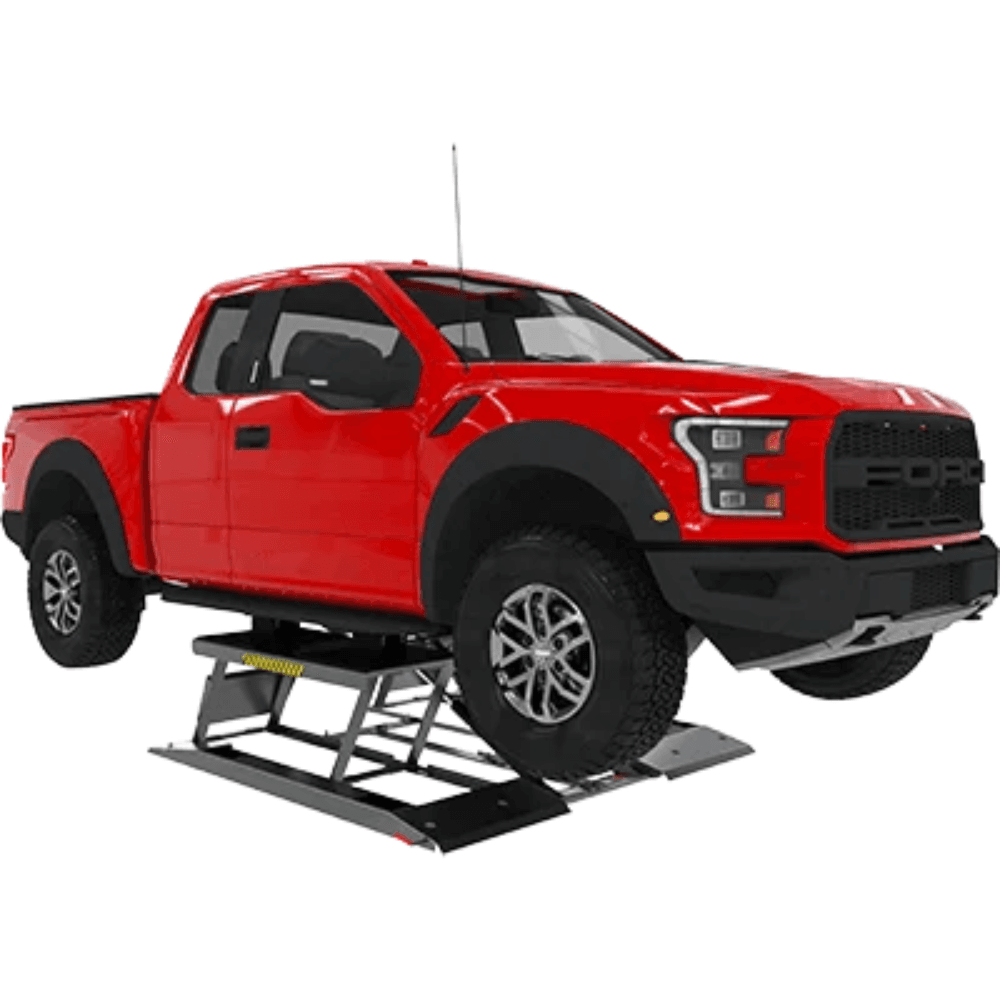

The LR-10000 is a powerful low-rise car lift engineered to accommodate trucks, SUVs, and heavy-duty vehicles with exceptional efficiency. Constructed with four parallelogram frame support bars and dual hydraulic cylinders, it delivers outstanding structural stability and dependable lifting performance for fast-paced automotive environments.
Featuring a full-length rubber-topped platform, drive-over ramps, and integrated storage trays, this lift ensures quick access for wheel service, brake maintenance, and undercar repairs. Its compact footprint and 11.4 cm minimum collapsed height make it an ideal space-saving solution for professional service shops and personal garages.
Key Features
| Lifting Capacity | 4535.9 kg |
| Lifting Height (Min.) | 11.4 cm |
| Lifting Height (Max.) | 57.8 cm |
| Length | 223.5 cm |
| Width | 215.9 cm |
| Voltage Requirement | 208-240V |
| Product Type | Low-Rise Lift |
| Lift Mechanism | Dual Hydraulic Cylinders |
| Frame Type | Parallelogram Support Bars |
Highlights
- 10,000 lb. Lifting Capacity – Handles trucks, SUVs, and larger vehicles.
- Low-Profile Design (4.5″ Minimum Height) – Works with low-clearance vehicles.
- Four Parallelogram Frame Support Bars – Provides superior stability and strength.
- Dual Hydraulic Cylinders – Ensures smooth and reliable lifting performance.
- Full-Length Rubber-Topped Lifting Platform – Protects vehicles while ensuring a secure grip.
- Eight Multi-Height Rubber-Topped Adapters – Enhances vehicle contact versatility.
- Drive-Over Ramps & Side Rails – Expands width for easier vehicle approach.
- Built-In Storage Trays – Keeps lug nuts and small parts within reach.
- Compact Footprint & Easy Installation – Fits in most shops without taking up excess space.
- 208-240V Power Unit – Provides efficient lifting power.
Compatibility
Compatible with low-clearance passenger cars, standard passenger vehicles, SUVs, light trucks, and heavy-duty vehicles weighing up to 4535.9 kg.
What's included
- LR-10000 Low-Rise Lift Assembly
- 208-240V Hydraulic Power Unit
- 8 Multi-Height Rubber-Topped Adapters
- Drive-Over Ramps and Side Rails
- Built-In Storage Trays
