Jet SBR-30M 30" 3 IN 1 Shear Brake and Roll 756031
PRODUCT DETAILS
Features

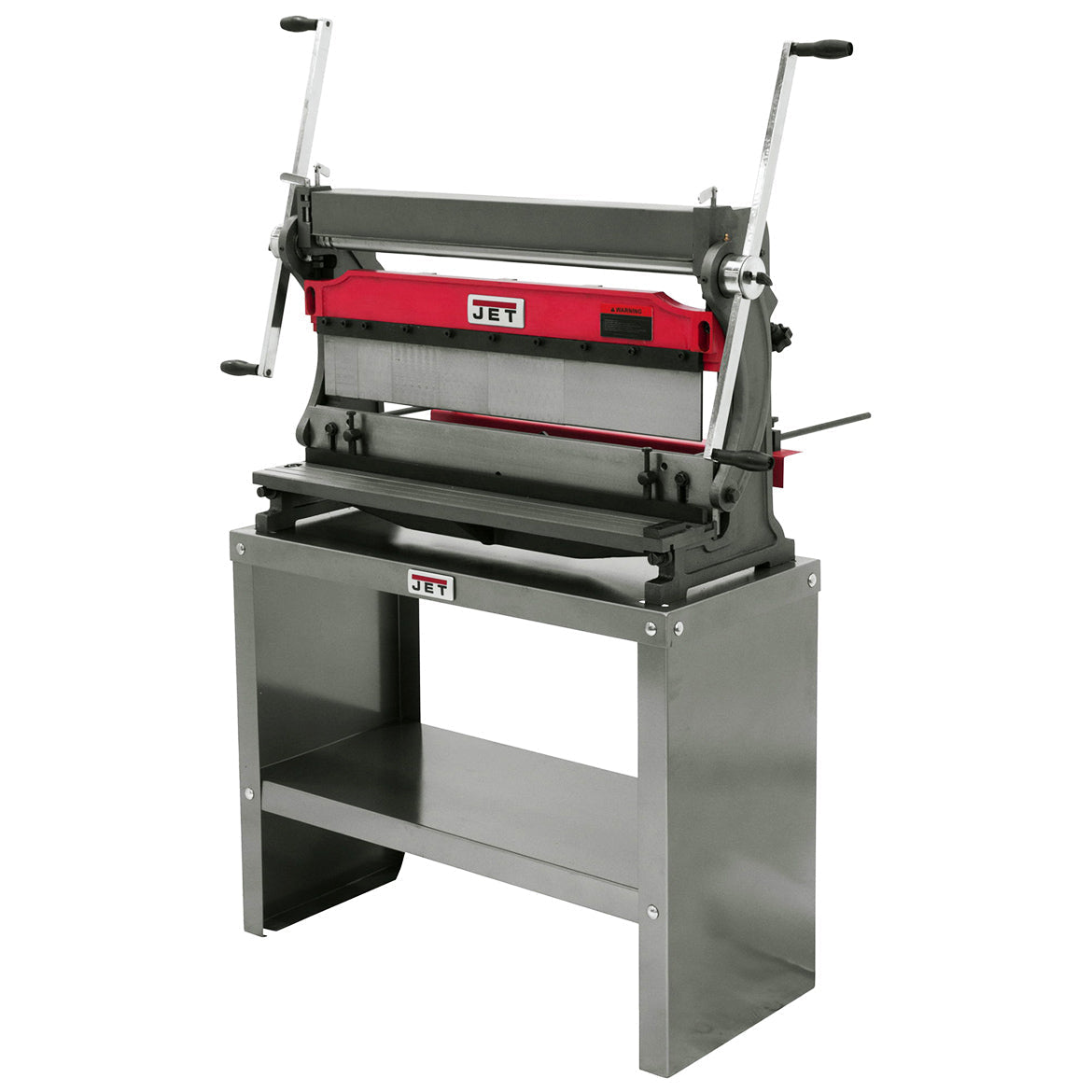

- Combination shear, brake and roll in one compact machine (Shown with optional stand)
- Right or left hand operation
- Shear can be used for mild steel, aluminum, brass, copper, lead, plastic and zinc
- Brake is equipped with easily removable fingers that permit angle, channel, box and other complex bending operations
- Slip rolls are precision turned and ground with wire grooves
What's in The Box
- SBR-30M, 30 3 IN 1 Shear, Brake and Roll 756031
Warranty
- JET Red Assurance 2-Year Warranty. JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
- 30 Day Satisfaction Guaranteed
Specifications
| Style (Type) | Combination |
| Mild Steel Capacity (Gauge) | 20 |
| Shearing Capacity (Gauge) | 20 |
| Bending Capacity (Gauge) | 20 |
| Rolling Capacity (Gauge) | 20 |
| Size of Slip Roll (L x Dia.) (In.) | 30 x 1-1/2 |
| Width of Upper Dies (In.) | 1, 2, 3, 4, 4, 6, 10 |
| Upper Die Height (In.) | 4-3/4 |
| Minimum Forming Radius (In.) | 3/4 |
| Wire Grooves (In.) | 1/8, 3/16, 1/4 |
| Base Dimensions (L x W x H) (In.) | 14-1/2 x 32-3/8 |
| Overall Dimensions (L x W x H) (In.) | 40 x 16 x 24 |
| Weight (Lbs.) | 290 |
