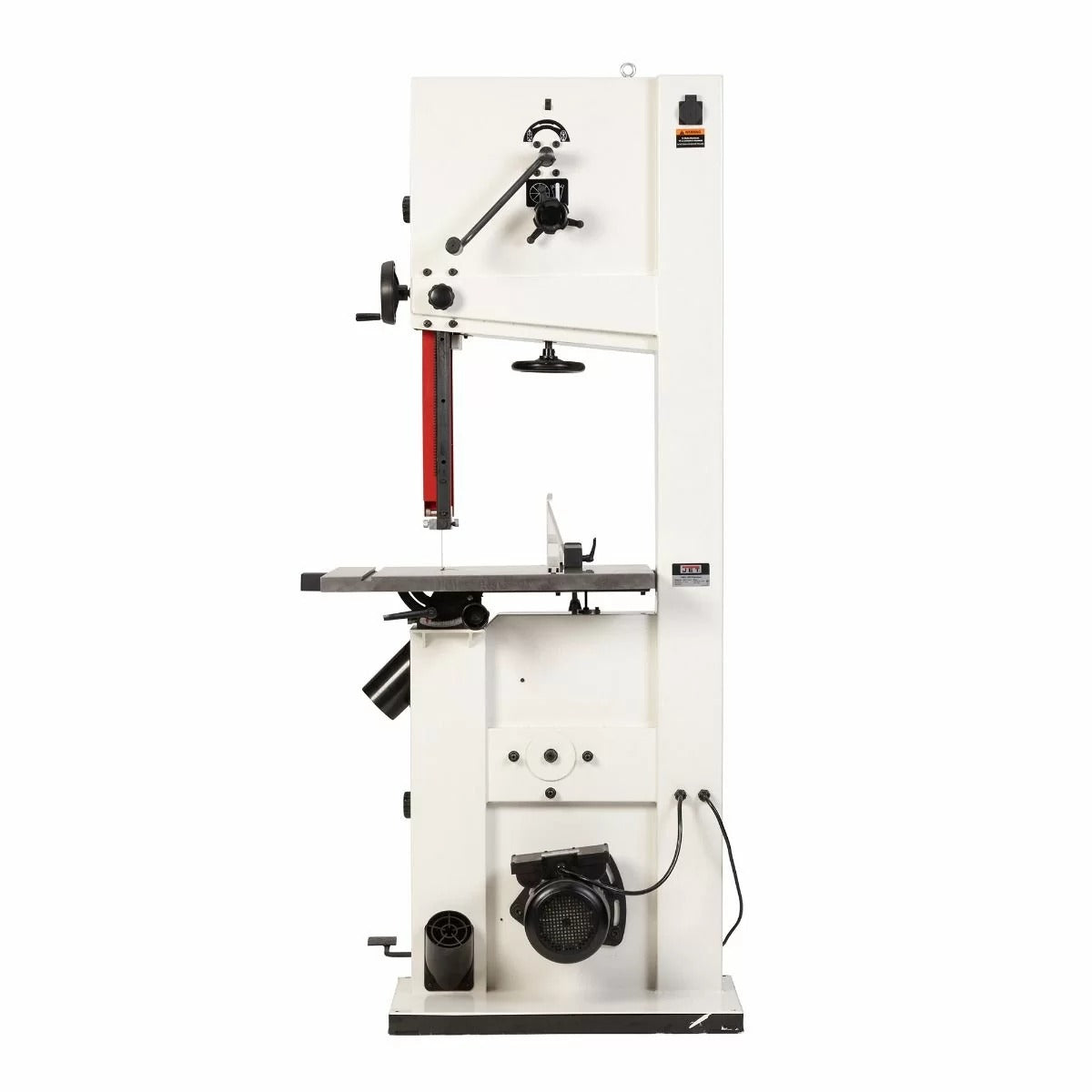

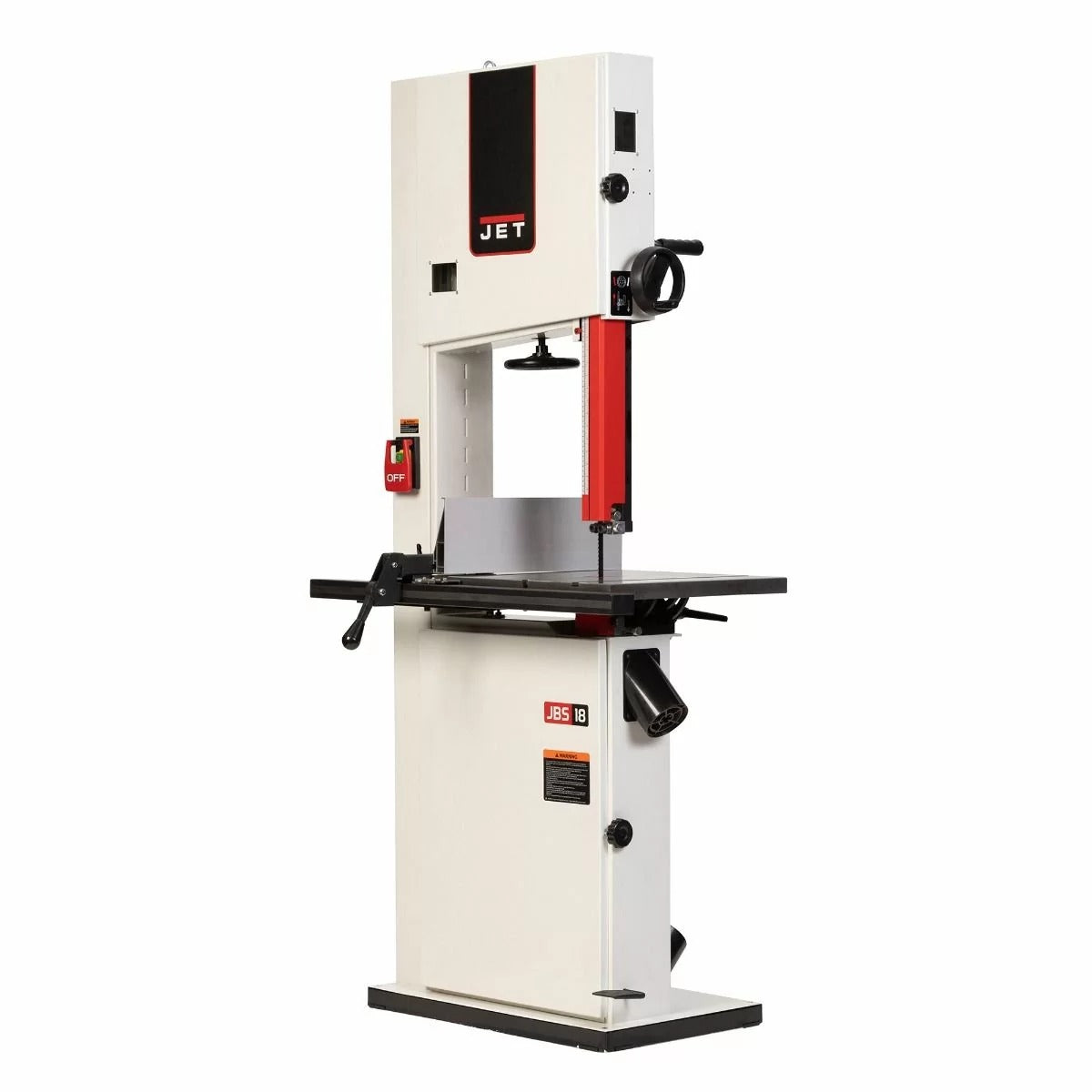

JET JWBS-18SFX 1.75HP 1PH 115V 18" Heavy Duty Bandsaw
PRODUCT DETAILS
Features

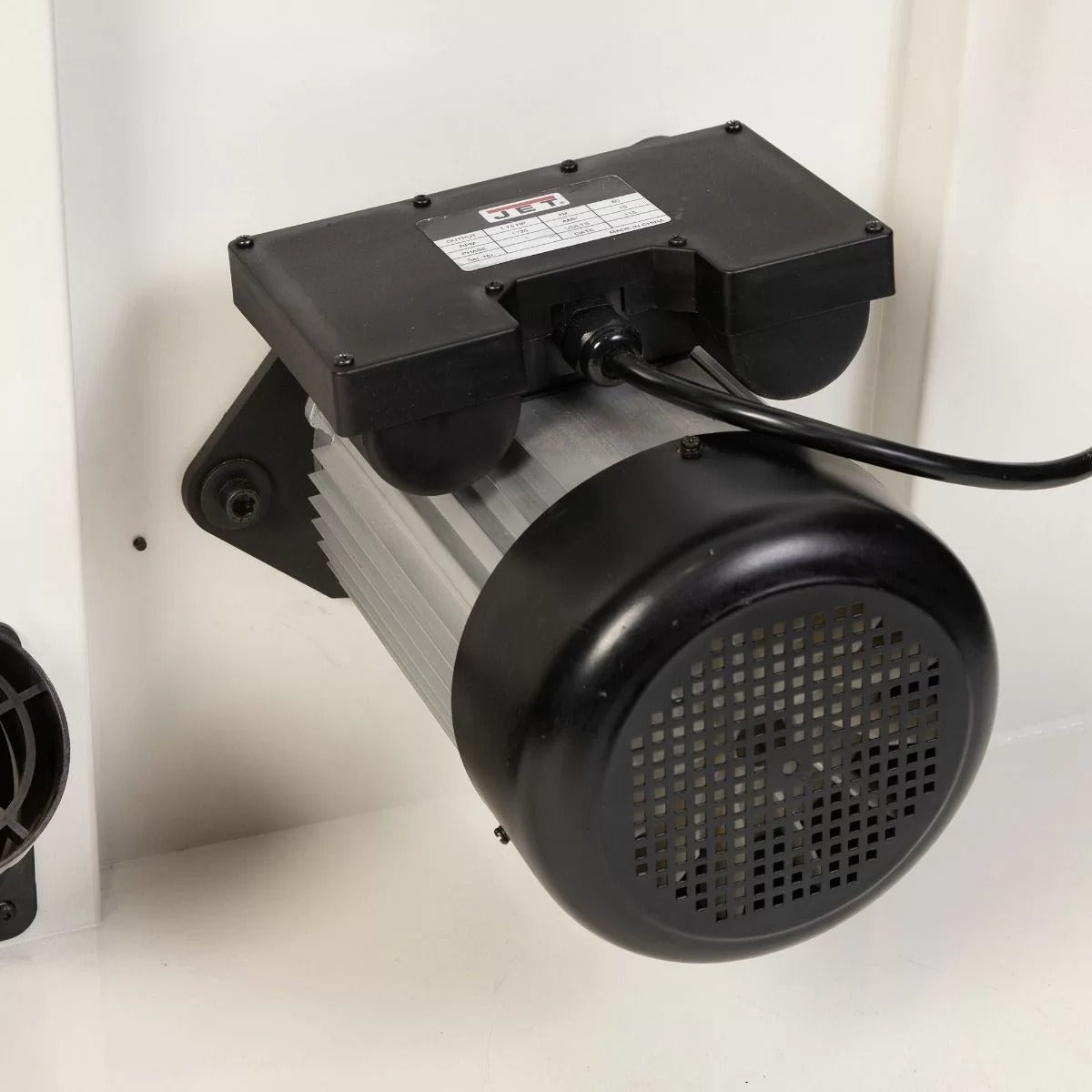

- Efficient 1.75HP Motor: Provides ample power for a variety of woodworking tasks, ideal for home and professional use.

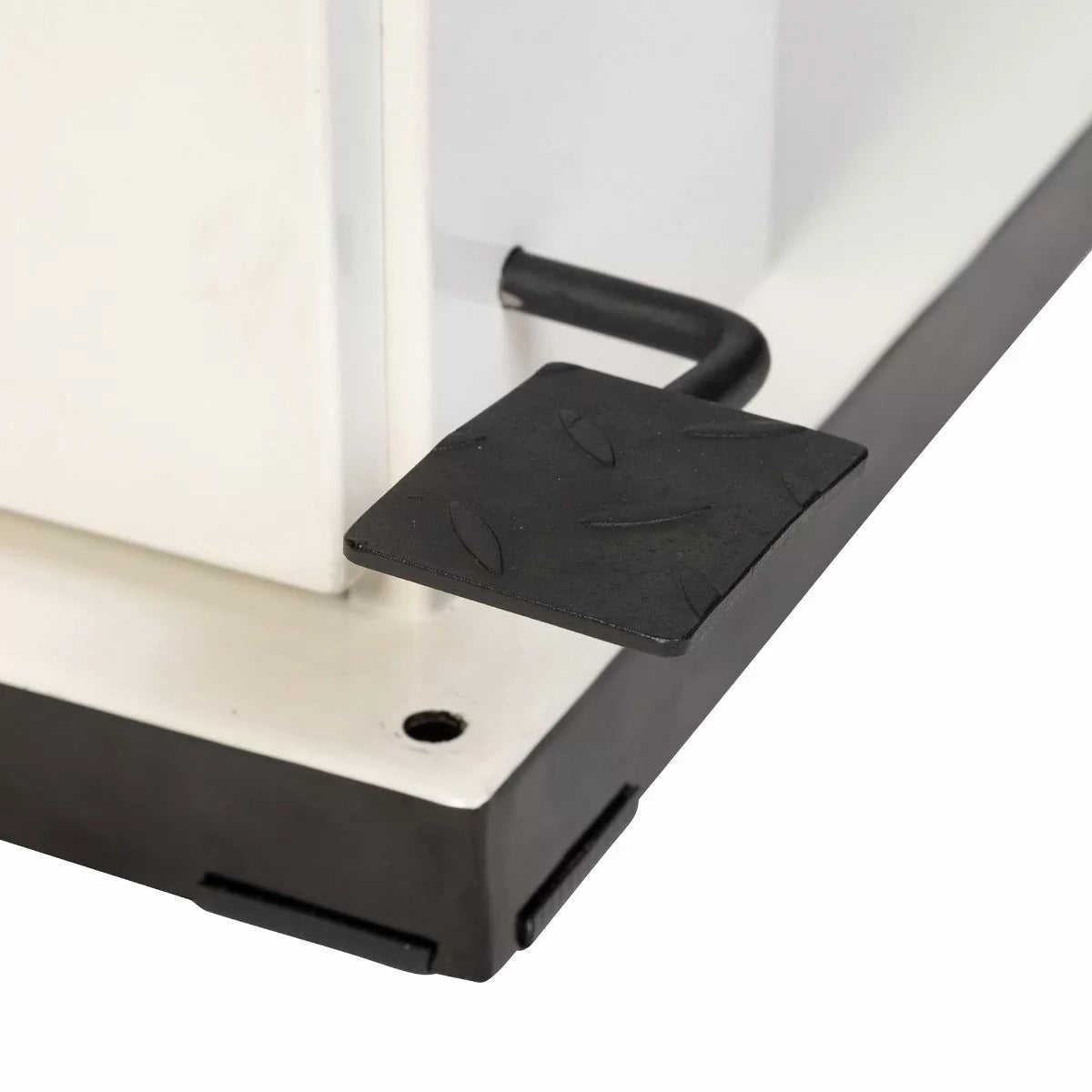

- Safety Foot Brake: Ensures immediate blade stoppage for enhanced safety.

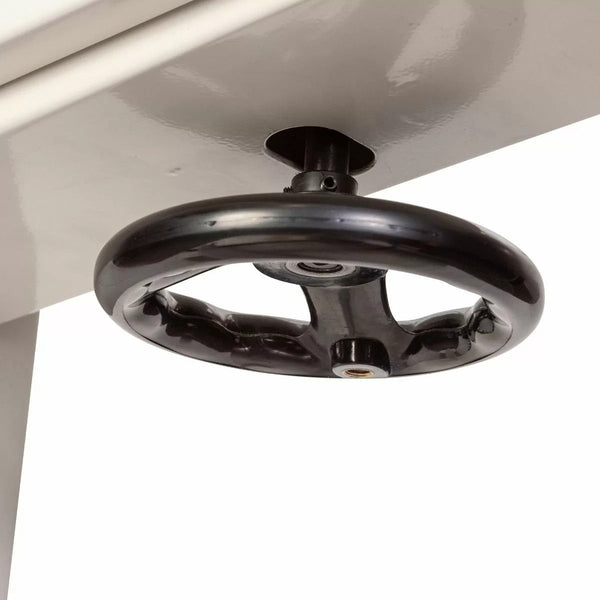

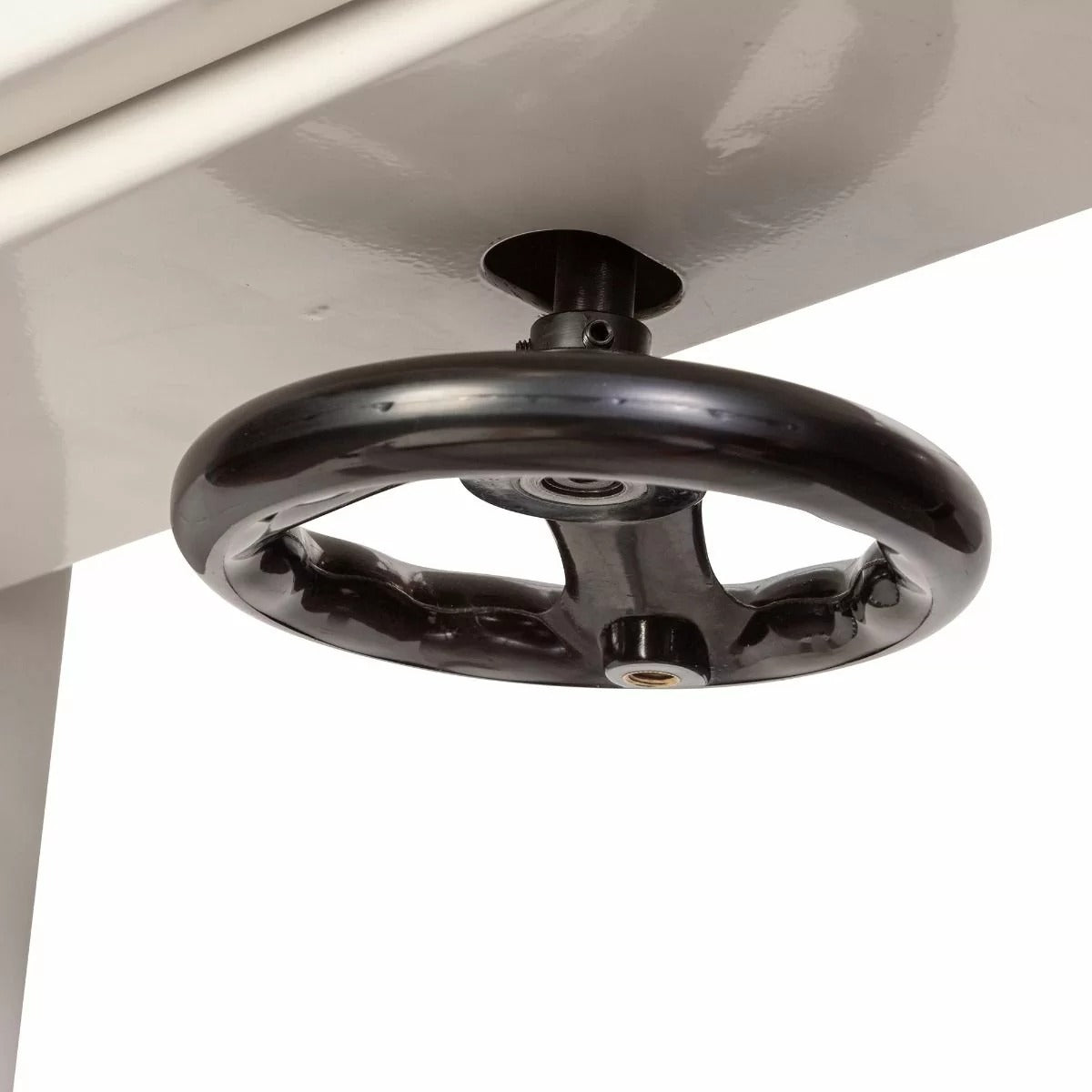

- User-Friendly Adjustments: Ergonomically-designed knobs and handwheels for smooth and precise modifications.

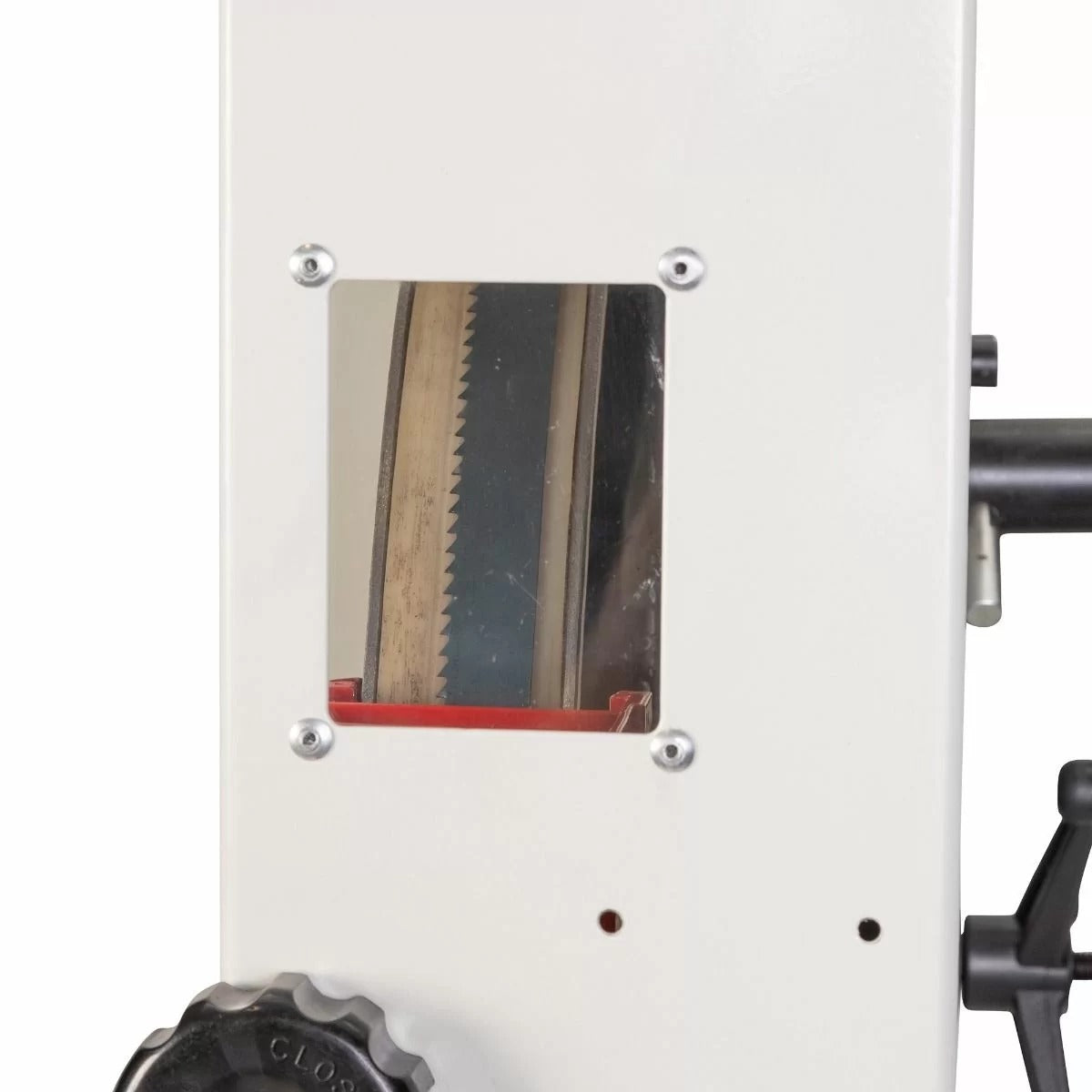

- Blade Tracking Window: Offers a clear view for accurate blade tracking.
- Effective Dust Collection: Dual 4" ports collect dust and chips at the source, keeping your workspace clean.
- Quick Blade Tensioning: Heavy-duty system with a visible scale for quick and easy blade tension adjustments.

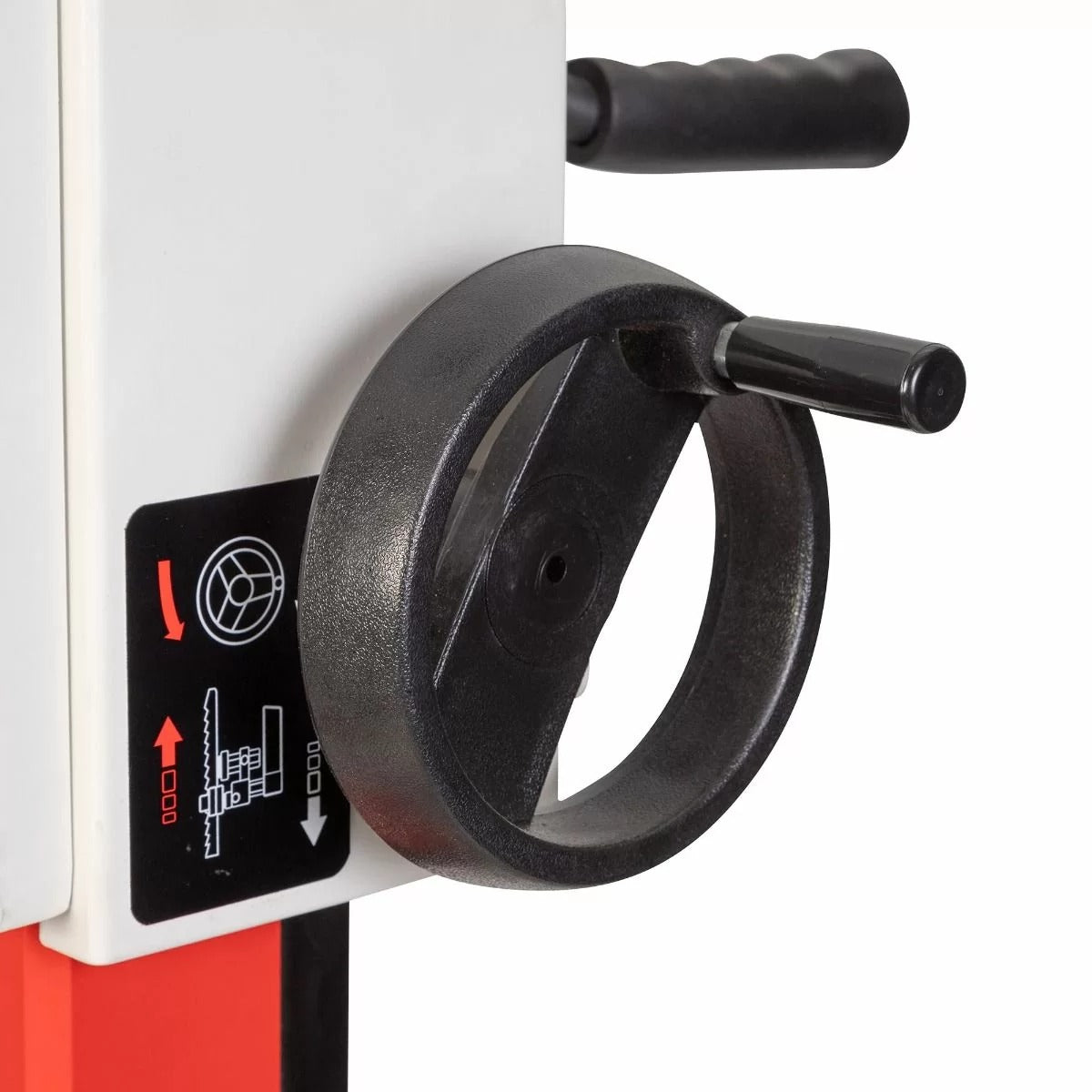

- Superior Blade Support: Rigid, four-sided guide post with rack and pinion adjustment for optimal stability.

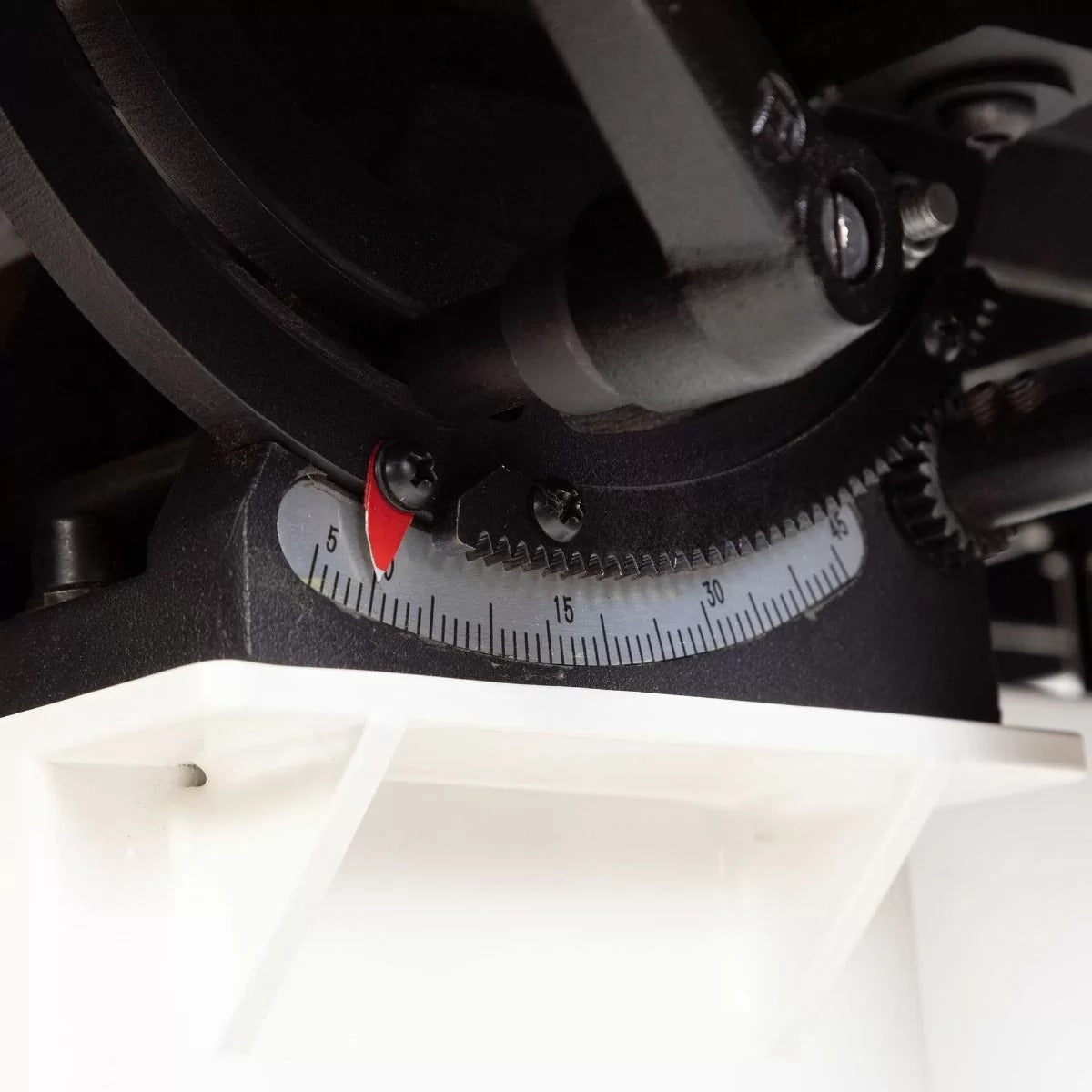

- Durable Cast Iron Trunnion: Ensures maximum support and stability during cutting operations.
What's in The Box
- (1) JWBS-18SFX, 18" Bandsaw 1.75HP 1PH 115V
- Owner's Manual
Warranty
- 5 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | JT1-548 |
| Brand | Jet |
| Blade Wheel Diameter (In.) | 18-1/2 |
| Wheel Speed (RPM) | 6400 |
| Blade Length (In.) | 150 |
| Maximum Saw Blade Width (in) | 1-1/4 |
| Minimum Saw Blade Width (In.) | 1/8 |
| Cutting Capacity Height (In.) | 16 |
| Cutting Capacity Width (In.) | 18 |
| Dust Port Outside Diameter (In.) | 4 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Table Size (L x W) (In.) | 27-1/4 x 20 x 1-5/8 |
| Table Tilt (Deg.) | Left 5, Right 45 |
| Prewired Voltage (V.) | 115 |
| Motor Power (HP) | 1.75 |
| Motor Phase | Single |
| Recommended Circuit Size (Amps.) | 20 |
| Motor Amps | 12 |
| Table Height from Floor (In.) | 37 |
| Table T-Slot (In.) | 3/4 |
| Net Weight (Lbs.) | 383 |
| Gross Weight (Lbs) | 470 |
