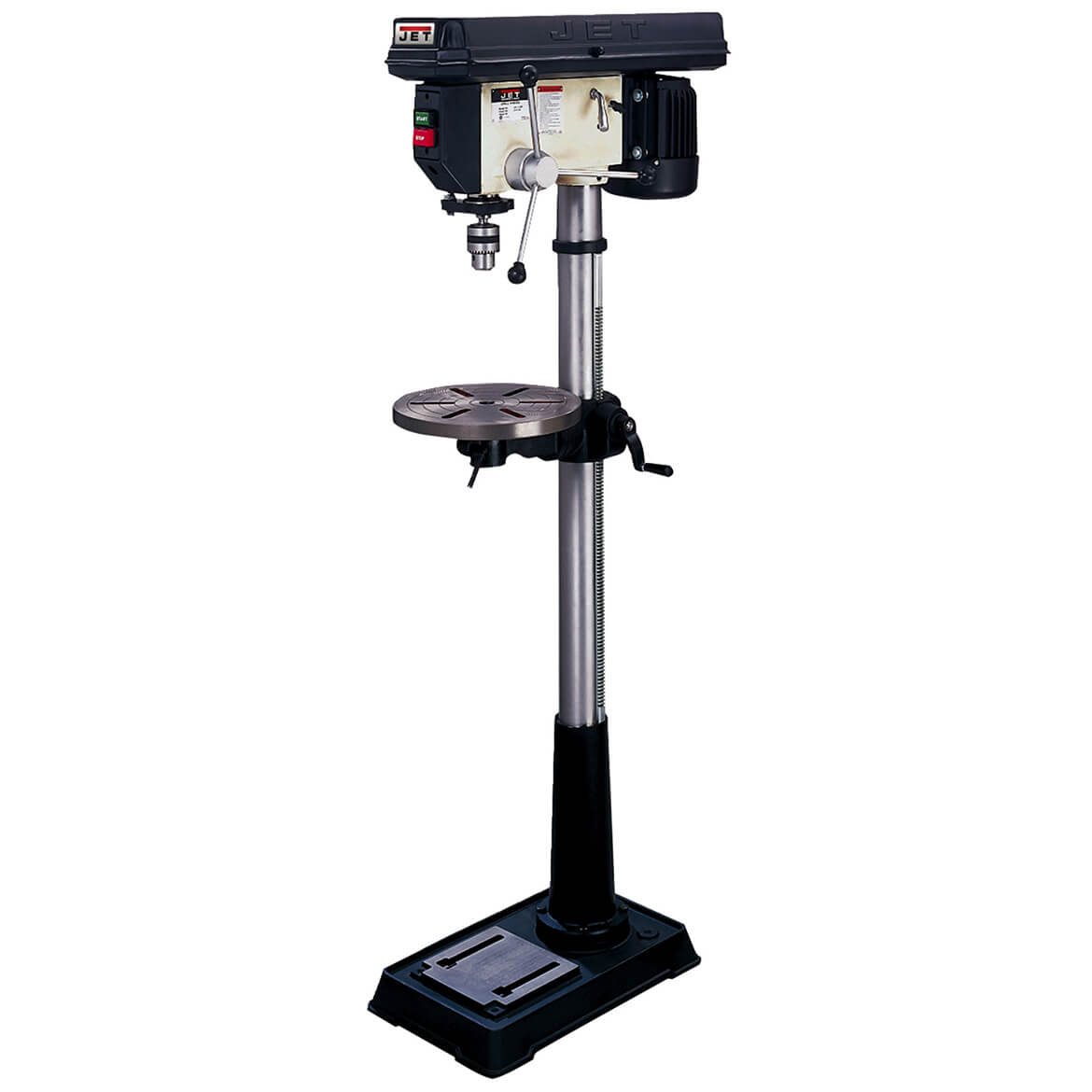

JET JDP-17MF 3/4-Hp 115/230V 16-1/2" Floor Drill Press w/ Quick Release Crank
PRODUCT DETAILS
Features
- 16 speeds lets you choose the best speed for the job
- Quick release crank operated worktable height adjustment rotates + or - 45° for versatility
- Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle speed changes
- "X" pattern mounting grooves in table allow mounting a fence when table is in reverse position
- Depth stop displays inch/mm and has a quick set bolt for fast, accurate adjustments
- Spindle has high-quality ball bearing construction for long life
- Adjustable tension spindle return spring is ideal for repetitive drilling of the same depth
- Built-in worklight (bulb not included) provides additional visibility of your work
What's in The Box
- JET JDP-17MF, 16-1/2" Floor Mount Drill Press, 3/4HP 1PH 115/230V
- Owner's Manual
Warranty
- 2-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Model | 354169 |
| UPC | 662755104114 |
| Style (Type) | Floorstanding Model |
| Swing (In.) | 16-1/2 |
| Spindle Travel (In.) | 4-3/8 |
| Number of Spindle Speeds | 16 |
| Spindle Taper | MT2 |
| Spindle Speed Range (RPM) | 200 - 3630 |
| Spindle Distance to Table (Max.) (In.) | 29-1/8 |
| Table Size (L x W) (In.) | 13-3/4 |
| Table Tilt (Deg.) | 45 R and L |
| Chuck Size (In.) | 5/8 |
| Column Diameter (In.) | 3-1/8 |
| Base Size (In.) | 11-1/8 x 19-5/8 |
| Motor Power (HP) | 3/4 |
| Motor Phase (PH) | 1 |
| Motor Amps | 9/4.5 |
| Weight (Lbs.) | 209 |
