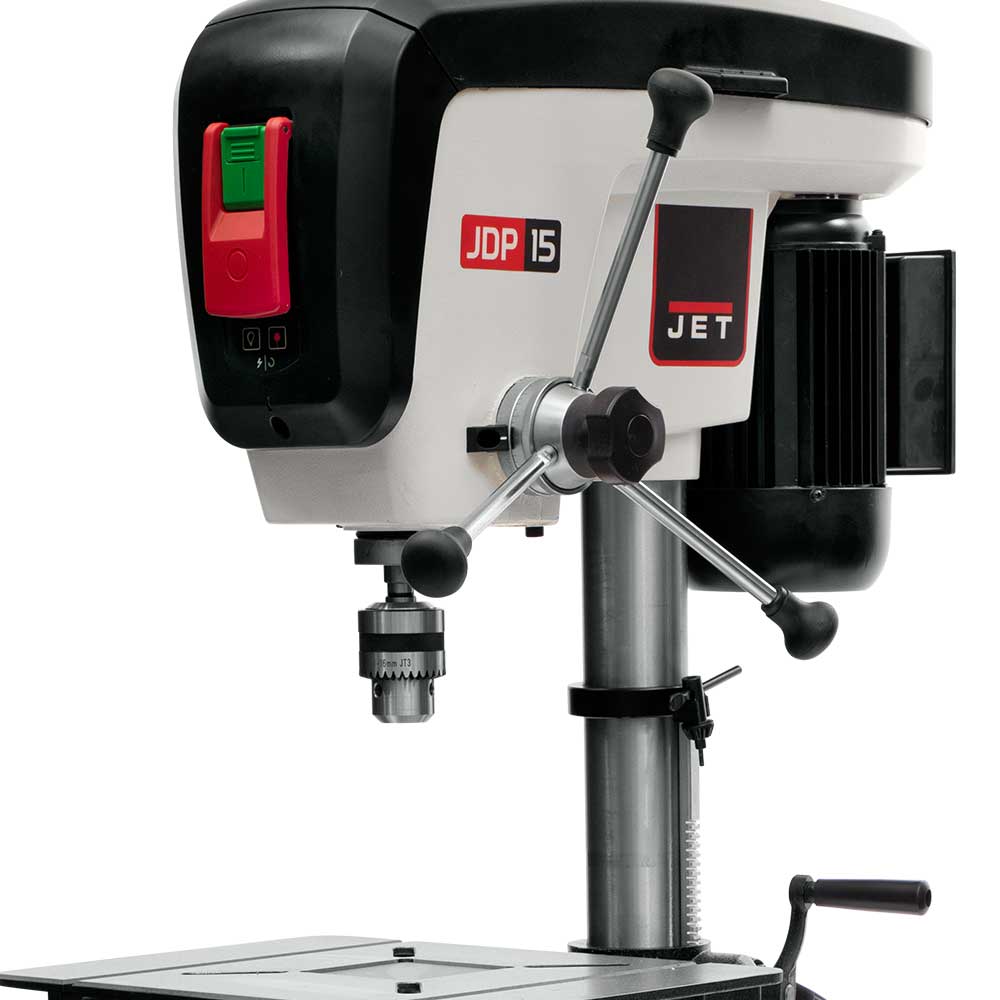

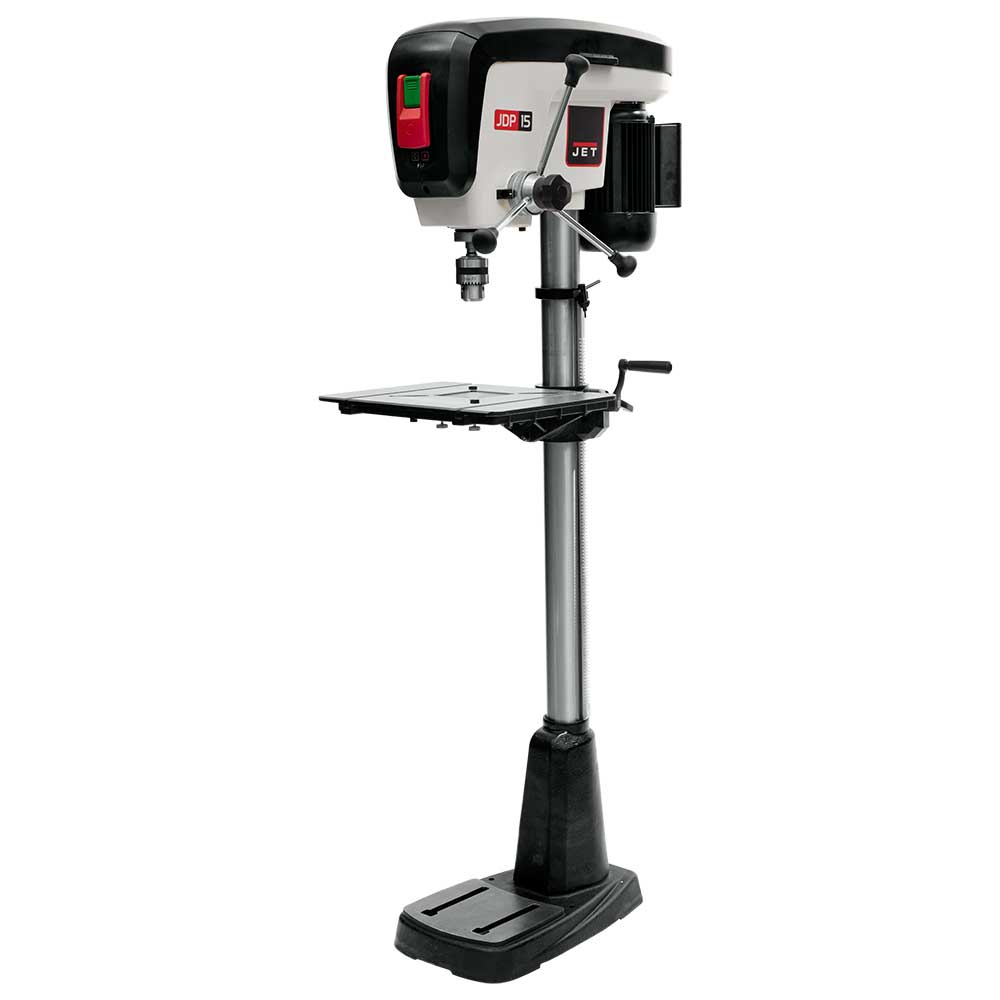

Jet JDP-15F 15-Inch Belt Tensioning Depth Floorstanding Drill Press - 716250
PRODUCT DETAILS
Features
- Spindle travels a full 3-1/8 with one revolution of the handle
- Large 12-1/2 x 17 precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
- One-handed belt tensioning allows for rapid speed changes
- Power switch features a safety key and large, paddle-style off button
- Integrated depth stop makes repetitive drilling quick and easy
- Xacta-X laser system easily identifies the drill center
- Long-lasting, built-in LED work light reduces shadows
- Table edge lip designed to make clamping easy
- Replaceable MDF table insert
- Large cast iron base provides stability
Whats in The Box
- 15 Floorstanding Drill Press
- Owner's Manual
Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | JDP-15F |
| Model | 716250 |
| Brand | Jet |
| Height | 12.81 |
| Length | 58 |
| Gross Weight | 183 |
| Volume | 10.508 |
| Width | 24.44 |
| Motor Power (HP) | 3/4 |
| Number of Spindle Speeds | 16 |
| Motor Voltage (V) | 115 |
| Spindle Speed Range (RPM) | 210 - 3500 |
| Spindle Distance to Table (Max.) (In.) | 30-1/2 |
| Style (Type) | SV_1375591258781 |
| Table Tilt (Deg.) | 45 Left and Right |
| Column Diameter (In.) | 2-3/4 |
| Swing (In.) | 15 |
| Chuck Size (In.) | 5/8 |
| Base Size (In.) | 18-7/8 x 11-3/8 |
| Motor Amps | 9 |
| Table Size (L x W) (In.) | 12-1/2 x 17 |
| Spindle Travel (In.) | 3-1/8 |
| Motor Phase (PH) | 1 |
| Prewired Voltage (V) | 115 |
| Weight (Lbs.) | 172 |
| Spindle Taper | MT2/JT3 |
| Spindle Distance to Base (In.) | 46-1/2 |
| Assembled Machine Dimensions (L x W x H) (In.) | 27 x 17 x 63-1/4 |
