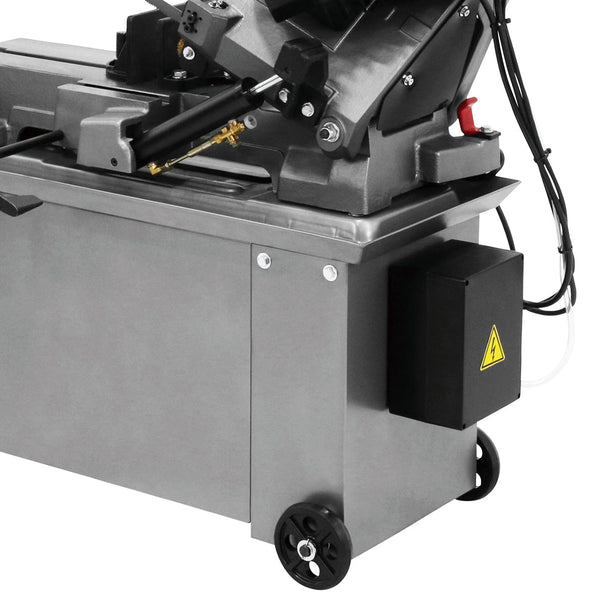

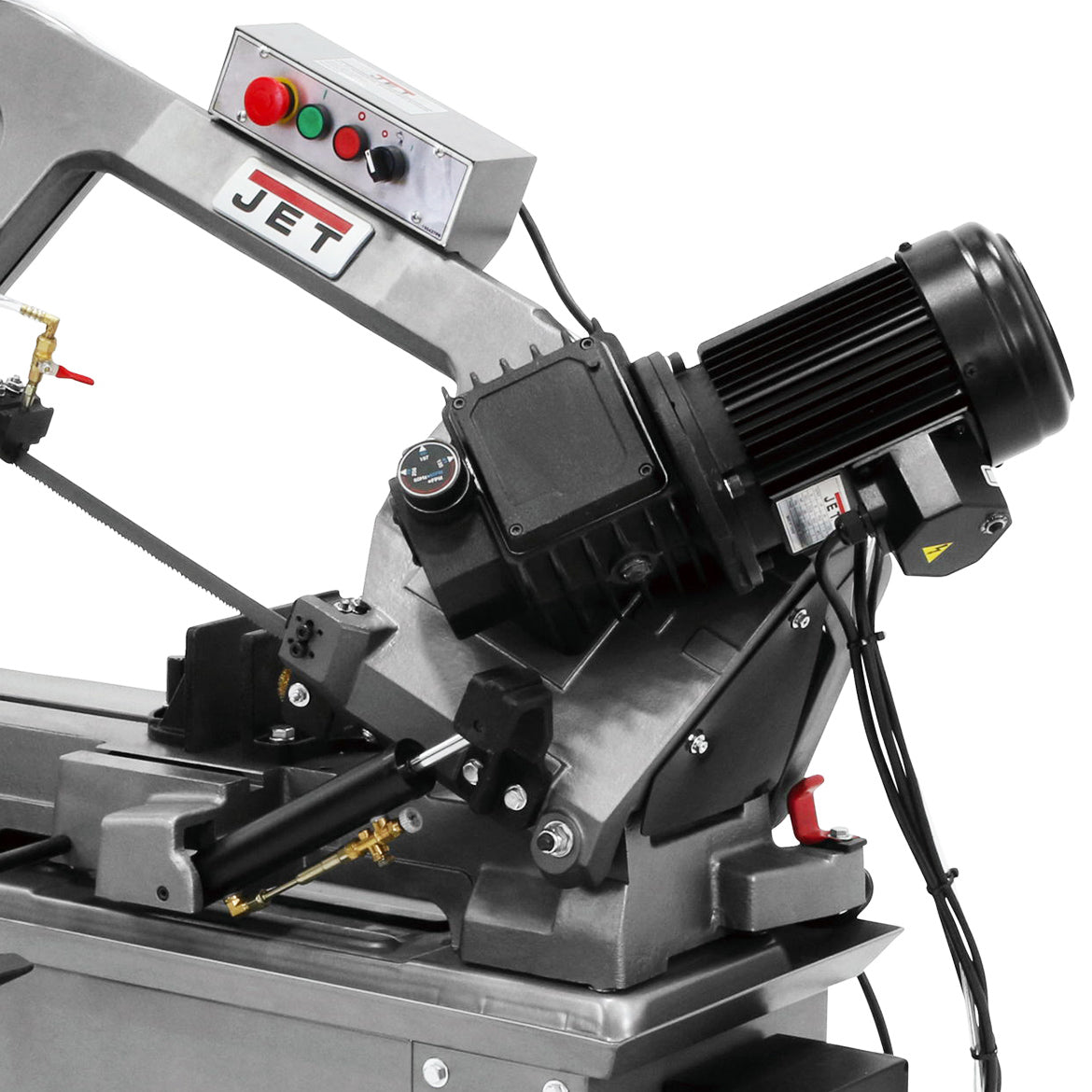

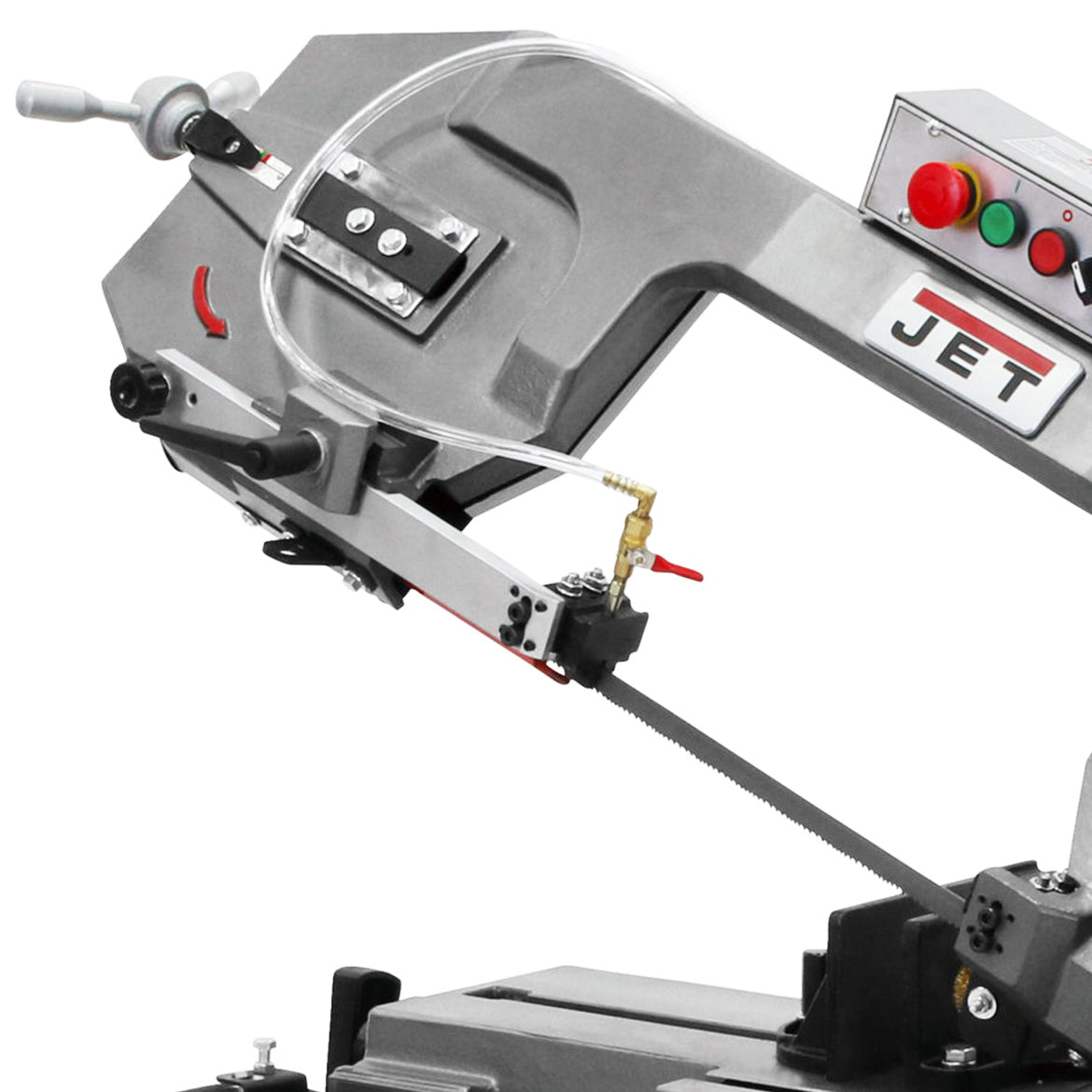

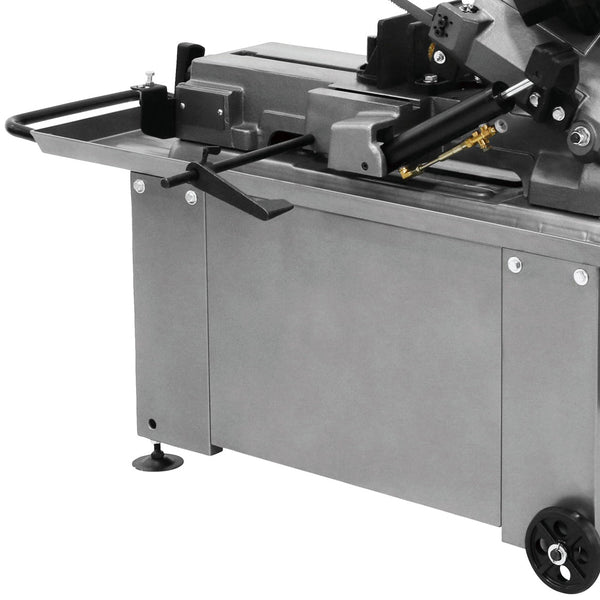

JET HBS-814GH 1-Hp 115/230V 8" x 14" Heavy Duty Horizontal Geared Head Bandsaw
PRODUCT DETAILS
Features
- Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
- Heavy-duty geared head transmission for quick speed changes
- Fully adjustable hydraulic downfeed system
- Easily accessible saw control panel
- Quick-positioning vise with fully adjustable jaws, swivels to 45°
- Built-in, self propelled blade brush extends blade life
- Wheels permit easy storage and movement
- Coolant system
- Adjustable material stop
- 3/4" Bi-Metal blade
What's in The Box
- JET HBS-814GH 8" x 14" Horizontal Geared Head Bandsaw 115/230V 1PH
- Owner's Manual
Warranty
- 2-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Model | 414466 |
| UPC | 662755523434 |
| Cutting Capacity (W x D) (In.) | 8 x 14 |
| Round at 90 Degrees (In.) | 8 |
| Round at 45 Degrees (In.) | 6-1/2 |
| Rectangle at 90 Degrees (In.) | 14 x 8 and 2 x 14 |
| Rectangle at 45 Degrees (In.) | 6-1/2 x 6 and 2 x 7 |
| Vise Swivels (Deg.) | 45° |
| Blade Speeds (SFPM) | 135, 197, 256 |
| Blade Wheel Diameter (In.) | 12 |
| Blade Length (In.) | 97 |
| Blade Size (In.) | 3/4 x .035 x 97 |
| Bed Height (In.) | 26 |
| Motor (HP) | 1 HP, 115/230V, 1Ph |
| Weight (Lbs.) | 400 |
| Overall Dimensions (L x W x H) (In.) | 51-1/2 x 18-1/8 x 44 |
