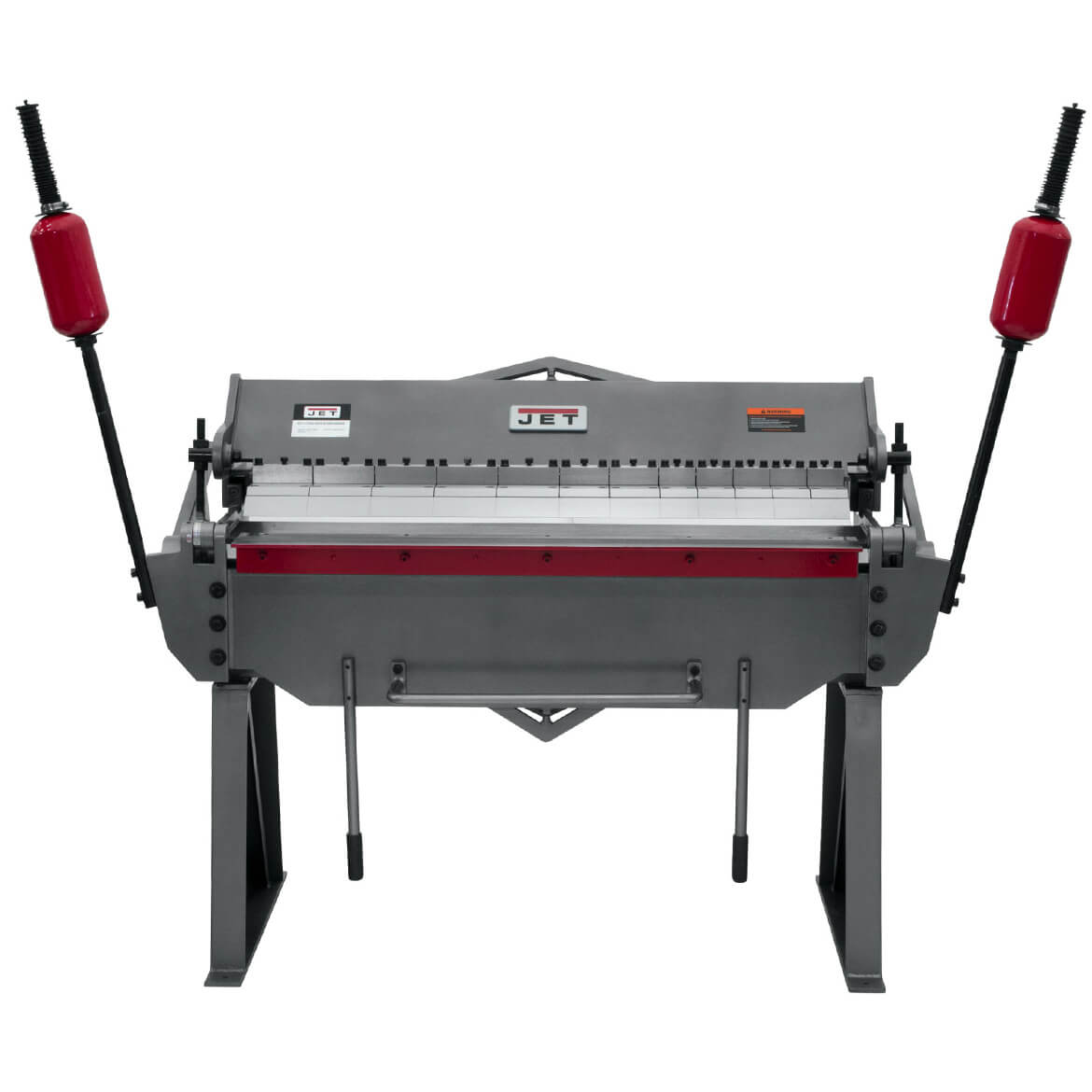

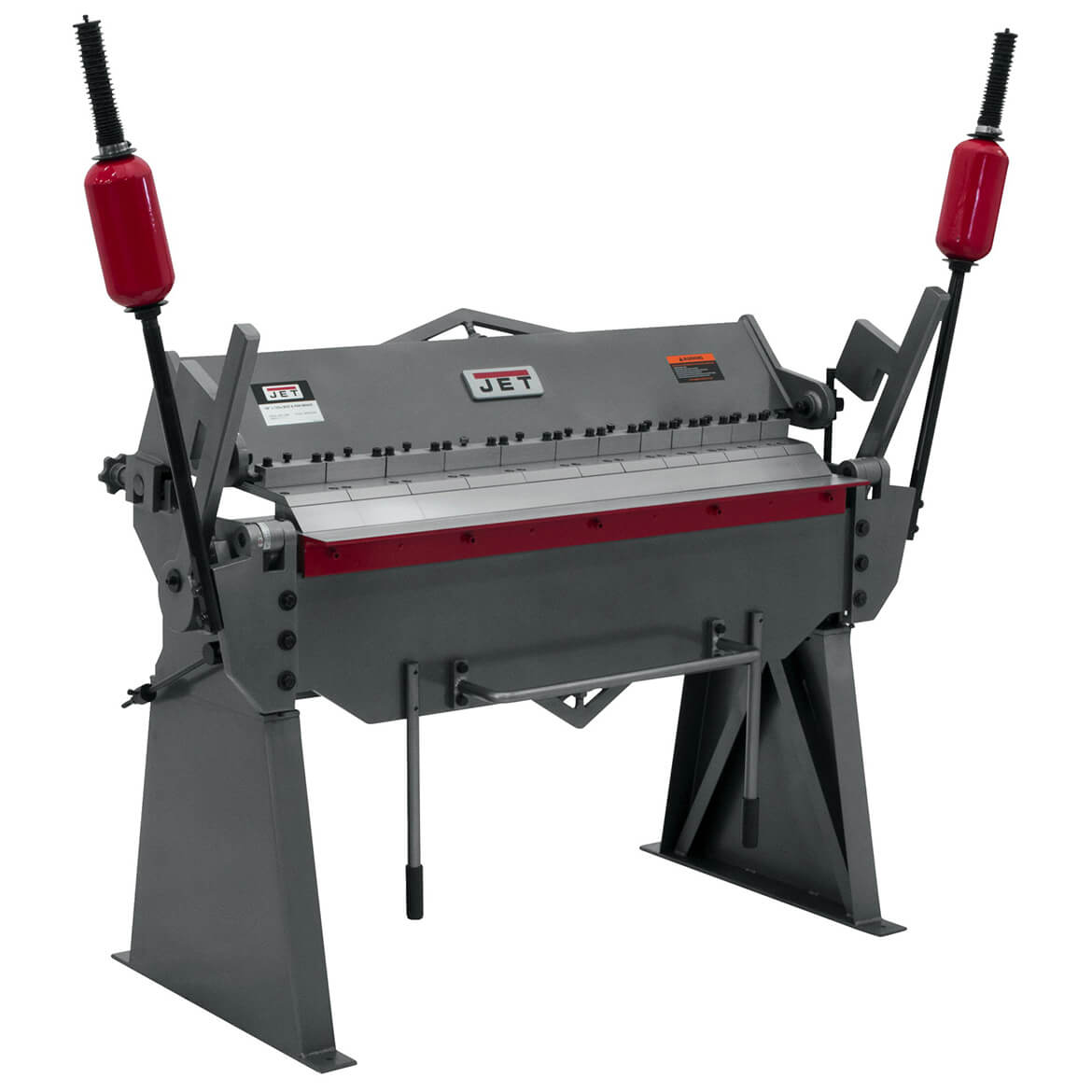

JET BPF-1248 48" x 12" Gauge Bench Floor Model Box w/ Pan Brake
PRODUCT DETAILS
Features

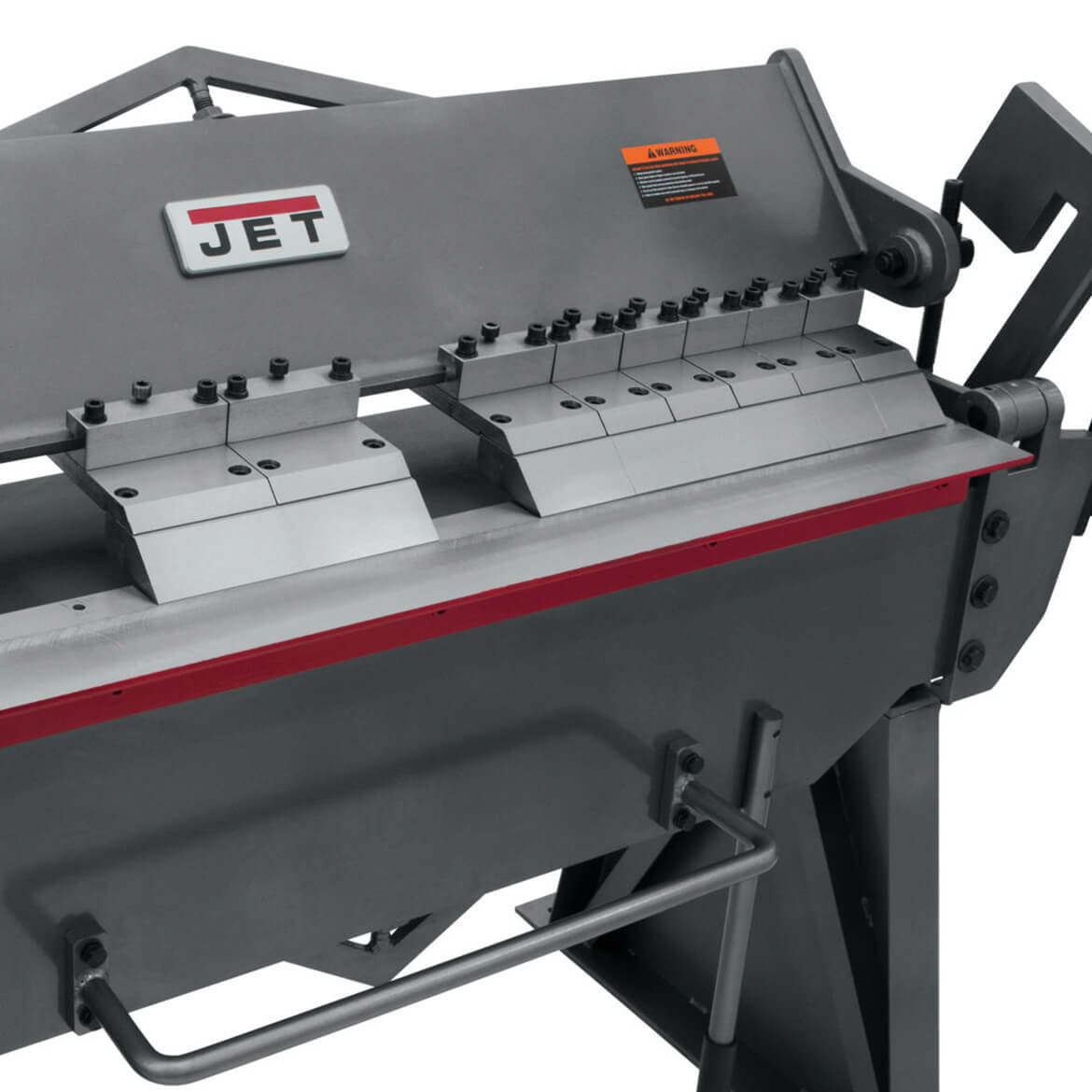

- Wide assortment of finger widths allow greater versatility in the shop
- With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
- All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
- Both the bed and apron are bored in line to assure the utmost accuracy

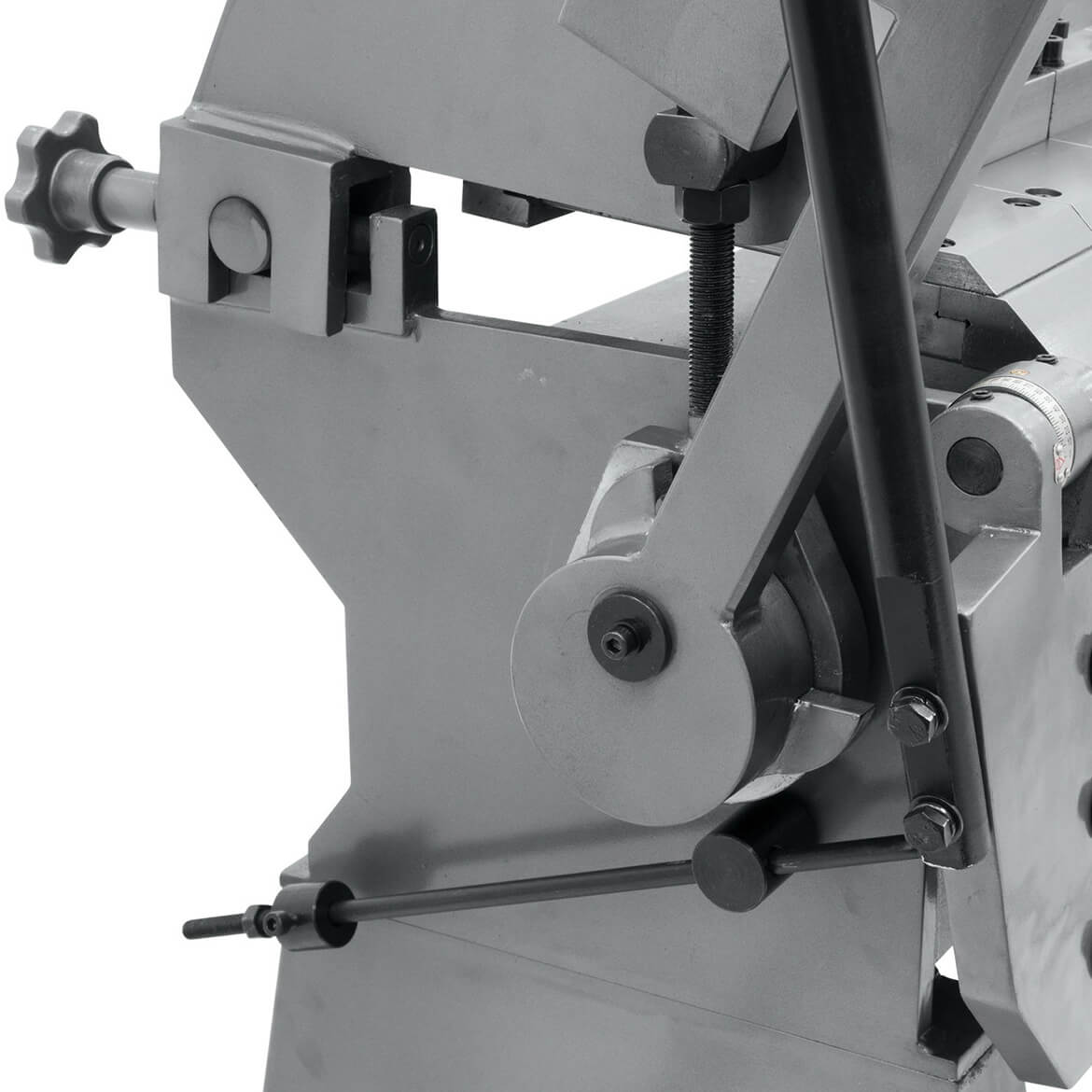

- Counter weights can be moved up or down to adjust desired leverage

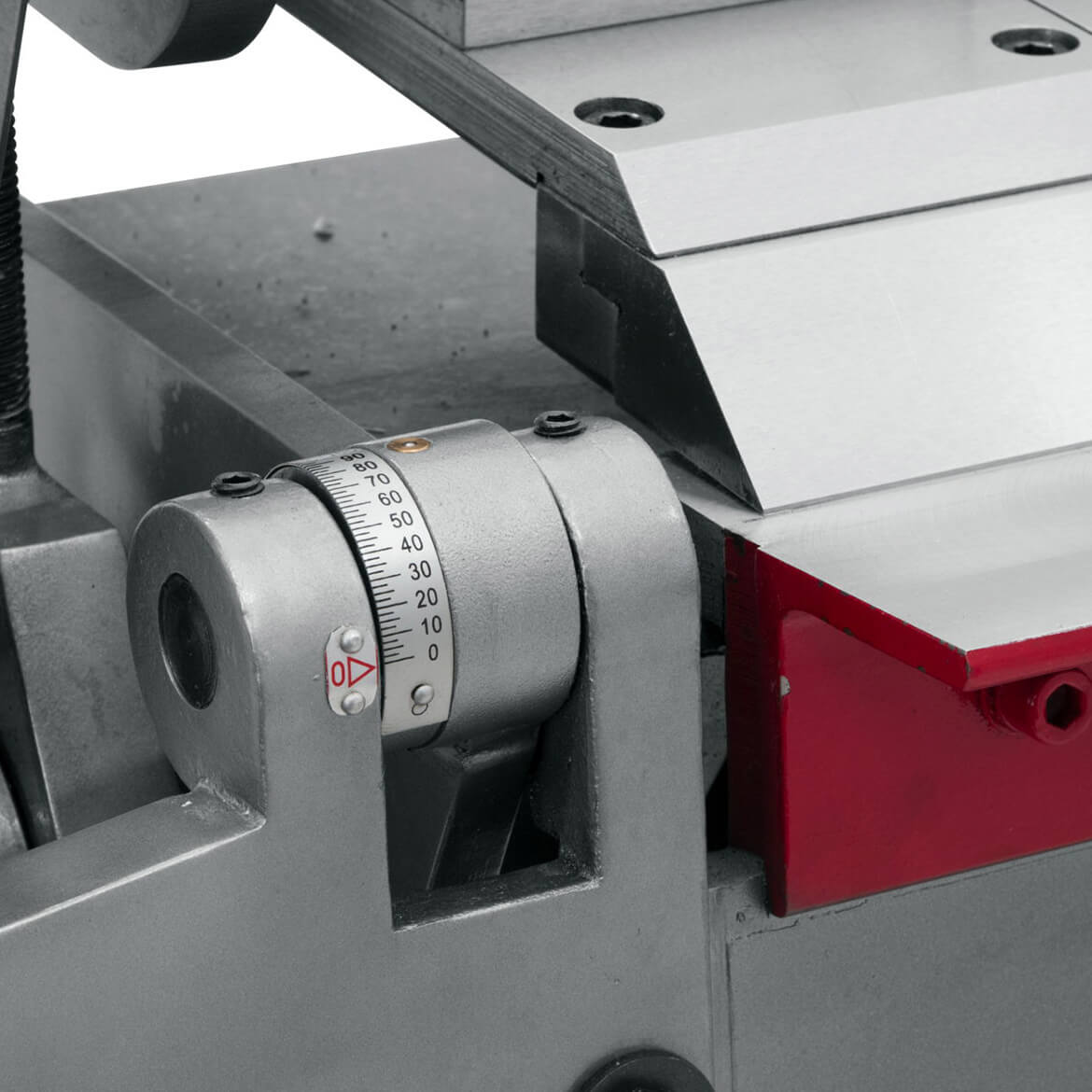

- Stop rod for repeatable bending
- 12 gauge maximum capacity for mild-steel
- 10 gauge maximum capacity for aluminum and copper alloys
- 16 gauge maximum capacity for stainless steel
What's in The Box
- 48-Inch x 12-Gauge Floo Model Box and Pan Brake
- Owner's Manual
Warranty
- 2-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | 754110 |
| Brand | Jet |
| Model | BPF-1248 |
| Mild Steel Capacity | 12 Gauge |
| Bending Length Capacity | 48in. |
| Max. Box Depth | 4 in. |
| Max. Lift of Beam | 1-1/2 in. |
| Beam Adjustment
(Front to Rear) |
7/8 in. |
| Number and Width of Fingers | 12
(5 at 3 in. / 2 at 4 in. x 5 at 5 in.) |
| Finger Nose Angle | 45-Degrees |
| Nose Radius | 1/32 in. |
| Length | 87 in. |
| Width | 59 in. |
| Height | 70 in. |
| Product Weight | 1,110 lbs. |
