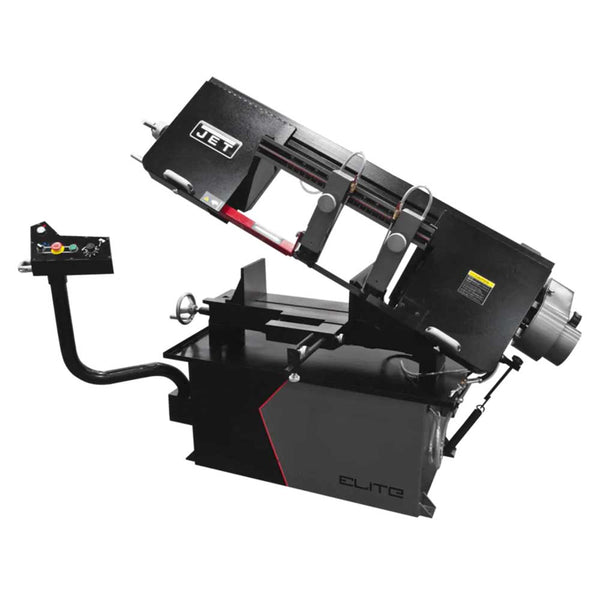

JET 891060 EHB-1018V 230V 10" x 18" 2 HP Single Phase Variable Speed Bandsaw
PRODUCT DETAILS
Features

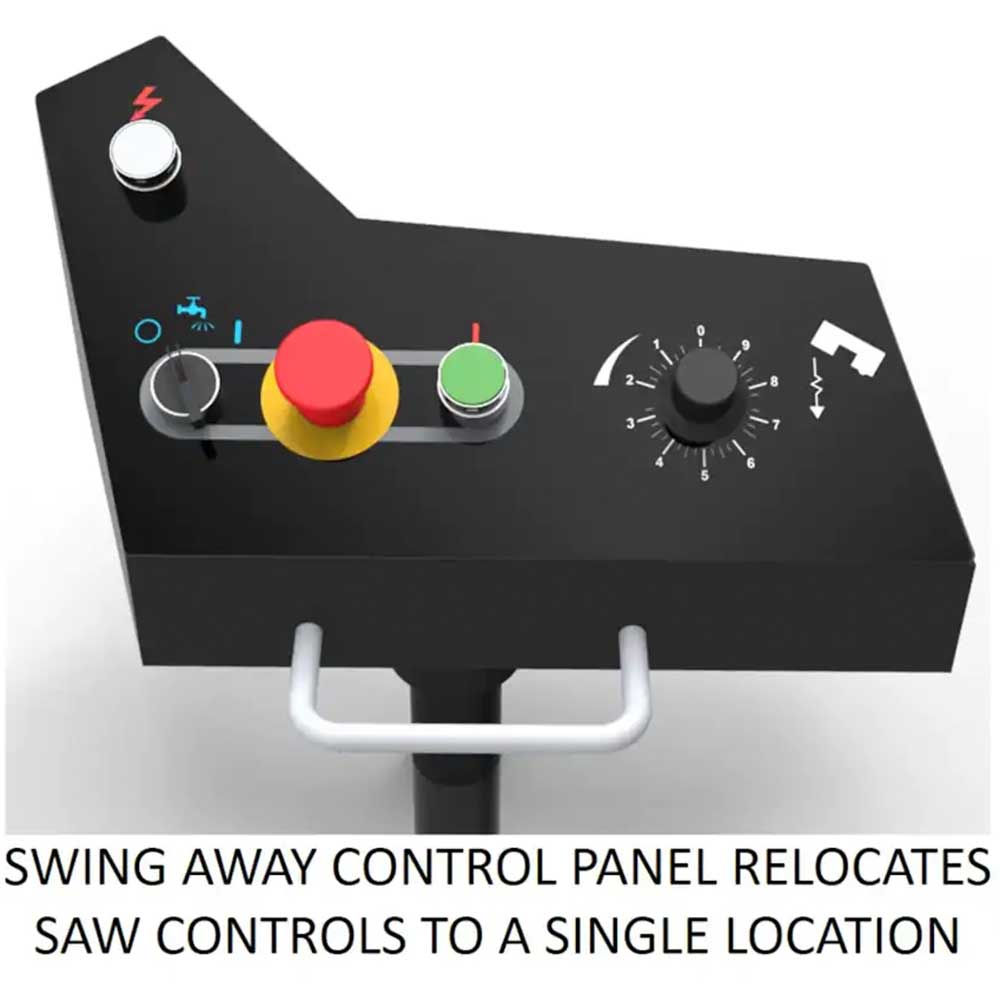

- The ELITE swing away panel relocates saw controls to a single location, offering finger-tip operation of most major saw functions.
- For added safety, the EHB-1018V Bandsaw follows strict guidelines and electrical requirements to be certified by CSA Group
- To reduce user fatigue and increase the safety of the worker, we increased the saw bed height to up to 27 in.
- Automatic blade breakage sensor detects accidental breakage and interrupts the power

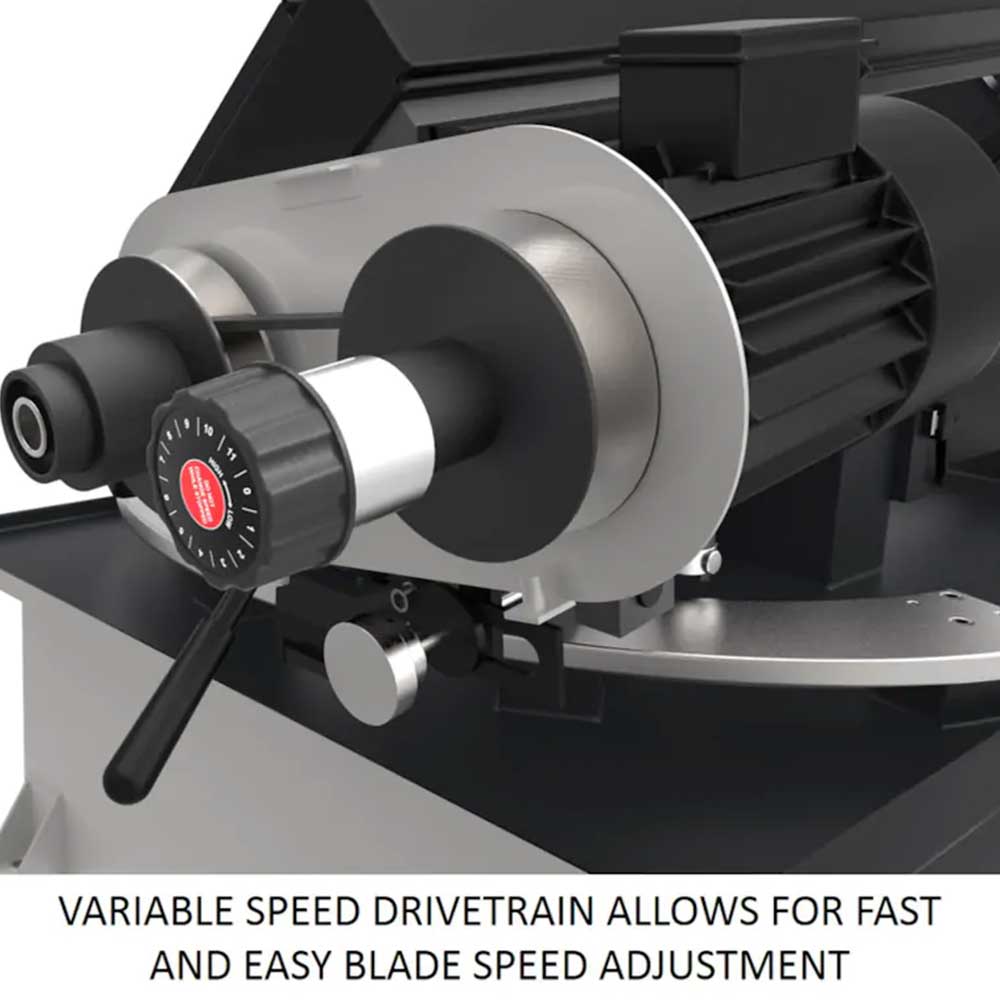

- Variable speed drivetrain allows the operator to fine-tune the blade speed fast and easily

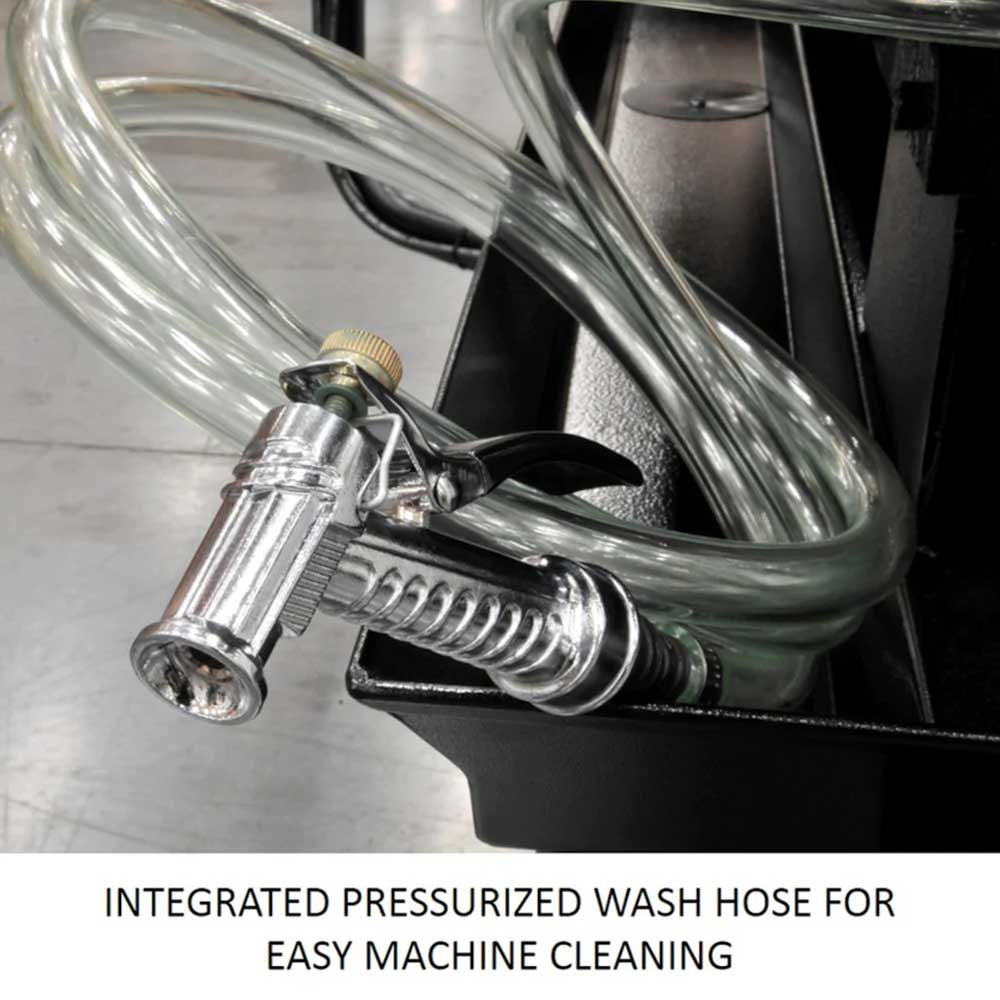

- Integrated pressurized wash hose for easy machine cleaning
- Quick positioning vise for clamping of materials

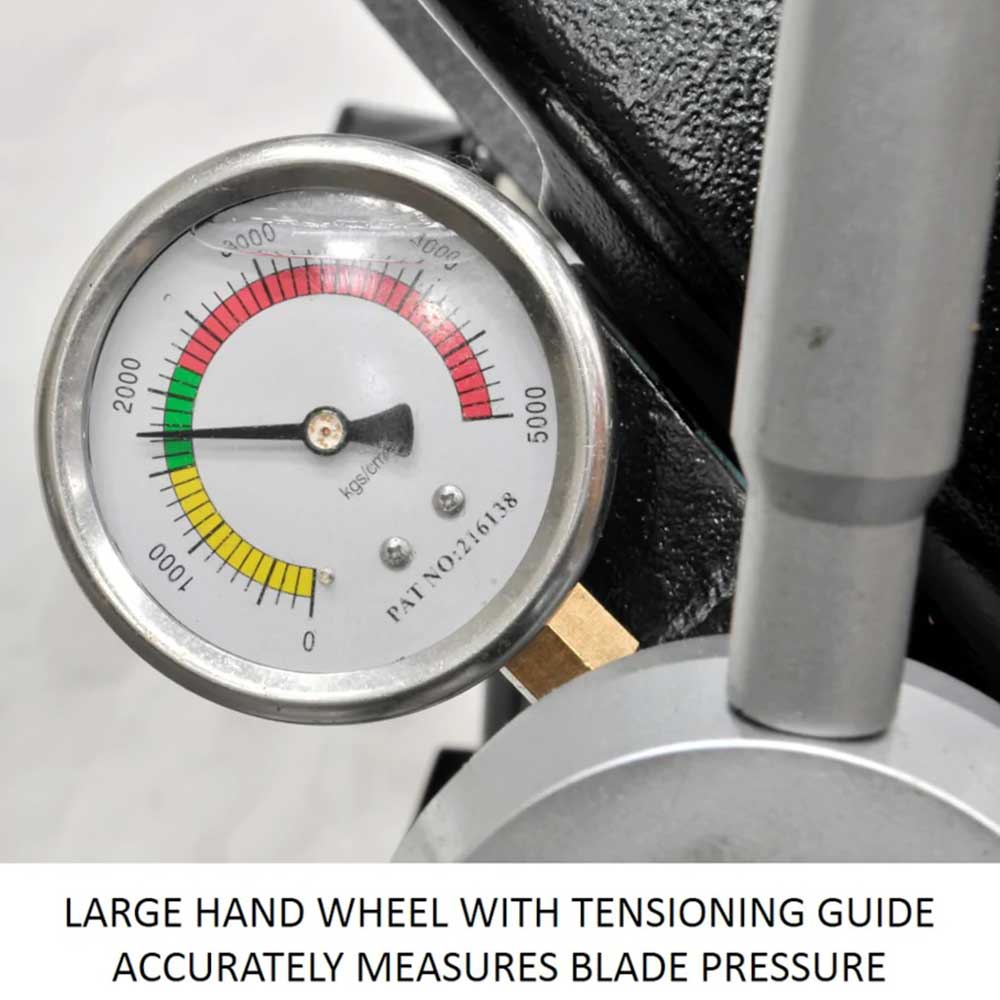

- Large handwheel with blade tensioning gauge accurately measures blade pressure
- Automatic blade shut off switch stops the sawing process
- Hydraulic down feed control is easily adjusted enabling feed rates to evolve with the various types of materials
- Built-in, self-propelled chip brush prevents chip build up in blade guides.
- The blade is fully guarded for operators safety
- Standard Equipment
- Coolant System
- Quick positioning vise
- Adjustable material stop
- 1 4/6 VT Bi-Metal blade
What's in The Box
- EHB-1018V 10 x 18 Variable Speed Bandsaw - 891060
- Owner's Manual
Warranty
- 3 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | 55231522 |
| Brand | Edwards |
| Volts | 208V/230V |
| Horsepower | 5 |
| Valve Pressure | 2500 PSI |
| Stations | 4 |
| Rated Capacity | 55 tons |
| Punching Capacity | 1-1/16 in diameter in 5/8 plate |
| Punching Throat Depth | 7-1/2 in |
| Punching Work Height | 36-9/16 in |
| Flat Bar Shearing Max Capacity | 3/8 x 14 x - 1/2 x 12 - 3/4 x 4 in |
| Flat Bar Shearing Max Round | 7/8 in |
| Flat Bar Shearing Max Square | 7/8 in |
| Flat Bar Shearing Work Height | 34-1/2 in |
| Angle Shear Max Capacity | 3 x 3 x 3/8 - 4 x 4 x 1/4 in |
| Angle Shear Work height | 39-7/8 in |
| Throat Depth | 11-3/16 in |
| Stroke | 1-1/4 in |
| Dimensions (L x W x H) | 36-1/8 x 44-3/8 x 55-1/4 in |
| Weight | 2480 lbs |
