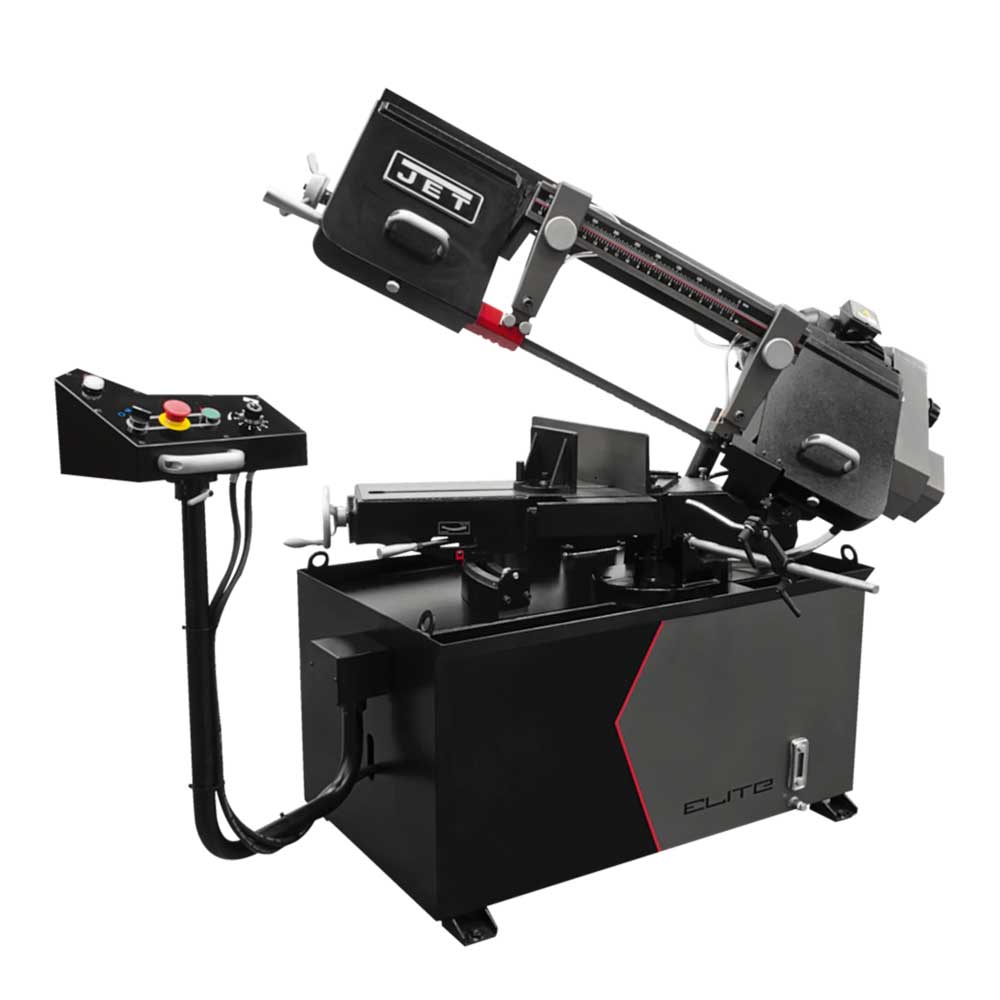

JET 891020 EHB-8VSM 8" X 13" Elite Durable Variable Speed Mitering Bandsaw
PRODUCT DETAILS
Features

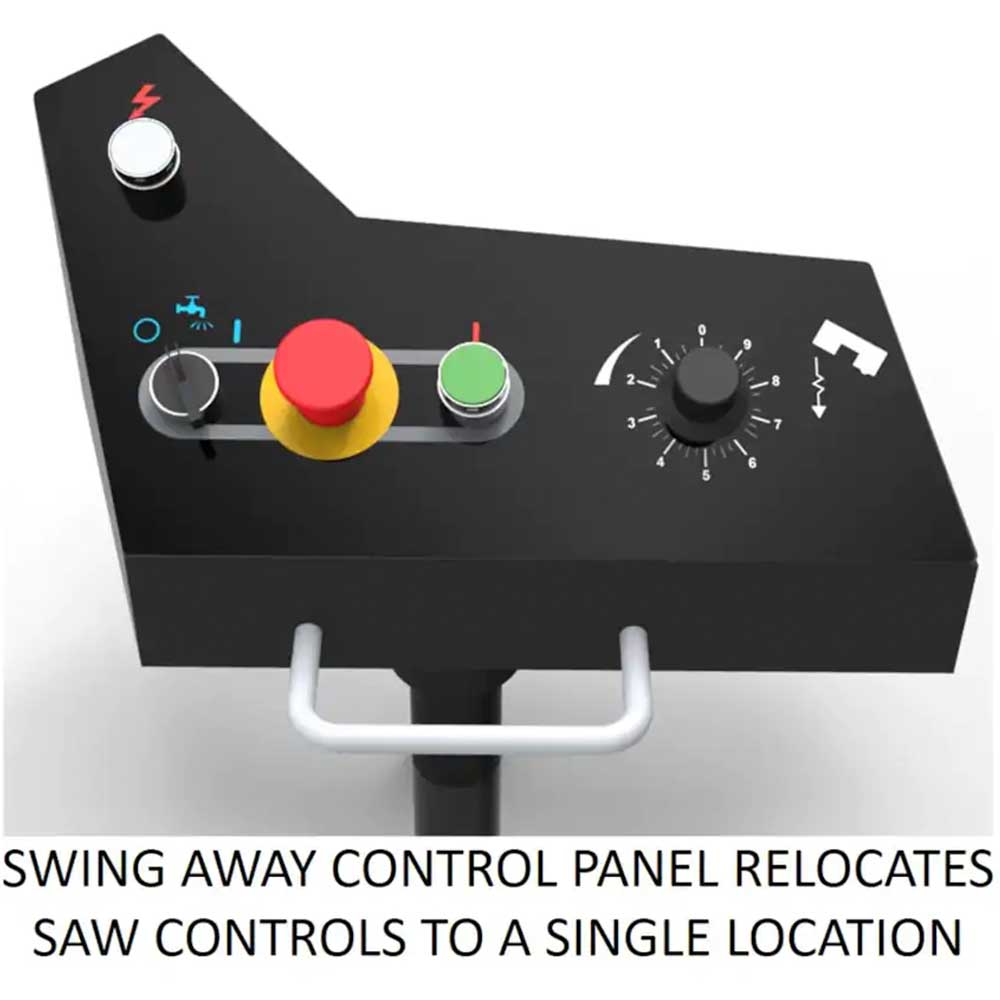

- The ELITE swing away panel relocates saw controls to a single location, offering finger-tip operation of most major saw functions.

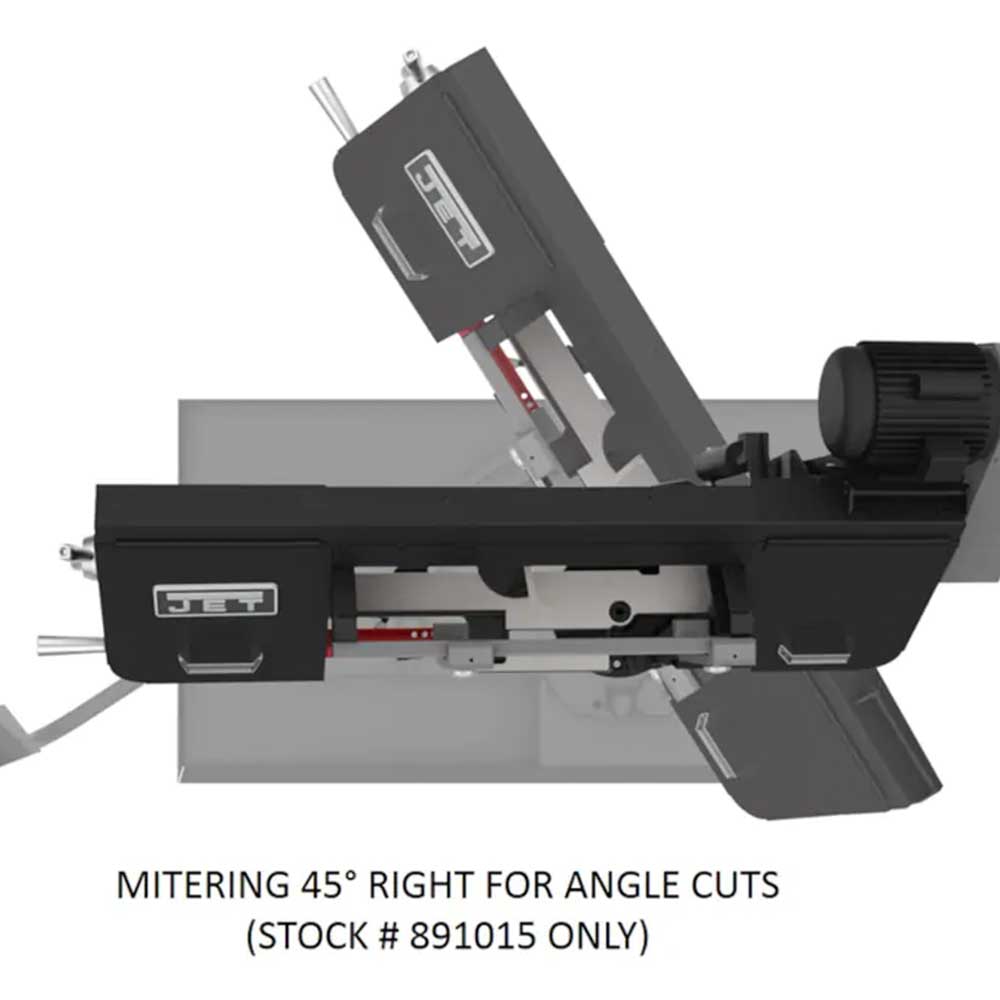

- Mitering allows for angle cuts up to 45 degrees right
- For added safety, the EHB-8VSM Bandsaw follows strict guidelines and electrical requirements to be certified by CSA Group
- To reduce user fatigue and increase the safety of the worker, we increased the saw bed height to up to 30 in.

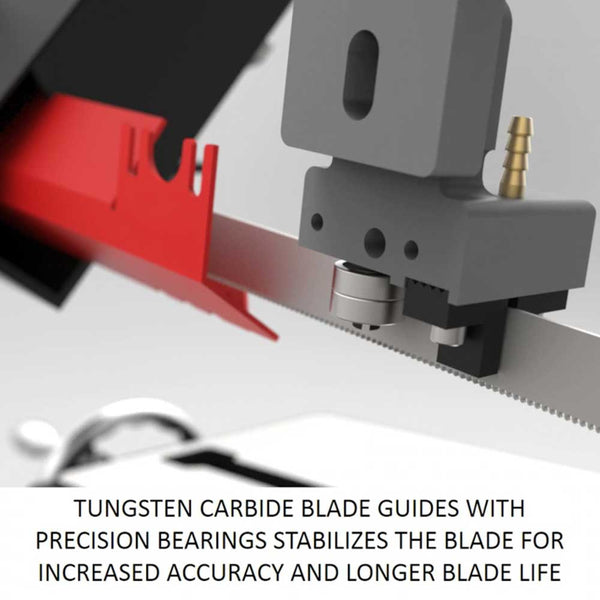

- Tungsten carbide blade guides with precision bearings stabilize the blade for increased accuracy and extended blade life
- Variable speed drivetrain allows the operator to fine-tune the blade speed fast and easily

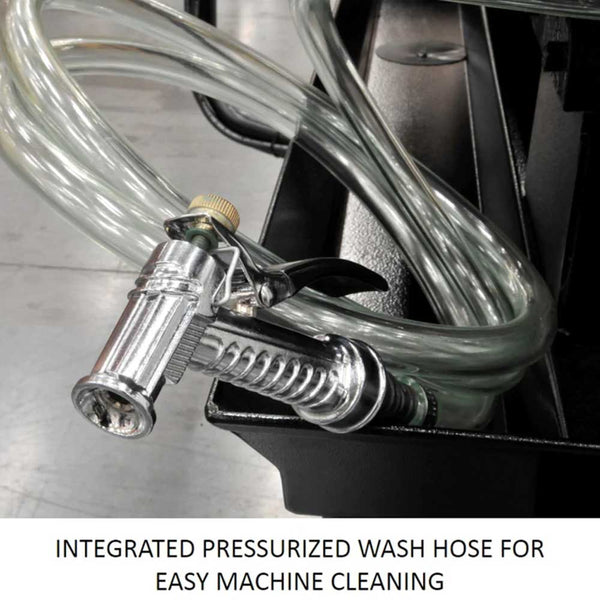

- Integrated pressurized wash hose for easy machine cleaning
- Quick positioning vise for clamping of materials

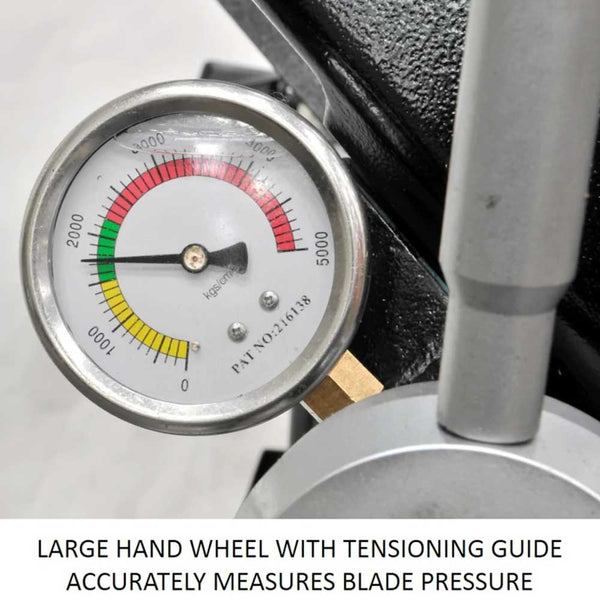

- Large handwheel with blade tensioning gauge accurately measures blade pressure
- Automatic blade shut off switch stops the sawing process
- Hydraulic down feed control is easily adjusted enabling feed rates to evolve with the various types of materials
- Built-in, self-propelled chip brush prevents chip build up in blade guides.
- The blade is fully guarded for operators safety
- Standard Equipment
- Coolant System
- Quick positioning vise
- Adjustable material stop
- 1 4/6 VT Bi-Metal blade
What's in The Box
- Variable Speed Bandsaw - EHB-8VSM
- Owner's Manual
Warranty
- 3 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | 891020 |
| Brand | JET |
| Volts | 115V/230V |
| Horsepower | 1-1/2 |
| Phase | Single |
| Amperage Draw at 115V -1 PH | 23 |
| Amperage Draw at 230V -1 PH | 11 |
| Blade Length | 114-1/2 in |
| Blade Speed | 82-310 SFPM |
| Bed Height | 30 |
| Drive | Variable Speed |
| Blade Size | 1 x .035 x 114-1/2 in |
| Vise Swivel | 45 degrees |
| Square at 45 Degrees | 8 x 8 in |
| Square at 90 Degrees | 8 x 8 in |
| Rectangle at 45 Degrees | 8 x 8 in or 2 x 9-1/2 in |
| Rectangle at 90 Degree | 13 x 5-1/4 / 13-1/4 x 2 in |
| Round at 45 Degrees | 8 in |
| Round at 90 Degrees | 8 in |
| Cutting Capacity | 8 x 13 in |
| Dimensions (L x W x H) | 62-1/2 x 23 x 48 in |
| Weight | 924 lbs |
