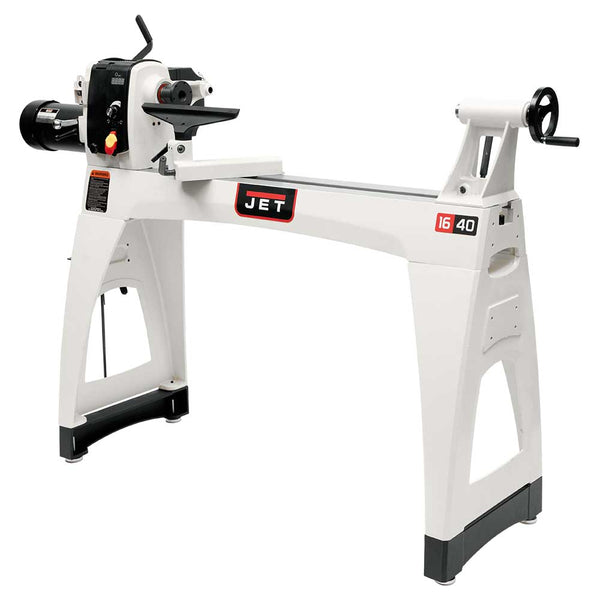

Jet 719500 JWL-1640EVS 115V 1.5-HP 16" X 40" Variable Speed Woodworking Lathe
PRODUCT DETAILS
Features
- Headstock slides for maximum versatility
- Extended spindle nose houses dual headstock spindle bearings
- Improved tailstock quill locking mechanism incorporates an anti-rotation key
- Tailstock features Acme threads for smooth and durable movement
- Banjo uses non-marring, positive locking wedge system to securely hold tool post
- Tool post locking mechanism designed for year of consistent strength
- Spindle lock latch frees up both hands
- Electronic infinitely variable speed from 40 – 3200 RPM
- 36 integrated indexing positions
- Newly designed headstock locking handle accessible from front of lathe
- Convenient leg-mounted tool holder
- Inverter is enclosed for added protection
- E Drive Inverter features a built in EMI filter
- Conveniently located digital readout
- Rubber tool mat on top of headstock
What's in The Box
- Jet JWL-1640EVS 115V 1.5-HP 16" X 40" Variable Speed Woodworking Lathe - 719500
- Owner's Manual
Warranty
- 5 Years Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | 719500 |
| Brand | JET |
| Motor Power | 1-1/2 HP |
| Motor Phase | 3 |
| Motor Volts | 230V |
| Motor Amps | 4.6 |
| Swing Over Bed | 16-1/2 in |
| Bed Gap | 1-3/4 in |
| Swing Over Tool Rest base | 12-7/8 in |
| Distance Between Centers | 40 |
| Headstock Movement | Slide |
| Spindle Bore | 5/8 in |
| Tailstock Bore | 3/8 in |
| Spindle Taper | MT2 |
| Quill Travel | 4-1/2 in |
| Outboard External Threads | 3/4-14 LH |
| Spindle Speeds | High 120-3200/Low 40-1200 |
| Speed Range | 40-3200 |
| Number Indexing Positions | 36 |
| Centerline of Spindle to Floor | 44-1/2 in |
| Outboard Turning | Yes |
| Bed Construction | Cast Iron |
| Recommended Circuit Size | 20 |
| Length | 73 in |
| Width | 52-1/2 in |
| Height | 20 in |
| Weight | 300 lbs |
