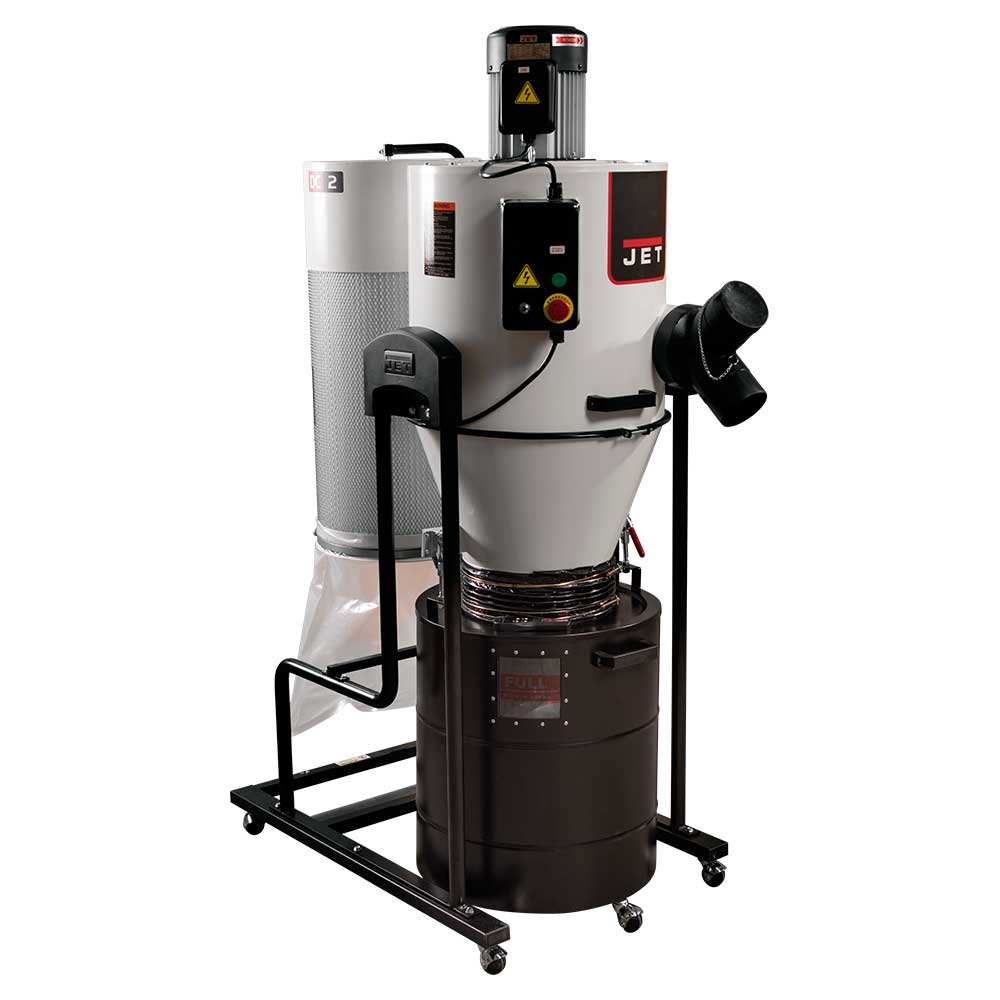

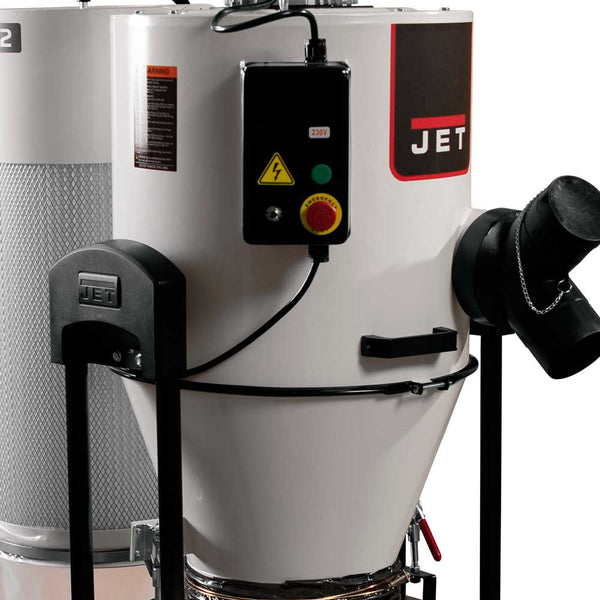

JET 717520 JCDC-2 230V 2-HP Cyclone Dust Collector
PRODUCT DETAILS
Features
- Cyclones two stage separation provides more working CFM than comparable horsepower single stage units
- Heavy Debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
- Direct mounted filter eliminates inefficiencies from ridged flex hosing bends
- Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below

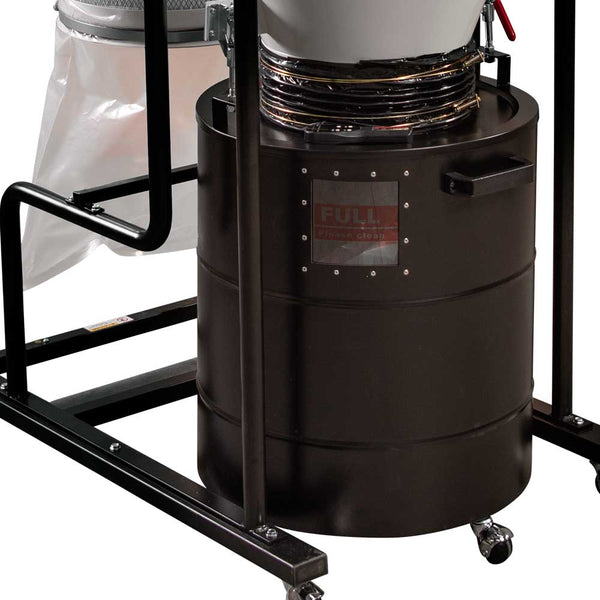

- Heavy debris is captured in a 30 gallon drum with quick release levers and independent casters for quick emptying
- Included radio frequency remote control works from up to 50 feet away
- Remote timer settings allows system to run 2, 4, 6, or 8 hours before automatic shutoff
- Double paddle manual cleaning system quickly cleans the pleated filter
- Swivel casters make it easy to move the unit around the shop
What's in The Box
- Jet JCDC-2 230V 2-HP Cyclone Dust Collector - 717520
- Owner's Manual
Warranty
- 5 Years Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | 717520 |
| Brand | JET |
| Number of Air Inlets | 1 at 6 in, 2 at 4 in |
| Air Flow ay 6 in CFM | 938 |
| Air Velocity at 6 in FPM | 4763 |
| Static Pressure Loss | 2.520 |
| Max Static Pressure | 10 |
| MERV Value | 13 |
| Filter Efficiency Microns | 99 percent of 2-micron particles |
| Canister Filter Length | 22-5/8 in |
| Canister Filter Diameter | 14-9/16 in |
| Collection Drum Capacity | 30 gallon |
| Impeller Material | Steel |
| Impeller Diameter | 14-1/2 in |
| Impeller Fins | radial |
| Sound Rating | 76 dB |
| Motor Speed | 3450 RPM |
| Motor Power | 2 HP |
| Motor Voltage | 230V |
| Motor Amps | 9 |
| Footprint | 50-5/8 in X 25-7/8 in |
| Length | 25-7/8 in |
| Width | 50-5/8 in |
| Height | 72-1/4 in |
| Weight | 235 lbs |
