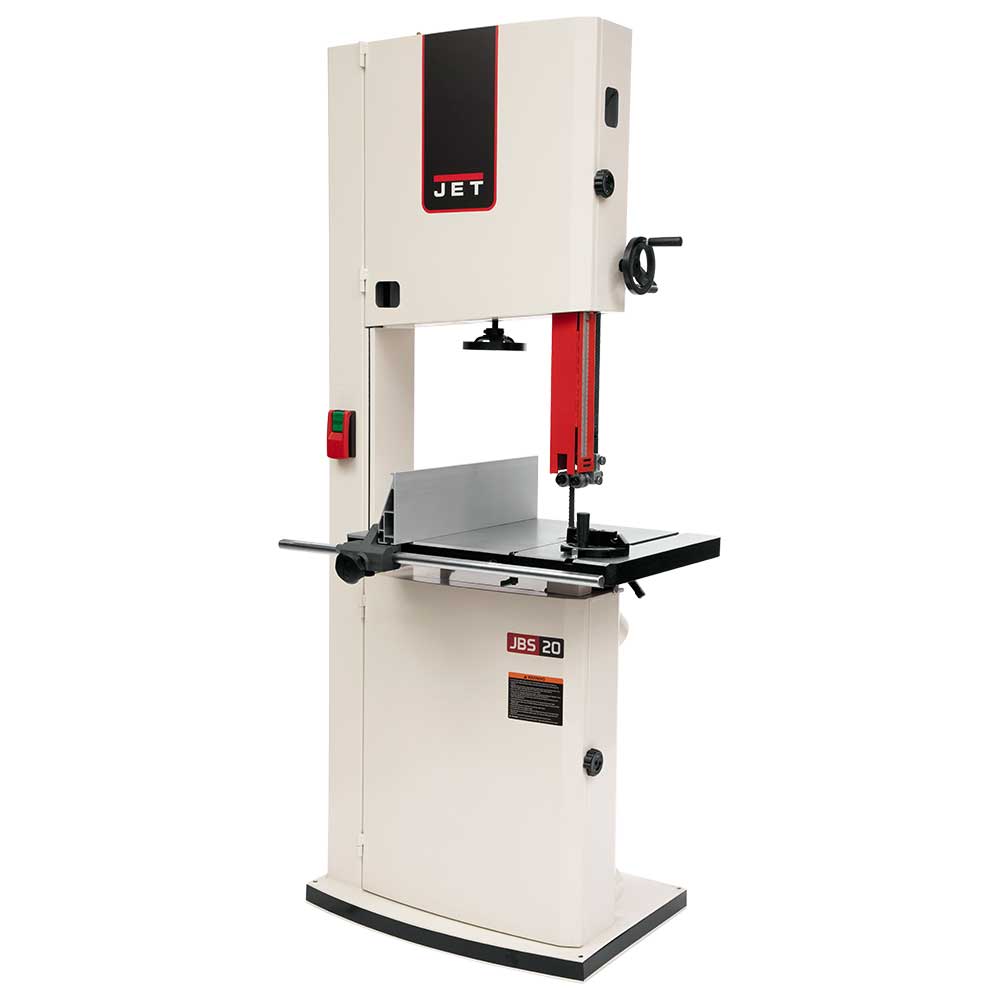

JET 714850 JWBS-20-5 230V 5HP 20" Heavy Duty Steel Frame Bandsaw
PRODUCT DETAILS
Features
- 16" resaw capacity handles both large and small projects
- 27-1/4" x 20" precision ground cast iron table for added stability and work support
- Fence system features a micro-adjustable, dual-position side plate
- Tool-less, independently adjustable, upper and lower ball bearing guides
- Rigid, four-sided guidepost with rack and pinion adjustment for optimum blade support
- Easy-to-read blade tension scale can be viewed through upper door window
- Single knob adjustment simplifies the blade tracking process
- Blade tracking window provides clear view of blade during tracking
- Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
- Cast iron trunnion for maximum support and stability
- Slotted table allows for front blade removal
- Cast iron handwheels and ergonomically designed knobs adjust smooth and easy
- Round table insert features leveling screws for precise adjustment
- Conveniently located dual 4" dust collection ports catch dust and chips at the source
- Table tilts 5 degrees left and 45 degrees right to accommodate a wide variety of cuts
What's in The Box
- 20" Heavy Duty Steel Frame Bandsaw
- Owner's Manual
Warranty
- 5 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | 714850 |
| Brand | JET |
| Horsepower | 5 |
| Volts | 230V |
| Amps | 22 |
| Recommended Circuit Size | 40 |
| Band Saw Size/Wheel Diameter | 20-1/4 in |
| Cutting Capacity Width | 20 in |
| Cutting Capacity Height | 16 in |
| Blade Length | 158 in |
| Blade Speed | 2530/4850 |
| Table Size(L x W) | 27-1/4 x 20 x 1-5/8 in |
| Blade Width | 1 in x 3 TPI |
| Maximum Saw Blade Width | 1-1/2 in |
| Minimum Saw Blade Width | 1/8 in |
| Table Tilt | -5,45 degrees |
| Table Height from Floor | 37 |
| Dust Collection Minimum CFM Required | 400 |
| Dust Port Outside Diameter | 4 in (x2) |
