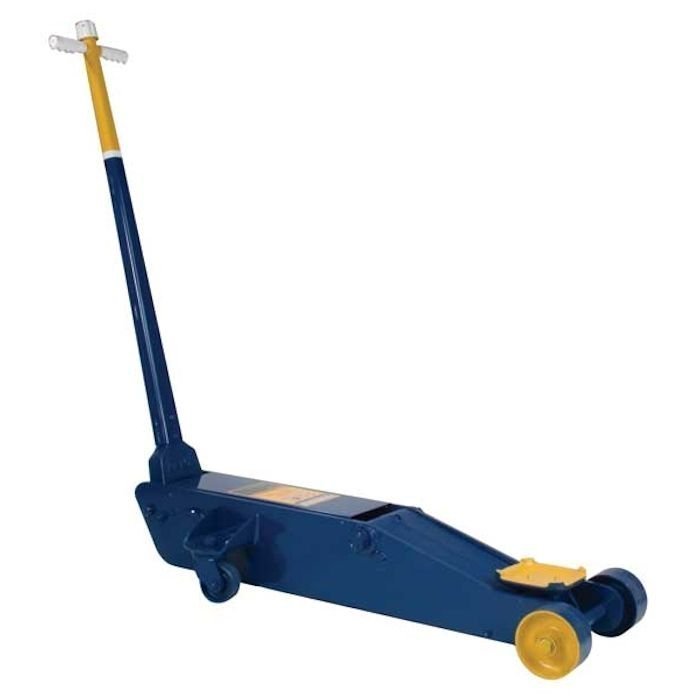

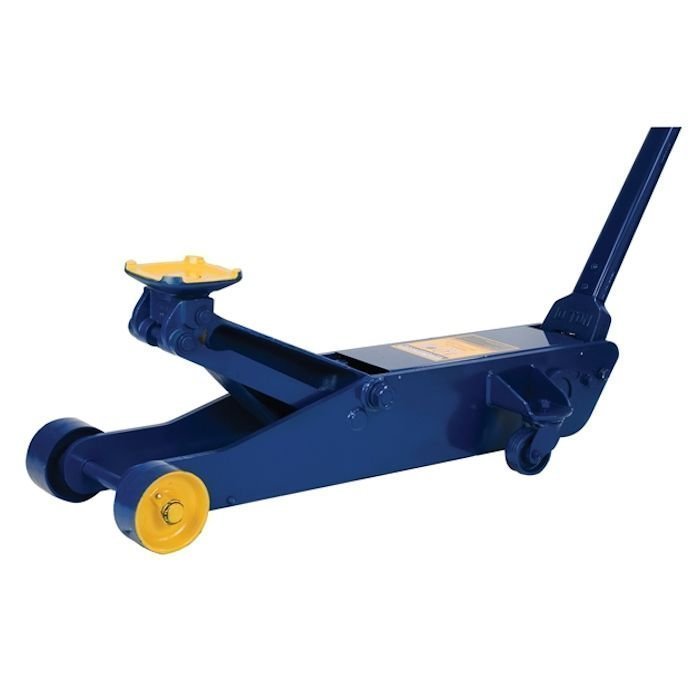

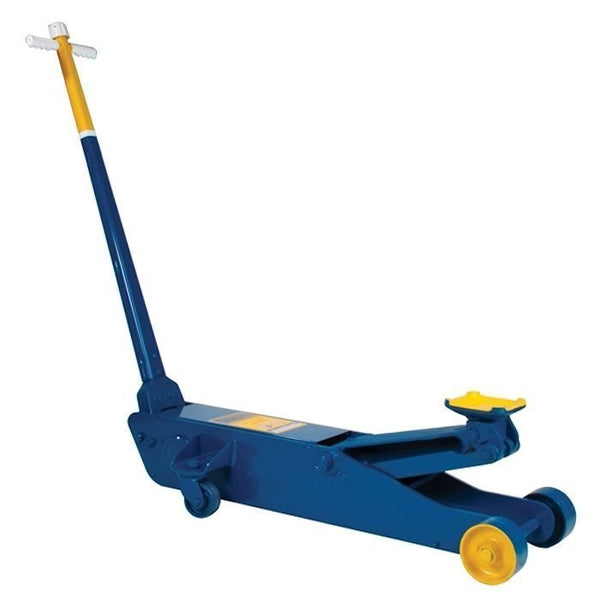

Hein-Werner 10-Ton Long Chassis Service Jack
PRODUCT DETAILS
The Hein-Werner 10-Ton Long Chassis Service Jack is ideal for lifting trucks, trailers and buses by the axle, differential or frame. Handle adjusts to three pumping positions and the long chassis provides accessiblity to hard to reach points. Dual piston action provides speed to contact and power to lift. Long chassis makes it easy to access the hard to reach points. The handle adjusts to three pumping positions and the T-handle with release knob allows for exact positioning of load. Sealed hydraulic unit keeps out dirt, grime, grit and moisture for longevity. Features cast lift arm for heavy loads. This premium quality floor jack is Made In USA.

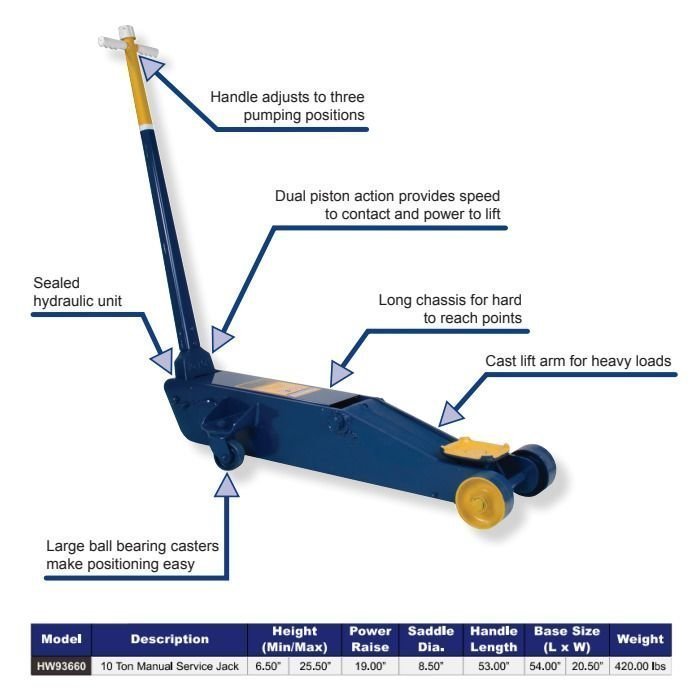

Features
- Lifting Trucks, Trailers, And Buses By The Axle, Differential, Or Frame
- Dual Piston Action Provides Speed To Contact And Power To Lift
- Forged Steel Hydraulic Unit Base Is Sealed For Long Life And Reliability
- Long Chassis For Hard To Reach Points
- Handle Adjusts To Three Pumping Positions
- T-Handle With Release Knob For Exact Positioning Of Load
- Sealed Hydraulic Unit Keeps Out Grit, Grime And Moisture
- Large Full Swivel Saddle And Ball Bearing Caster Make Positioning Easy
- Cast Lift Arm For Heavy Loads
- Made In USA
Specifications
- Capacity: 10-Tons
- Min Height: 6-1/2″
- Max Height: 25-1/2″
- Power Raise: 19″
- Saddle Diameter: 8-1/2″
- Handle Length: 53″
- Base Size: 54″ L x 20-1/2″ W
- Weight: 420 lbs.
- Warranty: (2) Years Limited
