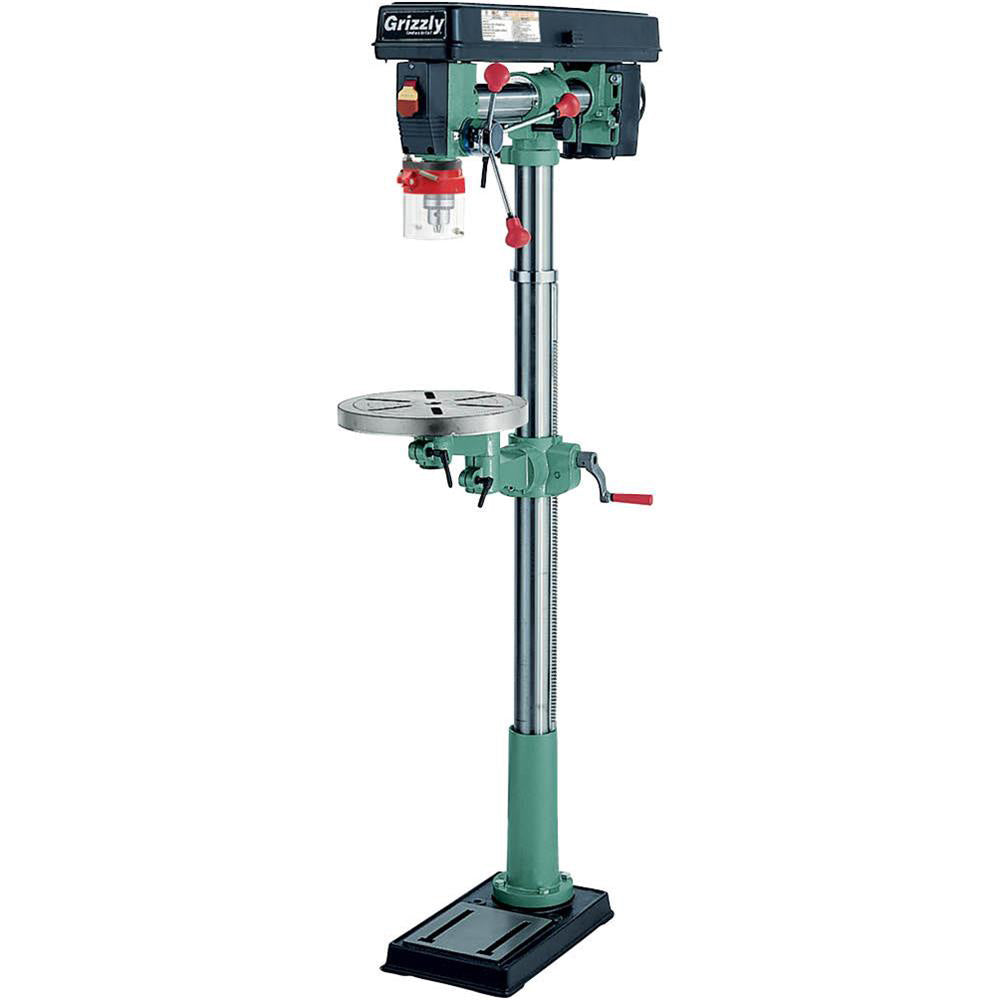

Grizzly G7946 120V 34 Inch 5 Speed Floor Radial Drill Press
PRODUCT DETAILS
Features
- Threaded Depth Stop
- Crank Handle Operated Rack and Pinion Vertical Table Movement
- Table Has Lock Levers
- Table and Base are Cast Iron
- Radial Design Allows Angle Drilling
What's in The Box
- 34 in Floor Radial Drill Press - G7946
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | G7946 |
| Brand | Grizzly |
| Motor | 1/2 HP, Single Phase |
| Footprint | 18 in x 11 in |
| Spindle Travel | 3-1/4 in |
| Spindle Taper | JT-33 |
| Number of Speeds | 5 (550-3000 RPM) |
| Collar Size | 2.160 in |
| Drill Chuck | 1/16 in - 5/8 in |
| Swing | 34 in |
| Table | Precision ground Cast Iron |
| Table Size | 12-3/16 diameter |
| Table Swing | 360 degrees |
| Table Tilts | 90 degrees left, 45 degrees right |
| Item Dimensions(inches) | 14 W x 32 D x 64-1/2 H |
| Weight | 138 lbs |
