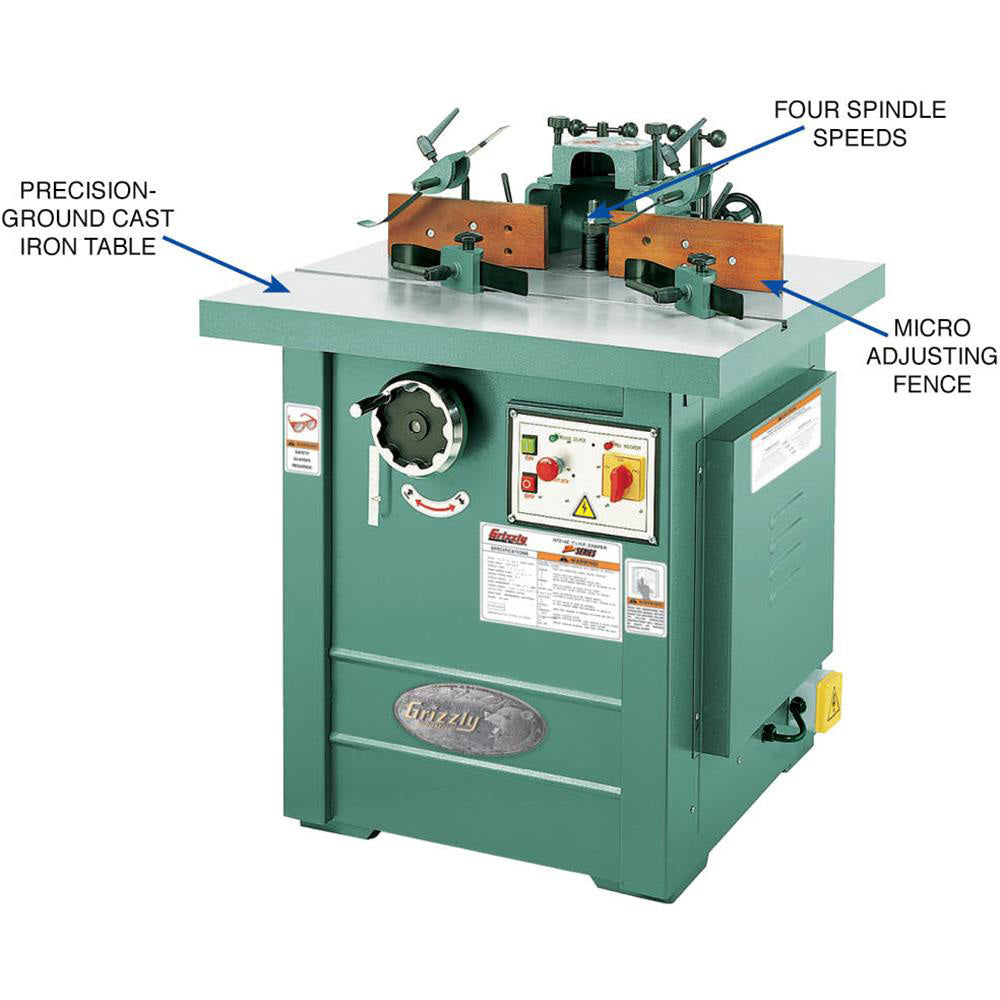

Grizzly G5912Z 220V 5 HP Professional Spindle Shaper - Z Series
PRODUCT DETAILS
Features
- Cast-Iron Miter Gauge, Adjustable 60 deg. Left to 60 deg. Right
- Precision-Ground Cast-Iron Table
- Green Epoxy Paint
- Fence Adjustment Includes Built-In Ratchets and Knob-Equipped Adjusters
- 2 Wood Fence Pieces Included
- 3 Spindles with 8 Spacers and 2 Nuts Included
What's in The Box
- 5 HP Professional Spindle Shaper / Z Series - G5912Z
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | G5912Z |
| Brand | Grizzly |
| Motor | 5 HP, Single Phase |
| Amps | 25A |
| Speed | 3450 RPM |
| Power Transfer | Belt Drive |
| Number of Table Inserts | 3 |
| Table Insert Sizes I.D | 2, 3, 3-1/2 in |
| Table Insert Sizes O.D | 3, 3-1/2, 7 in |
| Miter Angle | 0-60 degrees L/R |
| Miter Gauge Slot Type | T-slot |
| Miter Gauge Slot Width | 1 in |
| Miter Gauge Slot Height | 9/16 |
| Spindle Speeds | 4 (3600 - 10000 RPM) |
| Item Dimensions(inches) | 34-3/4 W x 35-1/2 D x 42 H |
| Weight | 562 lbs |
