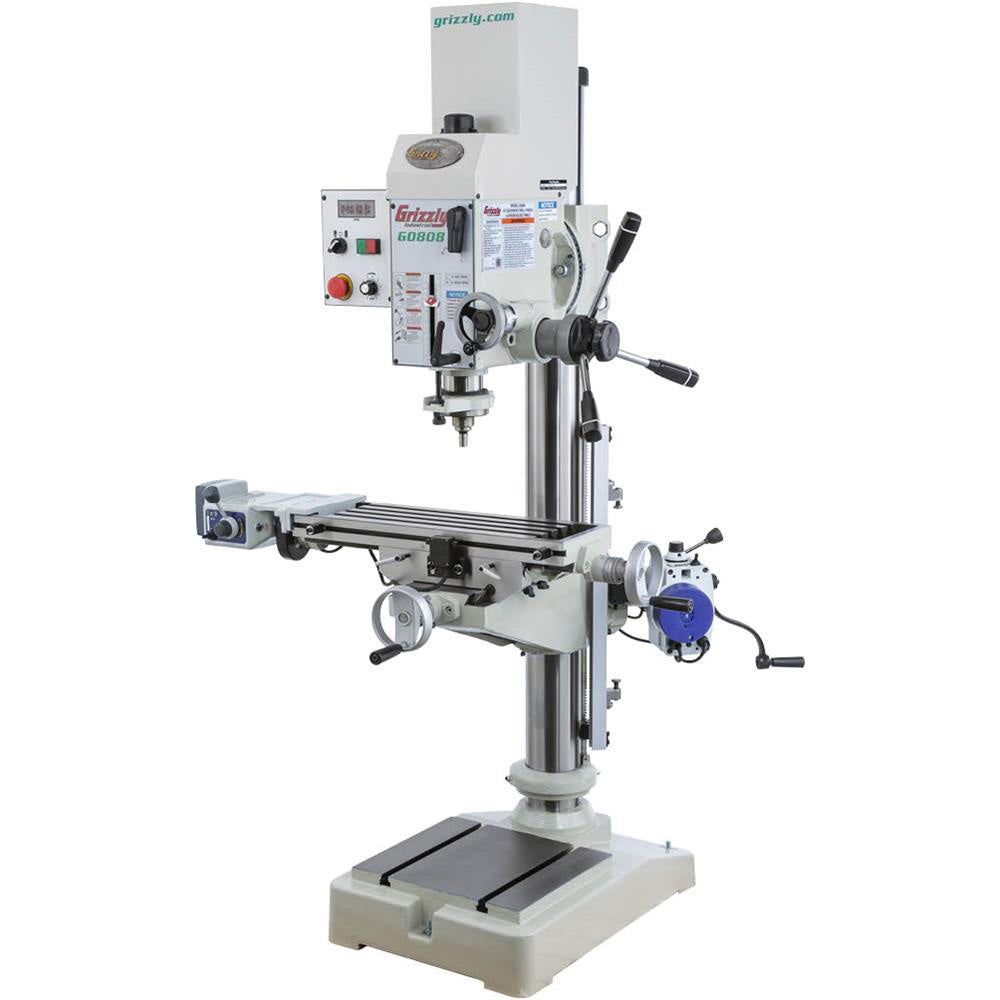

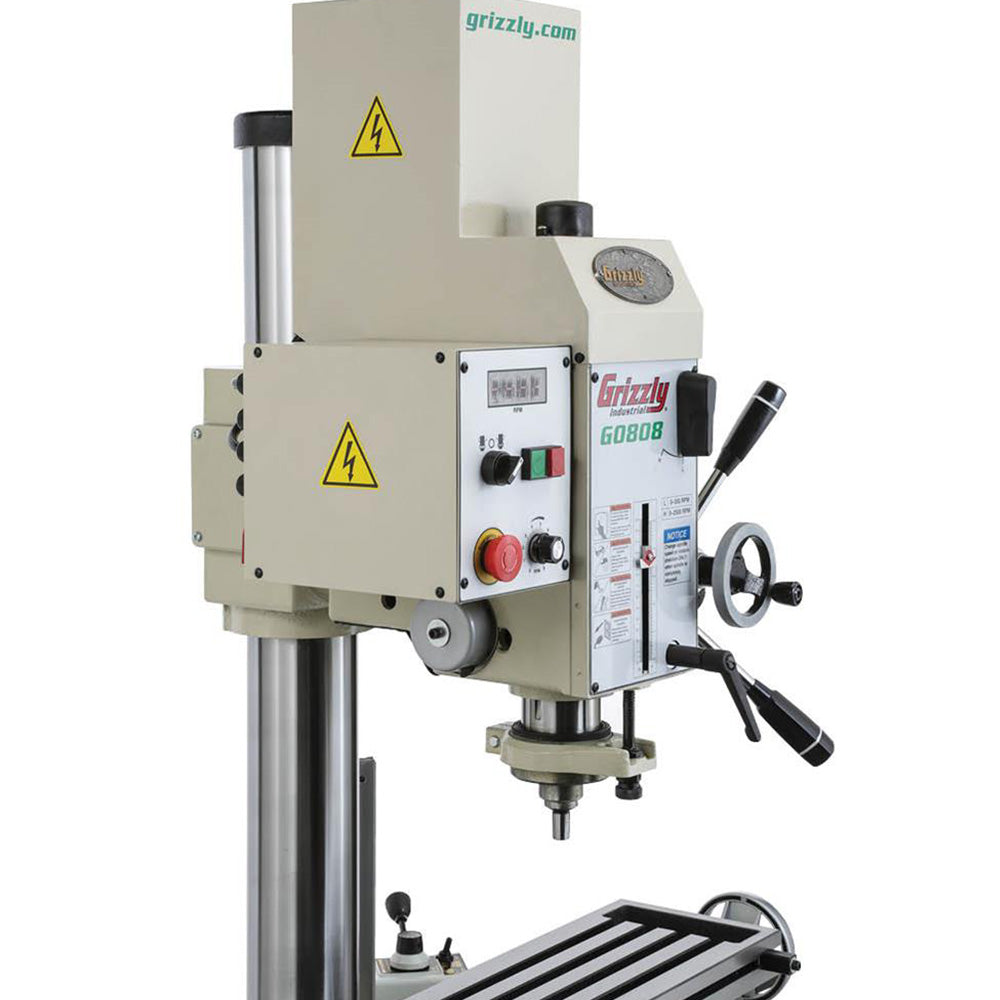

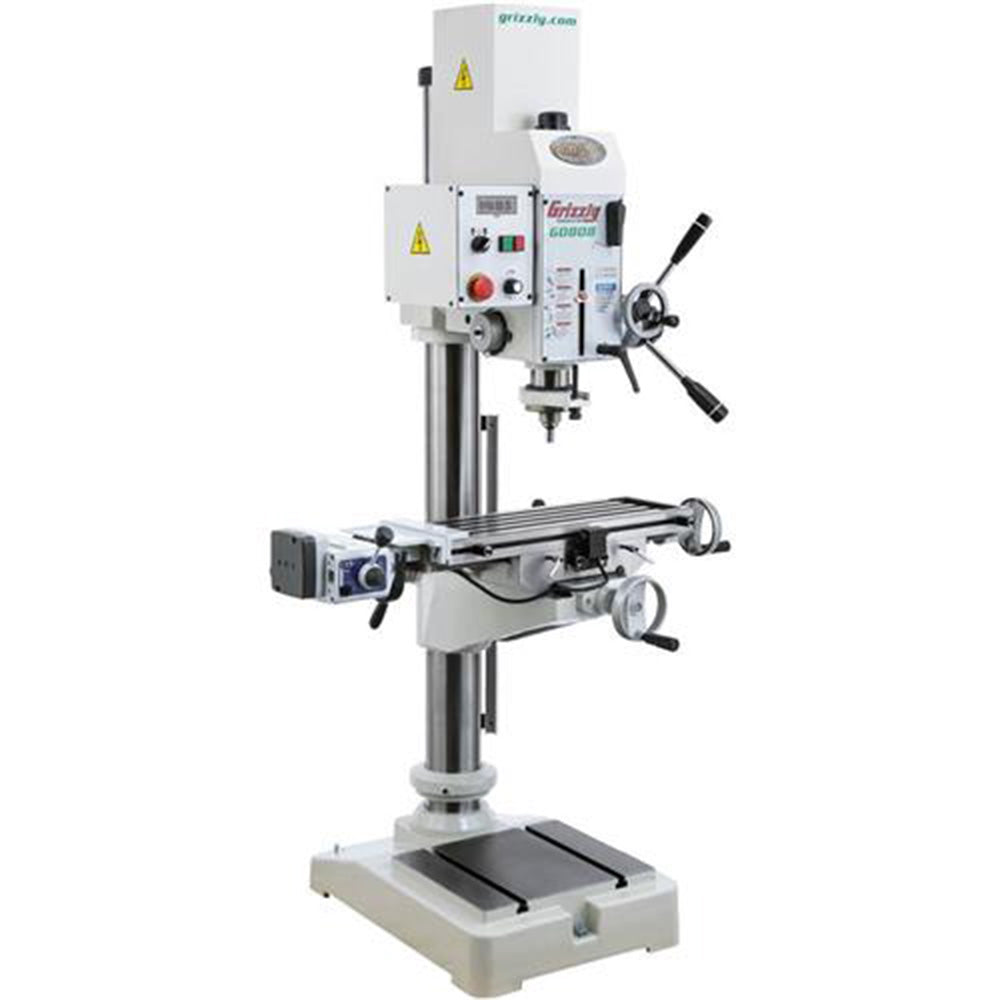

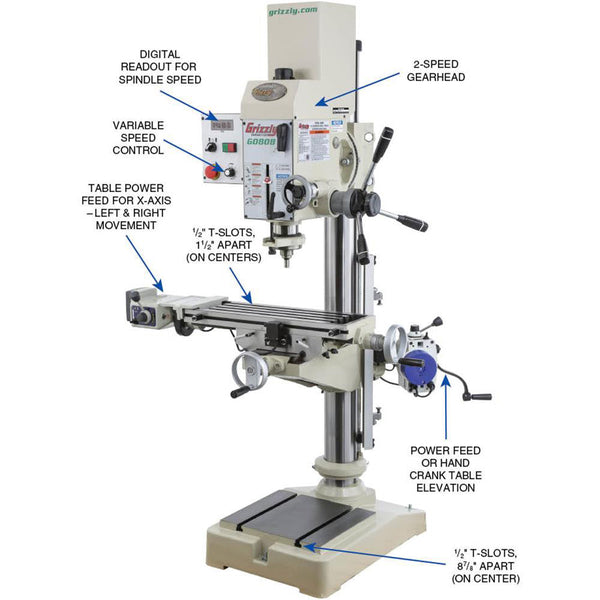

Grizzly G0808 220V Variable-Speed Gearhead Drill Press With Cross-Slide Table
PRODUCT DETAILS
Features
- Variable frequency drive for 3-phase speed control while only requiring a single-phase power supply

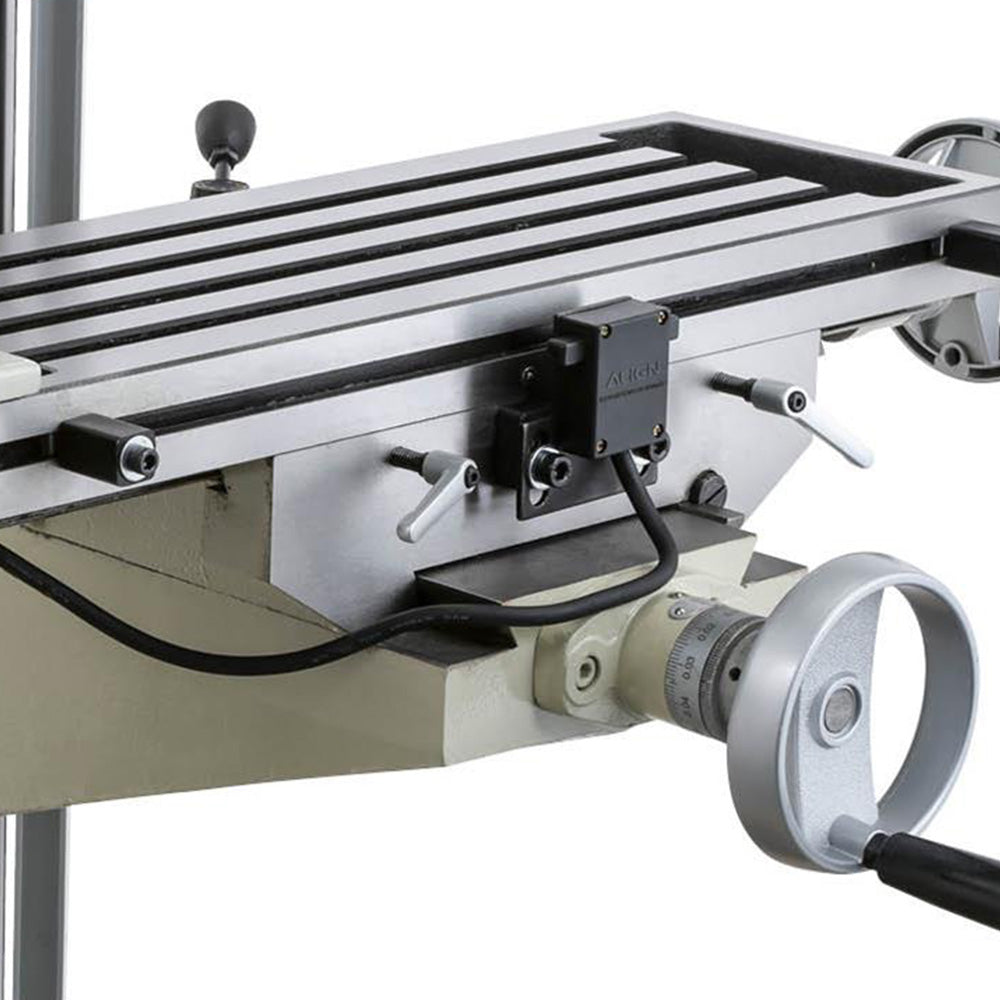

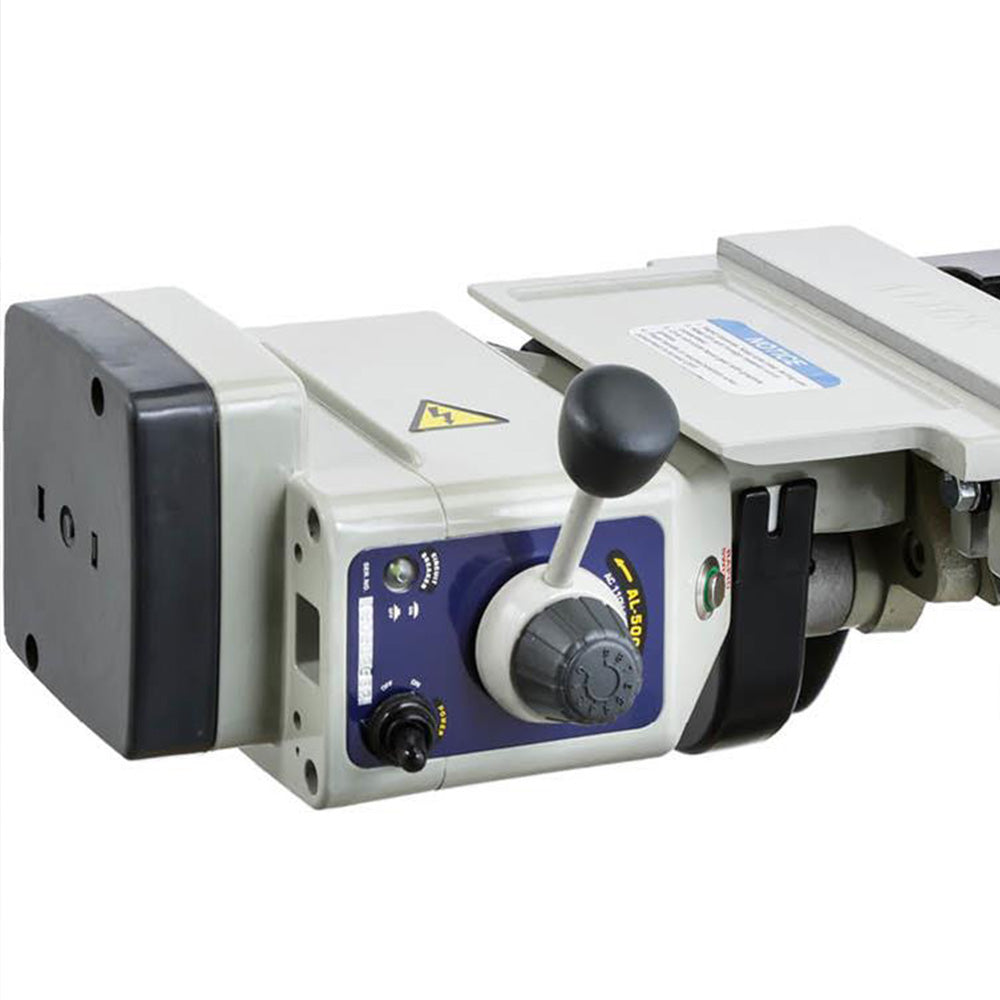

- Longitudinal power feed on precision-ground cast-iron table with independent power supply

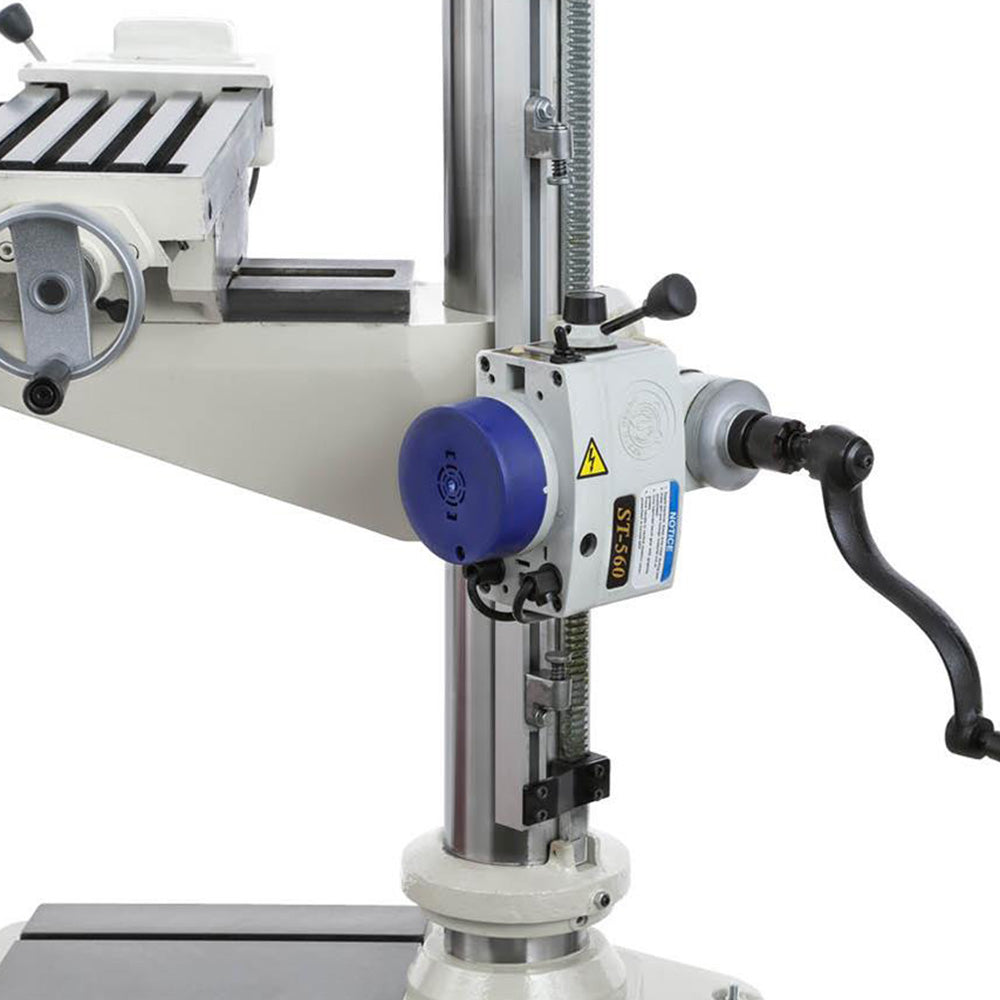

- Power feed or hand crank rack-and-pinion table elevation
- Coarse and fine down feed controls
- Cast iron base with two 1/2 in T-slots, 8-7/8 in on center
What's in The Box
- 20-3/4 in Gearhead Drill Press With Cross-Slide Table - G0808
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | G0808 |
| Brand | Grizzly |
| Motor | 1.5 HP, Single Phase, 3 Phase |
| RPM | 1720 RPM |
| Swing | 20-3/4 in |
| Max Distance Spindle-to-Table | 17-1/2 in |
| Max Distance Spindle-to-Base | 42 in |
| Table Swivel | 360 degree |
| Spindle Travel | 4-7/8 in |
| Spindle Speeds | Variable, 0-2500 RPM |
| Spindle Taper | R-8 |
| Item Dimensions(inches) | 42 W x 77-1/2 H x 46-1/2 D |
| Weight | 739 lbs |
