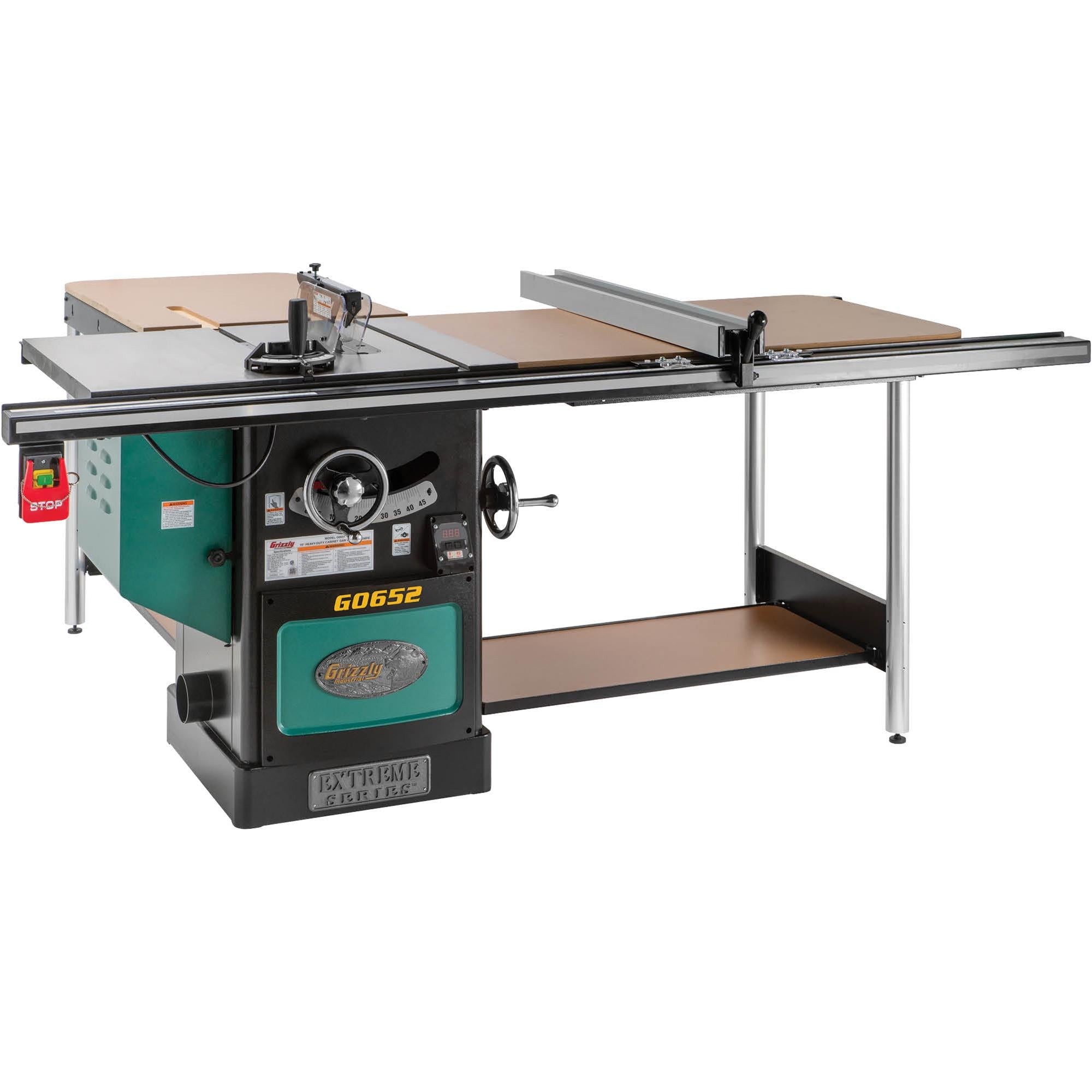

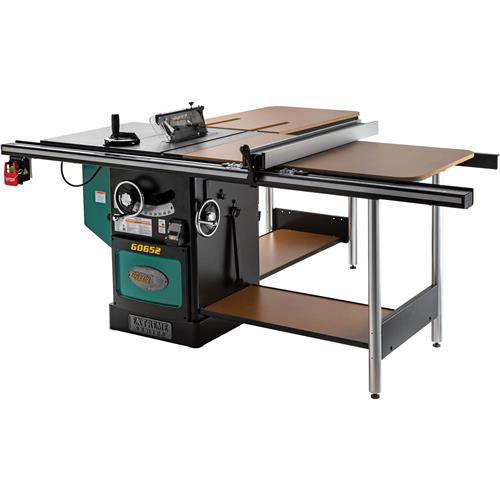

Grizzly G0652 220V/440V 10 Inch 5 HP 3-Phase Heavy-Duty Cabinet Table Saw
PRODUCT DETAILS
Features
- Precision-ground cast-iron table
- Cast-iron trunnions
- 3/8 in x 3/4 in T-slots and miter gauge
- 4 in dust port
- Power transfer: Serpentine belt
- Steel cabinet
What's in The Box
- 10 in 5 HP 3 Phase Heavy Duty Cabinet Table Saw with Riving Knife - G0652
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | G0652 |
| Brand | Grizzly |
| Motor | 5 HP, 3 Phase |
| Volts | 220V/440V |
| Amps | 12/6 |
| Blade Tilt | Left 45 degrees |
| Table Height from Floor | 34-7/8 in |
| Table Size with Extension | 27 in x 75-3/4 in |
| Arbor Speed | 4000 RPM |
| Arbor Size | 5/8 in |
| Max Dado Width | 3/4 in |
| Max Depth of Cut at 90(degrees) | 3-3/16 in |
| Max Depth of Cut at 45(degrees) | 2-3/16 in |
| Max Rip Capacity | 52 in right, 18 in left |
| Item Dimensions(inches) | 91-1/2 L x 75 W x 40-5/8 H |
| Weight | 716 lbs |
