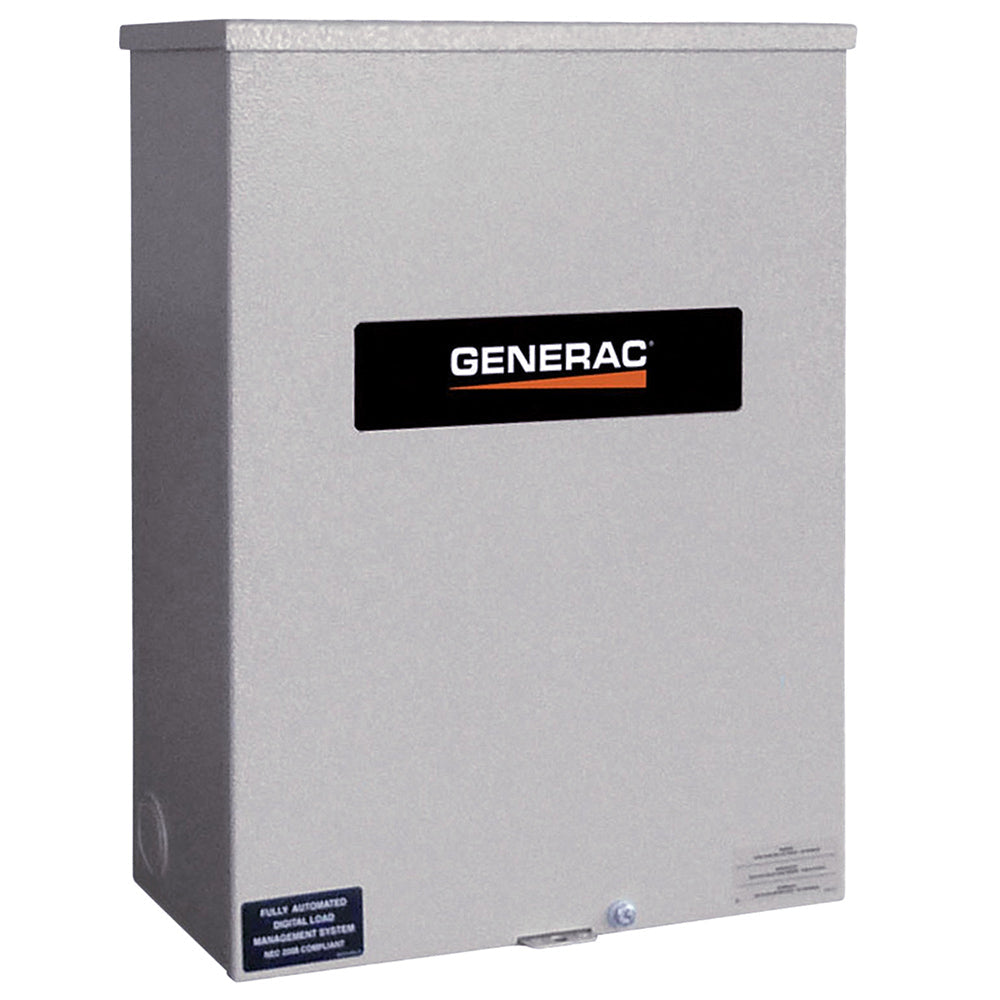

Generac RTSW200G3 120/208-volt 200-Amp 3-Phase Automatic Transfer Switch
PRODUCT DETAILS
Features
- Automatic transfer switch with 3R NEMA enclosure
- Enclosure is made out of corrosion-resistant aluminum
- Open-transition transfer switches are designed to operate with Generac's digital control on air-cooled generators
- The Nexus and Evolution controllers used on liquid-cooled generators from 22 to 150kW
What's in The Box
- 120/208-Volt 200-Amp 3-Phase Automatic Transfer Switch - RTSW200G3
- Owner's Manual
Warranty
- 1-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Model | RTSW200G3 |
| Brand | Generac |
| Max. Wattage | 45,000 |
| Voltage | 208 |
| Max. Amperage | 200 |
| Enclosure Type | NEMA 3R |
| Time Delay Retransfer | Yes |
| Color | Gray |
| 2-Wire Start | No |
| Sensing Generator Hz | No |
| Manual Override | Yes |
| Lockable | No |
| Time Delay Neutral | No |
| Load Transition Type | Open |
| Phase | 3 |
| Sensing Under Volts | .6 |
| Max. Wire Size | 400 MCM |
| Automatic Exerciser | No |
| Enclosure Material | Aluminum |
| Dimensions (HxWxD)(in.) | 48 x 30 x 13 |
