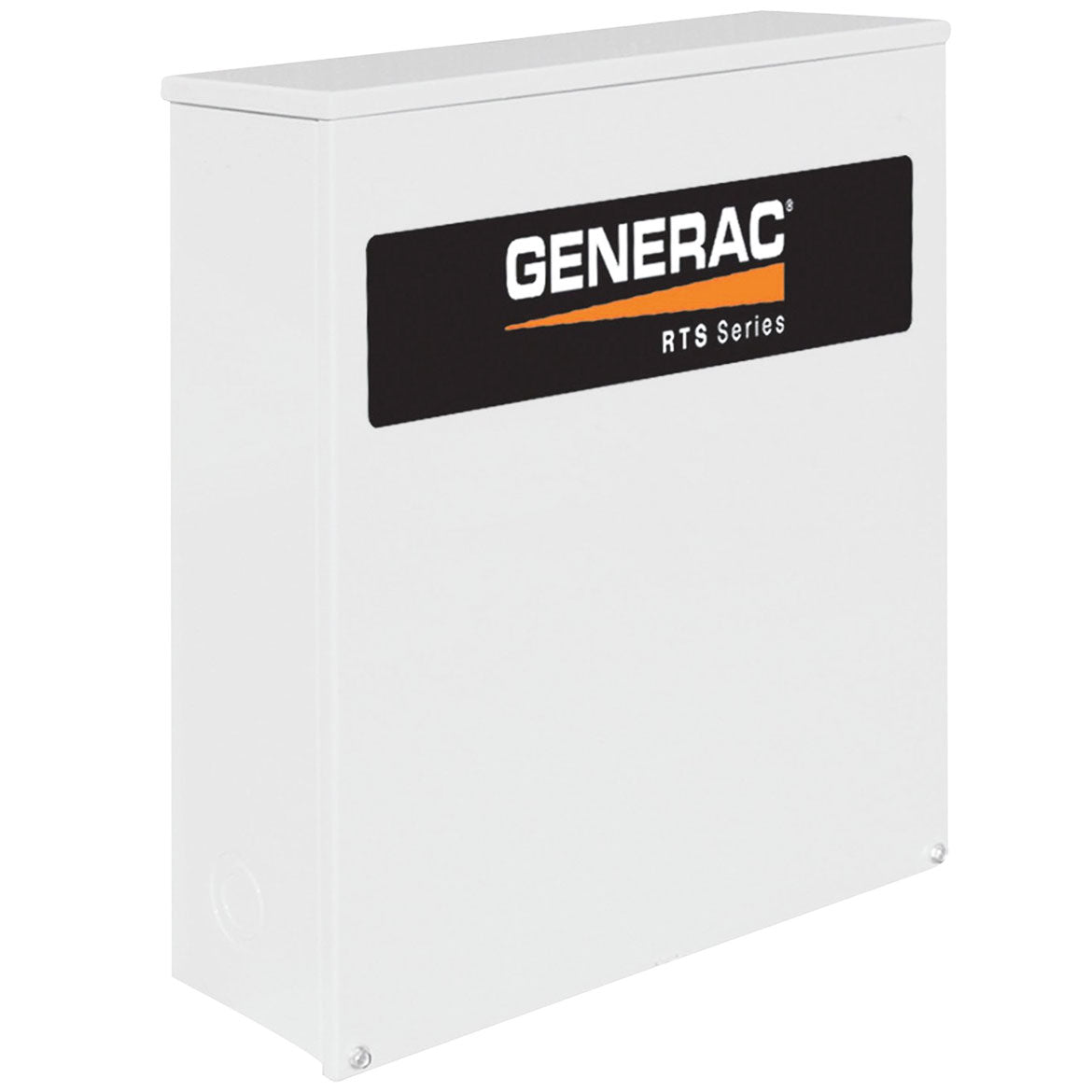

Generac GNC-RTSN200G3 Guardian 200Amp 3-Phase Automatic Transfer Switch 120/208V
PRODUCT DETAILS
Features
- 3-Phase Automatic Transfer switch Only works with 120/208 3-Phase generators
- Fully Automatic Operation
- Standard Installation May require a sub-panel or disconnect for serviceability
- Nema 3R Aluminum Enclosure
- For Use With Generac Generators Only
What's in The Box
- 200-Amp Automatic Transfer Switch (120/208V)
- Owner's Manual
Warranty
- 2 Year Factory Warranty
- 30 Day Satisfaction Guarantee
Specifications
| Model | RTSN200G3 |
| Brand | Generac |
| Voltage | 120/208 Three-Phase |
| Frequency | 60 Hertz |
| Rated Amps | 200 Amps |
| ATS Poles | 3 Poles |
| Max Generator Input | 200 Amps |
| Max Utility Input | 200 Amps |
| Enclosure | NEMA 3R |
| UL Listed | Yes |
| Weight (lbs.) | 49 (22.23 kgs) |
| Dimensions (LxWxH)(in.) | 24 x 20 x 7.25 (60.96 x 50.80 x 18.42 cm) |
