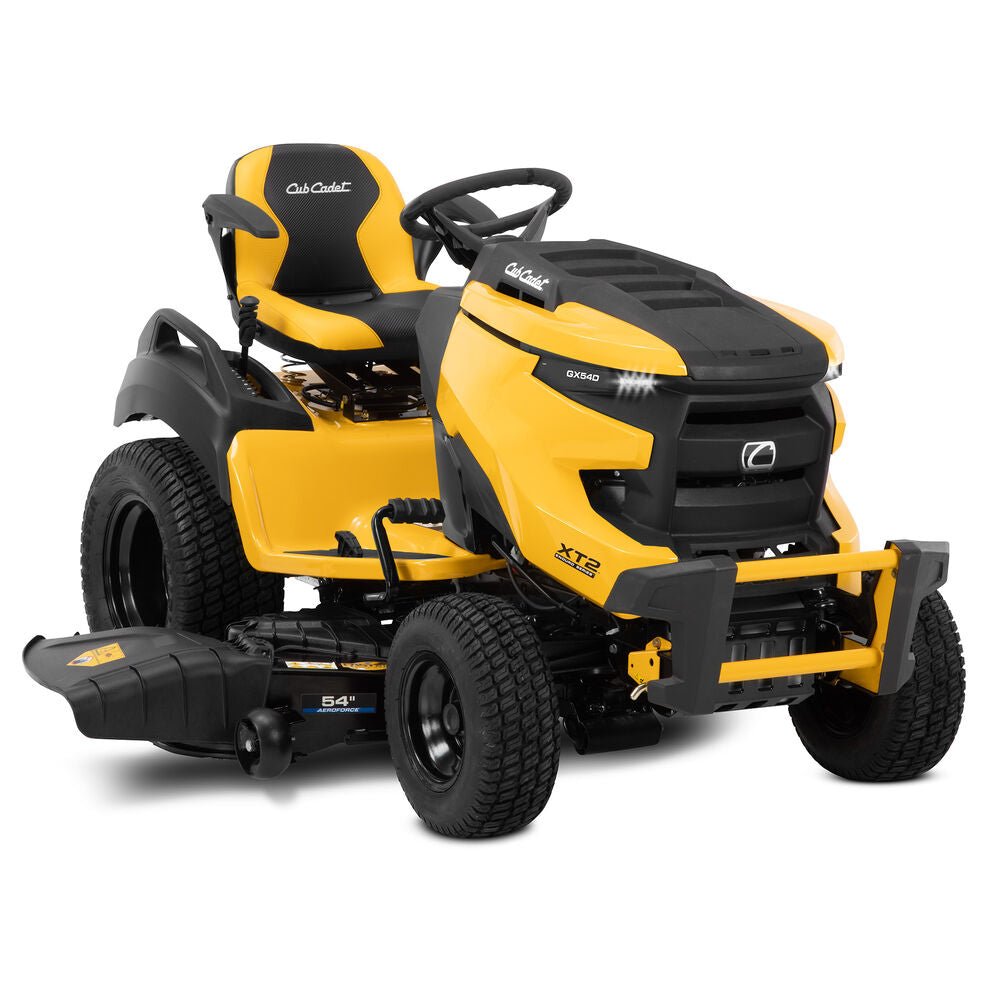

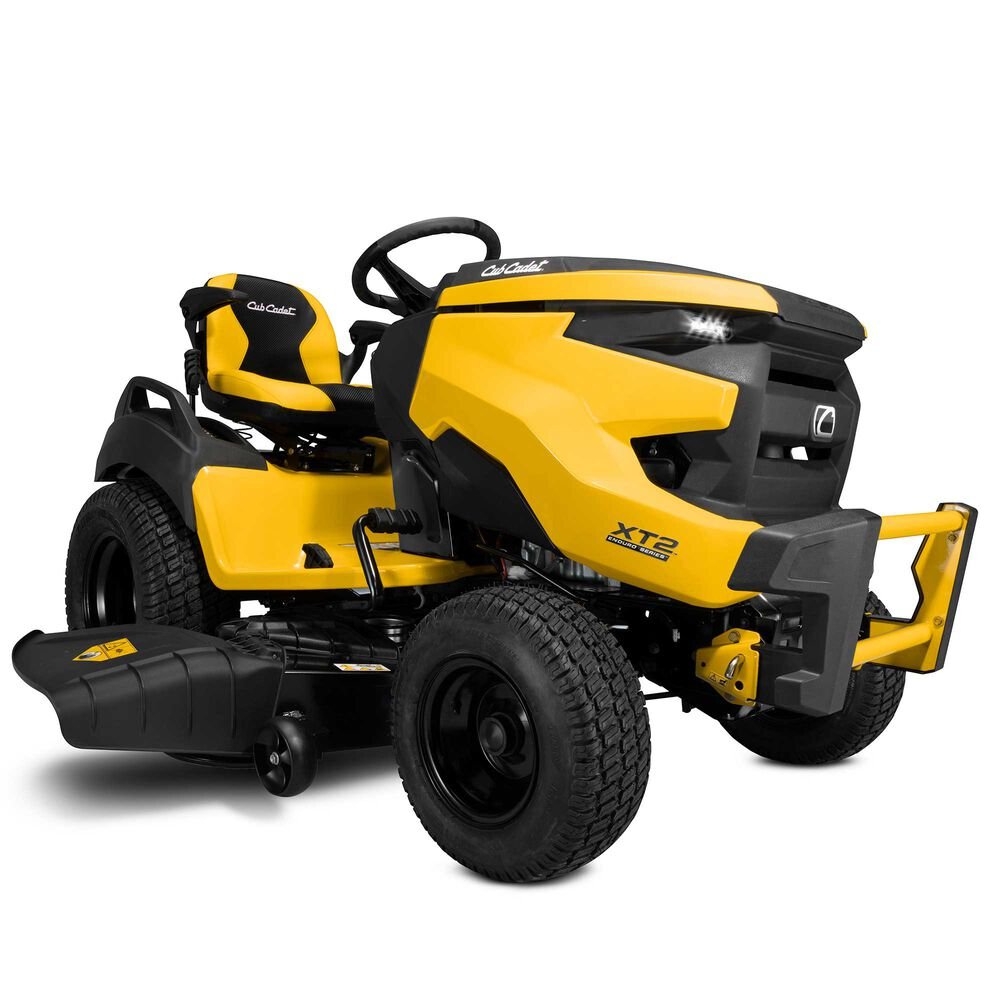

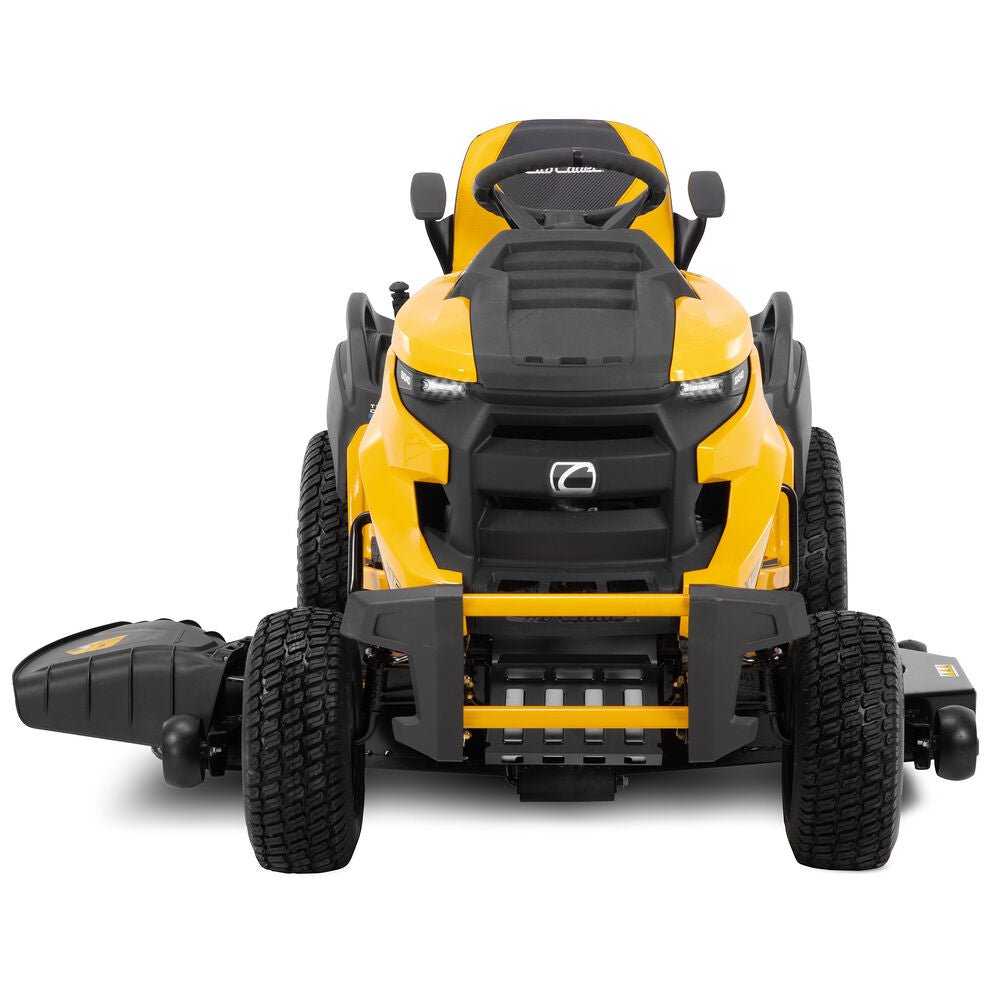

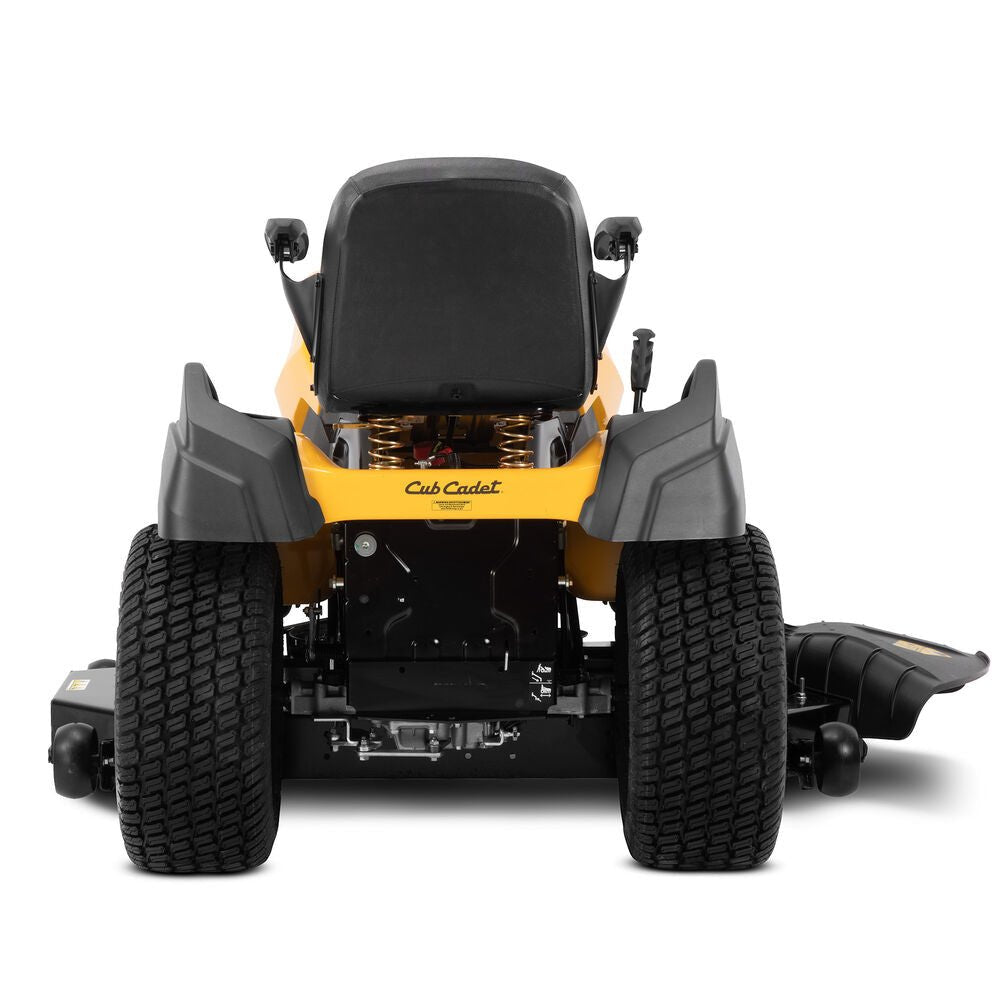

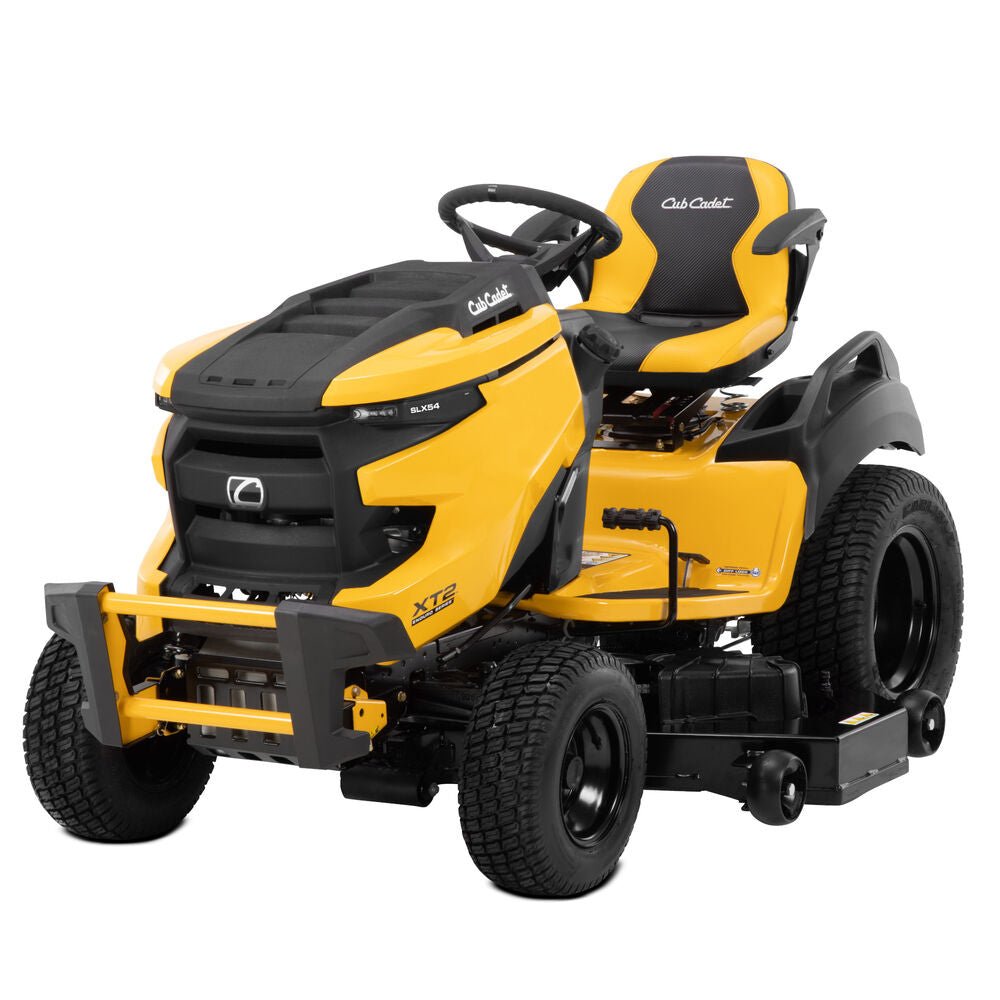

CUB CADET XT2-GX54 D 14B7A6TMA10
PRODUCT DETAILS
SET UP AND PREP FEES MAY APPLY
- A strong 25 HP Kohler engine delivers reliable power to tackle your yard.
- 54-in. heavy-duty fabricated AeroForce™ deck cutting system that has been tested and proven to deliver a best-in-class cut, meaning fewer clumps and stragglers, finer clippings and increased evenness.
- AGM battery delivers reliable starting with slower discharge so you worry less about your battery going dead in the offseason.
- Rear diff lock ensures your wheels will spin at the same speed, making it easier to navigate difficult terrain.
Engine
- Engine Brand: Kohler
- Engine Model: KT726
- Engine Displacement: 747cc
- Engine Output: 26 HP
- Fuel Tank Capacity: 3 gal. US (11.35 L)
- Cylinders/Material: 2/Cast-iron sleeve
- Engine Start: Electric
- Engine Oil Capacity: 2 qt US ( 2 L)
- Lubrication: Fully-pressurized automotive-style oil pump w/spin-on oil filter
- Charging System: Flywheel Alternator – 12 amp regulated
- Choke: Separate Choke
Battery
- Battery: 12V / 210 cold crank amps
- Battery Type : AGM (Absorbent Glass Mat)
Drive System
- Transmission: GT Hydro, Foot (TT K62 w/ Diff-Lock) – Steel
- Transmission Housing: Cast aluminum
- Engine to Transmission: Heavy-duty belt
- Rear Differential Lock: Yes
Cutting Deck
- Deck Cutting Width: 54-in
- Deck Wash: Patented SmartJet™ high-pressure deck washing system
- Deck Attach/Removal: QuickAttach™
- Blade(s): 3
- Deck Lift: Manual
- Cutting Height Range: 1″ – 4″
- Anti-Scalping: 2 Ball/2 Ball
- Deck Positions: 12 Positions
Warranty
- Residential Warranty: 3-year Unlimited Hours (Includes Powertrain)
- Frame Warranty: 5-year limited warranty
- Front Axle Warranty: 5-year limited warranty
Chassis
- Frame: Fully robotically-welded frame with new e-coating corrosion defense system
- Front Axle: Heavy-duty cast-iron – 5-year limited warranty
- Turning Radius: 16-in
- Protection: Single-tube
Controls
- Cruise Control: Soft touch engagement
- Direction: NEW optimized steering system, manual sector and pinion
- Brakes: Disc
Comfort
- Seat Type: Cub Comfort™ high-back seat with armrests
- Seat Adjustment: 10 degree incline and slide
Additional Specifications
- Headlight(s): 2 LED High Illumination
- Cup Holder: Included
- Mulch Kit: optional
- Model Number: 14AQA6TMA10
- AIR FILTER: 16 883 04-S1
- OIL FILTER: 52 050 02-s
- ENGINE Oil: 25 357 26-S OR 490-000-C044
- TRANS FLUID: TT-187Q0899000
- FUEL FILTER: 24 050 13-S1
- SPARK PLUG: 25 132 14-S
- DECK BELT: 954-05025A
- DRIVE BELT: 954-05156A
- BLADE: 742P05086 OR 490-110-C194
- XTREME BLADE: 742P05086-X OR 490-110-C205
- IGNITION KEY: 925-1745A
