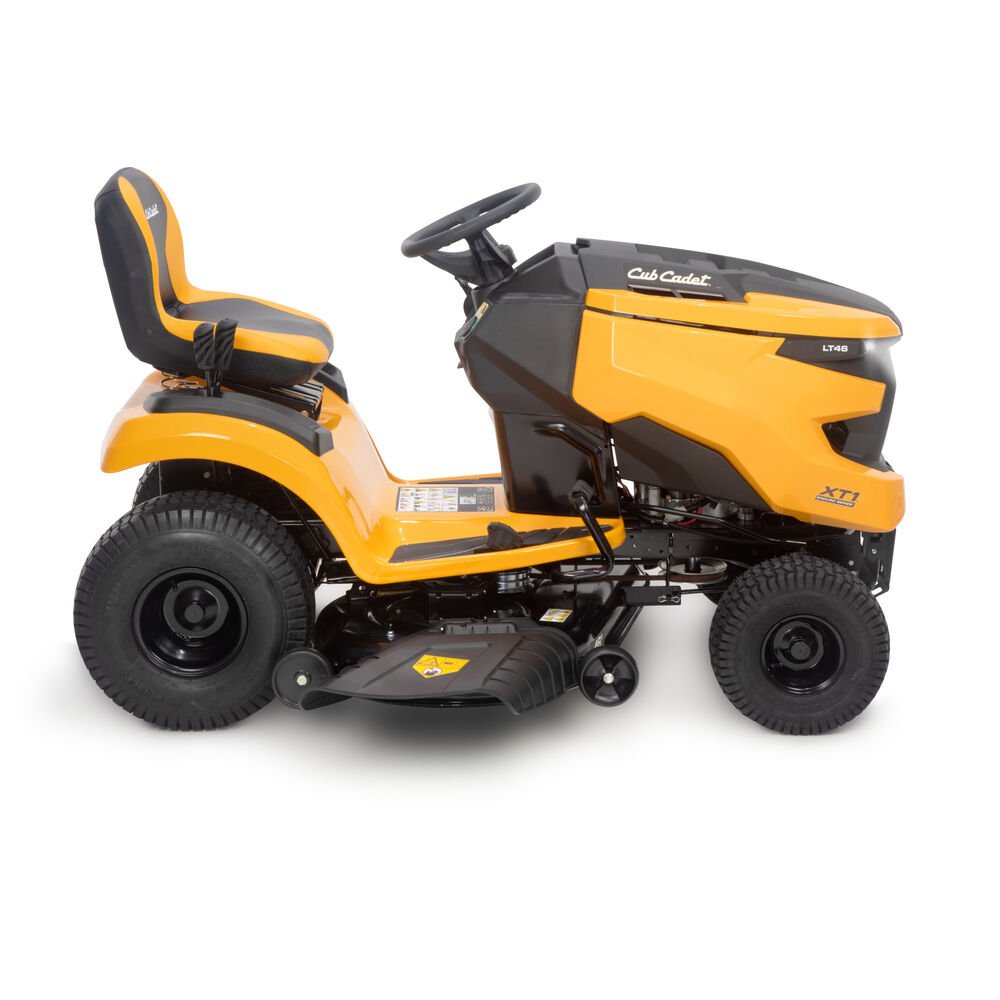

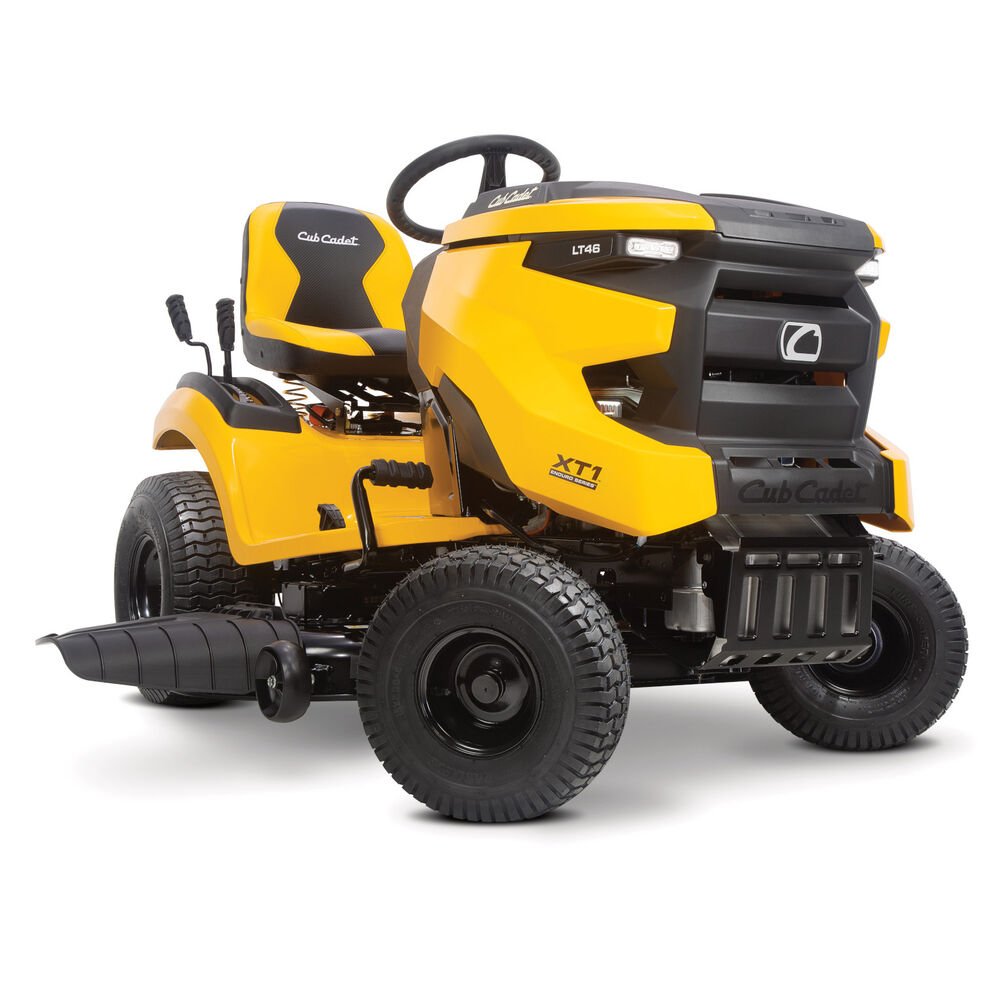

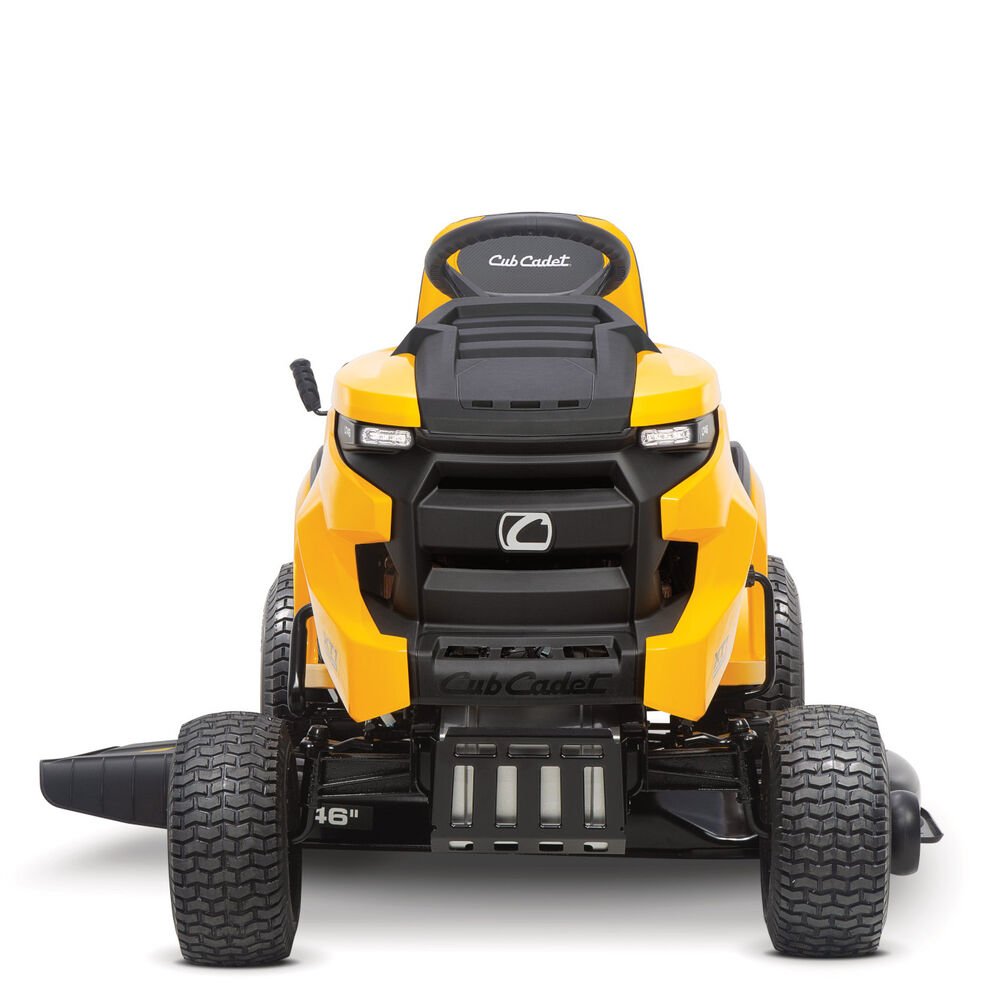

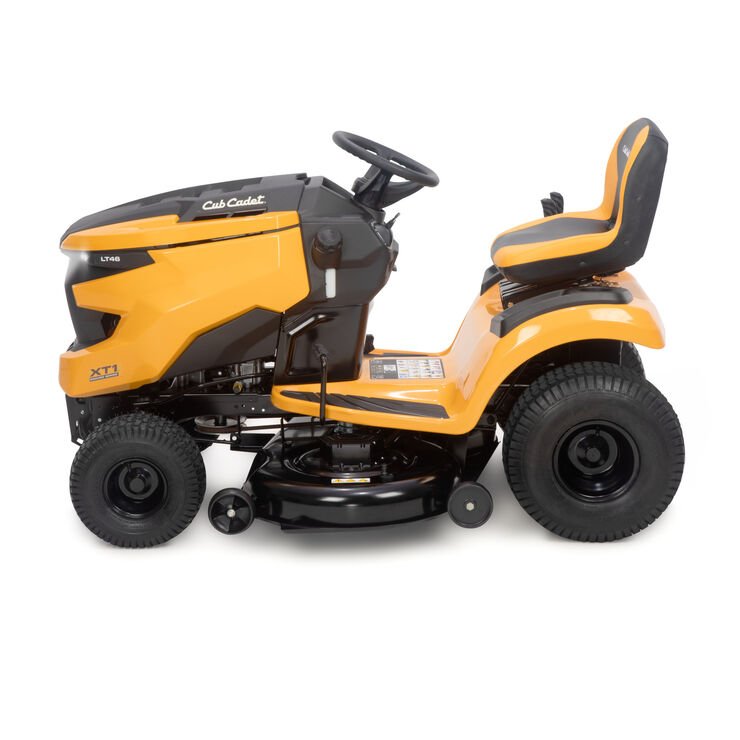

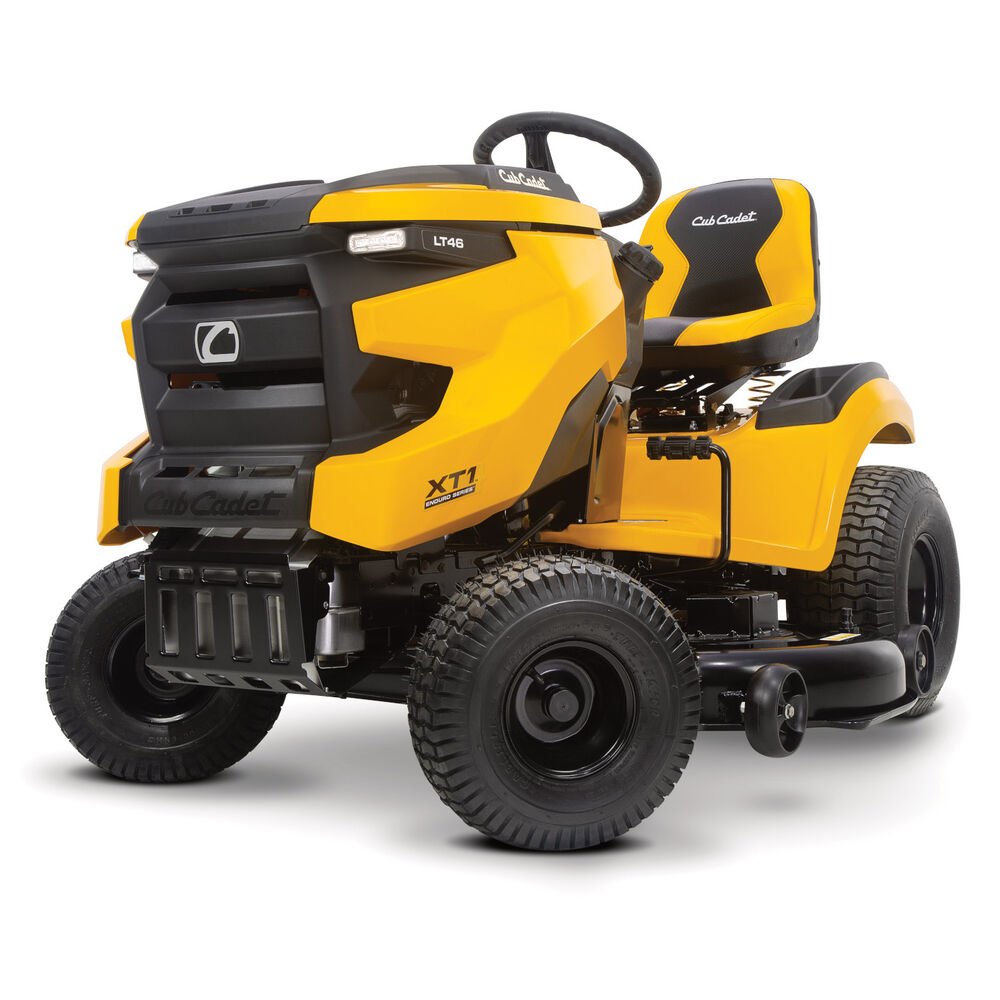

Cub Cadet XT1-LT 46 13APA9TTA10
PRODUCT DETAILS
SET UP AND PREP FEES MAY APPLY
- The Cub Cadet XT1 LT46 is powered by a 22 hp KOHLER 7000 Series twin cylinder engine.
- 46-inch stamped, 12-gauge, twin-blade deck with 12 cutting positions.
- Optimized steering system for responsive handling gives a 16-inch turn radius a zero-turn feel.
- 3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours.
- Ideal for mowing up to 1.5 acres of mostly flat terrain and a few obstacles.
Engine
- Engine Brand: Kohler KT722
- Engine Displacement: 747cc
- Fuel Tank Capacity: 3.0 gal.
- Cylinders/Material: Twin
- Engine Start: Key
- Engine Oil Capacity: 2 qts.
- Charging System: 12 amp regulated
- Air Filter: Dual element
- Oil Filter: Yes
Battery
- Battery: 12V 210 cold crank amps
- Battery : Lead Acid
Drive System
- Transmission: Tuff Torq® TL-200
- Forward Speed: 5.5 MPH
- Reverse Speed: 3 MPH
- Rear Axle: 3/4″ w/dual PM steel drive hubs
- Transmission Housing: Die-Cast Aluminum
- Transmission Type: Tuff Torq TL-200
Cutting Deck
- Deck Cutting Width: 46″
- Cutting Modes: Discharge/mulch/bagging
- Deck Wash: Included
- Deck Material: Steel, 12-gauge
- Deck Attach/Removal: QuickAttach™ (no tools required)
- Deck Engagement (PTO): Manual lever
- Deck Construction: Stamped
- Spindle Construction: 3/4″ with steel cap and Triple Lip Sealed
- Blade(s): 2
- Deck Lift: Lever
- Cutting Height Range: 1″ – 4″
- Anti-Scalping: 2 ball, 2 narrow
- Deck Positions: 12 positions
Warranty
- Warranty: 3-year/unlimited hour warranty
- Frame Warranty: 5-year/unlimited hour warranty
- Front Axle Warranty: 5-year/unlimited hour warranty
- Deck Shell: Lifetime Limited
Chassis
- Frame: Robotically welded
- Front Axle: Cast iron
- Turning Radius: 16″
- Rear Tow Hitch: Included
- Corrosion Protection: Yes
Controls
- Cruise Control: Yes
- Brakes: disc
- Steering Control: Manual sector and pinion
- Display:
Comfort
- Seat Type: 15″ high-back seat
- Seat Suspension: Seat spring
- Arm Rests: No
- Floor Mats Traction: Rubber
Additional Specifications
- Mulch Kit: Optional
- Headlight(s): 2 – LED
- Discharge Chute: Included
- Cup Holder: Included
- Operator Presence System: Included
- Bagger: Optional
- Model Number: 13APA9TTA10
- AIR FILTER: 32 883 09-S1 OR 490-200-K054
- OIL FILTER: 12 050 01-S
- FUEL FILTER: 25 050 22-S1
- SPARK PLUG: 25 132 14-S OR RC12YC
- DECK BELT: 954-05022A
- DRIVE BELT: 954-05027B
- BLADES ORDER 2: 742P05510 OR SET 490-110-C192
- XTREME BLADES: 742P05510-X OR SET 490-110-C203
- IGNITION KEY: 925-1745A
