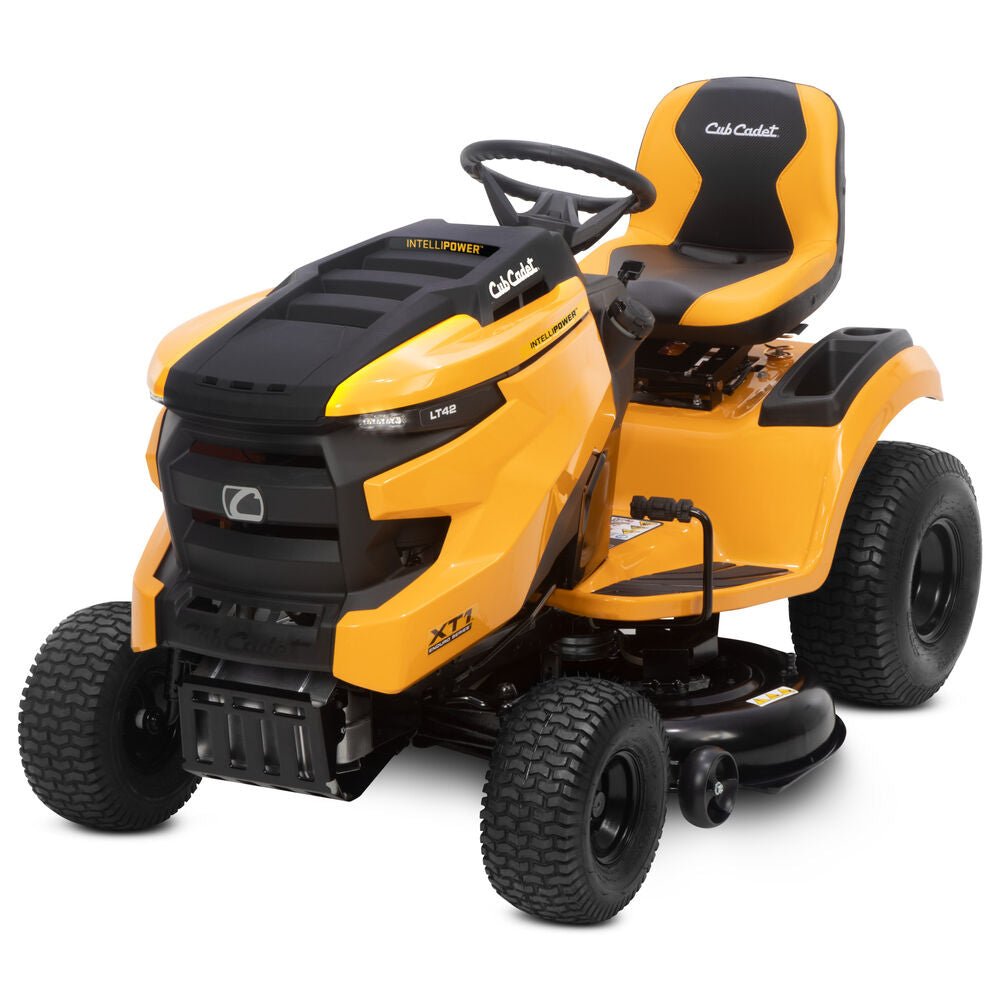

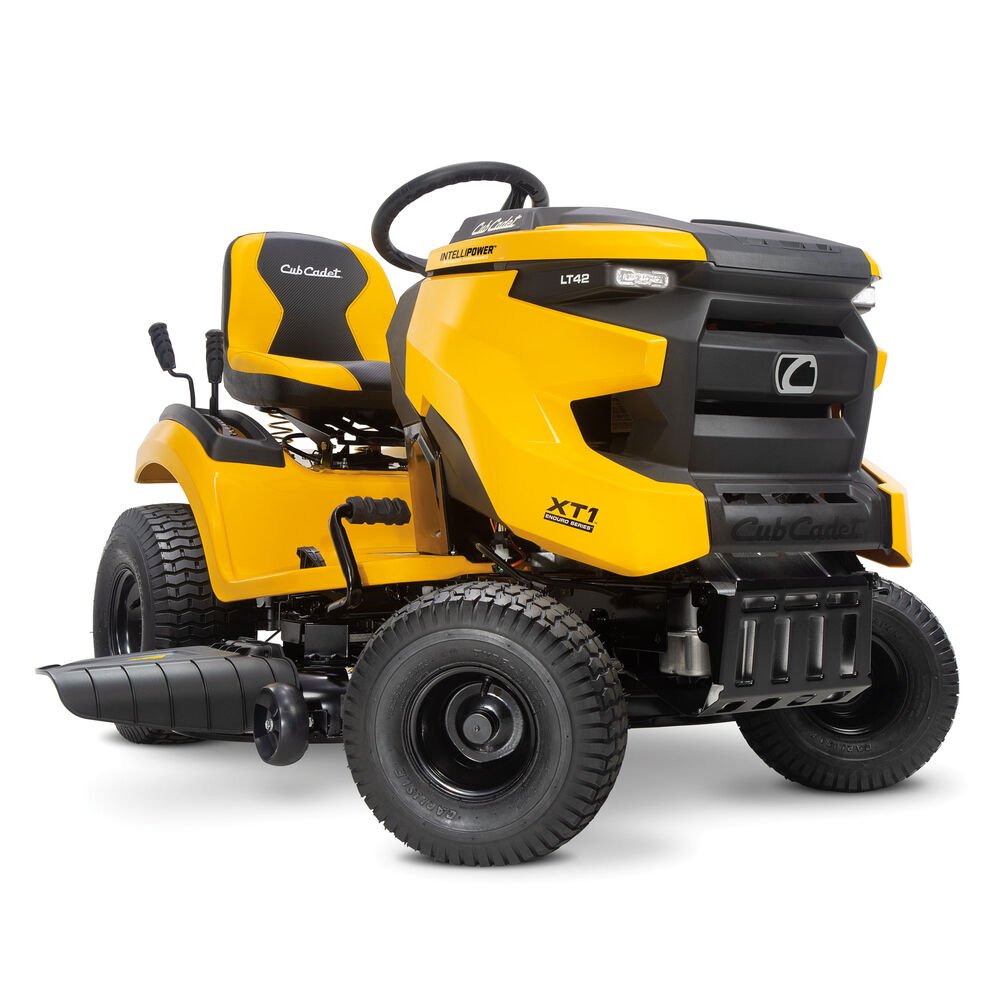

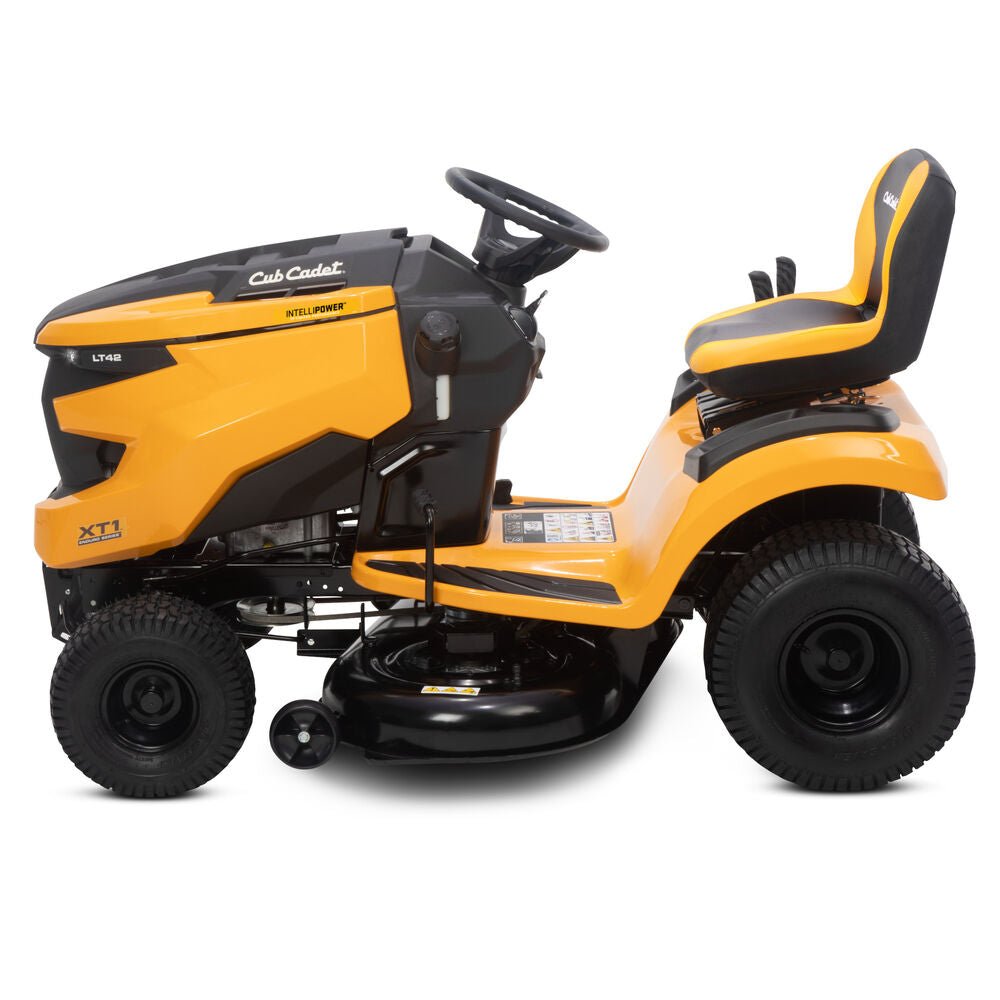

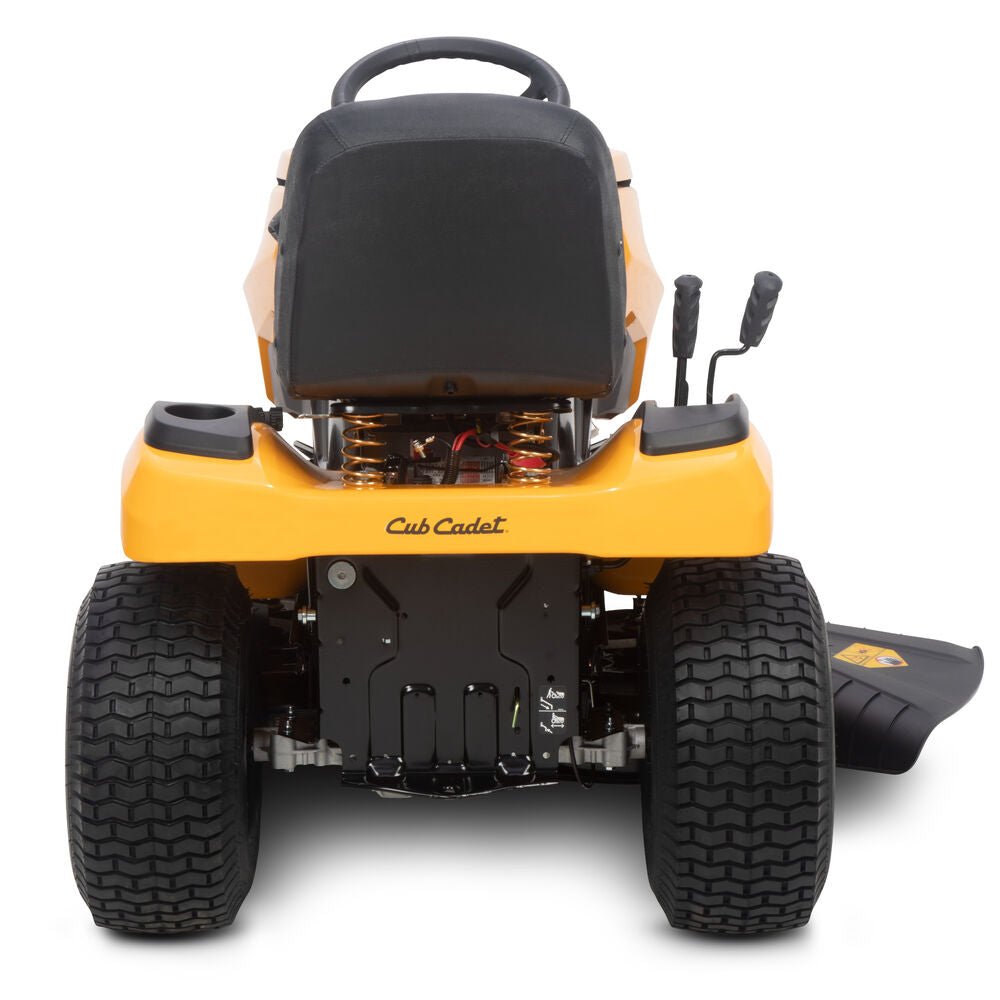

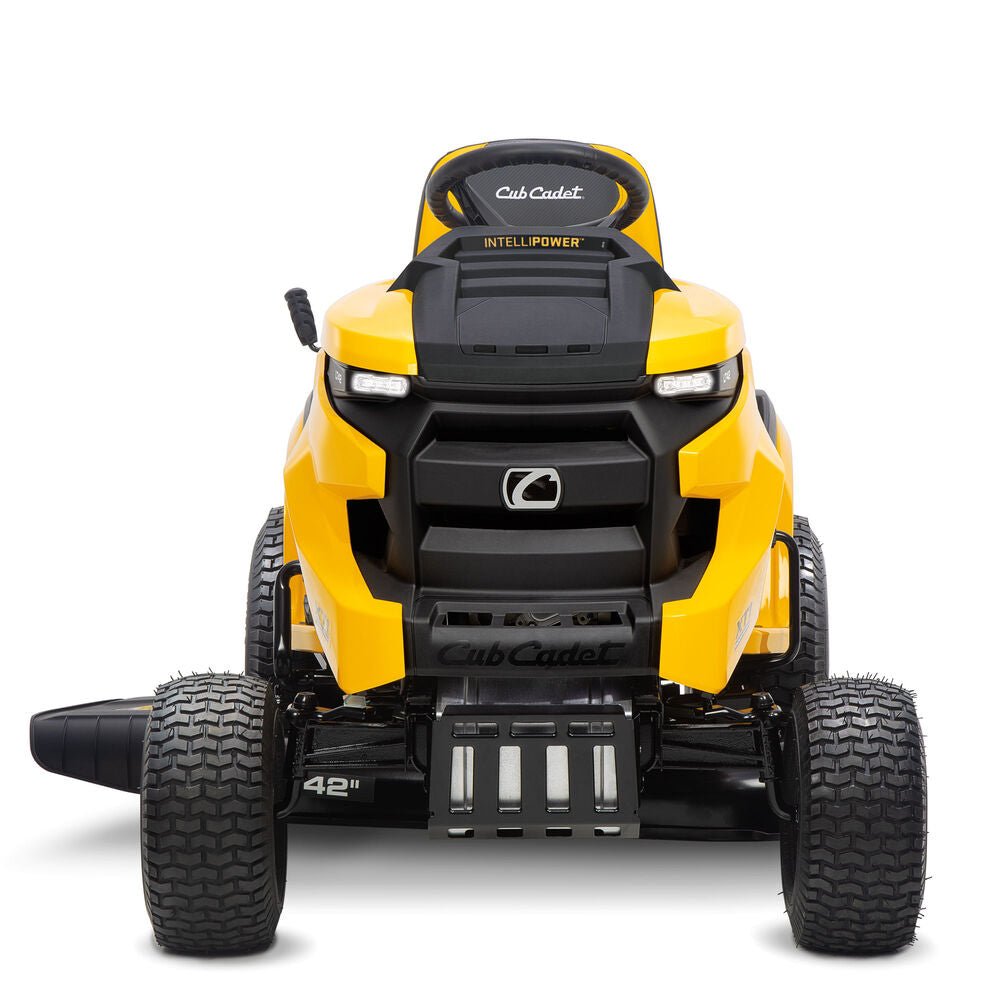

Cub Cadet XT1-LT 42 IP 13A6A9TS010
PRODUCT DETAILS
SET UP AND PREP FEES MAY APPLY
- A 547cc Cub Cadet® engine equipped with IntelliPower® technology is designed to deliver reliable power.
- 42-in. stamped deck built with strong materials and an exceptional belt design while delivering a premium cut.
- Hydrostatic transmission helps provide smooth operation, no shifting, just push the pedal and go.
- Adjustable cut and sew high back 15-in. seat with a 10-degree incline and slide slope helps provides comfort.
- Compact AGM battery is designed to deliver a premium experience with a long lifespan, low maintenance and excellent starting performance for reliable starting season to season.
Engine
- Engine Brand: Cub Cadet®
- Engine Displacement: 547cc
- Fuel Tank Capacity: 3.0 gal.
- Cylinders/Material: Single
- Engine Start: Key
- Engine Oil Capacity: 1.8 qts.
- Charging System: 15 amp regulated
- Fuel Gauge: No
- Choke: Choke-a-matic
- Oil Filter: Yes
Battery
- Battery: 12V 210 cold crank amps
- Battery : AGM (Absorbent Glass Mat)
Drive System
- Transmission: Hydrostatic, foot
- Forward Speed: 5.5 MPH
- Reverse Speed: 3.1 MPH
- Rear Axle: 3/4″
- Transmission Housing: Aluminum
- Transmission Type: Tuff Torq TL-200
- Rear Wheels: 20″x 8″-8″ Turf Saver
- Front Wheels: 15″x 6″-6″ Turf Saver
Cutting Deck
- Deck Cutting Width: 42″
- Deck Wash: Included
- Deck Material: Steel, 13-gauge
- Deck Attach/Removal: QuickAttach™ (no tools required)
- Deck Engagement (PTO): Manual lever
- Deck Construction: Stamped
- Blade(s): 2
- Deck Lift: Lever
- Cutting Height Range: 1″ – 4″
- Anti-Scalping: 2 gauge wheels
- Deck Positions: 12 positions
Warranty
- Warranty: 3-year/unlimited hour warranty
- Frame Warranty: 5-year/unlimited hour warranty
- Front Axle Warranty: 5-year/unlimited hour warranty
- Deck Shell: 3-year unlimited hours
- Commercial Warranty: No
Chassis
- Frame: Robotically welded
- Bumper: No
- Front Axle: Cast iron
- Turning Radius: 16″
- Rear Tow Hitch: Included
- Corrosion Protection: Yes
Controls
- Cruise Control: Yes
- Brakes: Disc
- Steering Control: Manual sector and pinion
Comfort
- Seat Type: 15″ high-back seat
- Armrests: No
- Seat Adjustment: Lever
- Floor Mats Traction: Rubber
Additional Specifications
- Mulch Kit: Available Separately 19A30046100
- Hour Meter: Available Separately 490-900-C075
- Headlight(s): 2 – LED
- Discharge Chute: Included
- Cup Holder: Included
- Operator Presence System: Included
- Bagger: Optional
- Model Number: 13A6A9TS010
- AIR FILTER: 937-05066
- Pre Filter: Included with air filter
- ENGINE Oil: 490-000-C044
- OIL FILTER: 951-12690
- FUEL FILTER: 951-3013
- TRANS FLUID: TT-187Q0899000
- SPARK PLUG: 951-10292A
- DECK BELT: 954-05021
- DRIVE BELT: 954-05027B
- BLADES ORDER 2: 742P05177
- XTREME BLADES: 742P05177A-X
- IGNITION KEY: 925-1745A
