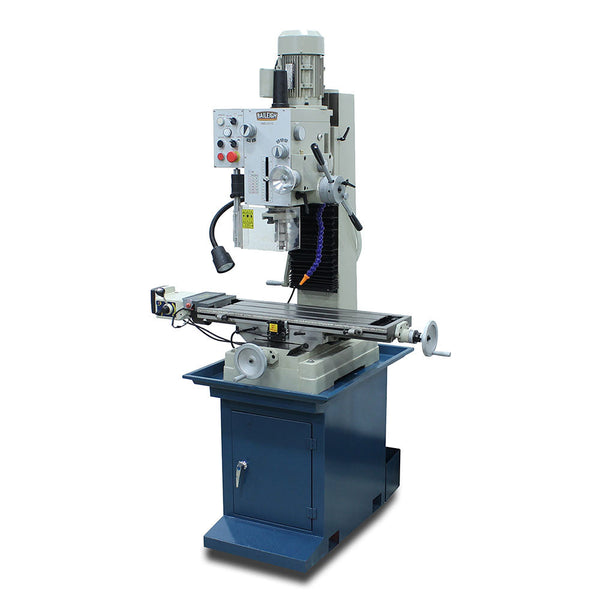

Baileigh 1020693 VMD-931G 110V Gear Driven Vertical Mill Drill
PRODUCT DETAILS
Features
- 2 hp motor runs on 110 volt single-phase power, optimal for any shop, garage, or educational institution.
- 1.75” maximum drilling capacity.

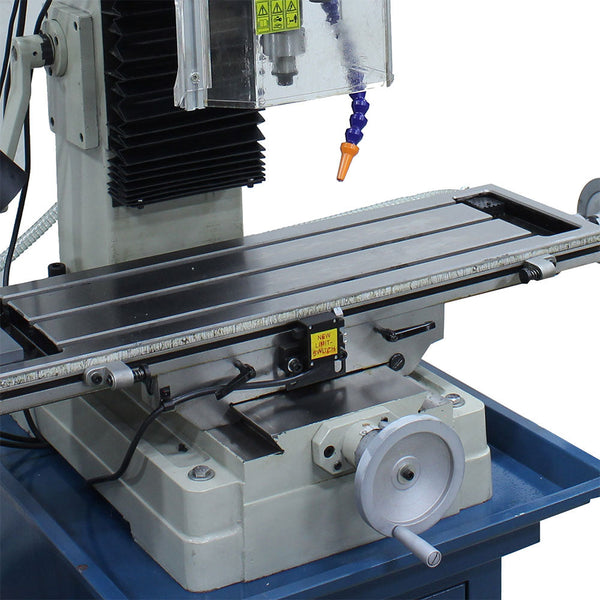

- 31.5” x 9.45” milling-style table enables you to tackle a wider variety of projects (with the right tooling).
- Table incorporates an X-axis power feed to make those longer cuts accurately.
- Gear-driven head swivels 90° left and right.
- You can choose from 6 speeds to accommodate each mill, drill or tap size available: 90, 210, 345, 670, 1180, 1970 rpm.
- Wide steel column eliminates flex when you’re milling or drilling at full capacity.
- Heavy-duty base, made from a rigid iron casting, adds to the machine’s strength and minimizes vibrations.
- Comes standard with a coolant system, R8 spindle taper, and a flexible halogen light.
What's in The Box
- VMD-931G - Vertical Mill Drill
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | VMD-931G |
| Power | 110V |
| Table Size | 31.5" x 9.45" |
| Head Miter | 17243 |
| Motor | 2 hp |
| X Axis Travel | 22" |
| Y Axis Travel | 7.48" |
| Spindle Nose to Table | 17.32" |
| Spindle Speed | 90,210,345,670,1180,1970 RPM |
| Spindle Stroke | 4.75" |
| Spindle Taper | R8 |
| T Slots | .55" |
| Coolant Pump | 1/8 hp |
| End Mill Size | 1.25" Max |
| Drill Capacity | 1.5" |
| Spindle Travel | 4.75" |
| Shipping Dimensions (Inches) | 60x44x50 |
| Weight | 1200 lbs |
