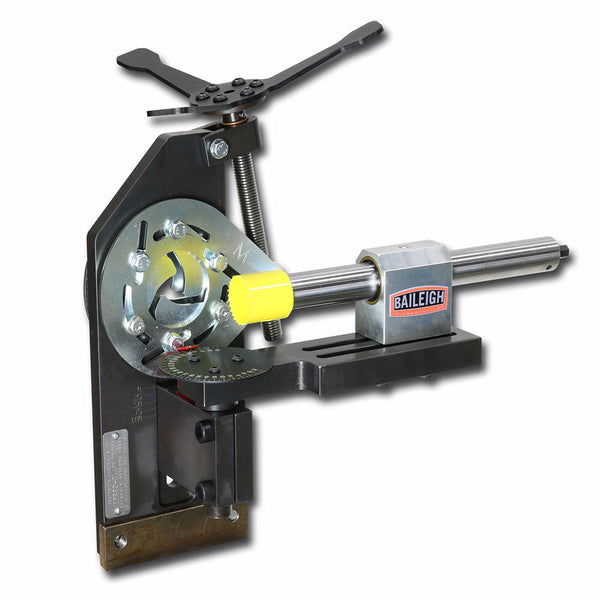

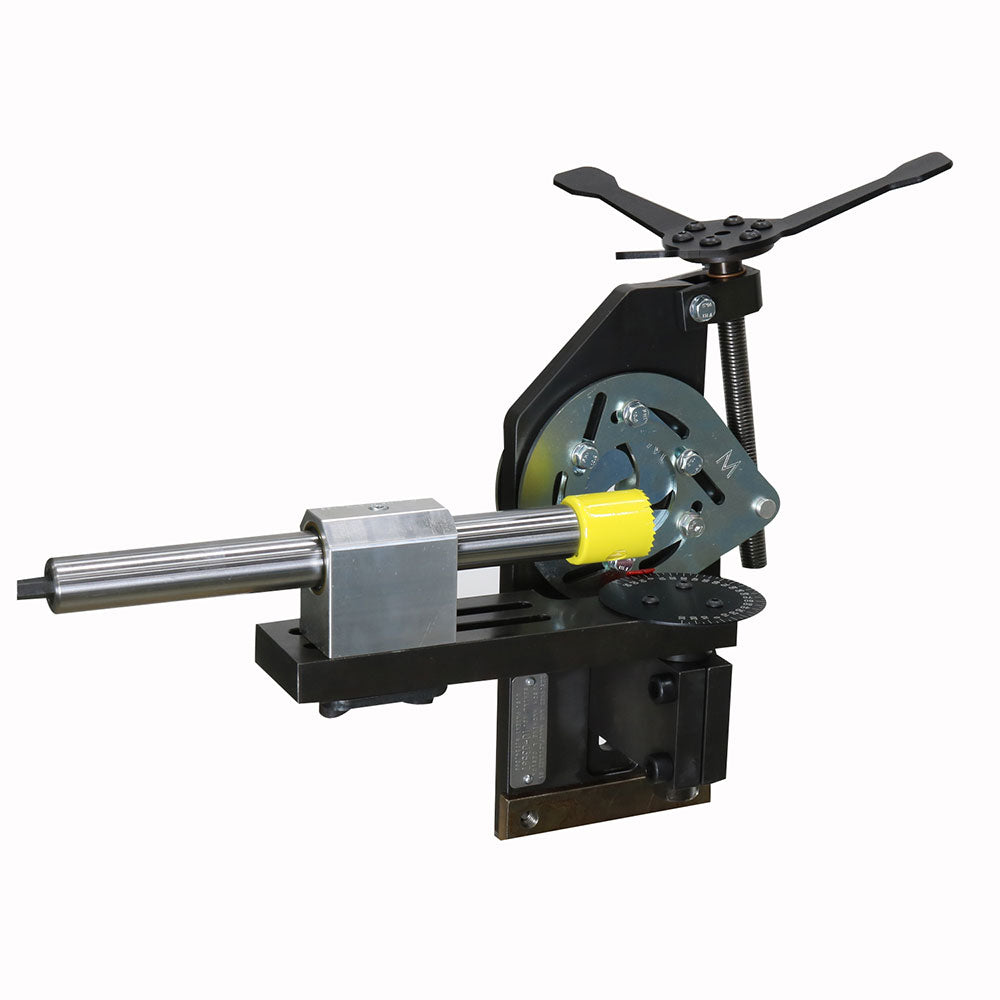

Baileigh 1008041 TN-250 Tube / Pipe Notcher
PRODUCT DETAILS
Features
- Notches up to 2.5” OD.
- Our patented self-centering vise can clamp down anywhere on tube, including the middle of bends.
- Fully-adjustable axis accommodates almost any notch combination.
- Carriage pivots up to 220° left to right, so you can come from the “back side” of the notch.
- 2 slotted mounting rails move up and down with scales for offset notches up to 1” and allow for almost any position of the bearing block.

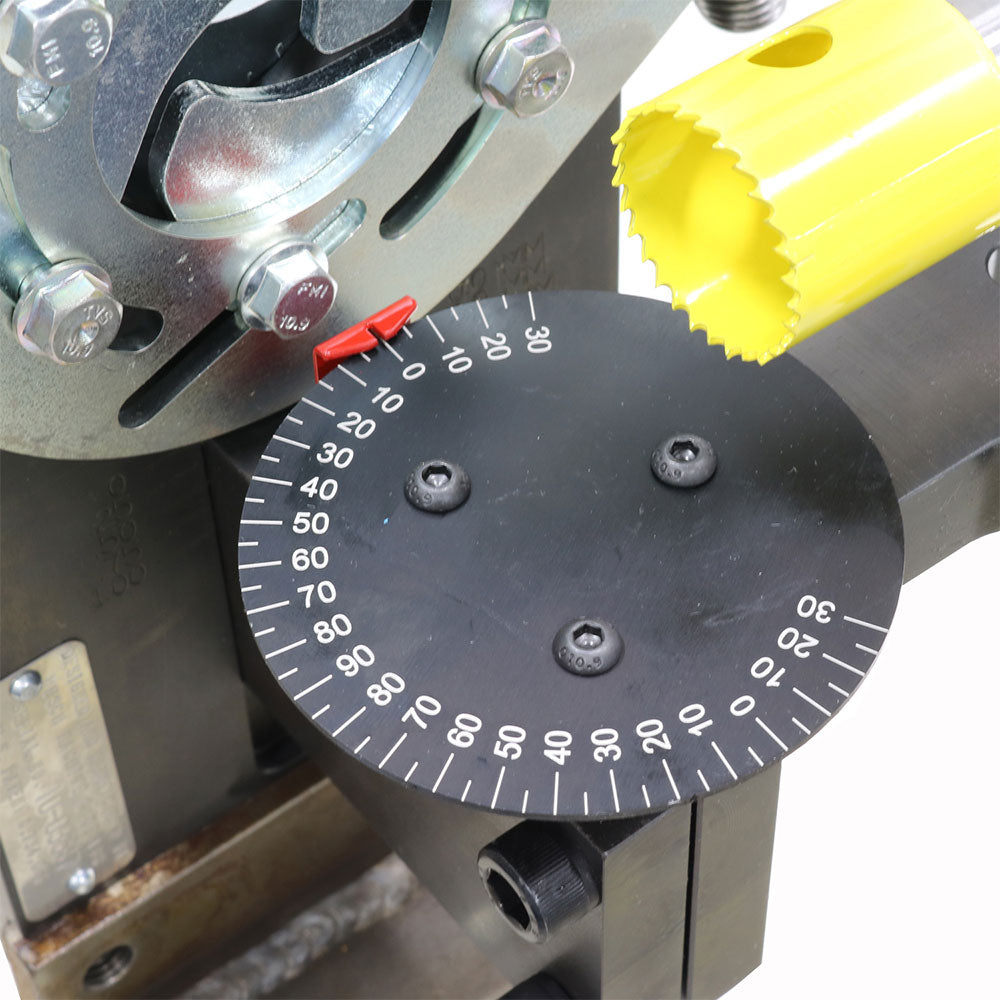

- Large engraved degree dial (or angle-finder) helps you get those back-side notches lined up.

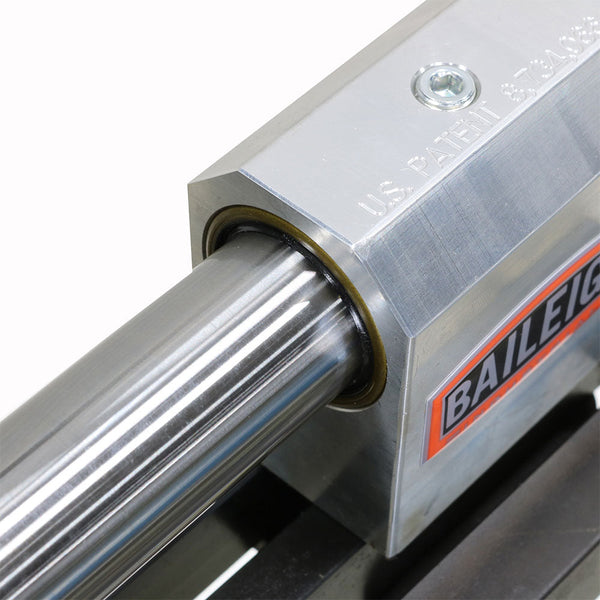

- 1.25” Thompson® shaft rides in sealed and oiled needle bearings for smooth performance.
- Both ends of the shaft are completely replaceable to save you time and money.
- Heavy-duty .75” steel plate backbone and all-interlocking components create a rigid platform that reduces vibration and prolongs the life of the hole saws.
- All slots include caps to last longer.
What's in The Box
- TN-250 - Tube Notcher
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | TN-250 |
| Country of Manufacture | United States |
| Notching Capacity (OD) | 1/2" - 2 1/2" |
| Angle Adjustment | 0 – 220° |
| Power | 1/2" (12.7 mm) Hand Drill |
| Dimensions (Inches) | 19 x 11 x 14 |
| Weight | 43 lbs |
