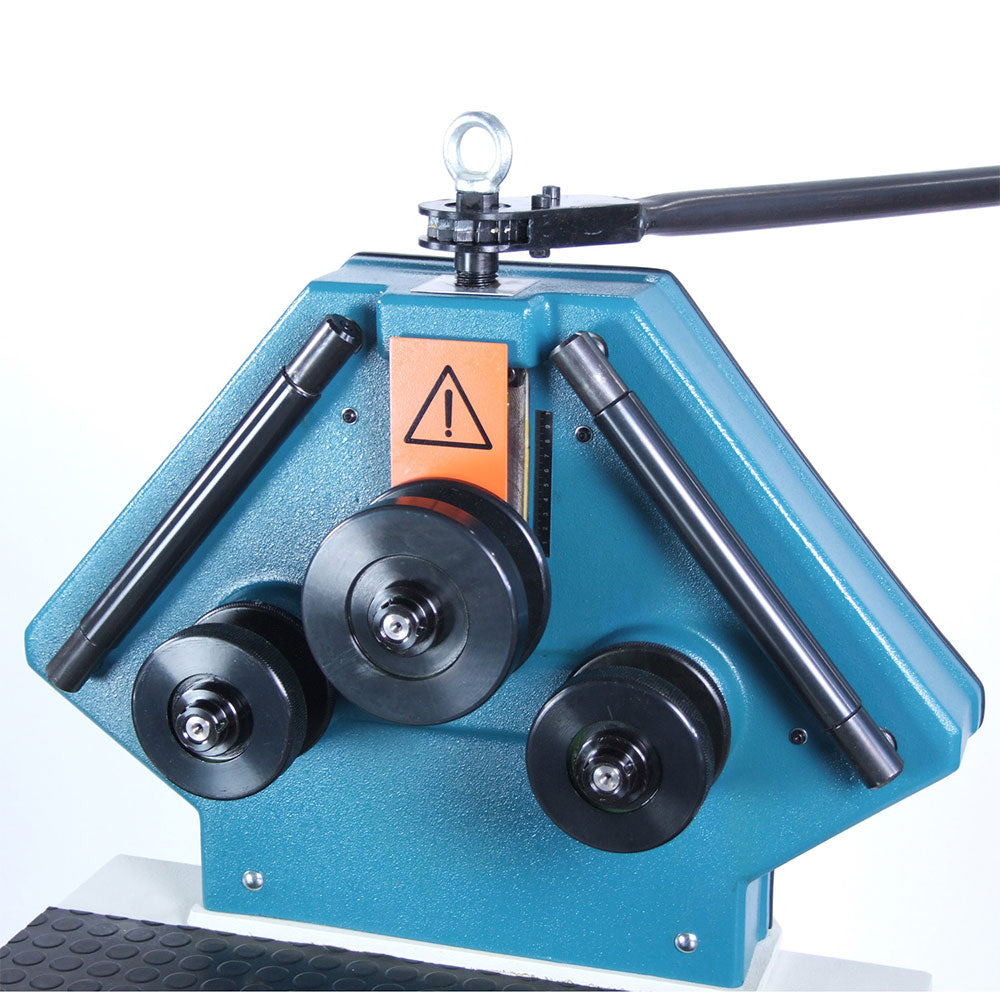

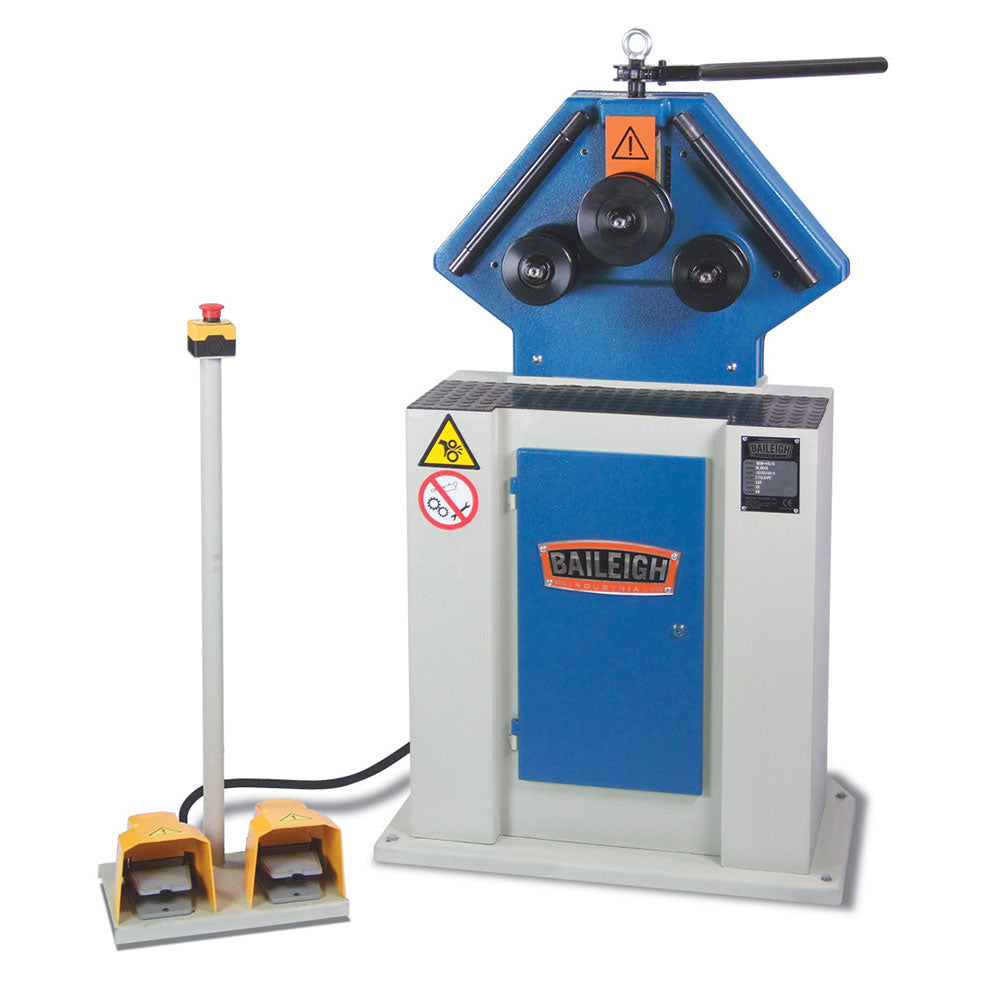

Baileigh 1006852 R-M40 220V Variable Speed Ring Roll Machine Bender
PRODUCT DETAILS
Features
- 220-volt single-phase motor can run at almost any site in North America.
- 2" round tube and 1.5" schedule 40 pipe maximum capacity.

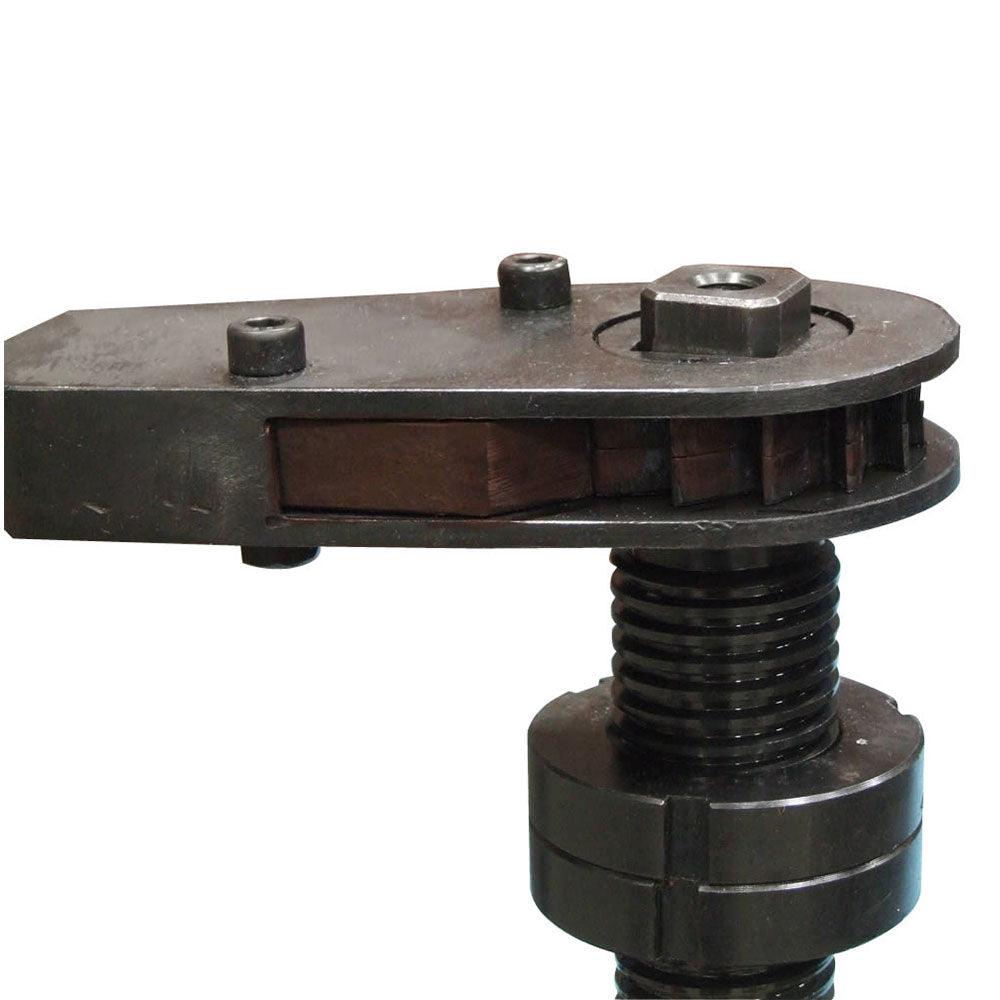

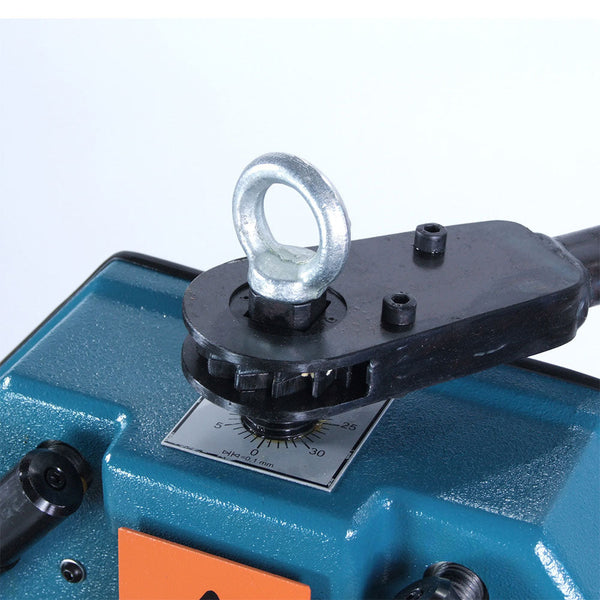

- Ratchet-style manual top shaft allows you to adjust forming pressure.

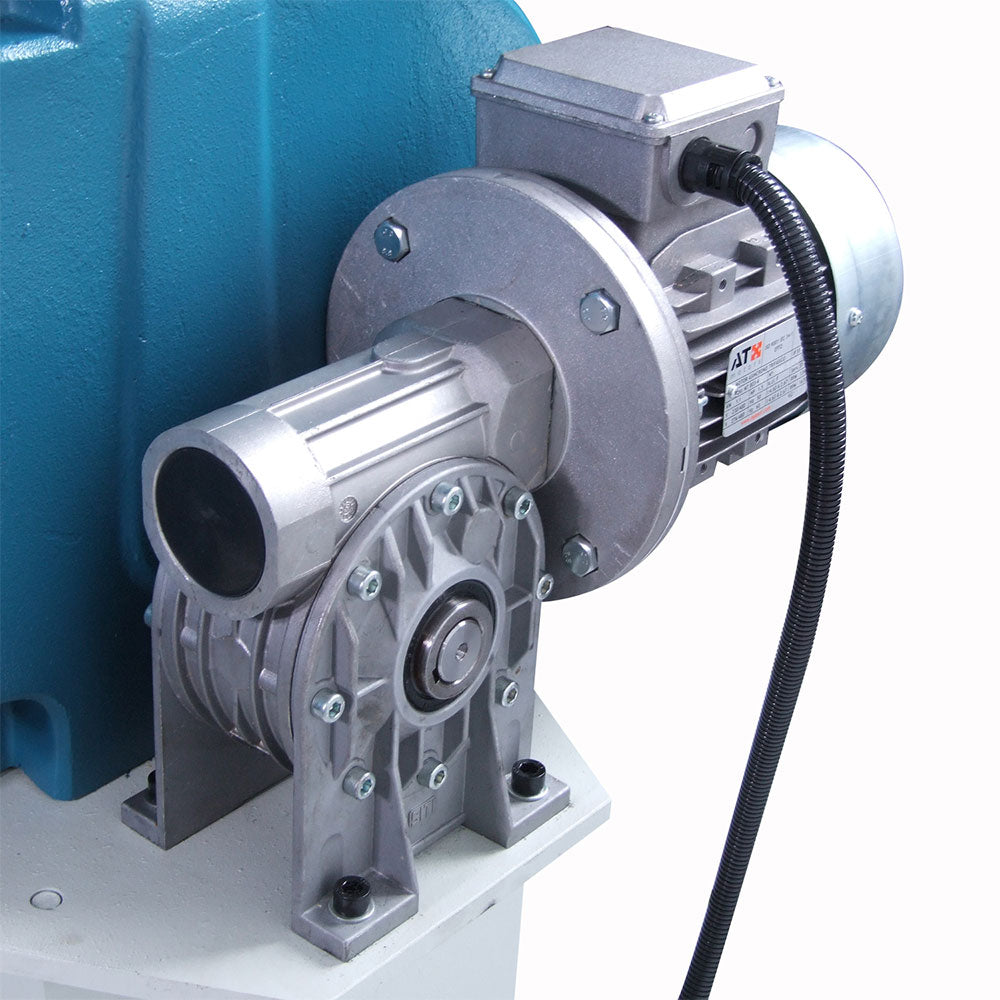

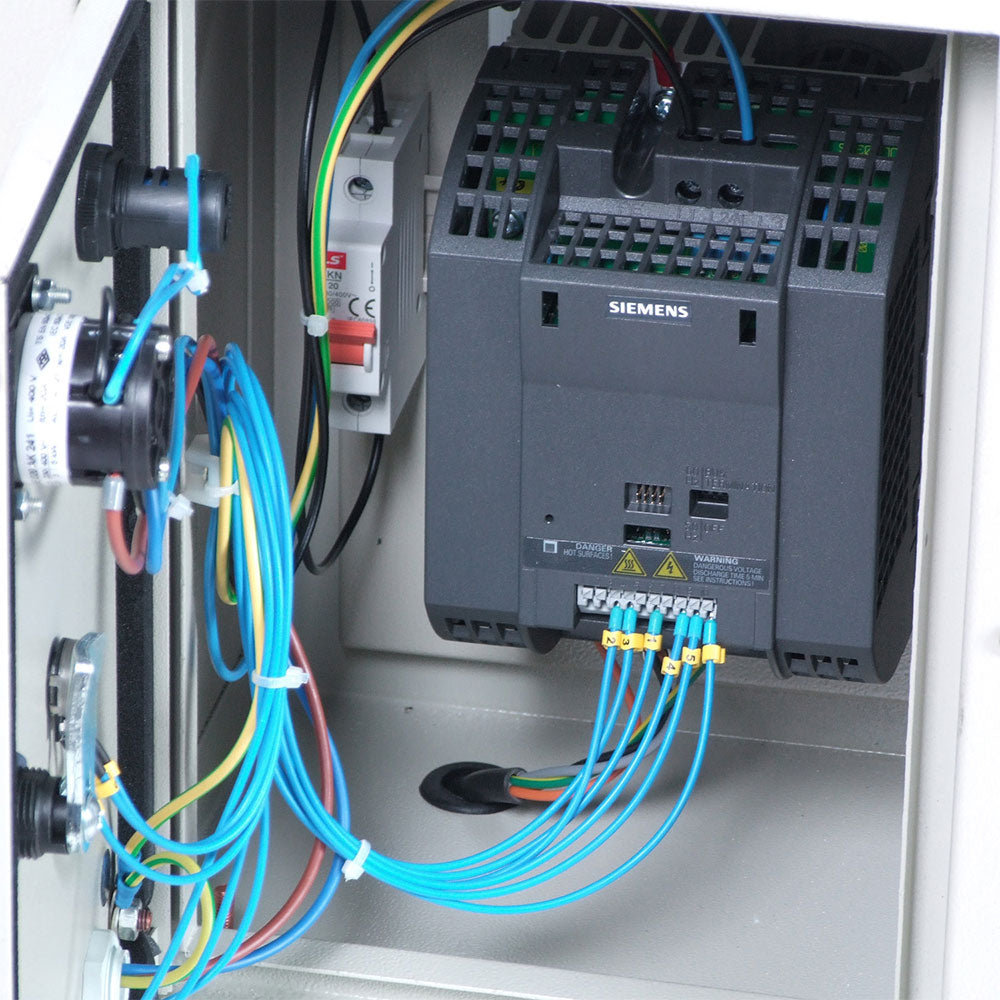

- Variable-speed inverter drives and industrial-grade transmission provide delicate control over material.

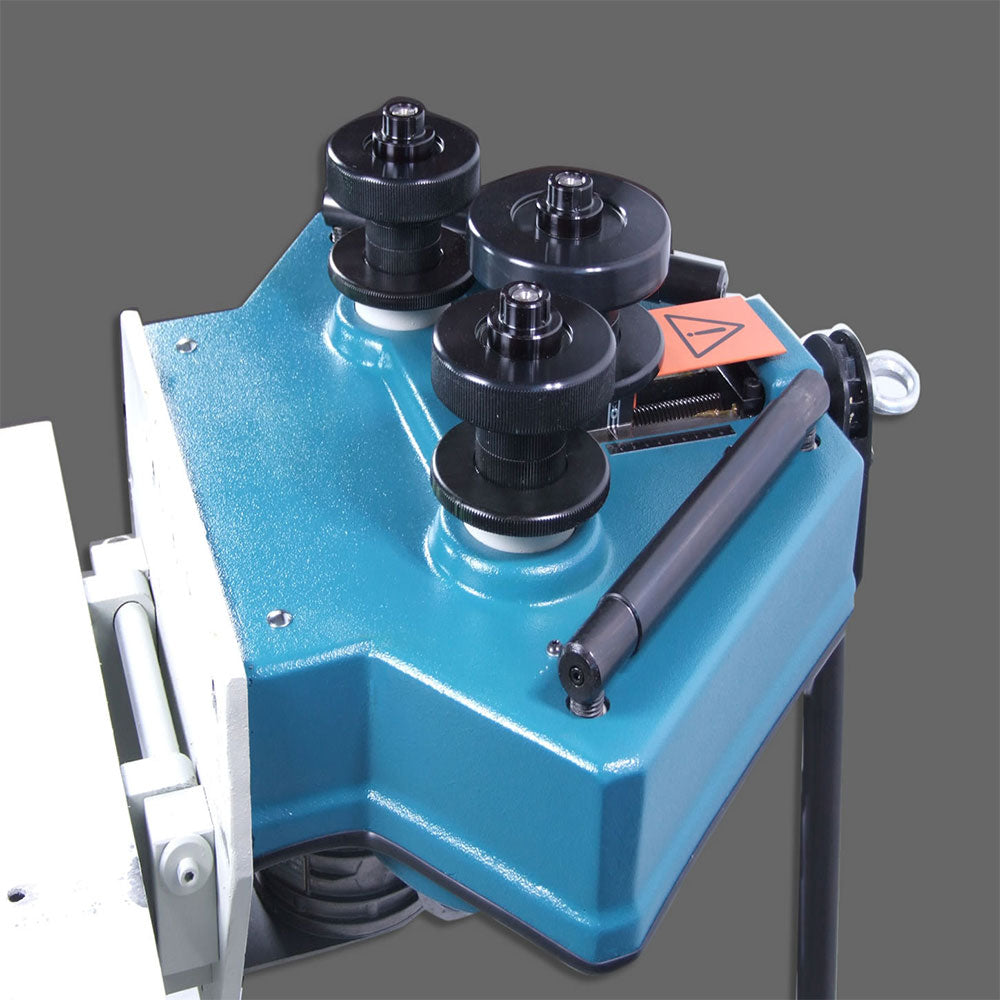

- Executes bends in upright or horizontal positions, to accommodate a range of material lengths.
- Sturdy base opens into a storage cabinet for tooling and other options.

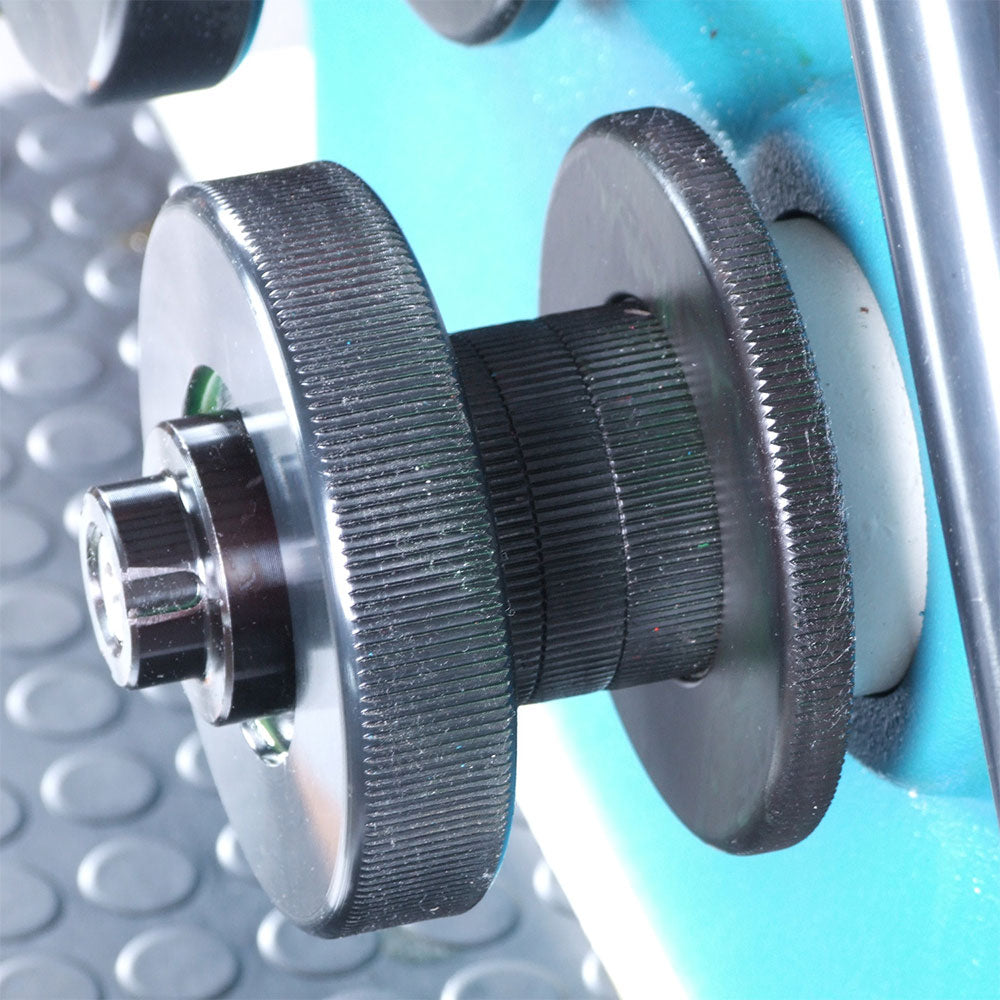

- Comes standard with a set of segment rolls that can be used for bending flat bar, solid rod, and some square applications.
- Manufactured from heavy steel plate to extend machine’s lifetime of use.
What's in The Box
- R-M40 - Ring Roll Machine
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | R-M40 |
| Power | 220V Single Phase |
| Roll Adjustment | Manual |
| Pipe Capacity | Size: 1.5" (sch. 40) / Min. Dia.: 28" |
| Round Tube Capacity | Size: 2" (.078") / Min. Dia.: 27.55" |
| Square Tube Capacity | Size: 1.5" (.078") / Min. Dia.: 39" |
| Solid Round Capacity | Size: 1.375" / Min. Dia.: 24" |
| Flat Bar Easy Way | Size: 3" (.5") / Min. Dia.: 15.75" |
| Flat Bar Hard Way | Size: 2.25" (.375") / Min. Dia.: 20" |
| Angle Iron Capacity | Size: 1.5" (.157") / Min. Dia.: 22" |
| Shaft Diameter | 1.181" |
| Shaft Center Distance Lower Rolls | 10.88" |
| Lower Roll Dia. | 5.118" |
| Pinch | Single |
| Material Type | All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel. |
| *Optional Tooling | Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details. |
| Dimensions (Inches) | 60x44x77 |
| Weight | 550 lbs |
