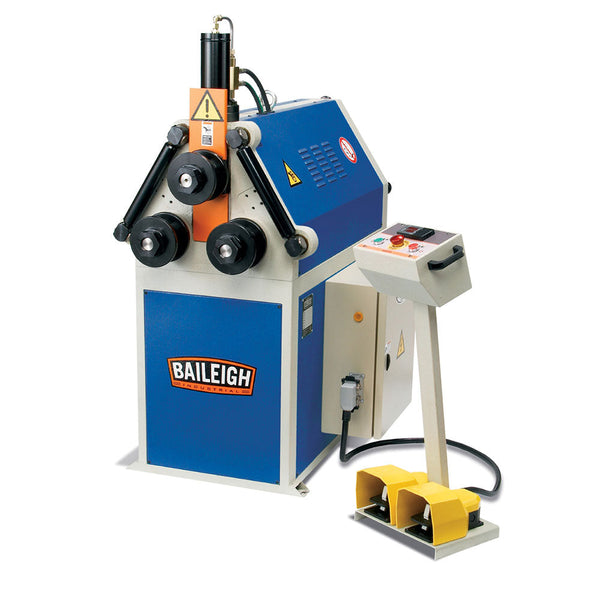

Baileigh 1006835 R-H45 Hydraulic Roll Bender w/ 3 Driven Rolls
PRODUCT DETAILS
Features
- Runs on 220-volt single-phase power and will work at just about any fabrication shop or job site.
- Bends up to 2” square x .120” wall tubing and 2” schedule 40 pipe, among other materials.

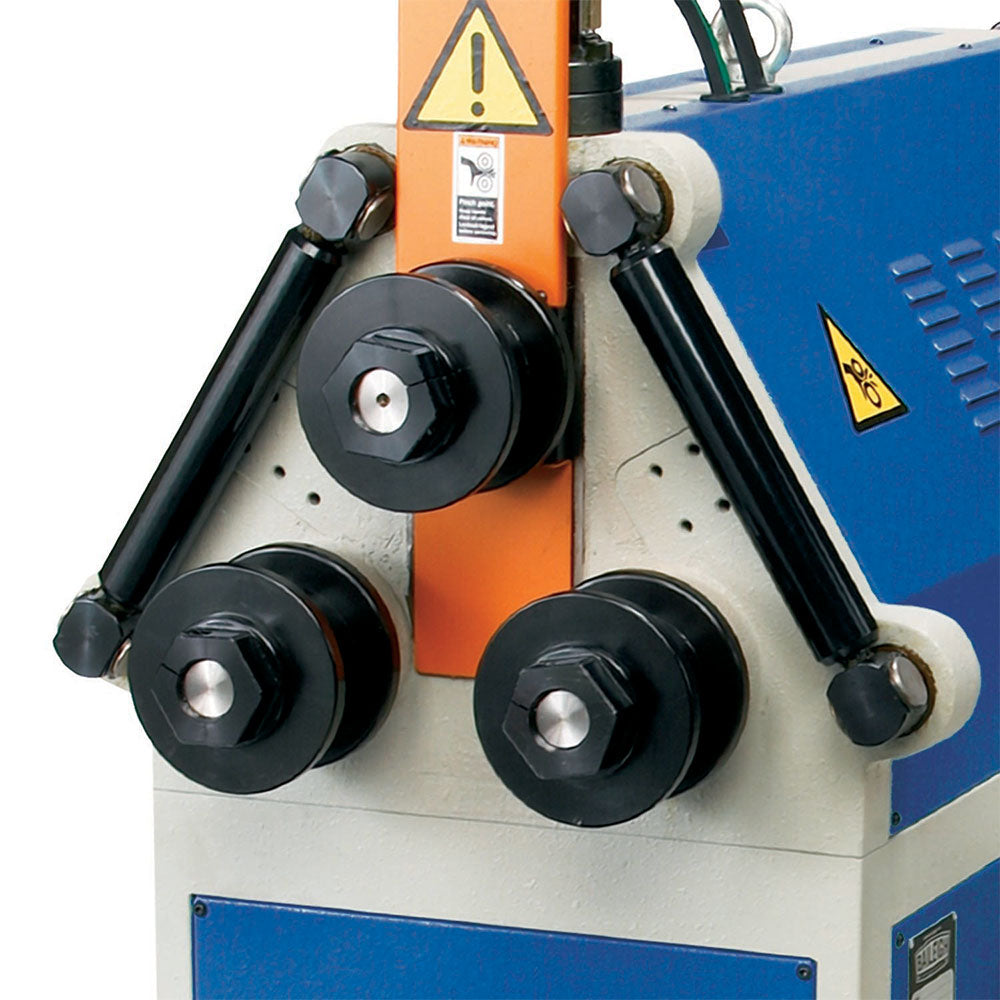

- All 3 rolls turn on industrial motor and transmission.

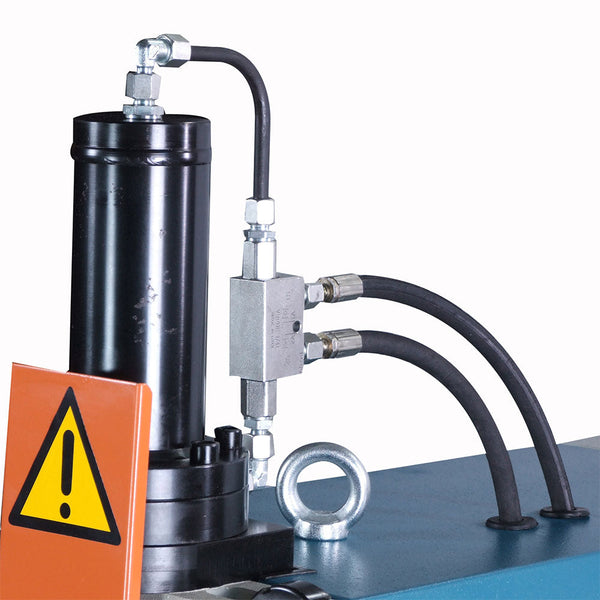

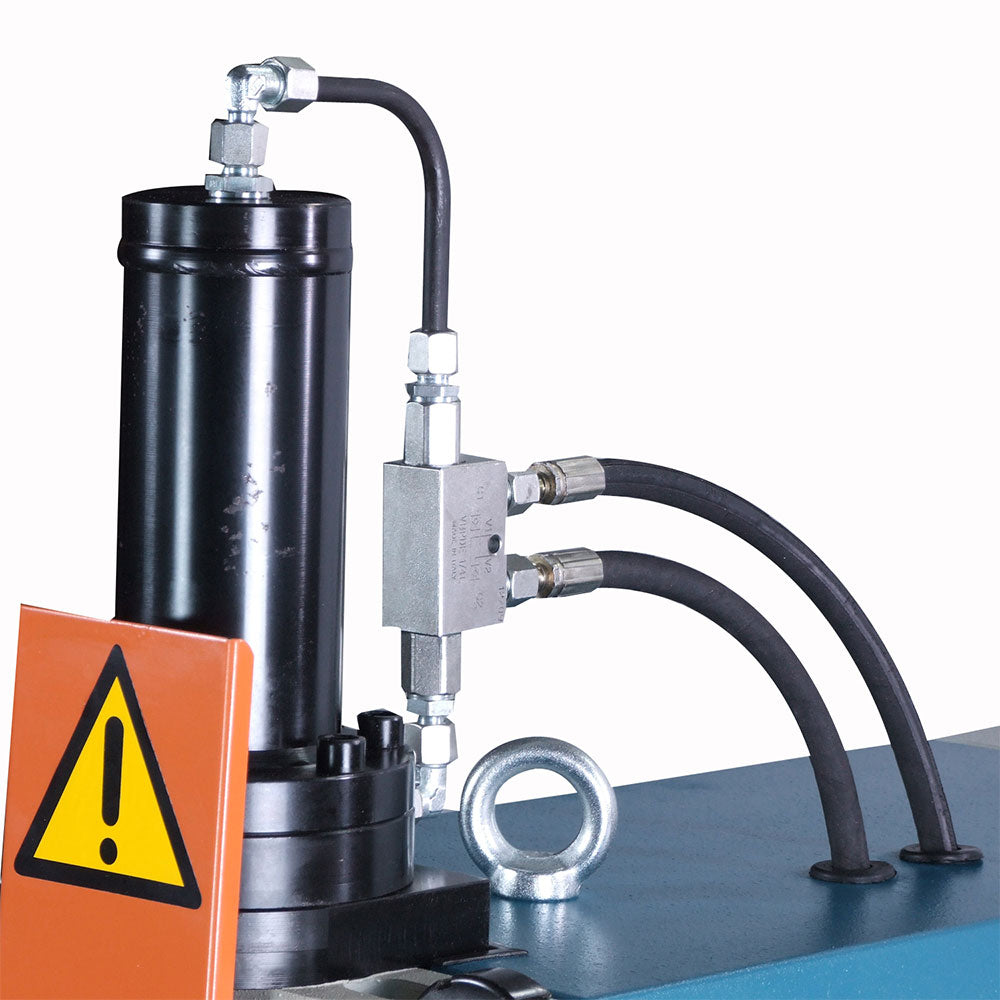

- Industrial-grade hydraulics power the top forming roll’s movement for seamless adjustment.

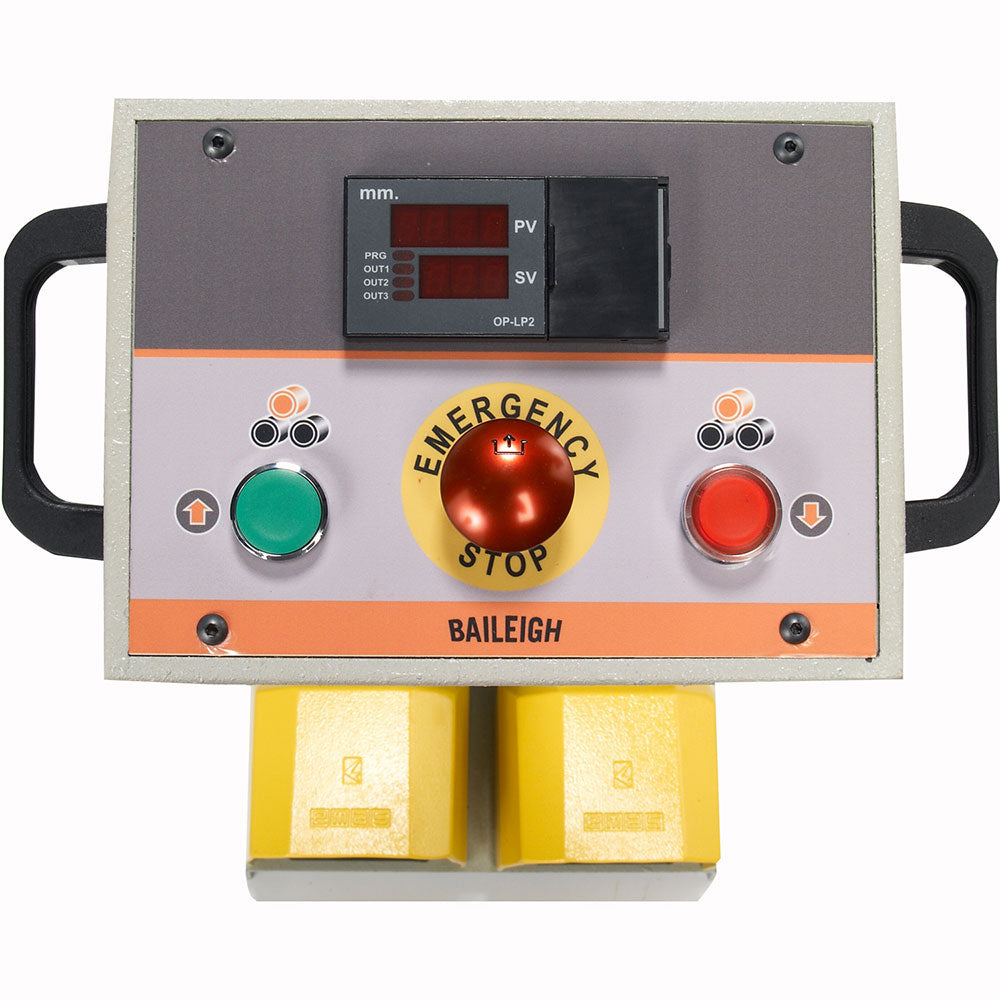

- Digital readout with programmable stop controls upward and downward roll position for easy repeatability.
- Siemens inverter drive enables soft start-ups to prolong motor life.
- Operator podium includes foot pedal, allowing you to stop and start the machine with ease.
- You can safely tip this pipe bender backward into a horizontal position when rolling larger diameters.
- Fully-welded steel plate frame adds strength to the machine and minimizes flex.
What's in The Box
- R-H45 - Hydraulic Roll Bender
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | R-H45 |
| Power | 220V Single Phase |
| Roll Adjustment | Hydraulic |
| Pipe Capacity | Size: 2" (sch. 40) / Min. Dia.: 48" |
| Round Tube Capacity | Size: 2.75" (.083") / Min. Dia.: 60" |
| Square Tube Capacity | Size: 2" (.120") / Min. Dia.: 51" |
| Solid Round Capacity | Size: 1.5" / Min. Dia. 28" |
| Flat Bar Easy Way | Size: 4" (.75") / Min. Dia. 28" |
| Flat Bar Hard Way | Size: 3.25" (.375")/ Min. Dia.: 32" |
| Angle Iron Capacity | Size: 2" (.250")/ Min. Dia.: 36" |
| Shaft Diameter | 1.772" |
| Shaft Center Distance Lower Rolls | 9.562" |

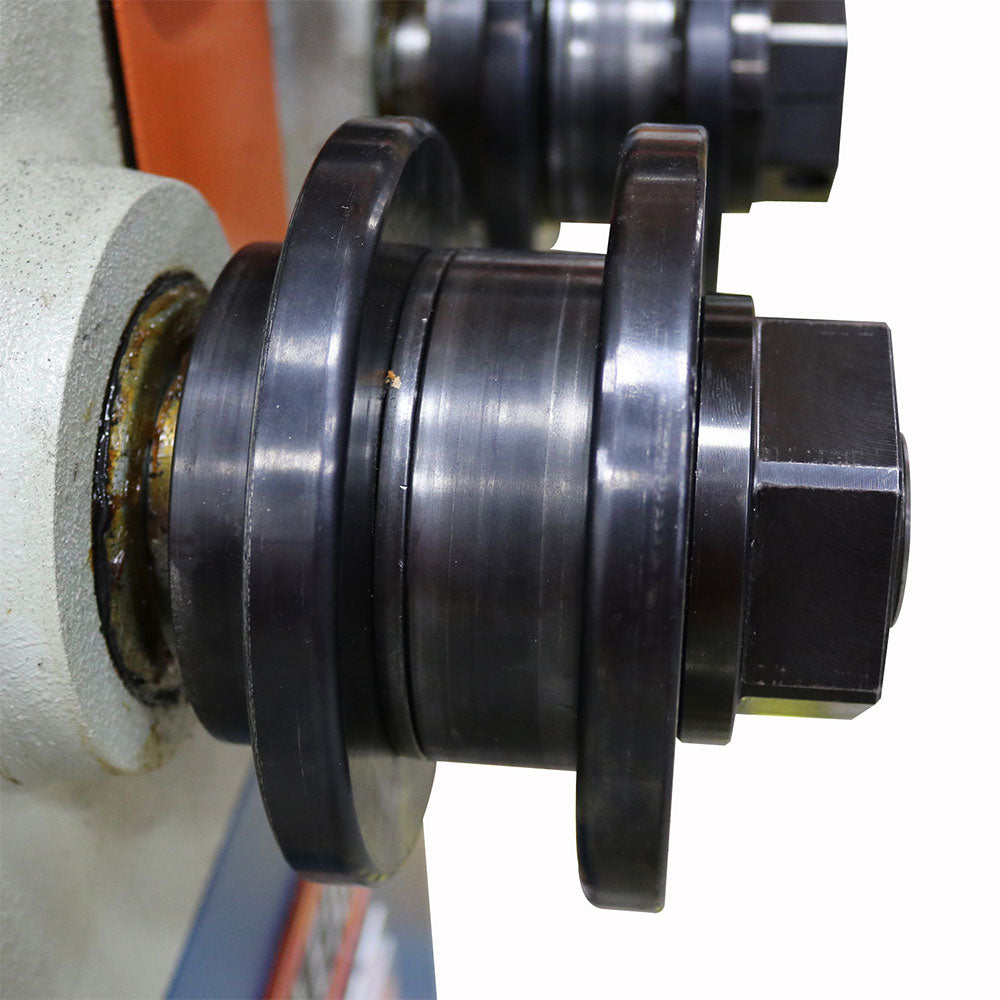

| Lower Roll Dia. | 5.827" |
| Pinch | Single |
| Material Type | All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel. |
| *Optional Tooling | Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details. |
| Dimensions (Inches) | 60 x 44 x 77 |
| Weight | 1000 lbs |
