Baileigh 1004808 HSP-20A 20 Ton Pneumatic H-Frame Shop Press
PRODUCT DETAILS
Features
- 20-ton capacity.
- 19.25” working width.
- 7.5” cylinder stroke.
- Industrial-grade hydraulic components will provide years of reliable use.
- Adjustable table to fit a wide variety of applications.

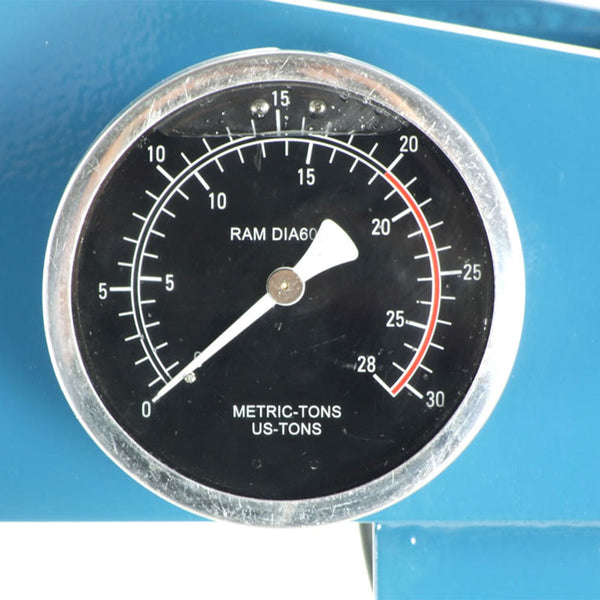

- Includes pressure regulator and gauge.
- Rigid, electro-welded steel construction lets you work at full capacity with no worries about the machine flexing.
- Comes standard with a V-block set.
What's in The Box
- HSP-20A - Shop Press
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | HSP-20A |
| Power | Pneumatic / Manual |
| Piston Head Diameter | 2" |
| Movable Cylinder | Yes |
| Working Width | 19.25" |
| Maximum Capacity | 20 tons |
| Cylinder Stroke | 7.5" |
| Cylinder Diameter | 3" |
| Distance From Table To Ram | Min. 1.38" - Max. 35.91" |
| Shipping Dimensions (Inches) | 67x28x11 |
| Weight | 300 lbs |
