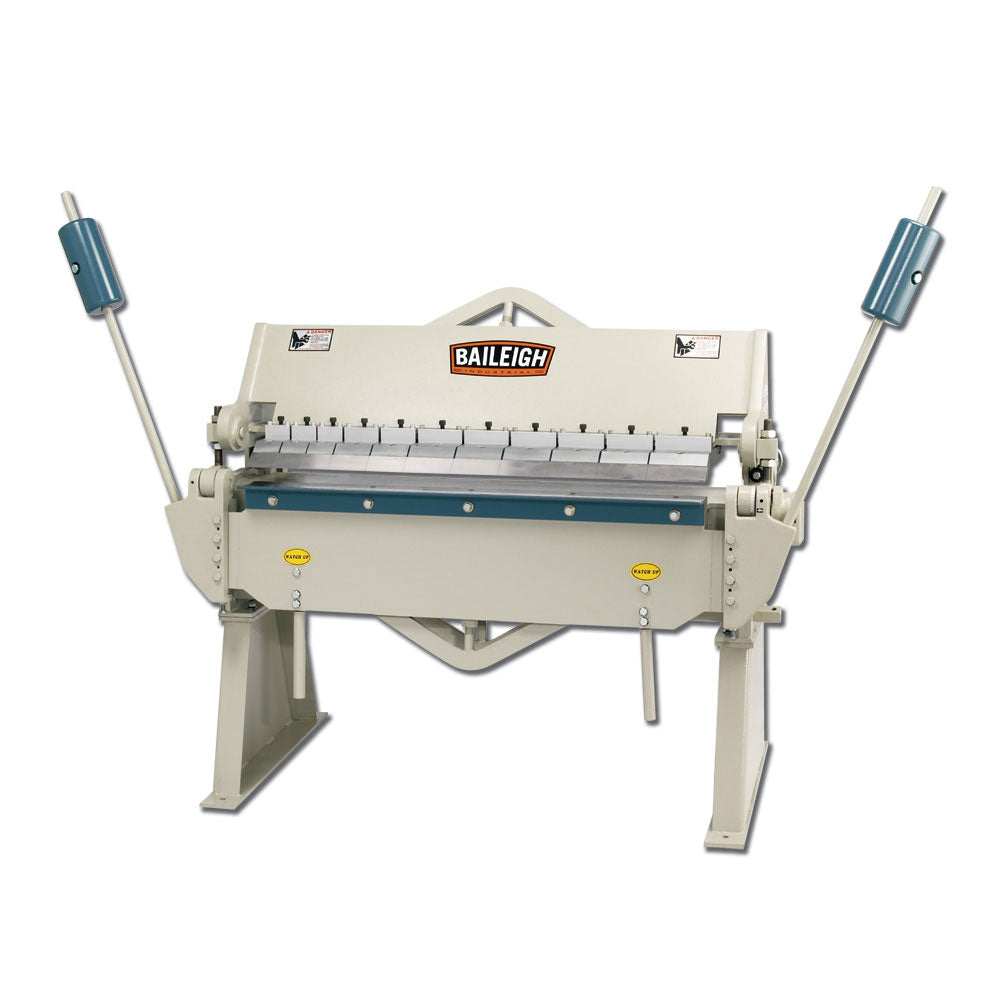

Baileigh 1000404 BB-4812 Compact Finger Brake w/ Electro Welded Steel Framework

Features

• Bends 12 gauge (or lighter) mild steel.
• 4 feet (48”) long.
• Maximum bend angle of 135°.
• Compact size makes a great fit for tight floor plans.
• Includes 11 hardened and polished 3-piece fingers of varying lengths (3 at 3”, 2 at 4”, 5 at 5”,1 at 6”). You can make many different box sizes.
• Up to 6” box depth, made possible by 3-piece design, is one of the largest available.
• 2 handwheels adjust the gap for varying material thickness.
• Comes standard with a stop rod system to help you make repeatable bends and simplify production runs.
• Heavy counterweights assist you with bending thick sheet metal—a relief for operators who frequently use the box brake for long periods of time.
• Massive torsion system, connected to the steel beam and leaf, keeps the beam from twisting at maximum capacity.
• Electro-welded steel framework, supported by solid steel adjustable trusses, prevents flexing and maintains accuracy.
• Baileigh covers this sheet metal finger brake with a 1-year parts warranty.

What's in The Box

• BB-4812 - Finger Brake
• Owner's Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications
