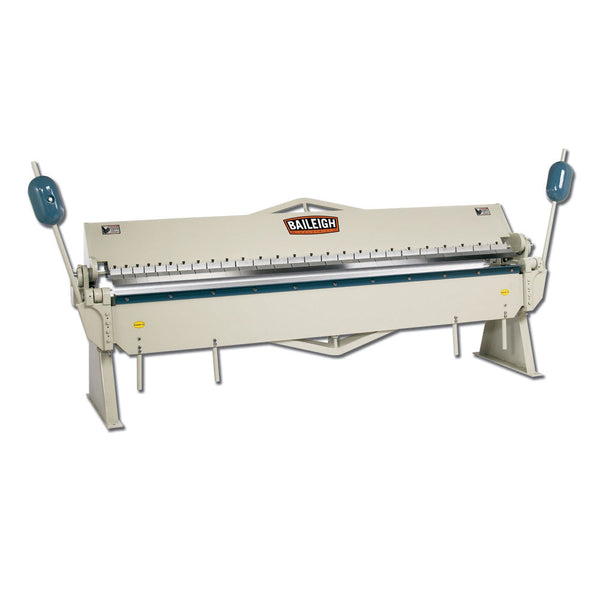

Baileigh 1000361 BB-12014 Sheet Metal Brake w/ 10' x 14 ga Capacity
PRODUCT DETAILS
Features
- Maximum capacity of 14 gauge mild steel and 18 gauge stainless steel.
- 10-foot (120”) length enables your shop to take on a wide range of projects.
- Bends up to 135°.
- 26 fingers of varying sizes (6 fingers of 3", 4 of 4", 10 of 5", 6 of 6") allow you to bend boxes and pans up to 6” deep.
- You can set up the individual hardened fingers for straight bending or box and pan configurations.
- Apron shafts ride in precise oilable bearings, maintaining tight bend tolerances and minimizing operator fatigue.
- 2 massive counterweights make it easy to bend at maximum capacity and reduce physical strain.
- Heavy-duty truss rods support the apron to reduce flex on maximum capacity bends.
- Electro-welded all-steel framework keeps this metal brake accurate over decades of daily use at full capacity.
- Massively-built sheet metal finger brake weighs in at almost 3500 lbs.
- Baileigh backs this metal brake with a 1-year parts warranty.
What's in The Box
- BB-12014 -Sheet Metal Brake
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | BB-12014 |
| Power | Manual |
| Min Reverse Bend | .625" |
| Thickness (SS) | 14 ga. (18 ga.) |
| Box Depth | 6" |
| Beam Adjustment | 1" |
| Bend Angle | 0 – 135° |
| Finger Sizes | 3" – 4" – 5" – 6" |
| Length | 120” |
| Shipping Dimensions (Inches) | 145x33x45 |
| Weight | 3950 lbs |
