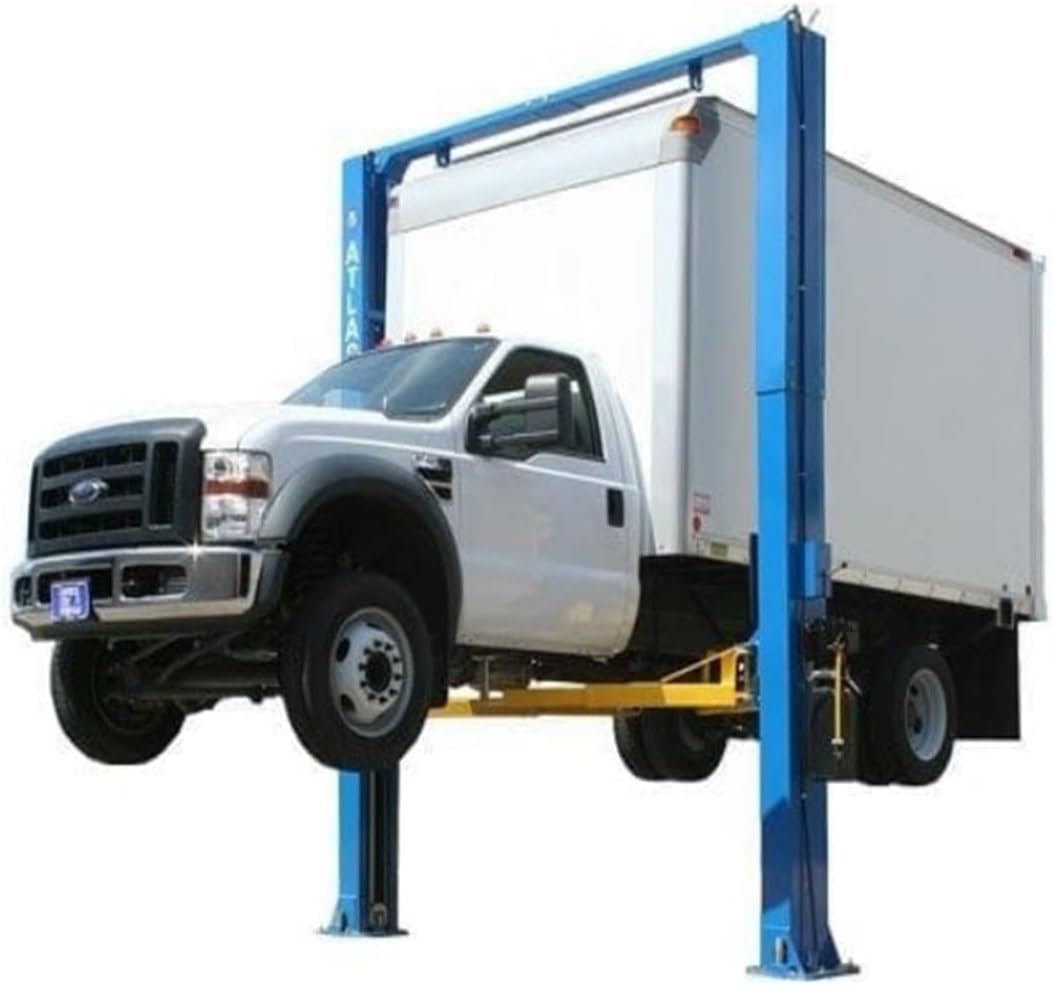

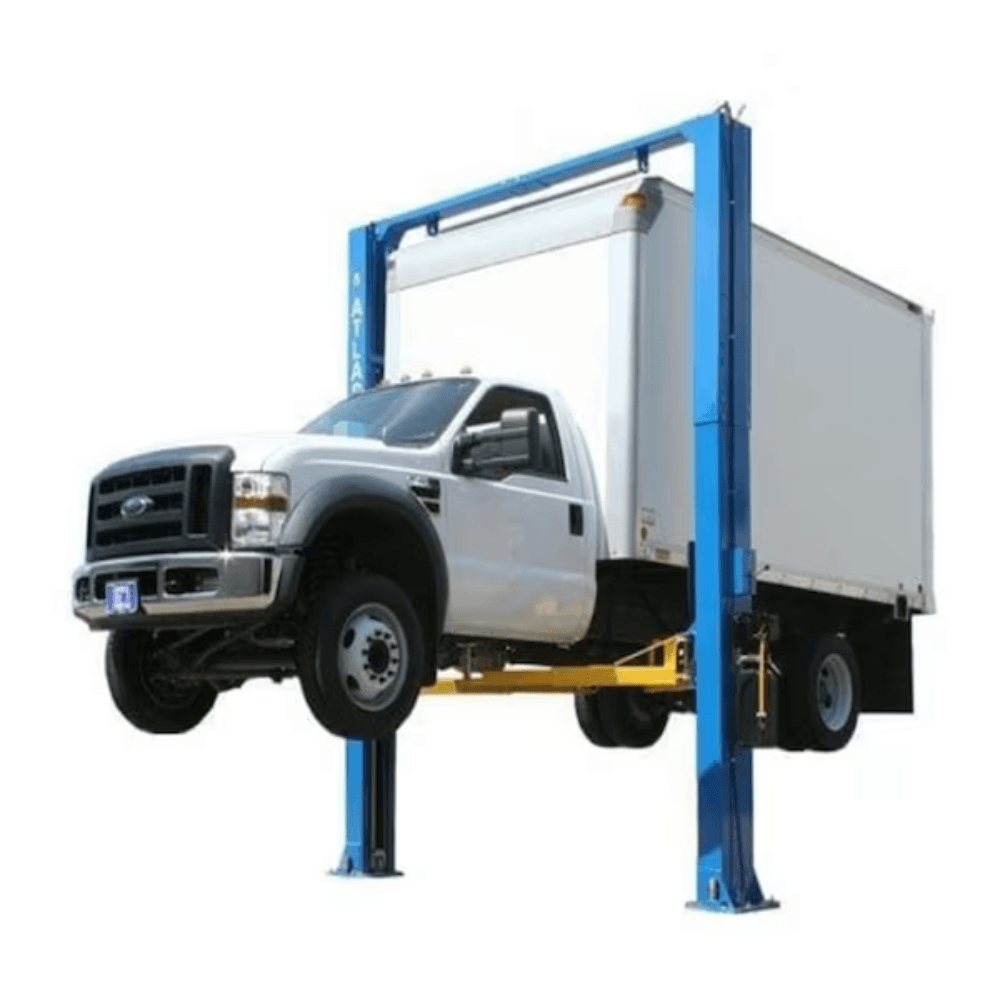

The Atlas PV12PX is a commercial-grade overhead two-post lift engineered for heavy-duty vehicle service. Built with symmetrical columns and extended arms, it easily accommodates passenger cars, vans, and long-wheelbase trucks with optimal clearance and stability.
Equipped with direct-drive cylinders, automatic arm restraints, and a single-point lock release, this system ensures safe and efficient operation. A padded shut-off bar and protective door guards prevent vehicle damage during lifting.
Key Features
Brand
Atlas
Model
PV12PX
Lift Capacity
5443.1 kg
Shipping Weight
979.8 kg
Overall Floor Width
382.9 cm
Outside Column to Outside Column
353.4 cm
Inside Column Width
313.7 cm
Drive-Through Clearance
278.1 cm
Maximum Lift Height (Without Adapters)
183.5 cm
Maximum Lift Height (With Adapters)
205.7 cm
Minimum Arm Height
11.4 cm

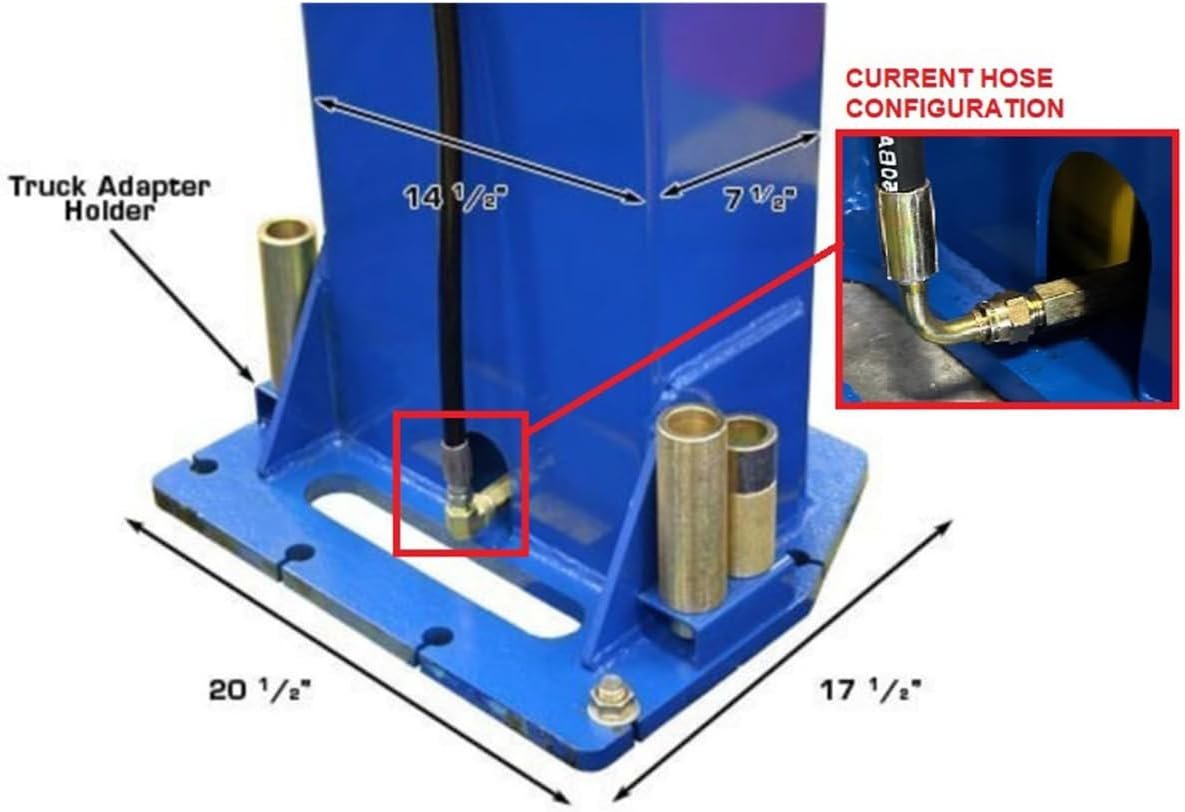

Column Dimensions
19.1 cm x 36.8 cm
Electrical Requirements
220V Single Phase, 30A Breaker Recommended
Hydraulic Fluid Capacity
11.4 - 18.9 L AW32/AW46
Finish
Powder Coat
Highlights
12,000 lb. capacity
Extra Tall & Extra Wide
Commercial Grade
Adjustable height 150″ (12′ 6″) or 165″ (13′ 9″) or 177″ (14′ 9″)
Special low height 150″ (12′ 6″) (Requires purchase of extra cables)

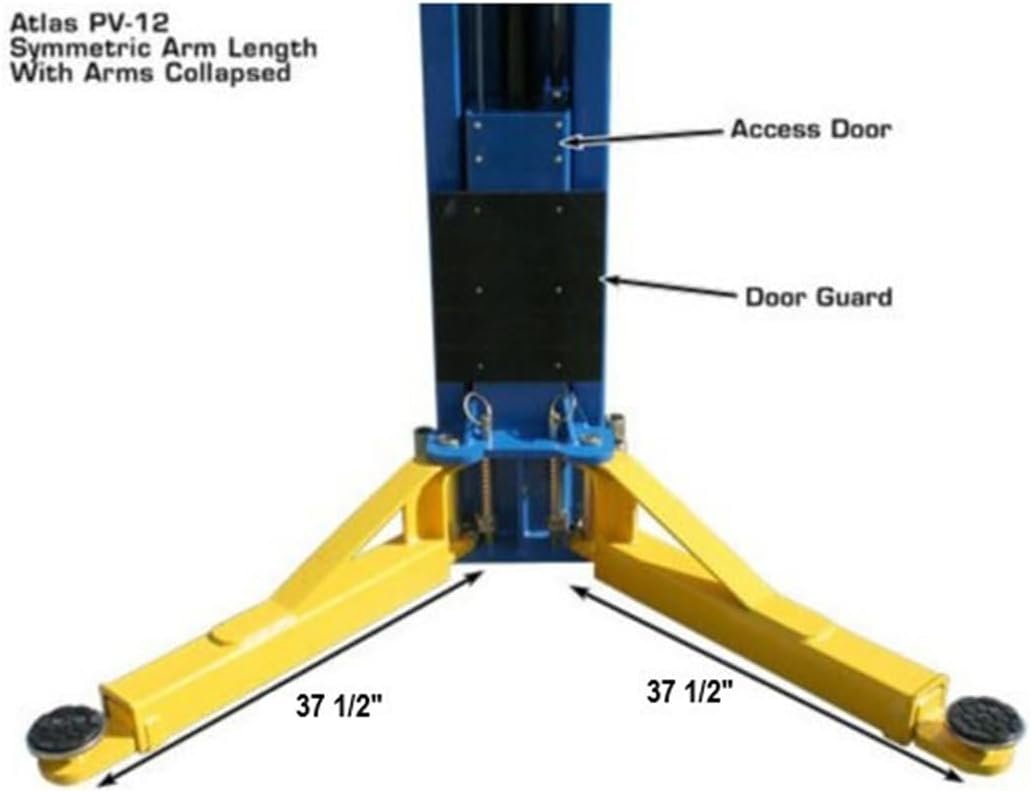

Symmetric arms
Automatic Arm Restraints
Padded Shut-Off Bar
Door Guards on Carriages

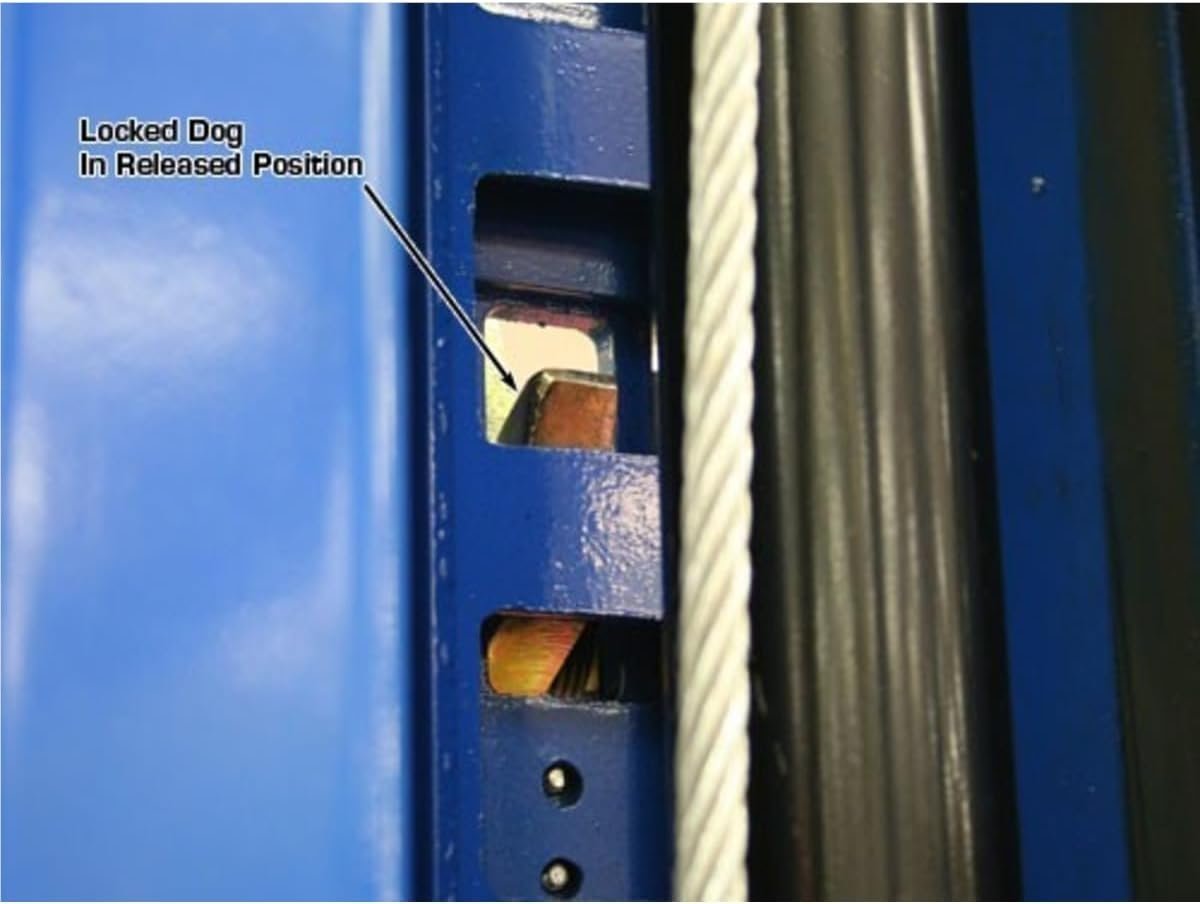

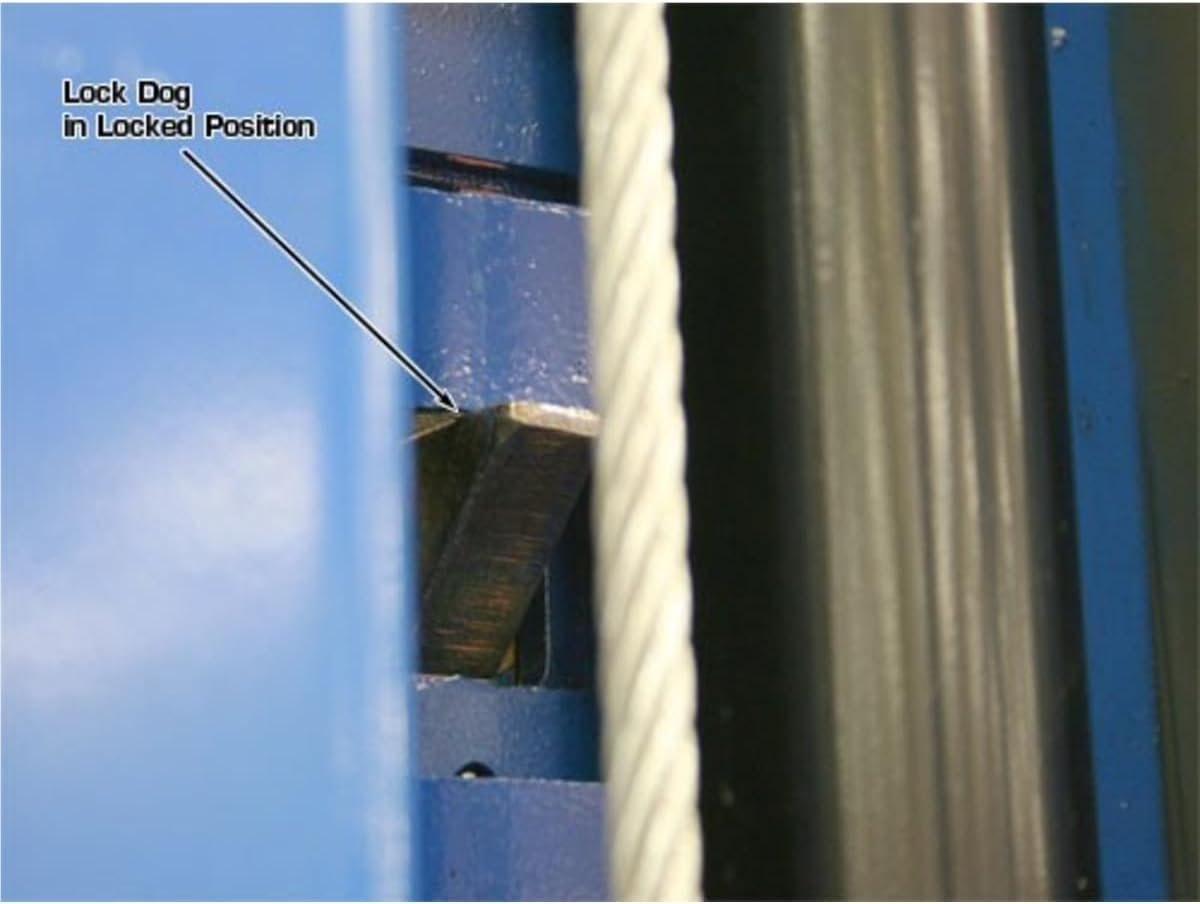

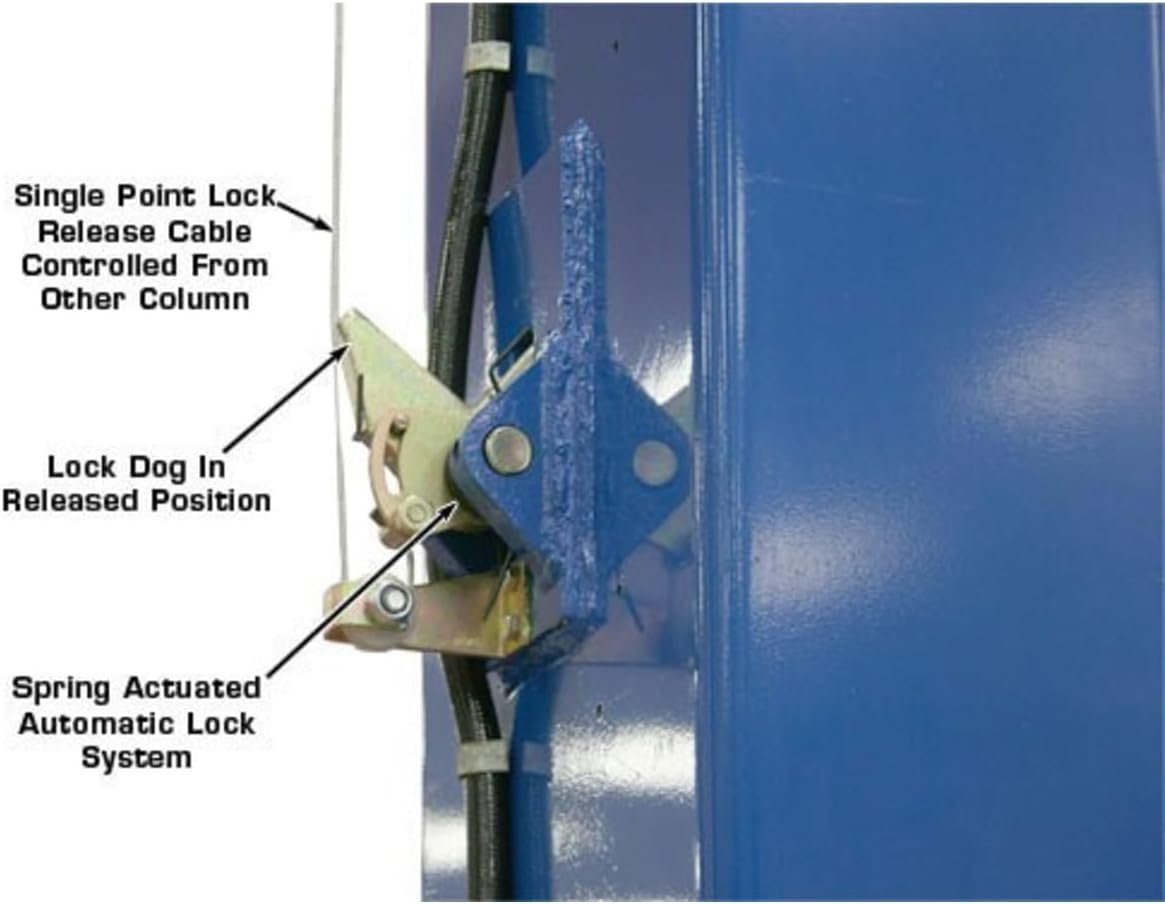

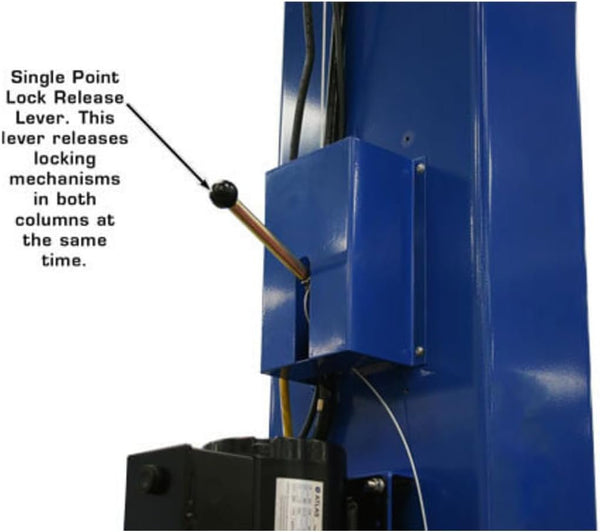

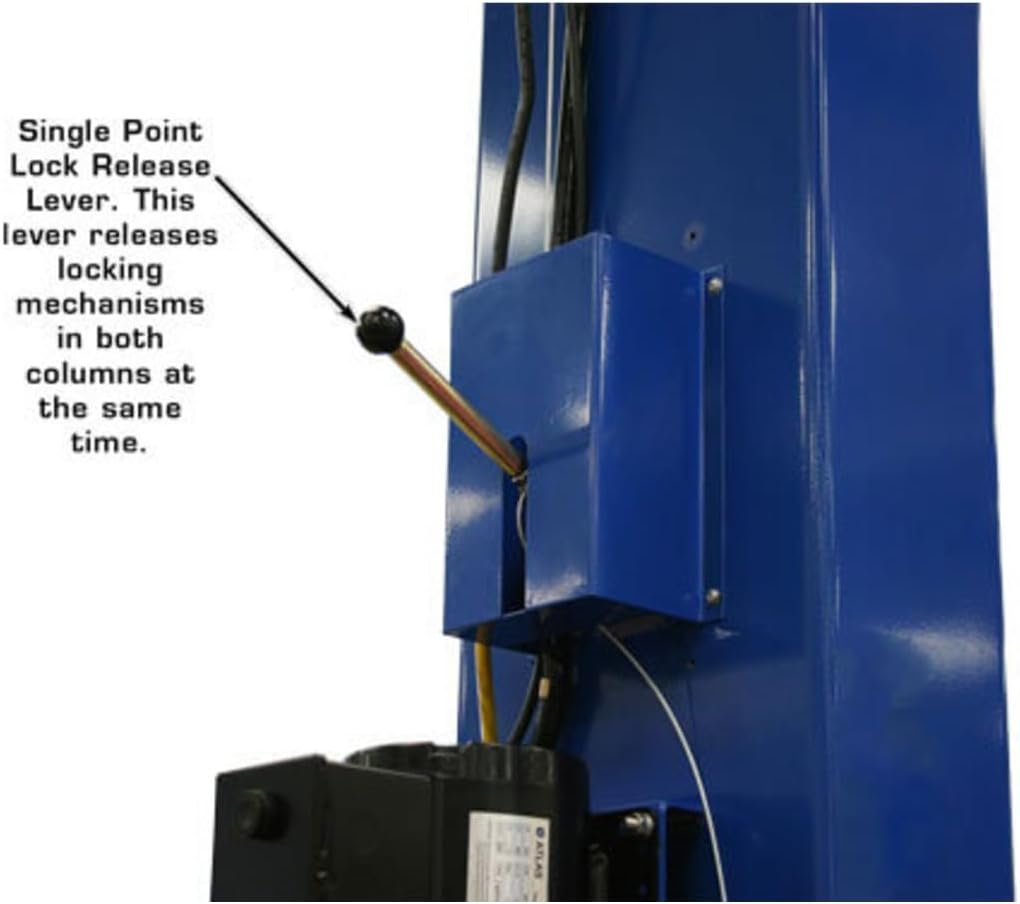

Single Point Lock Release

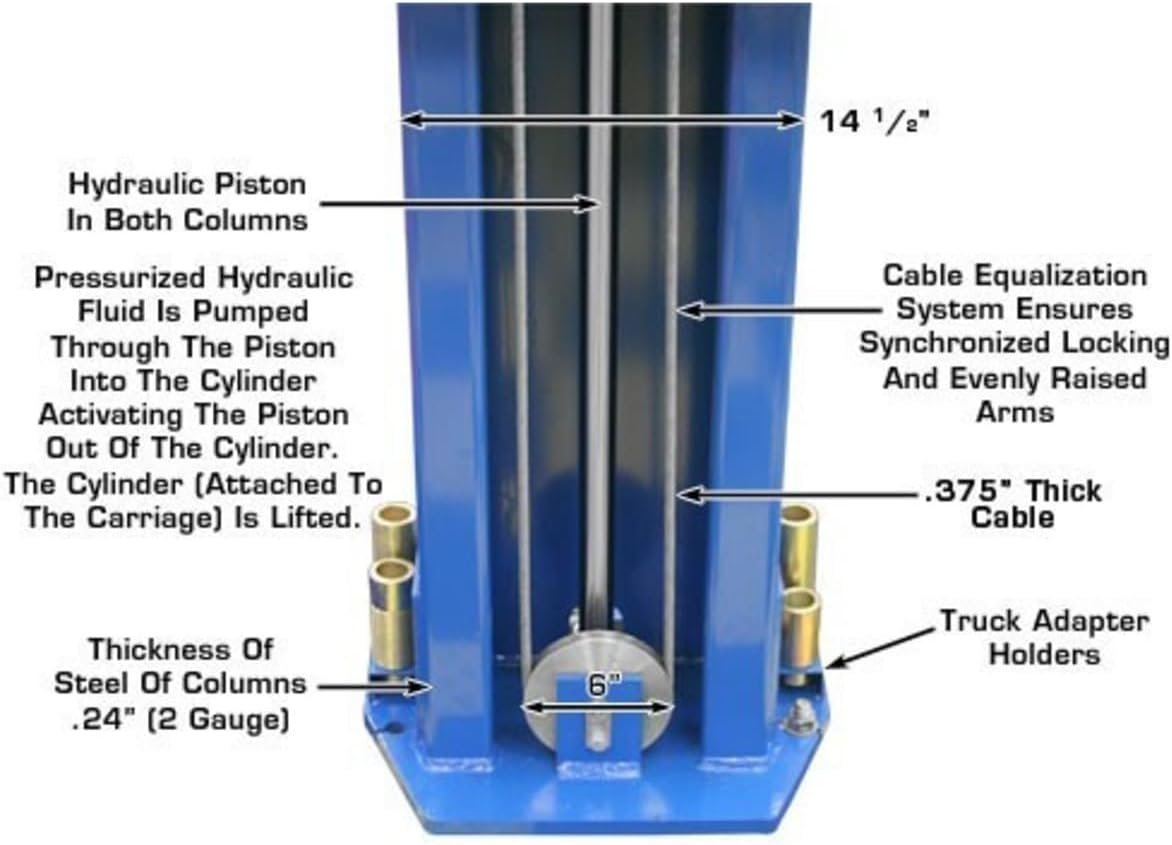

Direct-Drive Cylinders
Powder Coat Finish
12 Piece Truck Adapter Set included
Mounting Hardware Included
Shipping weight: 2,160 lbs.
5-year structural, 2-year hydraulic, 1-year power unit parts-only manufacturer's warranty
What's included
Atlas PV12PX Two-Post Lift Assembly
12-Piece Truck Adapter Set (4x 3.2 cm, 4x 6.4 cm, 4x 12.7 cm)
Mounting Hardware
Frequently asked questions
What is the lifting capacity of the Atlas PV12PX?
The Atlas PV12PX has a maximum lifting capacity of 5443.1 kg (12,000 lbs).
What are the electrical and hydraulic requirements?
It operates on a 220V single-phase power supply with a recommended 30 amp breaker and requires 11.4 to 18.9 liters (3-5 gallons) of AW32 or AW46 hydraulic fluid.
What ceiling height is required for installation?
The lift features three adjustable overall height settings at 381 cm (150 in), 419.1 cm (165 in), or 449.6 cm (177 in). The lowest 381 cm setting requires extra short cables.
Are truck adapters included with this lift?
Yes, a free 12-piece peg-style truck adapter set is included, featuring four each of 3.2 cm (1.25 in), 6.4 cm (2.5 in), and 12.7 cm (5 in) adapters.
