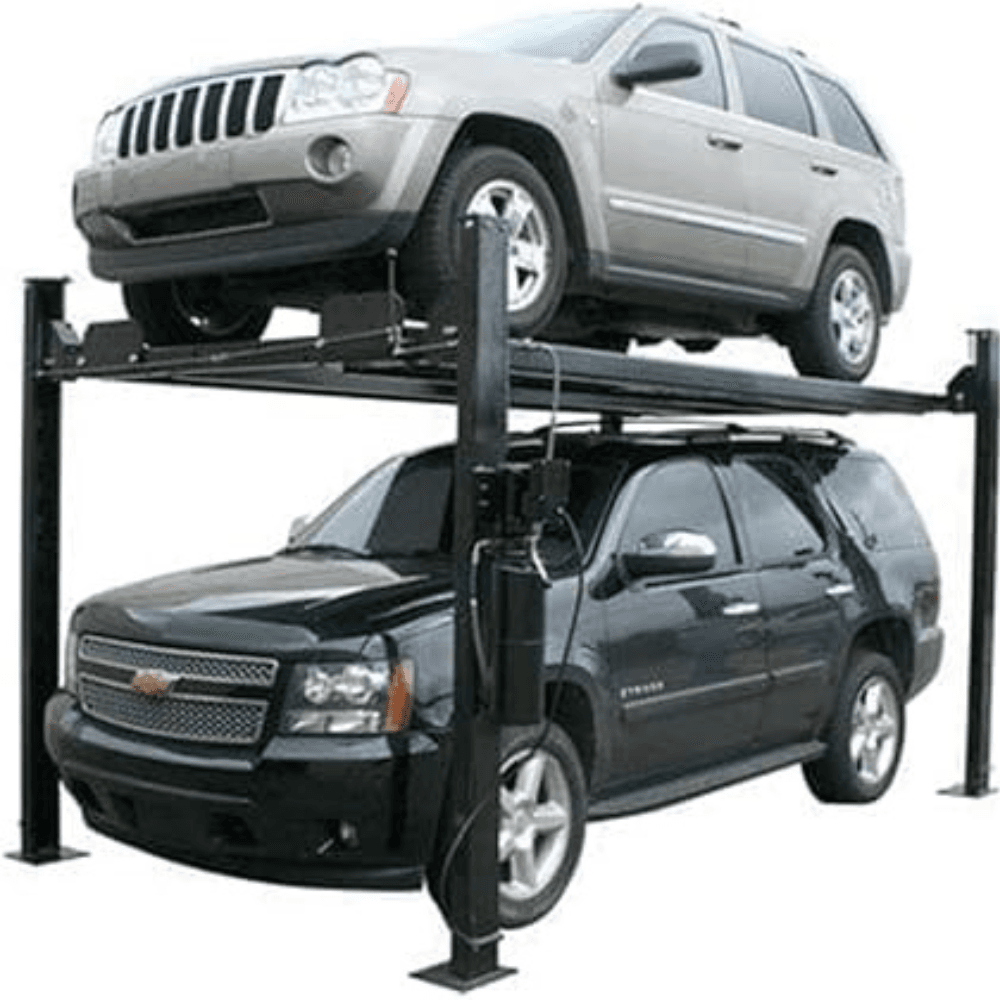

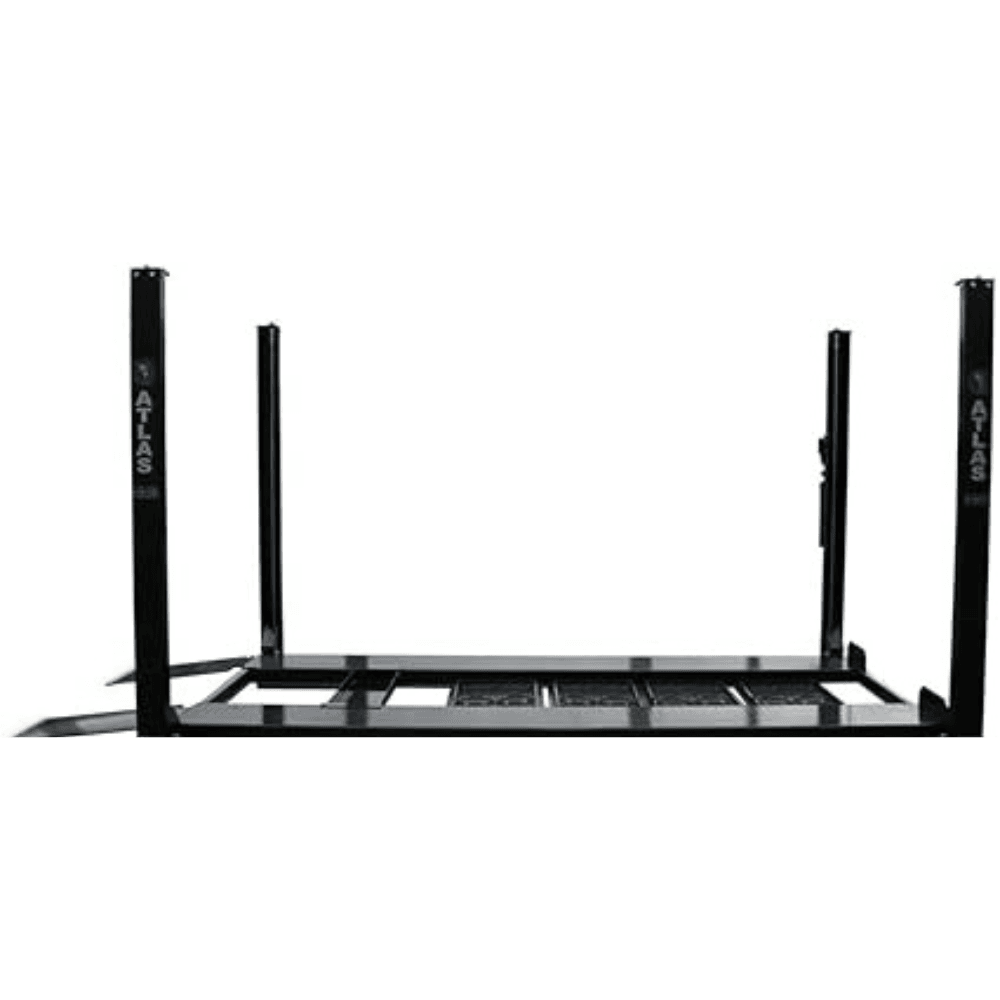

The Atlas APEX8-EXT is an ALI Certified four-post lift engineered for homeowners, classic car collectors, and restoration enthusiasts looking to double garage parking capacity. Constructed from heavy-duty 6-gauge steel, this extended lift boasts an 8,000 lb. (3,628.7 kg) capacity with a maximum lifting height of 214 cm, effortlessly accommodating most passenger vehicles and light trucks.
Built with stability and user convenience in mind, it features a single point lock release, a lock ladder design, and a double lock safety system. For exceptional flexibility around the garage, it includes a mobile caster kit with durable polyurethane wheels along with steel approach ramps, drip trays, wheel stops, and rubber wheel chocks.
Key Features
Brand
Atlas
Model
APEX8-EXT
Lifting Capacity
3,628.7 kg
Maximum Lifting Height
214 cm
Overall Length (With Approach Ramps)
525.1 cm
Overall Length (Without Approach Ramps)
444.5 cm
Overall Width (With Motor)
292.1 cm
Overall Width (Without Motor)
265.4 cm
Clearance Under Runways
200.7 cm
Clearance Between Columns
240 cm
Length Between Columns
400.1 cm
Drive-Thru Width
204.5 cm
Runway Length
421 cm
Runway Thickness
11.4 cm
Approach Ramp Length
94 cm
Steel Gauge Thickness
6 Gauge (4.75 mm)
Cable Diameter
8.9 mm
Motor

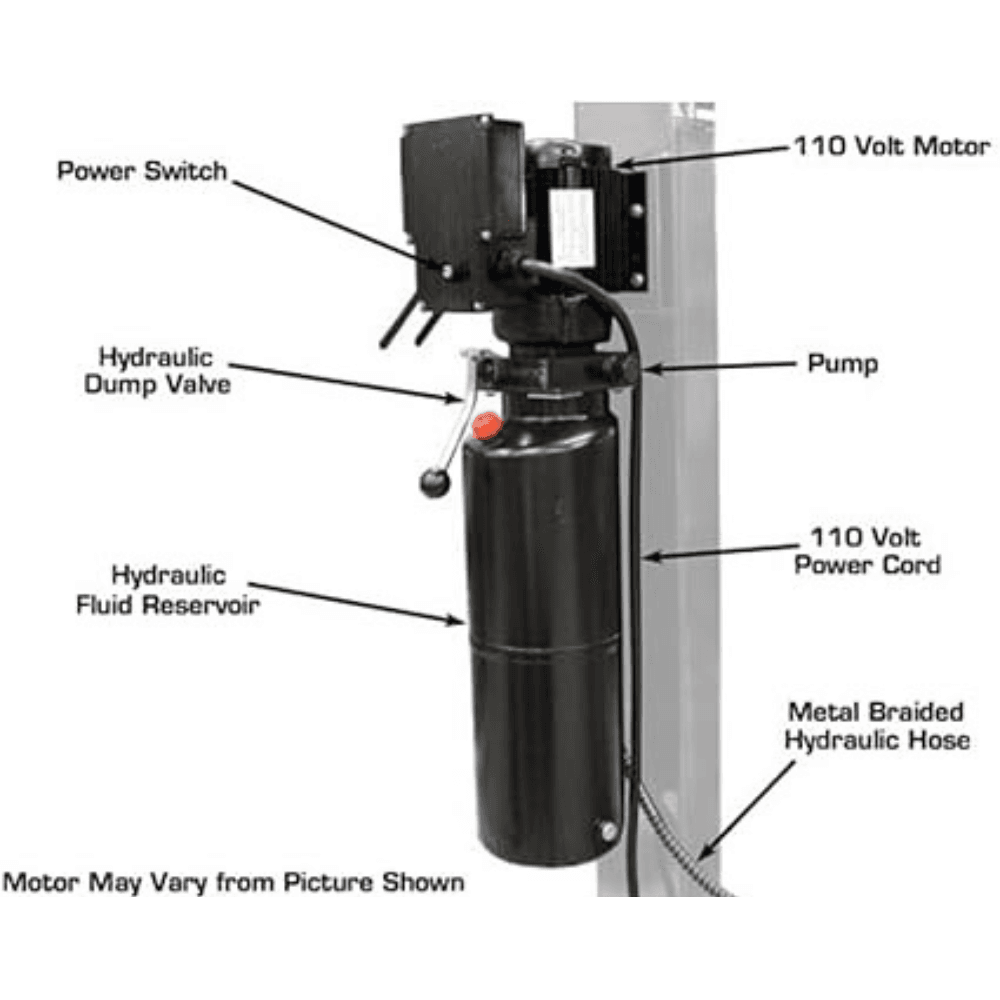

110V – 30 Amp Breaker Required
Hydraulic Oil Requirement
11.4 - 18.9 L AW32/AW46 (Not Included)
Product Weight
939.8 kg
Highlights
ALI Certified – Ensures safety and reliability.
8,000 lb. Lifting Capacity – Ideal for passenger cars and light trucks.
Atlas Powder Coat Finish – Provides durability and protection against wear.

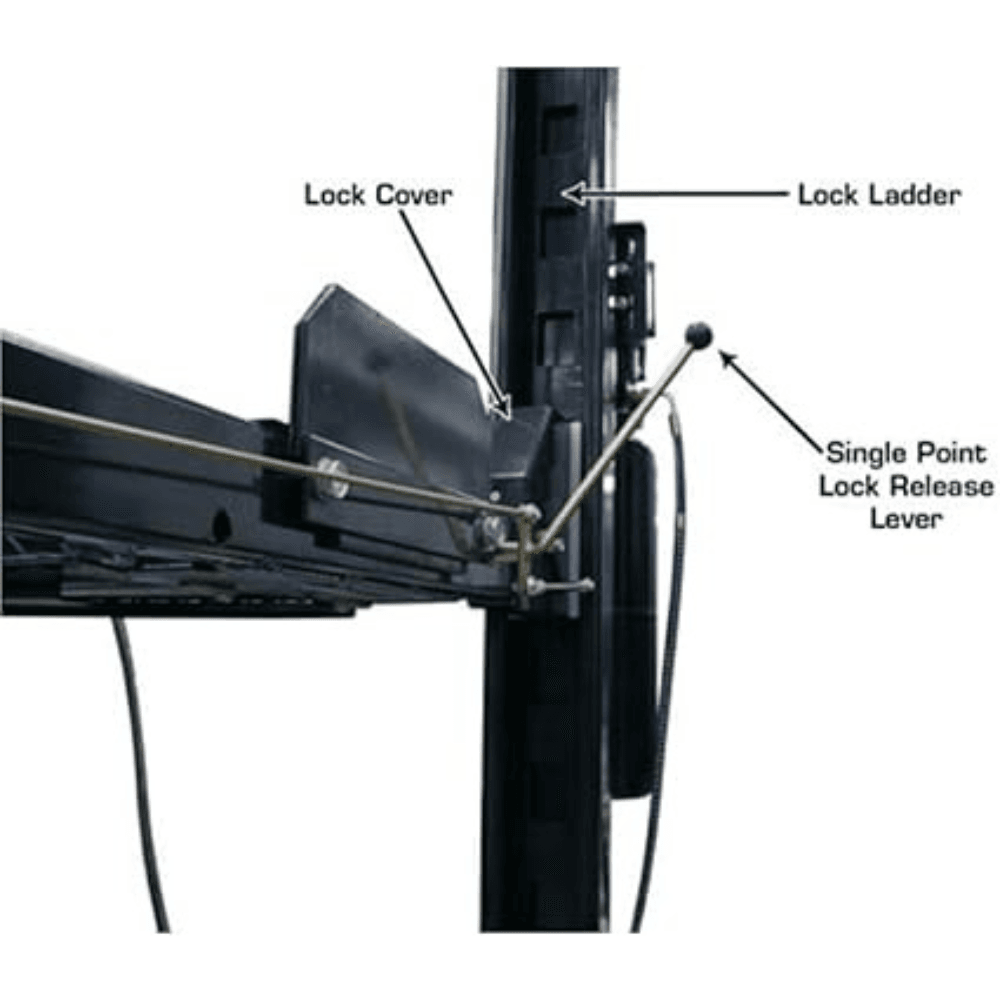

Single Point Lock Release – Simplifies lift operation.

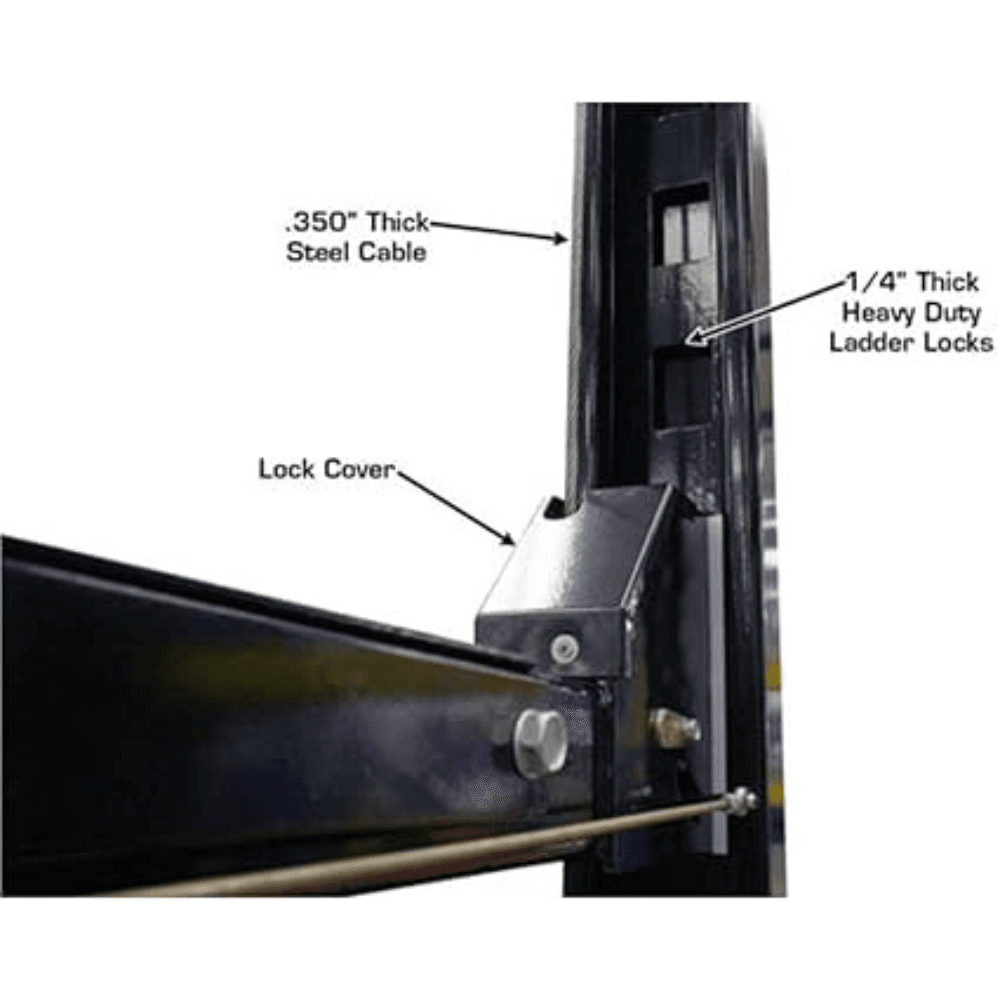

Lock Ladder Design – Enhances stability and safety.
Double Lock Safety System – Extra security for peace of mind.
Anchor Bolts (Optional) – For permanent installation if needed.
Steel Approach Ramps (Included) – Provides easy access for vehicles.
Caster Kit with Polyurethane Wheels (Included) – Makes the lift portable.
