Atlas 15000 Overhead 2-Post Lift 6803.9kg Capacity
PRODUCT DETAILS

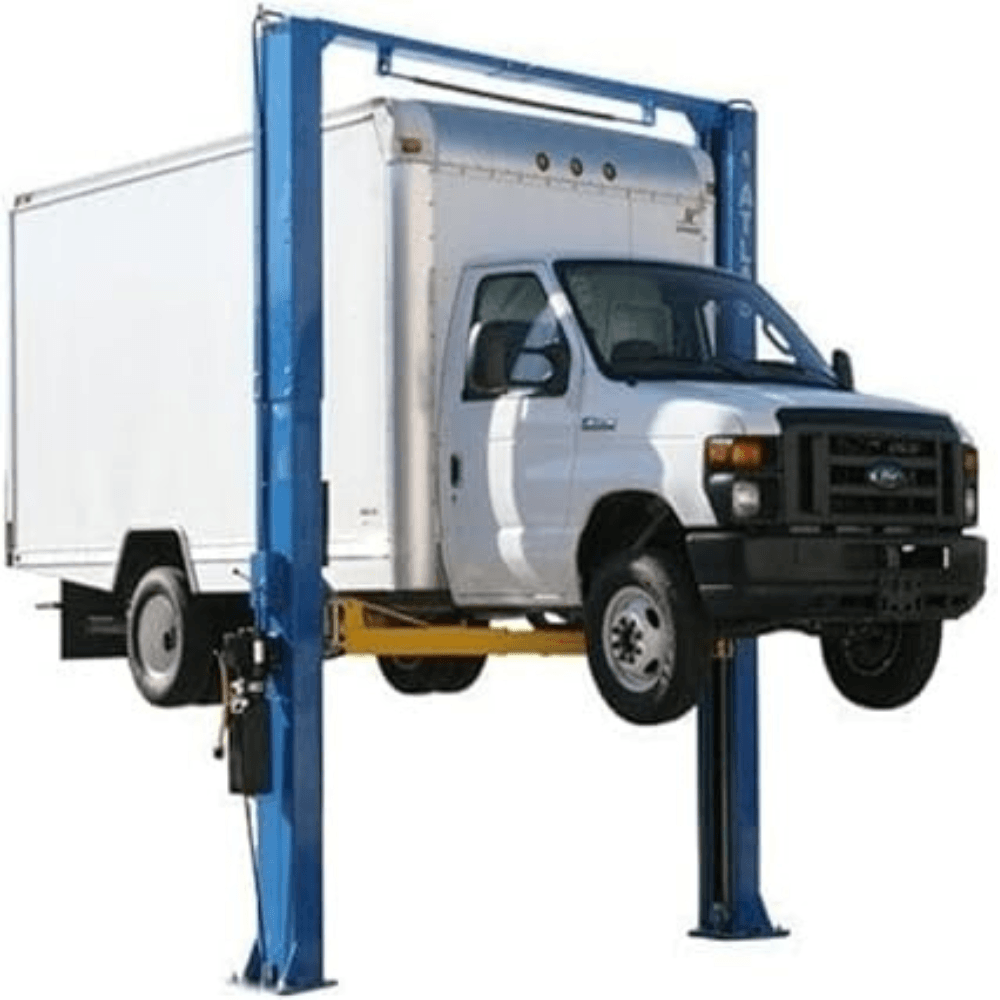

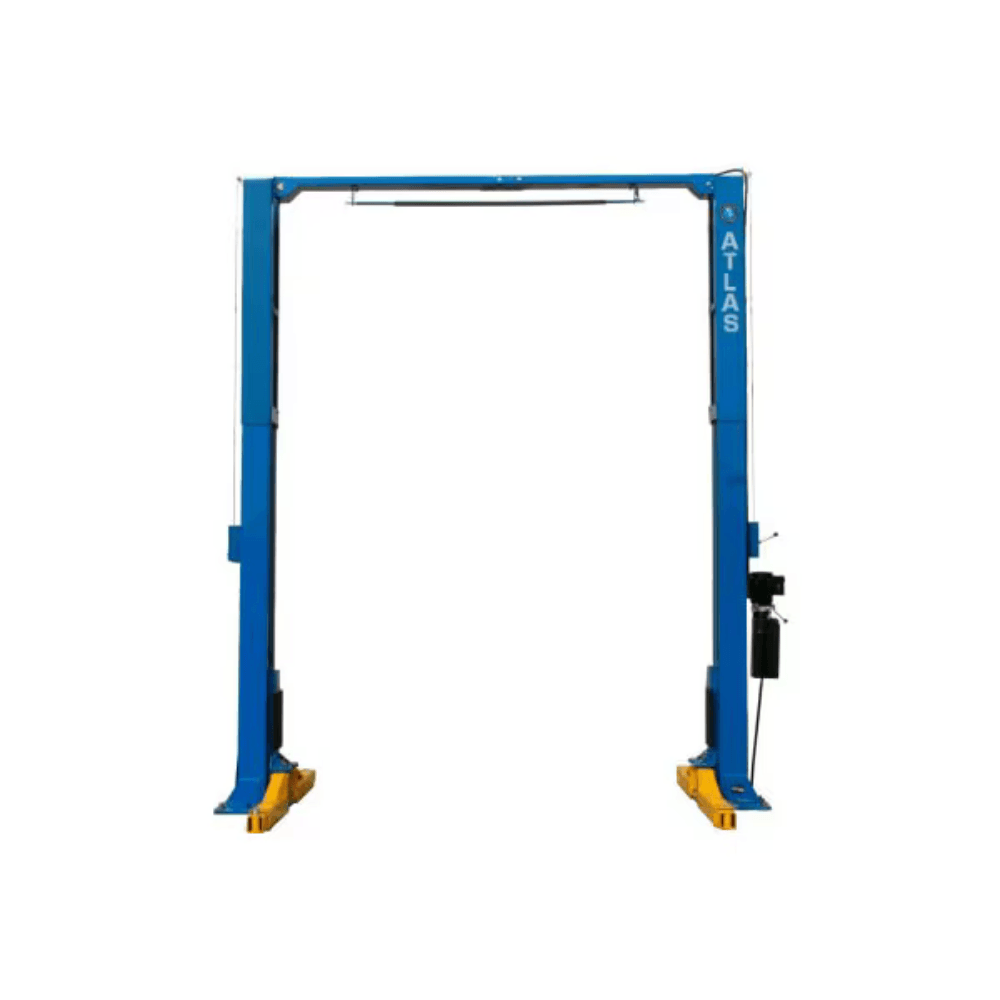

The Atlas 15000 is a heavy-duty, commercial-grade overhead two-post lift engineered for servicing large trucks, vans, and commercial fleet vehicles. Featuring robust direct-drive hydraulic cylinders, symmetric arms, and a 6803.9kg lifting capacity, it delivers smooth operation and dependable safety for professional repair facilities.
Its adaptable overhead structure provides adjustable height configurations to fit various shop ceilings while maximizing floor clearance. Integrated safety features include automatic arm restraints, carriage door guards, a padded overhead shut-off bar, and a single-point lock release system for streamlined shop workflow.
Key Features
| Brand | Atlas |
| Product Type | Overhead Two-Post Lift |
| Lifting Capacity | 6803.9 kg |
| Overall Height (Standard Settings) | 419.1 cm or 449.6 cm |
| Special Height Setting | 381 cm (Requires Extra Cables) |
| Overall Floor Width | 382.9 cm |
| Outside Column Width | 353.4 cm |
| Inside Column Width | 313.7 cm |
| Drive-Thru Clearance | 278.1 cm |
| Maximum Lift Height (Without Adapters) | 183.5 cm |
| Maximum Lift Height (With Adapters) | 205.7 cm |
| Minimum Pad Height | 18.4 cm |
| Column Size | 19.1 cm x 36.8 cm |

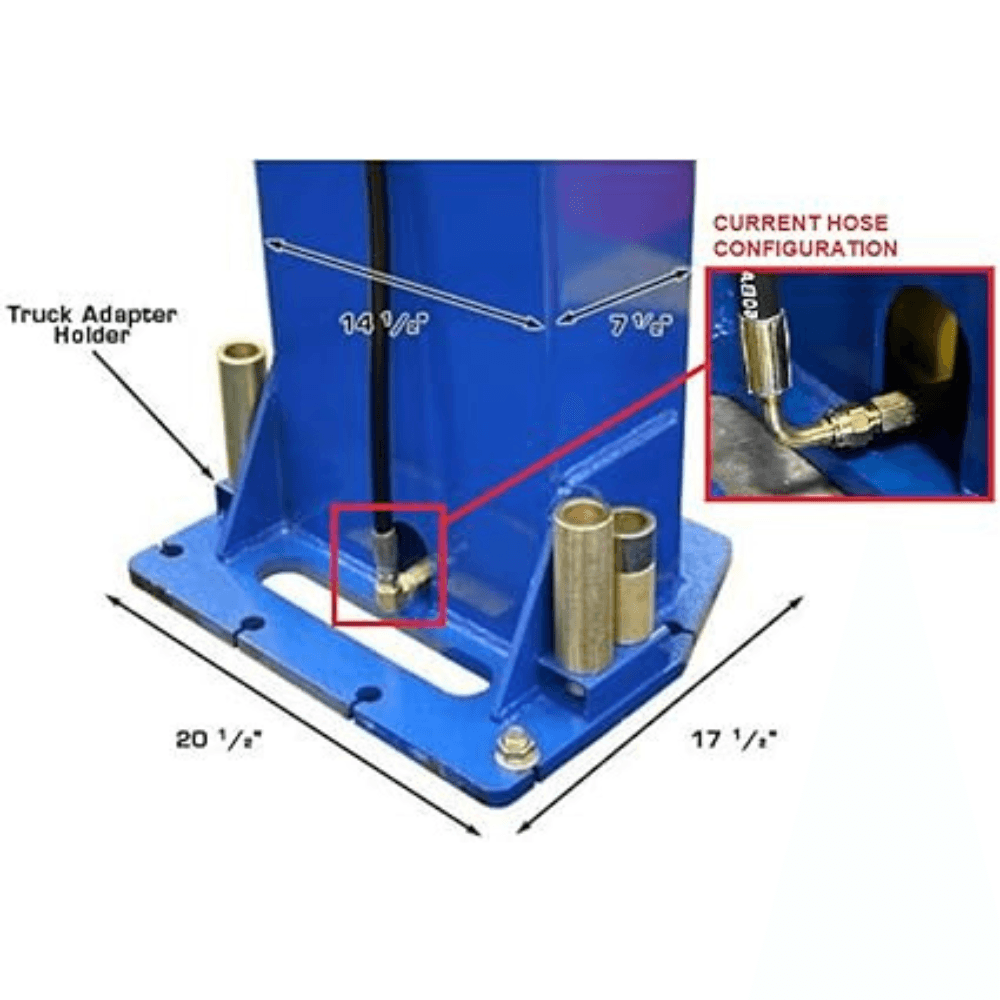

| Base of Column | 44.5 cm x 52.1 cm |
| Column Steel Thickness | 6mm |
| Arm Steel Thickness | 6mm |
| Motor / Electrical Requirement | 220V Single Phase, 30 Amp Breaker Required |
| Oil Requirement | 11.4 - 18.9 L AW32 or AW46 (Not Included) |
| Shipping Weight | 1129.4 kg |
| Adapter Heights | 4 Each: 3.2 cm, 6.4 cm, 12.7 cm |
| Arm Hole / Adapter Peg Size | 3.8 cm |
| Installation Requirements | Minimum 15.2 cm thick, 3,000 psi concrete foundation. 4.14 m ceiling clearance required at lowest setting. |
| Finish | Powder Coat |
Highlights
- 15,000 lb. Lifting Capacity – Handles large trucks, SUVs, and heavy-duty vehicles.
- Extra Tall & Extra Wide Design – Provides ample clearance for oversized vehicles.
- Adjustable Height Settings – Standard: 165″ (13′ 9″) or 177″ (14′ 9″). Special Low Height: 150″ (12′ 6″) (Requires purchase of extra cables).
- Symmetric Arms – Offers even weight distribution for secure lifting.

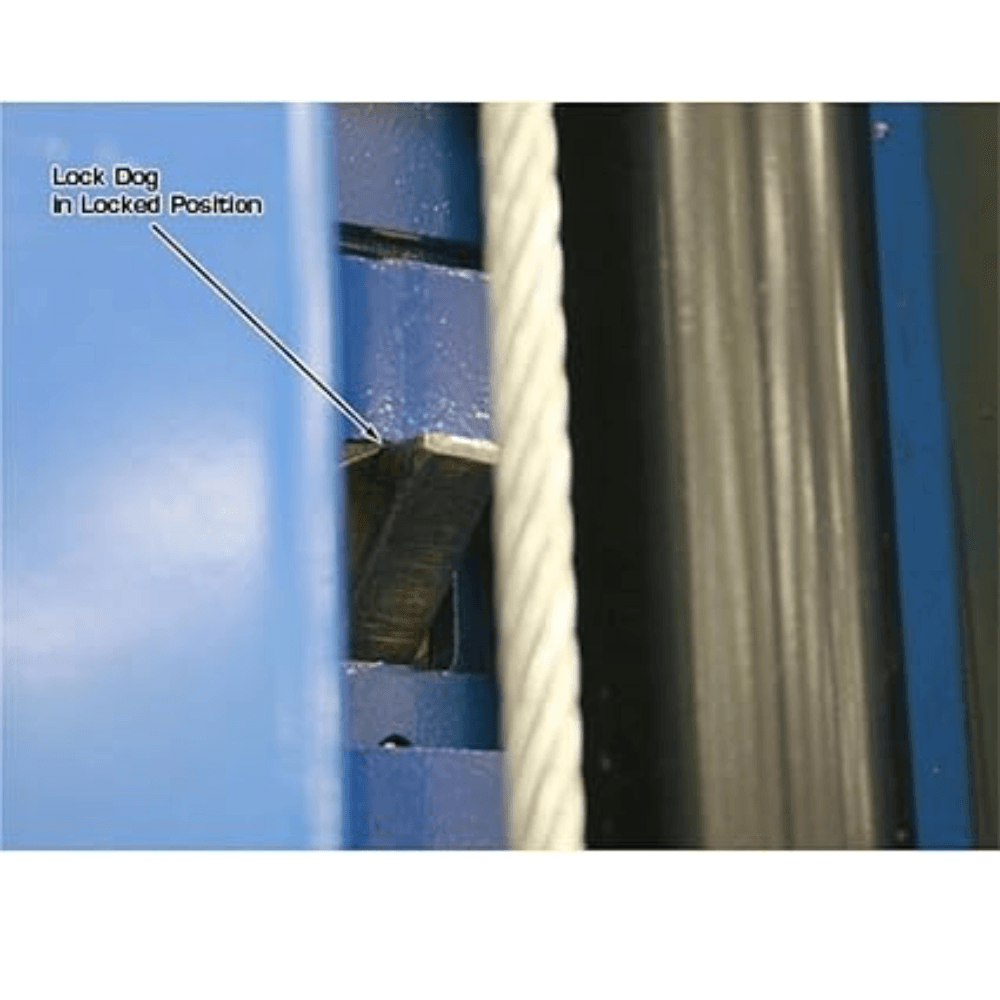

- Automatic Arm Restraints – Ensures arms stay locked in place during lifting.
- Padded Shut-Off Bar – Prevents vehicle damage from excessive lifting height.
- Door Guards on Carriages – Protects vehicle doors from scratches or dents.

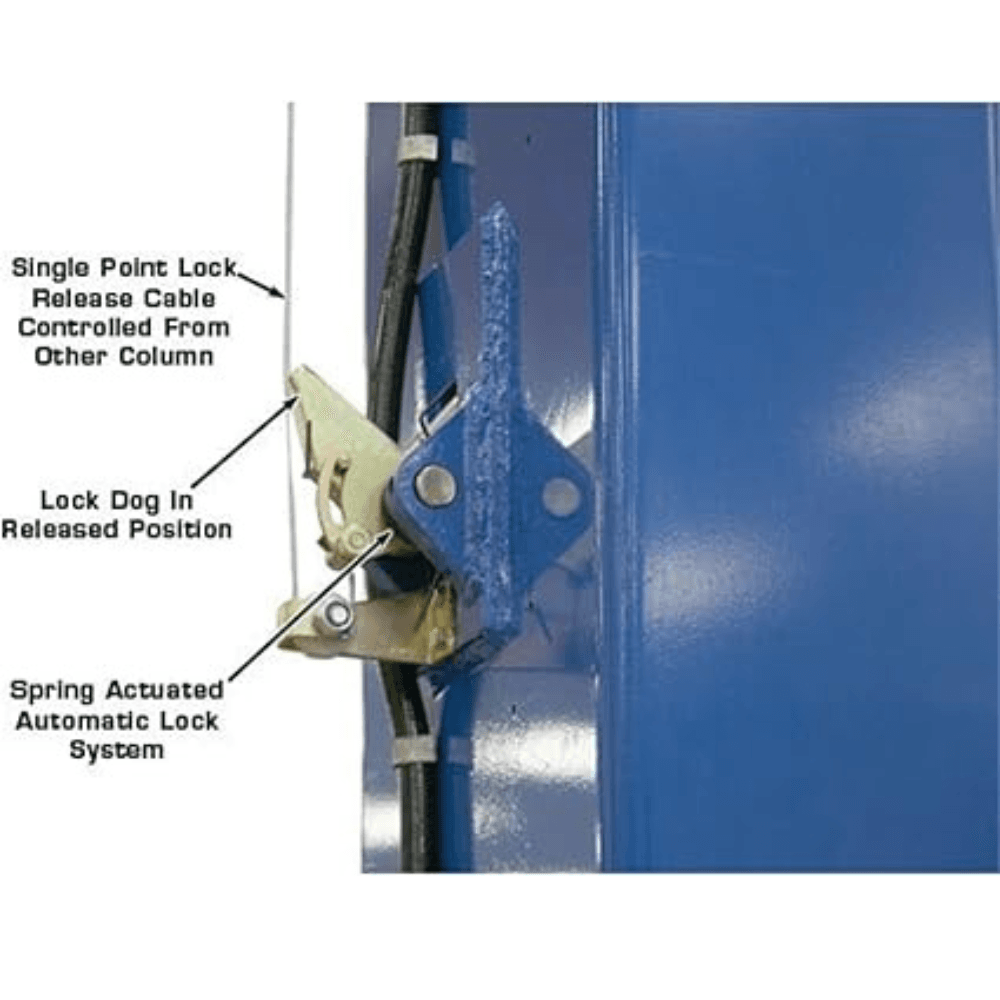

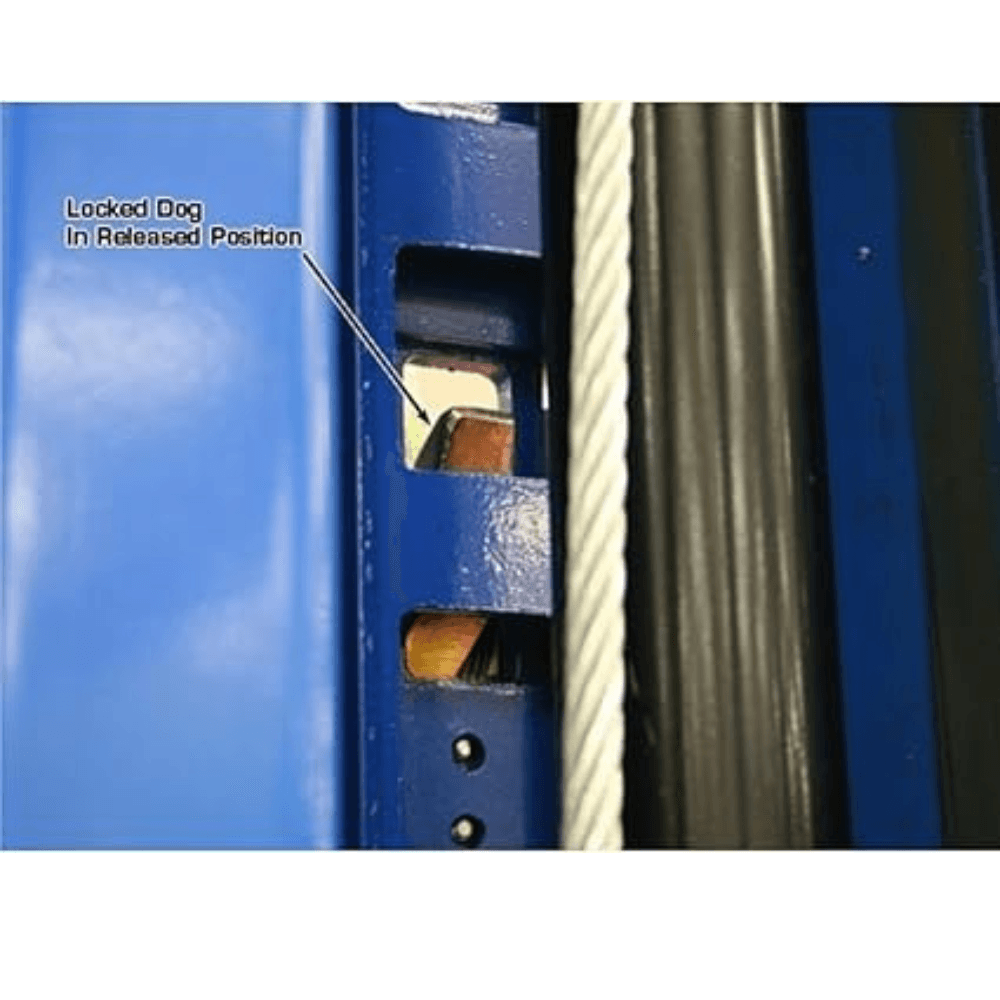

- Single Point Lock Release – Simplifies operation by unlocking both columns simultaneously.

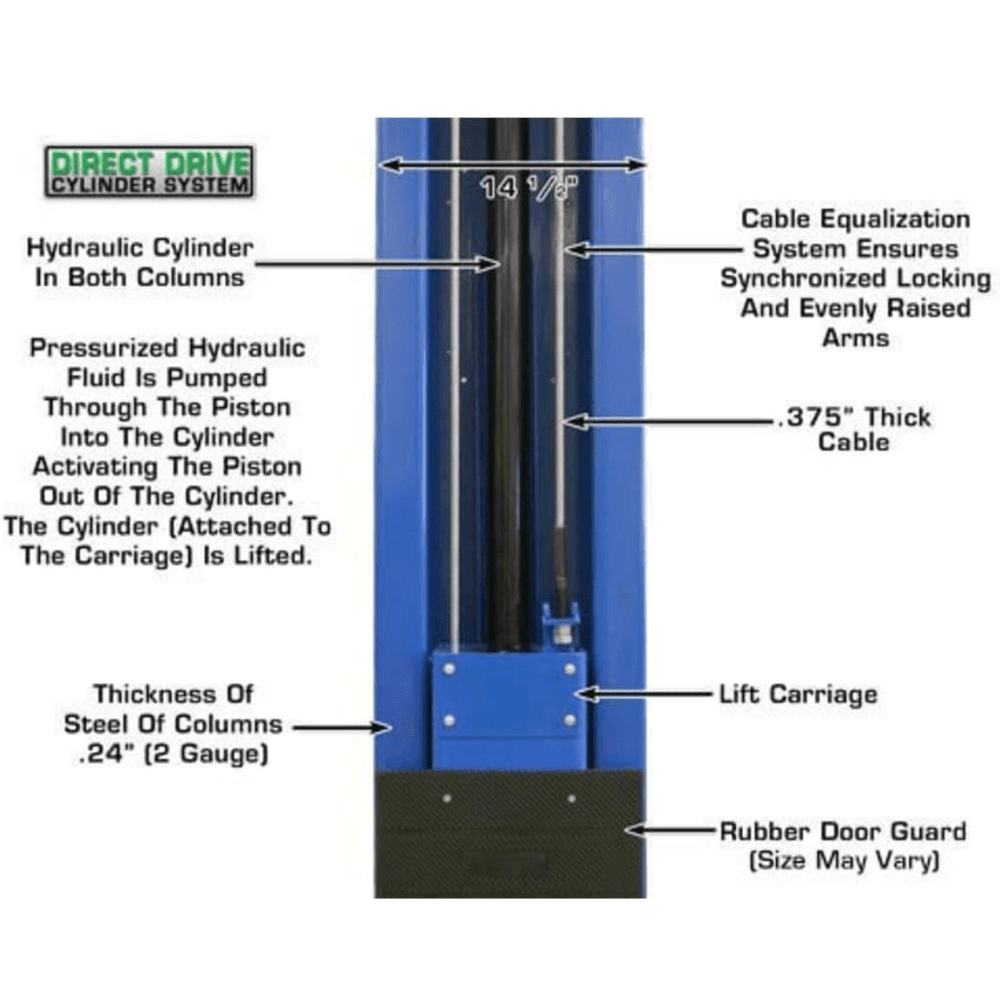

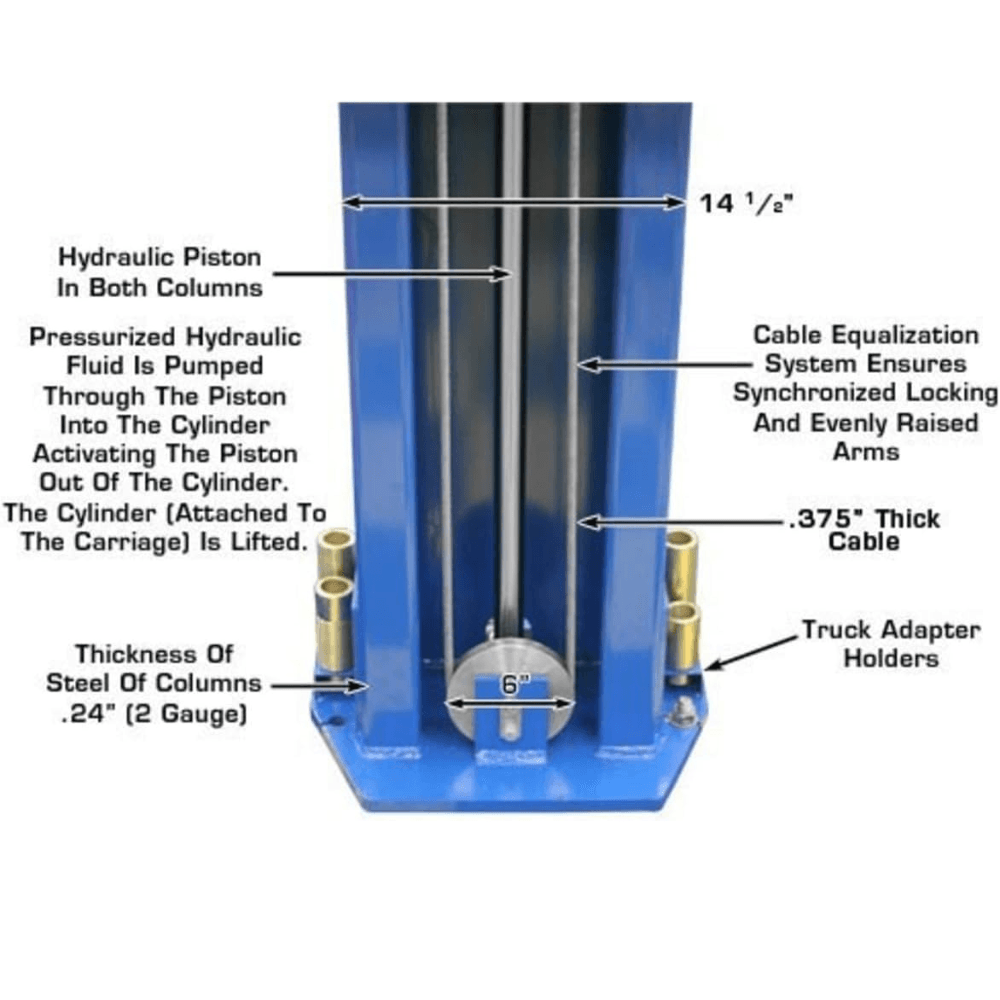

- Direct-Drive Cylinders – Ensures smoother, more efficient lifting with fewer maintenance needs.
- Powder Coat Finish – Enhances durability and corrosion resistance.
- 12-Piece Truck Adapter Set – Expands lifting capabilities for various vehicle types.
- Mounting Hardware Included – Provides everything needed for secure installation.
Materials & care
Constructed with durable 6mm structural steel and finished in a corrosion-resistant powder coat. Keep hydraulic fluid filled with 11.4 to 18.9 L of clean AW32 or AW46 oil and regularly inspect arm restraints and cables for optimal performance.
What's included
- Atlas 15000 Overhead Two-Post Lift Assembly
- 12-Piece Truck Adapter Set (4 each of 3.2 cm, 6.4 cm, and 12.7 cm)
- Mounting Hardware
