4000 Series MyRIDE® HDX 60 in. 35 hp 999cc
PRODUCT DETAILS

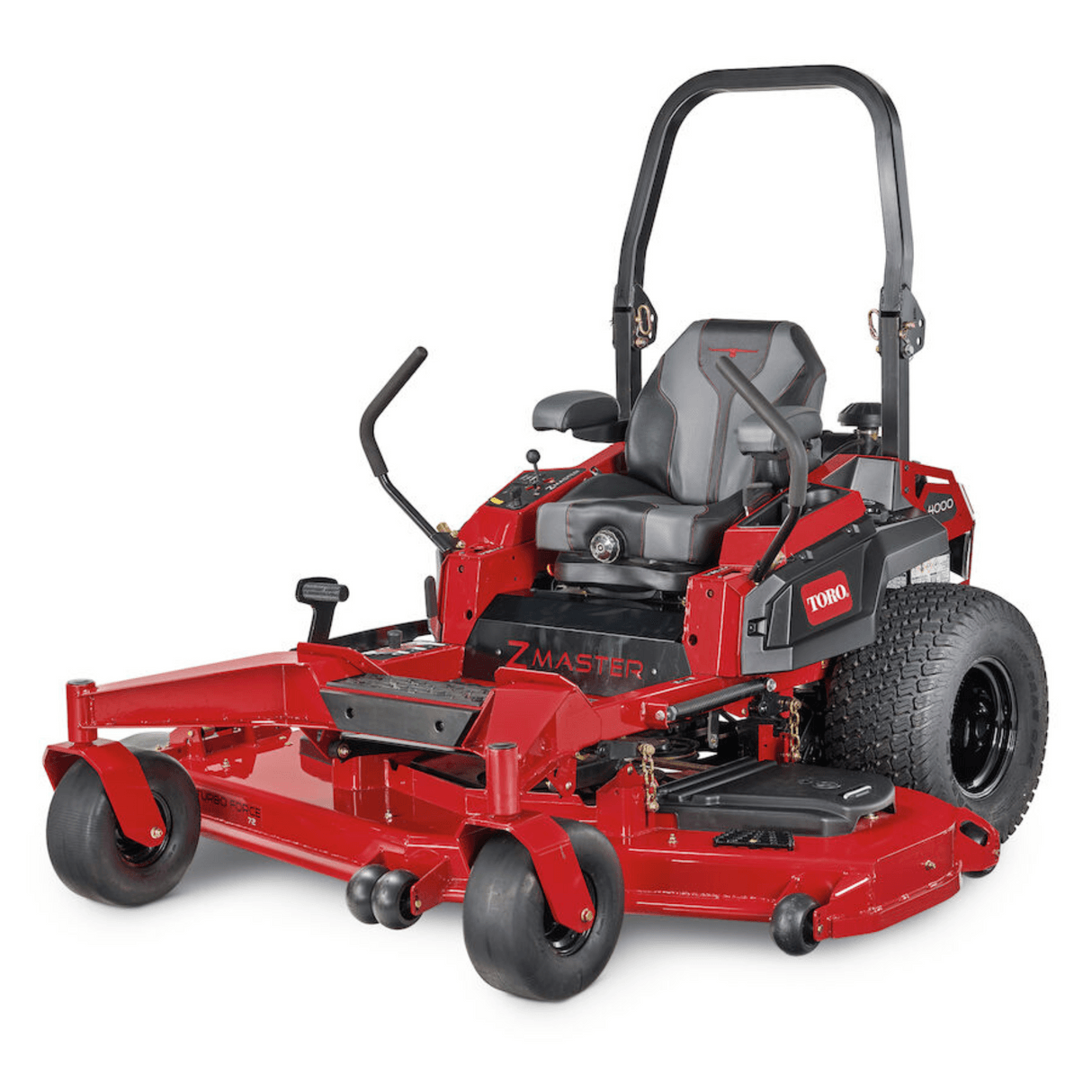

Toro Z-Master 4000 HDX 60-Inch Zero-Turn Mower with MyRIDE® Suspension
Overview
Unleash commercial-grade power, comfort, and cutting performance with the Toro Z-Master 4000 HDX 60-Inch Zero-Turn Mower featuring the innovative MyRIDE® Suspension System.
Powered by a formidable 35 HP Kawasaki FX1000V 999cc engine, this mower is built to handle demanding mowing conditions with confidence. The legendary 60-inch 7-gauge TURBO FORCE® cutting deck, heavy-duty ZT-4400 integrated transmission, and aggressive 26-inch Voodoo Trac™ drive tires deliver the performance and traction needed for large properties and professional applications.
The MyRIDE® Suspension System provides up to 3 inches of suspension travel, helping reduce the impact of rough terrain and providing a more comfortable ride throughout the workday.
Key Features
- 35 HP Kawasaki FX1000V Engine – Powerful 999cc engine designed for demanding mowing applications.
- 60-Inch TURBO FORCE® Deck – Heavy-duty 7-gauge high-strength steel construction for durability and performance.
- MyRIDE® Suspension System – Provides up to 3 inches of suspension travel for improved operator comfort.
- 26-Inch Voodoo Trac™ Drive Tires – Aggressive tread design provides enhanced traction and a commanding operating position.
- ZT-4400 Transmission – Integrated heavy-duty pumps and wheel motors deliver reliable zero-turn performance.
- LED Headlights – Provides powerful illumination for mowing and working after daylight hours.
- Deluxe Seat with Armrests – Designed to provide additional comfort during extended mowing sessions.
- USB Ports – Conveniently keep compatible devices charged while working.
- Built-In Phone Holder – Keeps your phone within easy reach.
- Built-In Cup Holder – Convenient storage for your drink while operating the mower.
- Electric Start – Provides quick and convenient engine starting.
- Folding ROPS – Standard roll-over protection system for added operator protection.
- Maintenance-Free Spindle Bearings – Designed to reduce routine maintenance requirements.
- Integrated Hour Meter – Helps track operating hours and maintenance intervals.
MyRIDE® Suspension System
The MyRIDE® Suspension System is designed to make demanding mowing jobs more comfortable. With up to 3 inches of suspension travel, the system helps absorb impacts from uneven terrain while allowing the operator to maintain a comfortable position throughout the job.
60-Inch TURBO FORCE® Cutting Deck
The mower features a 60-inch 7-gauge high-strength steel TURBO FORCE® deck engineered for durability and demanding mowing applications.
The heat-treated steel blades are 0.25 inches thick and deliver a blade tip speed of up to 18,500 ft/min, helping provide efficient cutting performance.
The cutting height can be adjusted from 1.5 to 5.5 inches in 0.25-inch increments, allowing you to select the appropriate height for different lawn conditions.
Powerful Kawasaki Engine
At the heart of the Z-Master 4000 HDX is a 35 HP Kawasaki FX1000V engine with 999cc displacement and a heavy-duty Donaldson® canister-style air cleaner.
Combined with a 10-gallon fuel tank, this powertrain is designed to provide dependable performance for demanding mowing jobs.
Aggressive 26-Inch Voodoo Trac™ Tires
The large 26-inch Voodoo Trac™ drive tires feature an aggressive tread pattern designed to provide traction and stability while giving the operator a higher vantage point over the mowing area.
Comfortable Operator Platform
The Z-Master 4000 HDX is designed around operator comfort, featuring:
- MyRIDE® Suspension System
- Deluxe seat with armrests
- Adjustable and dampened steering controls
- Phone holder
- Cup holder
- USB charging ports
- Hour meter
- LED headlights
Cutting & Performance Specifications
| Specification | Details |
|---|---|
| Product Type | Zero Turn Mower |
| Deck Size | 60 in / 152 cm |
| Deck Design | 7-Gauge High-Strength Steel TURBO FORCE® |
| Blade Thickness | 0.25 in / 0.635 cm |
| Blade Tip Speed | 18,500 ft/min / 5,638 m/min |
| Height of Cut | 1.5 – 5.5 in |
| Height Adjustment | 0.25 in increments |
| Discharge Chute | Rubber |
| Clutch | Electromagnetic |
| Spindle Housing | 9 in Cast Aluminum |
| Spindle Bearings | Maintenance-Free |
Engine & Fuel Specifications
| Specification | Details |
|---|---|
| Engine Brand | Kawasaki |
| Engine Model | FX1000V |
| Engine Displacement | 999 cc |
| Engine Horsepower | 35 HP |
| Air Cleaner | Heavy-Duty Donaldson® Canister-Style |
| Fuel Type | Gasoline |
| Fuel Capacity | 10 gal / 37.8 L |
| Start Type | Electric |
| Hour Meter | Standard |
Drive & Chassis
| Specification | Details |
|---|---|
| Transmission | ZT-4400 Integrated Pumps & Wheel Motors |
| Forward Ground/Transport Speed | Up to 12.0 mph / 19.3 kph |
| Drive Tires | 26 × 12 – 12 in Voodoo Trac™ |
| Caster Tires | 15 × 6.5 – 6 in Flat-Free Semi-Pneumatic |
| ROPS | Folding; Standard |
| Steering Controls | 1.4 in Diameter Grips; Adjustable, Dampened |
| Comfort Platform | MyRIDE® Suspension System |
| Weight | 1,317 lbs / 597.4 kg |
Convenient Features
The Z-Master 4000 HDX includes practical features designed for everyday professional use. LED headlights provide illumination for after-hours work, while integrated USB ports, phone storage, and a cup holder keep essential items conveniently within reach.
Horizon360® Business Management Software
The Z-Master 4000 HDX is compatible with Horizon360®, Toro’s business management software designed to help landscape professionals manage and grow their businesses.
CARB Compliance
Not CARB Compliant
Box Dimensions
91 in × 70 in × 52 in
231.1 cm × 177.8 cm × 131.1 cm
Warranty
5-Year / 1,550 Hours
See your retailer for complete warranty details and applicable terms.
Ideal For
The Toro Z-Master 4000 HDX is an excellent choice for:
- Professional landscapers
- Commercial mowing operations
- Large residential properties
- Property maintenance professionals
- Groundskeeping applications
- Large lawns requiring fast, efficient mowing
Why Choose the Toro Z-Master 4000 HDX?
The Toro Z-Master 4000 HDX combines powerful Kawasaki performance, a heavy-duty 60-inch cutting deck, aggressive 26-inch drive tires, and the comfort-focused MyRIDE® Suspension System.
With professional-grade components, convenient operator features, and a 5-year / 1,550-hour warranty, it is built to deliver dependable performance for demanding mowing applications.
Toro Z-Master 4000 HDX — commercial-grade power, advanced comfort, and serious cutting performance.
Product Highlights
- Brand: Toro
- Model: Z-Master 4000 HDX
- Deck: 60-Inch TURBO FORCE®
- Engine: Kawasaki FX1000V
- Displacement: 999cc
- Horsepower: 35 HP
- Fuel: Gasoline
- Fuel Capacity: 10 Gallons
- Transmission: ZT-4400
- Suspension: MyRIDE®
- Drive Tires: 26-Inch Voodoo Trac™
- Starting System: Electric
- ROPS: Folding, Standard
- Weight: 1,317 lbs
- Warranty: 5 Years / 1,550 Hours
- CARB Compliant: No
