Mow up to 2 acres
20 HP* (14.9 kW) V-Twin engine
42-in. (107 cm) Accel Deep™ Mower Deck
Maximum forward speed 7 mph (11.2 km/h) with 3-gal. (13.6-litre) fuel tank
3-year/200-hour bumper-to-bumper warranty**

Key Specs	z315e-ztrak-mower Current Model
Engine power	20 hp 14.9 kW
Engine model number	40 EXi
Forward speed	0-7 mph 0-11.3 km/h
Front caster tires	11×6-5
Drive tires	18×8.5-8
Seat back height	High back with optional armrests, 18 in. 46 cm
Width of cut	Accel Deep™ mower deck, 42 in. 107 cm
Mulching system	Optional MulchControl™ attachment
Warranty	3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

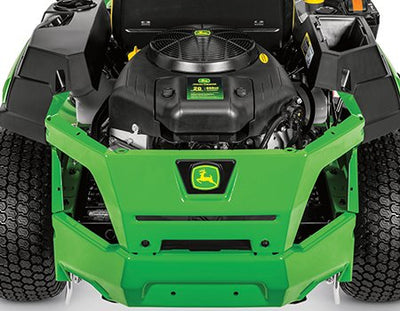

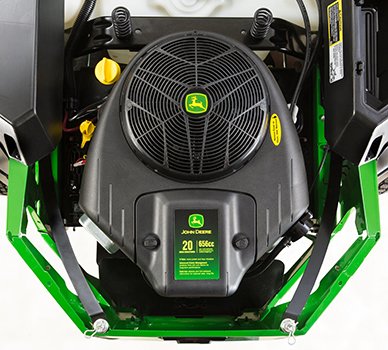

Engine
Power	20 hp 14.9 kW
Model number	40 EXi
Displacement	40 cu in. 656 cc
Cylinders	V-twin
Lubrication	Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L
Type	Overhead valve
Battery	12 V 300 CCA
Choke/speed control	Single lever
Cooling method	Air

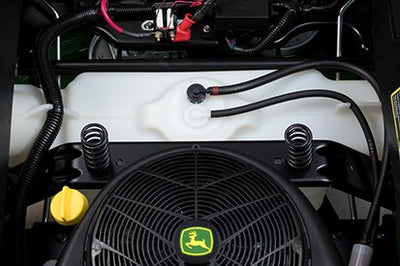

Fuel tank capacity	3 U.S. gal. 11.4 L
Fuel gauge	Translucent tank
Drive train
Dual hydros	Hydro-Gear EZT-C with 1-in. (2.5-cm) axles
Hydraulic pumps
Wheel motors
Travel speed
Forward speed	0-7 mph 0-11.3 km/h
Reverse speed	0-3.5 mph 0-5.6 km/h
Speed and direction control	Twin levers
Control adjustment	3 height, 11 positions
Chassis
Frame	Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing
Primer/paint	E-coat/powder
Front caster tires	11×6-5
Front caster bearings	Sealed ball bearings
Drive tires	18×8.5-8
Hour meter	Yes
Service interval decal	Yes
Storage compartment	Optional covered
Cup holder	Yes
Maximum towing capacity	250 lb 113 kg
Seat
Seat back height	High back with optional armrests, 18 in. 46 cm
Fore-aft adjustment	2.9 in. 7 cm
Seat suspension	Two springs
Lift system
Type	Foot lift
Mower cut height	1.25-4.5 in. 3-11 cm
Cut height increments	0.25 in. 0.64 cm
Preset cut height	Yes
Mower deck
Width of cut	Accel Deep™ mower deck, 42 in. 107 cm
Type	Side discharge
Mower deck material	12 gauge 0.105 in. 2.7 mm
Mower drive system	V-belt
PTO
Type	Electric, 105 lb-ft 142 Nm
Drive	V-belt
Dimensions
Wheelbase	49.4 in. 1255 mm
Overall length	75.4 in. 1915 mm
Width without mower	43.3 in. 1100 mm
Width with mower	50.4 in. 1280 mm
Width with mower (deflector raised for storage)	46.5 in. 1180 mm
Height	41.6 in. 1056 mm
Weight	554 lb 252 kg
Operation
Rollover protective structure (ROPS)	No
Slope operating limit	13 degrees; 10 degrees with Material Collection System
Operator presence system	Yes
Park brake interlock	Yes
Operator video	Yes, online
Buyer’s notes

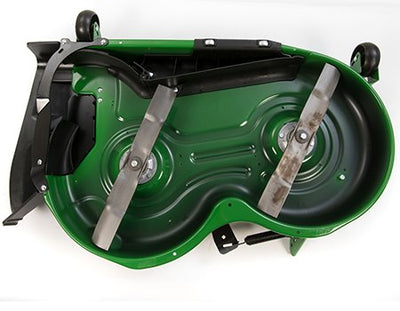

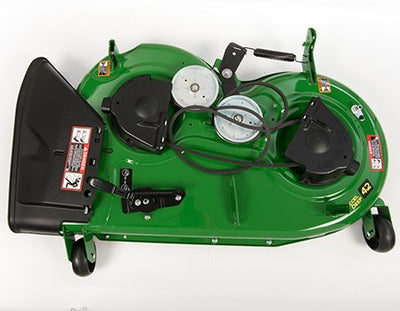

Note 1	Durable Accel Deep Mower Decks are made from 12-gauge steel with double captured mower wheels

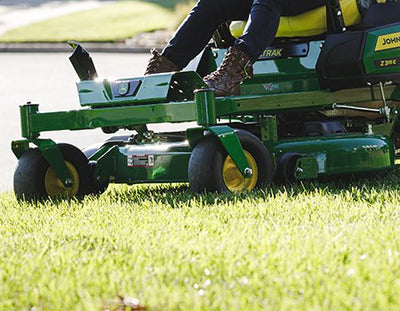

Note 2	Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial
Note 3	Integrated park brake is automatically applied when steering levers are stowed outward
Warranty	3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional attachments
Mulching system	Optional MulchControl™ attachment
Rubber floor mat	Optional
Sun shade	Optional
Mounted sprayer	Not available
Storage cover	Optional

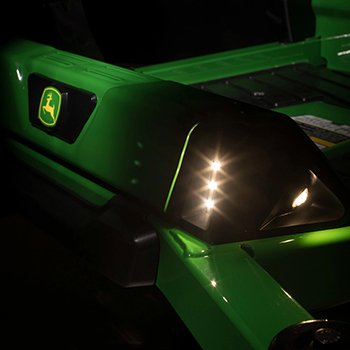

Light kit	Optional

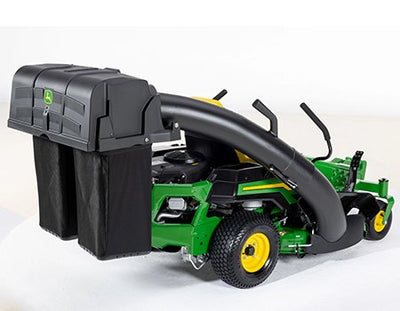

Material collection system	Two-bag cut-and-throw MCS, 6.5 bu 229 L

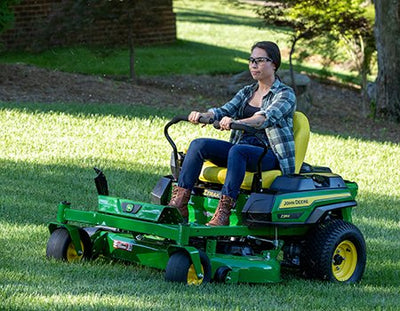

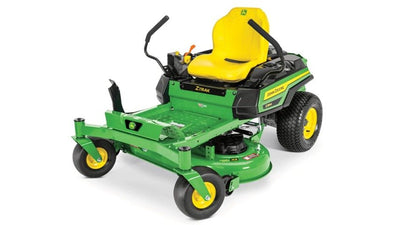

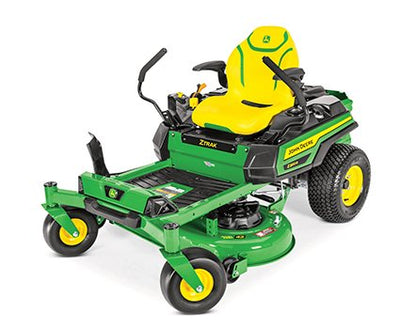

Z315E ZTrak Mower with 42-in. Deck
