Capacity	14,000 lb.
Lifting Height	80″ (6′ 8″)
Overall Width Of Columns (Without Motor)	130 7/8″ (10′ 10 7/8″)
Overall Width Of Columns (With Motor)	138 7/8″ (11′ 6 7/8″)
Overall Length With Approach Ramp	255″ (21′ 3″)
Length Between Columns	197 1/4″ (16′ 5 1/4″)
Runway Length	208 5/8″ (17′ 4 5/8″)
Runway Width	20″
Thickness Of Runway	8 3/4″
Width Between Runways	46 7/8″ (w/ Rail 44 3/8″)
Outside Runway To Outside Runway	86 7/8″ (7′ 2 7/8″)
Clearance Under Runways	71 1/4″ (5′ 11 1/4″)
Clearance Between Columns	116″ (9′ 8″)
Height Of Columns	91 1/8″ (7′ 7 1/8″)
Maximum Wheel Base	197″ (16′ 5″)
Drive Thru	102 1/8″ (8′ 6 1/8″)
Air Requirement	85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
Motor/Electrical Requirement	220 volt single (1) phase.A 30 amp breaker is recommended
Oil Requirement	3-5 GallonsAW32/AW46 (NOT INCLUDED)

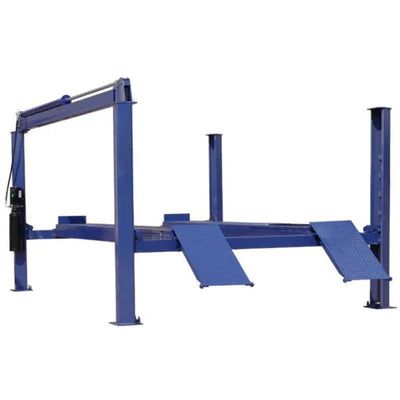

TUXEDO FP14K 14,000 LB CHAIN DRIVEN 4 POST LIFT
