Capacity	12,000 lb.
Lifting Height	77 3/4″ (6′ 5 3/4″)
Overall Width Of Columns (Without Motor)	126 1/4″ (10′ 6 1/4″)
Overall Width Of Columns (With Motor)	135 1/4″ (11′ 3 1/4″)
Overall Length With Approach Ramp	236 1/2″ (19′ 8 1/2″)
Length Between Columns	183 1/4″ (15′ 3 1/4″)
Runway Length	194 1/2″ (16′ 2 1/2″)
Runway Width	20″
Thickness Of Runway	7 1/2″
Width Between Runways	43 1/4″ (w/ Rail 39 3/4″)
Outside Runway To Outside Runway	83 1/4″ (6′ 11 1/4″)
Clearance Under Runways	70 1/4″ (5′ 10 1/4″)
Clearance Between Columns	112 5/8″ (9′ 4 5/8″)
Height Of Columns	89 3/4″ (7′ 5 3/4″)
Maximum Wheel Base	185″ (15′ 5″)
Drive Thru	98″ (8′ 2″)
Air Requirement	85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
Motor/Electrical Requirement	220 volt single (1) phase.A 30-amp breaker is recommended
Oil Requirement	3-5 GallonsAW32/AW46 (NOT INCLUDED)

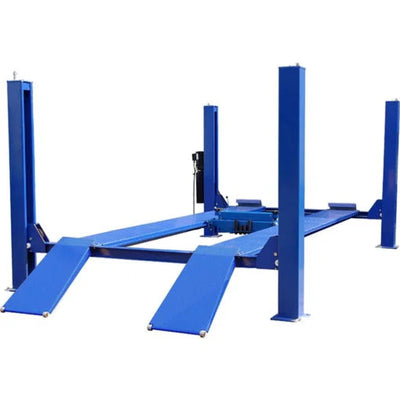

TUXEDO FP12K-K 12,000 LB CABLE DRIVEN 4 POST LIFT
