Get extra performance and durability with the Troy-Bilt XP™ Series of riding lawn mowers. Easily engage the large 54″ deck with electric PTO switch. The systems monitor with LED readout let’s you know when the riding mower is ready for service and the hydrostatic drive is smooth and easy with foot-pedal control. The XP™ Series includes a 3-year limited warranty for extra peace of mind.

Powerful 24 HP*/725cc twin-cylinder KOHLER engine designed to deliver quiet, balanced performance
Hydrostatic transmission has foot-pedal control for a smooth change of speed and direction and includes cruise control to help mow at a constant speed
54″ side discharge, triple-blade steel deck helps minimize mowing time in large areas and the 4 anti-scalp deck wheels and nose roller help prevent turf damage and deliver a clean, even cut
Electric PTO quickly and easily engages cutting blades

Engine

Engine BrandKohler®
Engine Model7000 Series
Engine Model NumberKT735
Engine Displacement725cc
Engine Output24HP
Starter TypeElectric
Fuel Tank Capacity3.0 gal. US (11.36 L)
CylindersTwin
Engine StartIgnition Key
Engine Oil Capacity2.0 qt. US (1.89 L)
LubricationFully pressurized
Charging System12 amp regulated
Fuel GaugeNo
GovernorMechanical
ChokeChoke-a-matic
Air FilterDual element
Oil FilterYes
Fuel DeliveryCarburetor

Battery

Battery210 CCA
Battery TypeAGM (Absorbent Glass Mat)
Battery Voltage12V

Drive System

TransmissionTuff Torq® K46
Forward Speed5.5 MPH / 8.6 KMH
Reverse Speed2.5 MPH / 4 KMH
Rear Axle3/4″
Drive SystemHydrostatic
Transmission ControlFoot Pedal
Transmission HousingAluminum
Rear Differential LockNo

Cutting Deck

Deck Cutting Width54 in
Deck WashYes
Deck Material11-gauge steel
Deck Engagement (PTO)Electric
Deck ConstructionStamped
Blade(s)Three
Deck LiftHand lever
Cutting Height Range1.5” – 3.75”
Anti-Scalping5 gauge wheels
Deck Positions12

Warranty

Warranty3-year limited residential
Frame Warranty3-year limited
Front Axle Warranty3-year limited
Deck Shell Warranty3-year limited
Commercial WarrantyNo

Chassis

FrameRobotically welded
Turning Radius16″
BumperNo
Rear Tow HitchYes
Corrosion ProtectionYes
Front Pivot BarCast iron

Controls

Cruise ControlYes
BrakesDisc

Comfort

Seat TypeHigh-back
ArmrestsNo
Seat AdjustmentLever
Floor MatsRubber

Wheels

Bearing TypePoly Bushing
Rear Tires22″x 9.5″-12″
Front Tires16″x 6.5″-8″
Tire TreadTurf Saver

Additional Specifications

Mulch KitAvailable Separately
Headlight(s)Standard
Cup HolderYes
Operator Presence SystemYes
Model Number13AQA2BWA66

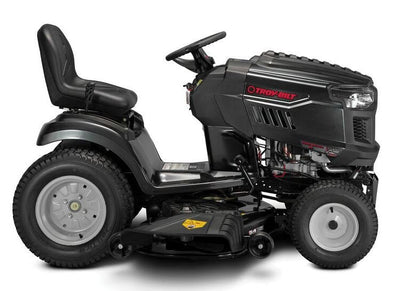

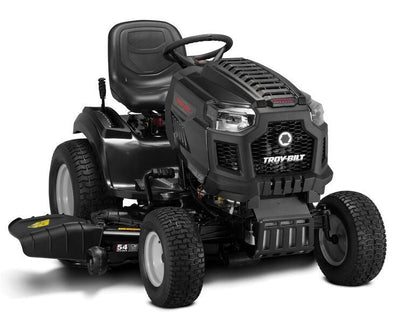

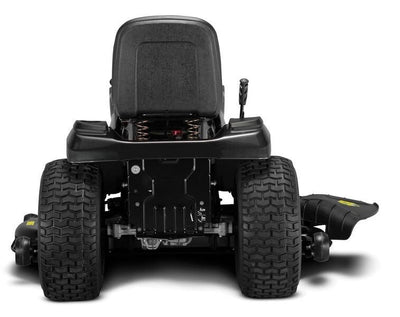

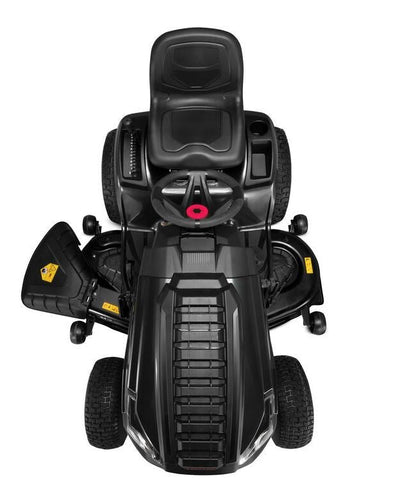

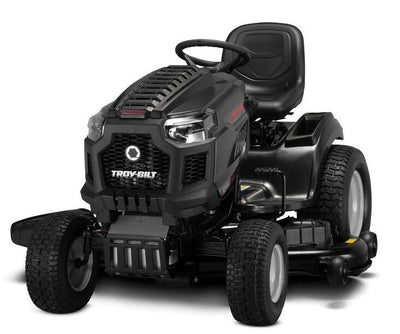

Troy Bilt Super Bronco 54K XP 54″ 24hp 725cc Kohler Engine Riding Lawn Mower #13AQA2BWA66
