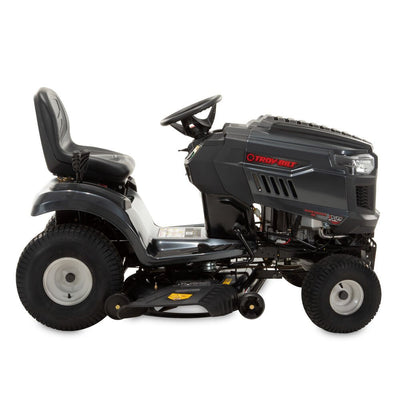

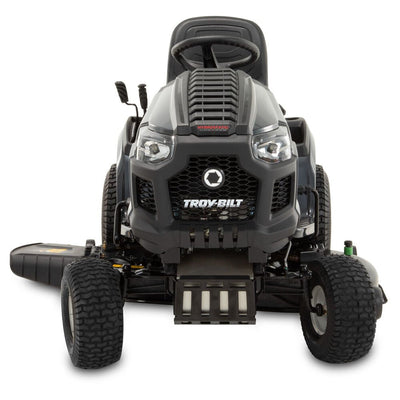

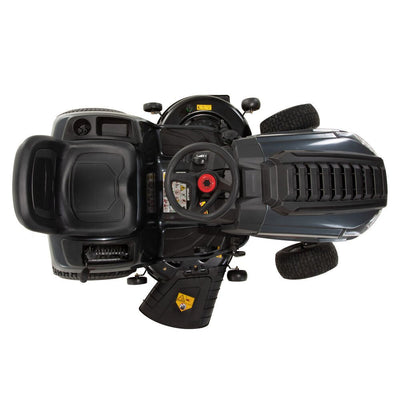

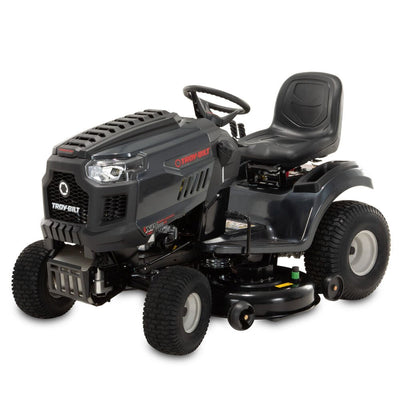

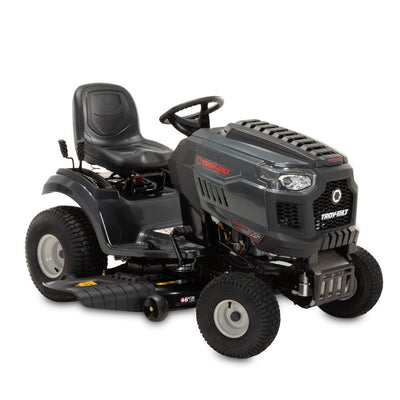

Troy Bilt Super Bronco 46K XP 46″FAB Deck 22hp 725cc Kohler Engine Riding Lawn Mower #13APA9BTA66

Tackle mowing tasks and other yard work jobs easily with the Troy-Bilt® Super Bronco™ 46K XP riding mower. A large Step-Thru™ frame is designed for easy on-and-off access and includes a rear hitch for quick attachment of tow-behind accessories, like dump carts, spreaders, or aerators (attachments sold separately). Hydrostatic transmission with cruise control is designed for a smooth change of speed and direction, while the adjustable, high-back seat helps provide comfort. The AGM battery is designed to provide reliable starting season after season.

Powerful 22* HP/725cc twin-cylinder KOHLER engine designed to deliver quiet, balanced performance
Hydrostatic transmission has foot-pedal control for a smooth change of speed and direction and includes cruise control to help mow at a constant speed
Adjustable, high-back seat helps provide a comfortable ride, while the cast iron front axle is designed to provide durability and ruggedness
AGM battery provides a longer lifespan and lower maintenance compared to traditional lead acid wet batteries, with improved starting performance for reliable starting season to season.

Engine

Engine BrandKohler®
Engine Model7000 Series
Engine Model NumberKT725
Engine Displacement725cc
Engine Output22 HP
Starter TypeElectric
Fuel Tank Capacity3.0 gal. US (11.36 L)
CylindersTwin
Engine StartIgnition Key
Engine Oil Capacity2.0 qt. US (1.89 L)
LubricationFully pressurized
Charging System12 amp regulated
Fuel GaugeNo
GovernorMechanical
ChokeChoke-a-matic
Air FilterDual element
Oil FilterYes
Fuel DeliveryCarburetor

Battery

Battery210 CCA
Battery TypeAGM (Absorbent Glass Mat)
Battery Voltage12V

Drive System

TransmissionTuff Torq® TL-200
Forward Speed5.5 MPH / 8.6 KMH
Reverse Speed2.5 MPH / 4 KMH
Drive SystemHydrostatic
Transmission ControlFoot Pedal
Transmission HousingAluminum

Cutting Deck

Deck Cutting Width46 in
Deck WashYes
Deck Material12-gauge steel
Deck Engagement (PTO)Manual
Deck ConstructionStamped
Blade(s)2
Deck LiftManual
Cutting Height Range1.5” – 3.75”
Anti-Scalping4 gauge wheels
Deck Positions12

Warranty

Warranty3-year limited residential
Frame Warranty3-year limited
Front Axle Warranty3-year limited
Deck Shell Warranty3-year limited
Commercial WarrantyNo

Chassis

FrameRobotically welded
Turning Radius16″
BumperNo
Rear Tow HitchYes
Corrosion ProtectionYes
Front Pivot BarCast iron

Controls

Cruise ControlYes
BrakesDisc

Comfort

Seat TypeHigh-back
ArmrestsNo
Seat AdjustmentLever
Floor MatsRubber

Wheels

Bearing TypePoly Bushing
Rear Tires20″x 8″-8″
Front Tires15″x 6″-6″
Tire TreadTurf Saver

Additional Specifications

Mulch KitAvailable Separately
Headlight(s)Standard
Cup HolderYes
Operator Presence SystemYes
Model Number13APA9BTA66

Disclaimers

SpecificationsSpecifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Hosepower*As rated by engine manufacturer
